Product Overview

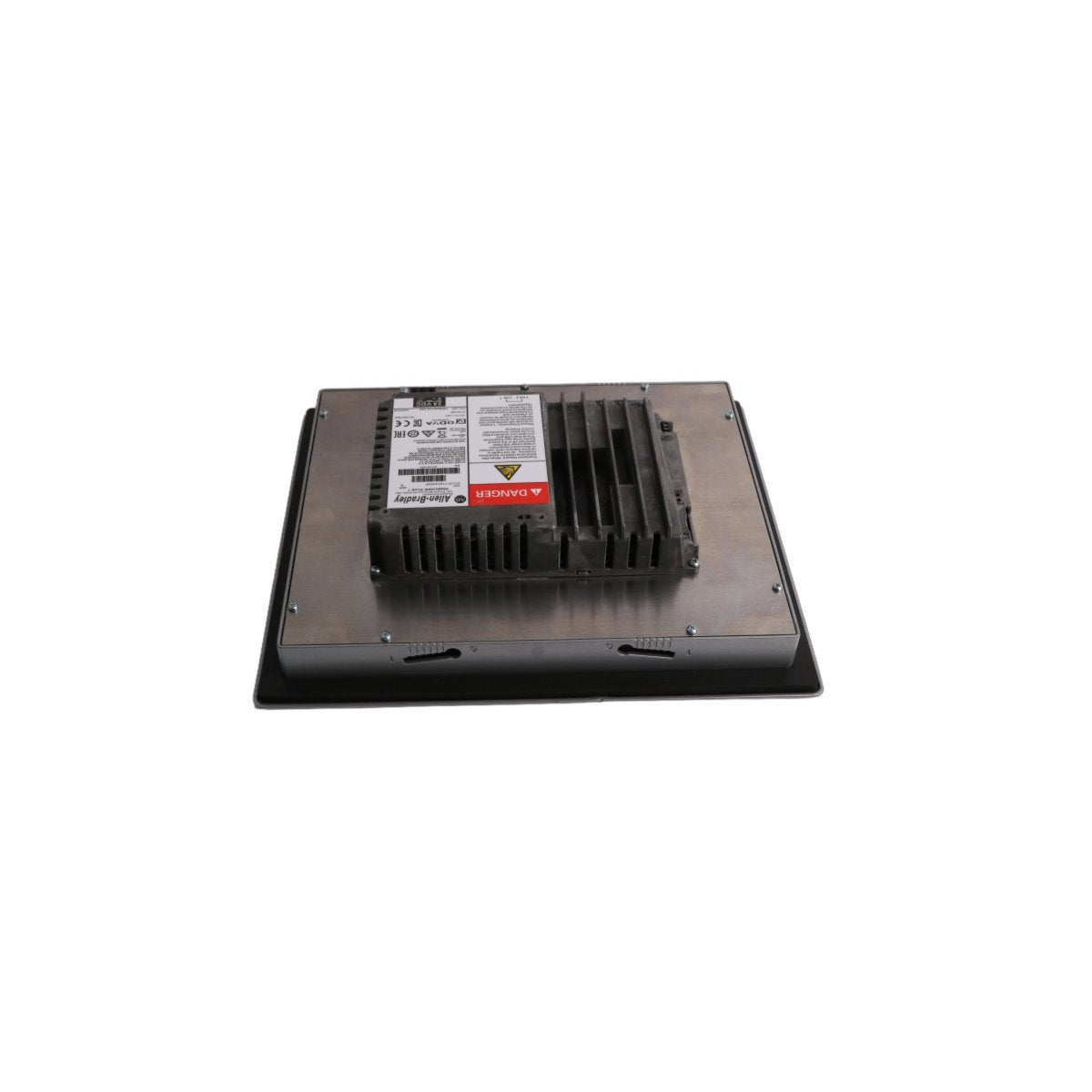

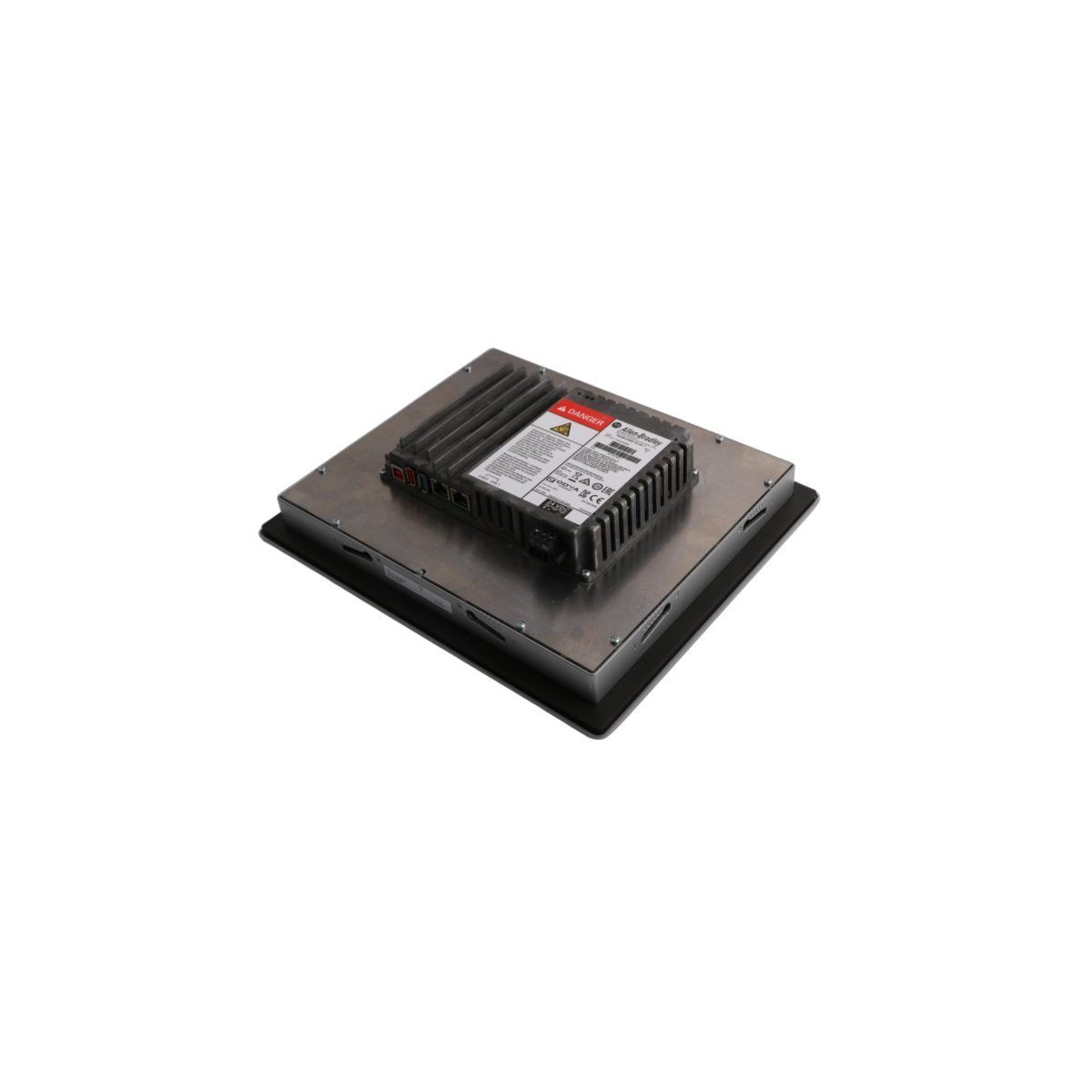

The Allen-Bradley 2711P-T10C22D9P is a sophisticated operator interface belonging to the PanelView Plus 7 Standard series. Featuring a 10.4-inch widescreen display, this Human-Machine Interface (HMI) is engineered to provide clear, real-time visualization and control for automated machinery. It serves as a centralized hub for monitoring system health, adjusting process parameters, and diagnostic troubleshooting within a ControlLogix or CompactLogix environment.

This terminal is equipped with a high-accuracy resistive touchscreen, allowing operators to interact seamlessly with complex graphical interfaces. Designed for durability in harsh industrial settings, the 2711P-T10C22D9P combines a robust hardware architecture with high-resolution imaging to ensure reliable performance on the factory floor.

Display and Visualization Features

The terminal utilizes advanced display technology to maintain visibility across various lighting conditions and viewing angles.

• Display Type: Color Active Matrix TFT with an 18-bit color depth.

• Screen Size: 10.4-inch diagonal viewing area.

• Resolution: 800 x 600 SVGA for crisp graphic rendering.

• Backlight: Long-life white solid-state LED with a 50,000-hour half-life at 25°C.

• Aspect Ratio: 4:3, optimized for standard industrial HMI applications.

Technical Performance and Connectivity

Under the hood, the 2711P-T10C22D9P is optimized for high-speed data processing and versatile network integration.

• Processing Memory: 512 MB RAM for smooth screen transitions and alarm handling.

• User Storage: 80 MB of non-volatile storage for application files; expandable via the SD card slot.

• Networking: Dual 10/100 Base-T Ethernet ports supporting Device Level Ring (DLR), linear, and star topologies.

• Peripheral Support: Integrated USB 2.0 High-Speed ports (one Type A host, one Type B device) for keyboard, mouse, or data export.

• Operating System: Closed-system Windows CE for enhanced security and stability.

Electrical and Environmental Specifications

The 2711P-T10C22D9P is built to comply with global industrial safety and environmental standards.

• Input Voltage: 24V DC nominal (range of 18–30V DC).

• Power Consumption: 50 Watts maximum (2.1A at 24V DC).

• Enclosure Ratings: IP66, NEMA Type 4X (indoor use only) when panel-mounted.

• Temperature Range: 0°C to 55°C (32°F to 131°F) operating temperature.

• Certification: ATEX Zone 2/22, CE, c-UL-us, and Class I Div 2 hazardous location ratings.

• Physical Profile: 252 x 297 x 69.6 mm; weight of 2.3 kg (shipping weight approximately 0.9kg for unit only).
