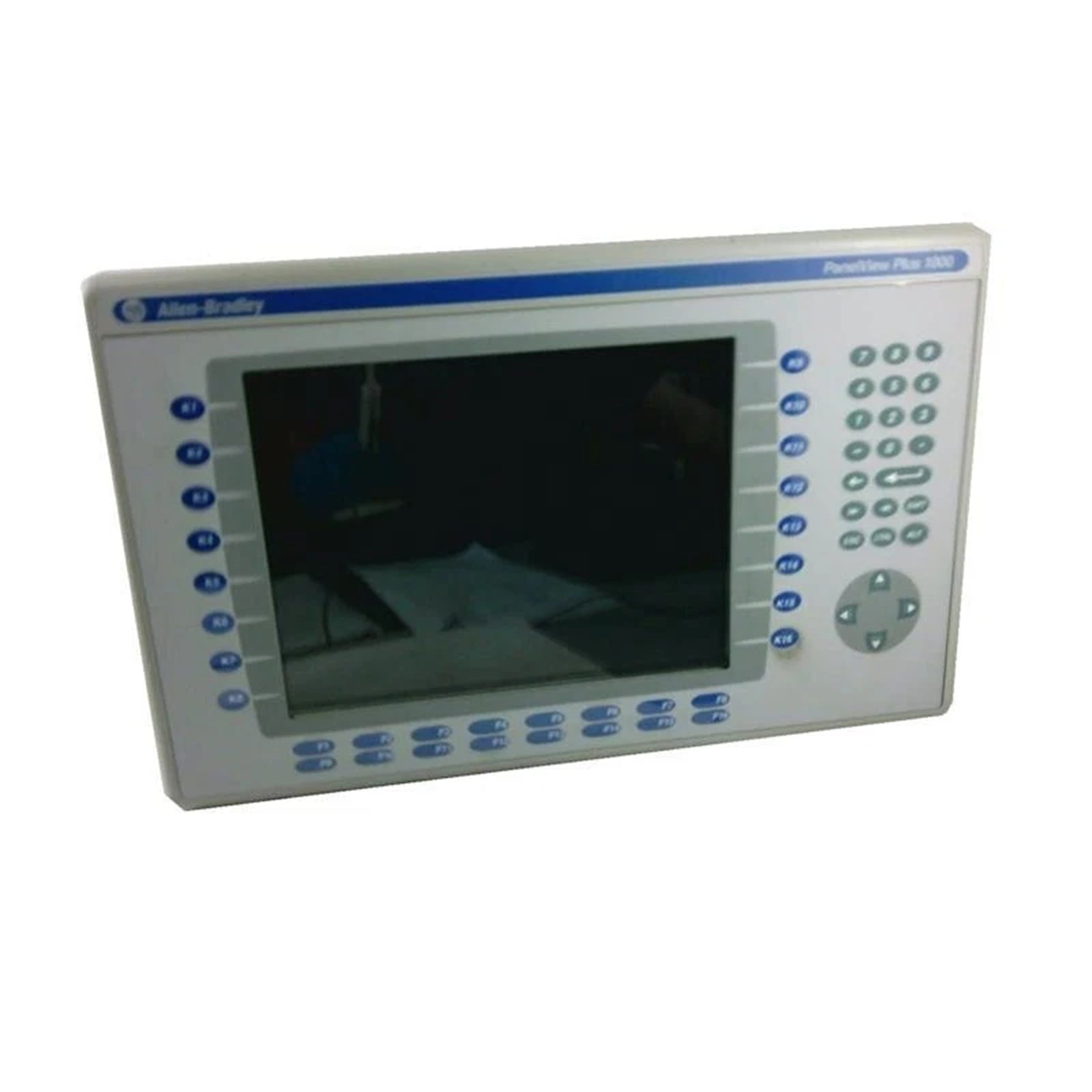

The Allen-Bradley 2711P-K10C4D8, also cataloged as the 2711P-K10C4D8 operator terminal, operates as a dedicated human-machine interface device for execution of local operator input processing and controller communication within PanelView Plus 6 networks. The 2711P-K10C4D8 processes keypad and touchscreen interaction signals and exchanges runtime data with PLC systems via Ethernet and RS-232 links.

Hardware Specifications

EtherNet/IP Deterministic Network Handling

Within Allen-Bradley PanelView Plus 6 architecture, the terminal maintains deterministic data exchange over EtherNet/IP using cyclic I/O connections and explicit messaging. Backplane communication handling between runtime logic modules and communication stack is synchronized with controller scan cycles, enabling predictable update intervals for tag-based HMI variables.

Keypad matrix scanning is processed independently from Ethernet task scheduling to avoid input latency under high network load conditions. RS-232 channel operates as point-to-point serial interface with fixed framing parameters defined in runtime configuration.

Field Installation Guidelines

• Mount terminal in enclosure cutout ensuring gasket compression is uniform across sealing perimeter
• Maintain clearance from high EMI conductors and VFD output cables to reduce signal coupling
• Connect protective earth using low impedance grounding point bonded to panel structure
• Wire 24 VDC supply within 18–30 VDC operating range using shielded conductors where required
• Route Ethernet cable using industrial RJ45 Cat5e or higher, maintain bend radius compliance
• RS-232 wiring should be limited to short distance, shield grounded at one end only
• Ensure USB ports are not exposed to uncontrolled contamination in panel environments

Frequently Asked Questions

Q: Does the 2711P-K10C4D8 support hot-swapping during operation?
A: No. Power removal during operation requires controlled shutdown to avoid Flash memory corruption.

Q: What is the communication refresh limitation over Ethernet?
A: Update rate depends on controller task interval; typical cyclic I/O operates in synchronized scan-based scheduling.

Q: Can USB ports be used for runtime firmware upgrades?
A: Yes, firmware and application transfer is supported via USB host interface under PanelView runtime loader mode.

Q: Does keypad input share processing with touch input?
A: No. Keypad scanning and touch sampling are handled by separate input processing routines.

Delivery Information

Delivery time: 2–7 days after payment confirmation via DHL / FEDEX / UPS. Anti-static industrial packaging with shock-protected foam enclosure and sealed moisture barrier bag applied for transport stability.

Frequently Asked Questions

Q: What is the input power architecture of the terminal?
A: The unit operates on 18–30 VDC nominal supply with internal regulation for logic and display circuits.

Q: Is the Ethernet interface isolated from RS-232?
A: Yes. Communication channels are electrically separated through internal interface isolation design.

Q: Can the display operate under continuous 24/7 runtime?
A: Yes. Backlight and TFT controller are designed for continuous industrial operation duty cycles.

Q: Does firmware support remote application updates?
A: Yes. Runtime application transfer is supported via Ethernet using Rockwell programming tools.
