The Allen-Bradley 2711P-B7C4D1, also cataloged as the 2711P-B7C4D1 Operator Interface, operates as a dedicated hardware component for human-machine interaction and real-time process visualization within industrial control networks.

Model Matrix Designation

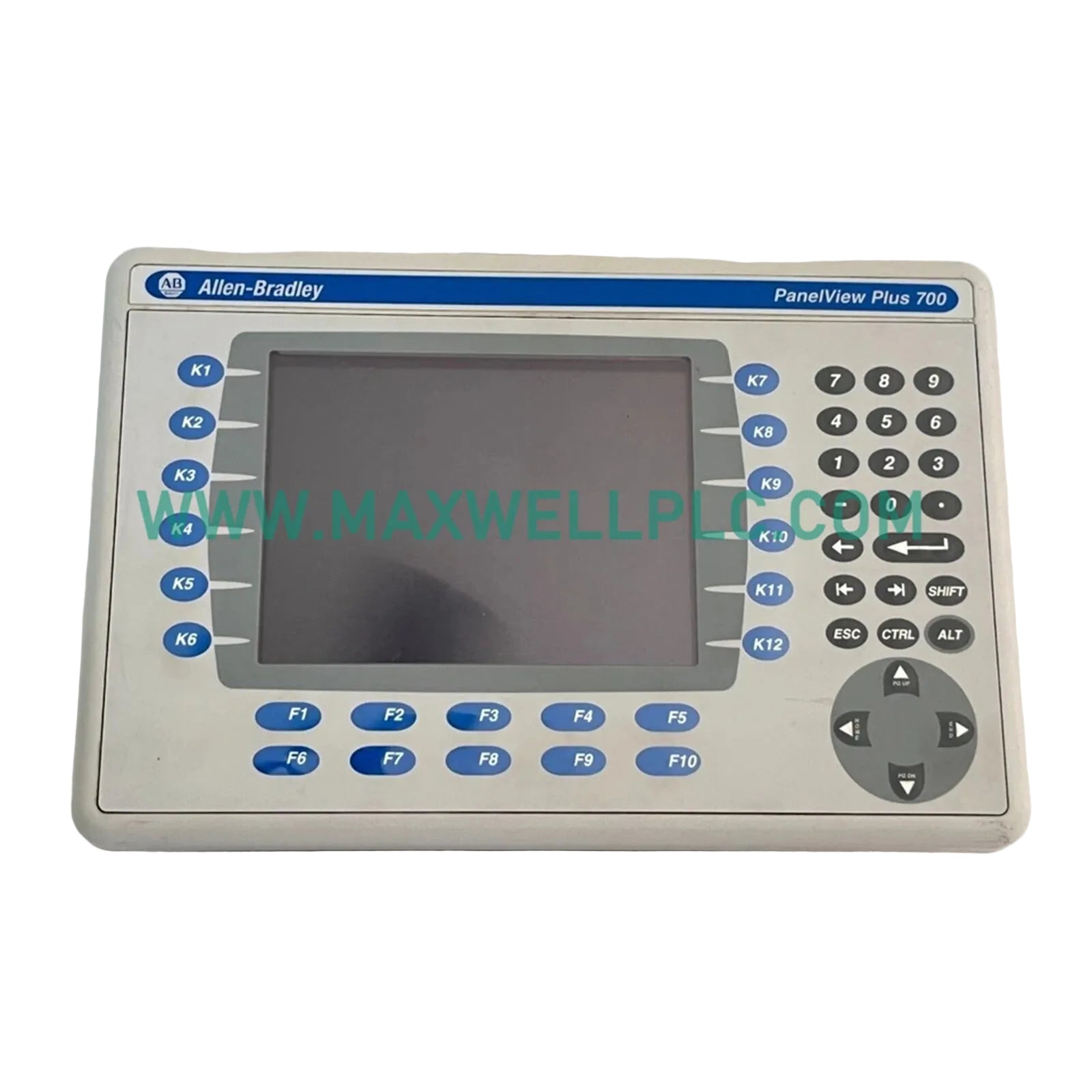

The 2711P-B7C4D1 belongs to the PanelView Plus 700 series, incorporating dual input modalities consisting of a resistive touch screen and 22 physical function keys (F1-F10, K1-K12). This configuration is optimized for applications requiring both tactile feedback and rapid software-driven interface control.

Hardware Technical Specifications

PLC and Controller Integration

This interface supports EtherNet/IP deterministic networks, enabling time-synchronized data exchange with Allen-Bradley programmable controllers. The module architecture is designed for firmware flash compatibility, facilitating system-wide updates to meet evolving control requirements. The integrated communication ports, including Ethernet and RS-232, allow for scalable connectivity across varying industrial topologies, maintaining high bus communication velocity during routine data polling.

Ordering and Scope of Delivery

• Allen-Bradley 2711P-B7C4D1 Operator Interface unit.

• The standard shipment does not include communication cables, power supply wiring, or mounting hardware beyond the bezel gaskets unless explicitly stated.

Field Installation Directives

• Power Isolation: De-energize all power sources (both AC and DC inputs) before mounting the unit or connecting peripheral cables.

• Enclosure Sealing: Ensure the panel cutout is dimensionally accurate and clean to maintain the NEMA/IP rating of the front bezel seal.

• ESD Compliance: Utilize an anti-static wrist strap during installation to protect the sensitive internal TFT display driver and processor components.

• Fastener Torque: Tighten mounting clips uniformly around the bezel perimeter to prevent screen warping and ensure a consistent environmental seal.

Shipment Logistics

• Delivery time: 2-7 days when payment finish.

• Dispatched via DHL/FEDEX/UPS.

• All units utilize anti-static industrial packaging to mitigate vibration and electrostatic risk during transit.

Frequently Asked Questions

• What causes unstable display performance?

  Unstable display behavior is often linked to voltage fluctuations at the input or electromagnetic interference (EMI) originating from improperly shielded network cabling.

• How is the device firmware updated?

  Firmware is updated via the Ethernet port or external storage devices; ensure the runtime version is compatible with the target PLC communication driver.

• Can this unit support hot-swapping?

  No. The device must be powered down before connecting or disconnecting communication or power cables to prevent logic module faults.

• What is the expected service life?

  Service life is dependent upon the duty cycle of the backlight; the 300 nits luminance will degrade over thousands of operating hours in high-temperature environments.

• Is the unit rated for hazardous environments?

  Consult the specific OEM documentation for the unit's Class and Division ratings; do not operate in hazardous locations without an appropriate protective enclosure.
