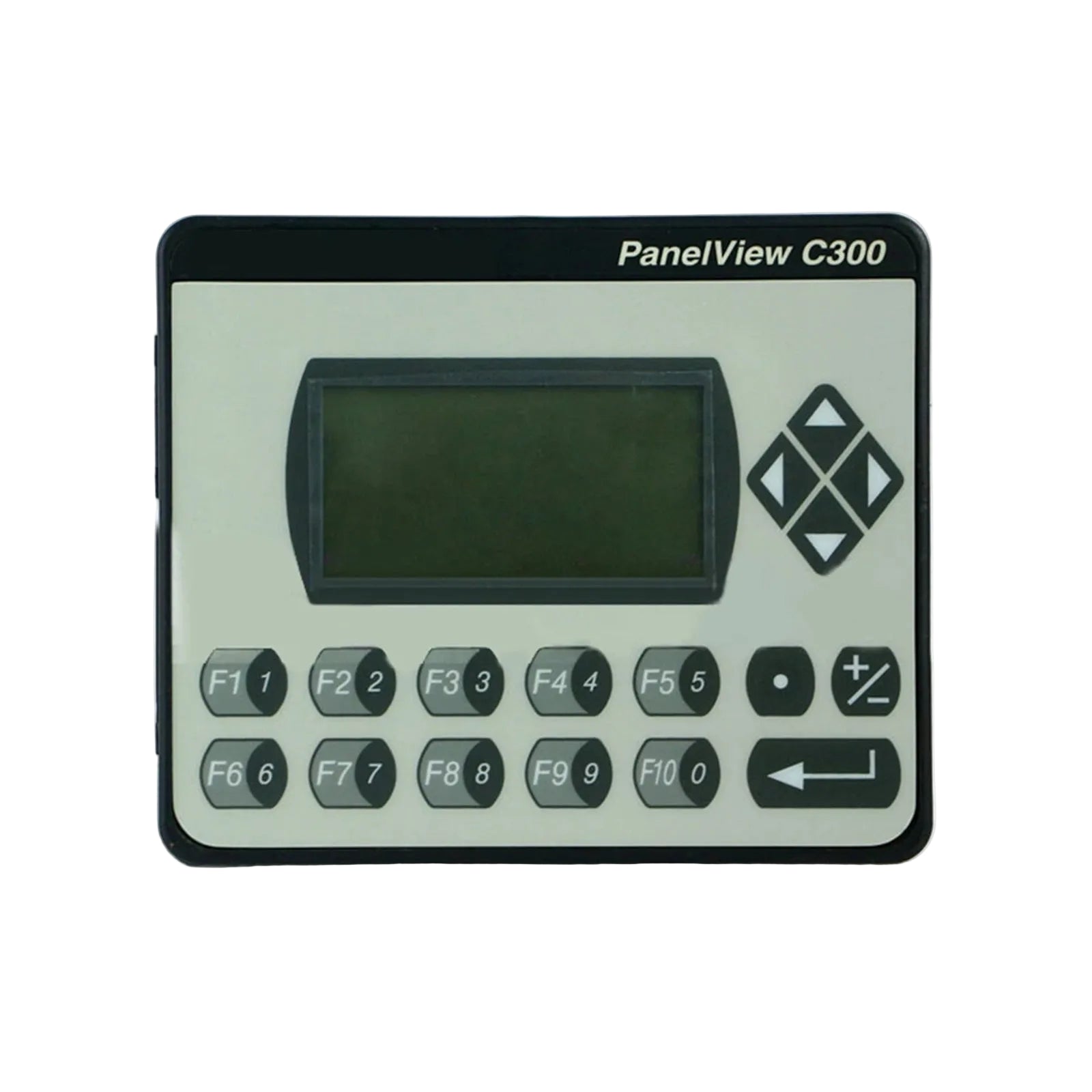

Configured for graphical process visualization and operator interaction in industrial control networks, the Allen-Bradley 2711C-K3M (2711C-K3M/B Operator Interface) provides direct physical and electrical execution of operator commands and system status monitoring.

Model Versioning and Configuration

The 2711C-K3M serves as the base model for the PanelView Component C300 series. The "/B" suffix indicates the revision state of the unit, signifying hardware and firmware compatibility updates from the initial release version. No further sub-variants are defined for this catalog number.

Hardware Specifications

Industrial Control Technical Attributes

The terminal utilizes internal firmware architectures optimized for high-speed deterministic data exchange. It maintains full firmware flash compatibility for essential system updates. Users must ensure strict adherence to backplane communication protocols to maintain I/O density scaling and avoid data processing latencies during high-frequency scan cycles.

Ordering Information

• 1 x 2711C-K3M Operator Interface Terminal.

• 1 x Mounting hardware kit (gasket and securing clips).

• 1 x 3-pin power connector block.

• Note: Programming software and serial communication cables are separate catalog items.

Field Installation Procedures

• Panel Mounting: Ensure the panel cutout is deburred to prevent damage to the gasket seal; verify enclosure maintains appropriate NEMA/IP ratings.

• Grounding: Connect the chassis ground lug to a low-impedance earth ground to dissipate transient electromagnetic interference.

• Cabling: Use only shielded, twisted-pair cables for serial data transmission; maintain a minimum 300 mm clearance from high-power conductors.

• Termination: Apply a 120-ohm termination resistor at both physical ends of any RS-485 network segment to prevent signal reflections.

Logistic Dispatch Details

• Delivery time: 3-5 days when payment finish.

• Shipment via DHL/FEDEX/UPS.

• All units are secured in anti-static industrial packaging to prevent electrostatic discharge and mechanical shock during international transit.

Frequently Asked Technical Queries

• What is the expected service life?

  Depends on thermal conditions and duty cycles. Electronic components are robust, but the backlight is a consumable part. Proper ventilation and dust prevention are critical to ensure maximum longevity.

• Can the terminal operate in hazardous environments?

  No. This unit lacks explosion-proof ratings. It is intended for safe industrial zones only. Deployment in hazardous areas requires installation within a certified third-party explosion-proof enclosure.

• What causes unstable communication?

  Usually signal reflection or EMI. RS-485 segments require 120-ohm termination. Ensure data cables are shielded, grounded at one point, and routed away from high-voltage power lines to prevent noise.

• How is the firmware updated and what are the risks?

  Via serial port using configuration software. Power loss during the flash can cause bootloader corruption (bricking). Ensure a stable 24 VDC power source and secure cable connections during the process.

• What is the maximum RS-485 cable length?

  The theoretical limit is 1200 meters, but this decreases with higher baud rates or noise. For runs over 500 meters, use an RS-485 repeater to maintain signal integrity and prevent packet loss.

• How should the keypad be maintained and cleaned?

  Clean only with a soft, damp cloth. Avoid chemical solvents or sharp objects, as these damage the membrane overlay and cause mechanical fatigue. Failure to register inputs indicates internal wear.

• Does the unit support hot-swapping?

  No. Never connect or disconnect wires while powered. Transients can destroy communication transceivers. Always follow Lockout/Tagout (LOTO) procedures before any physical maintenance on the unit.

• How is the device calibrated for input accuracy?

  No calibration is needed. It uses a fixed membrane keypad; input logic is defined by software. If keys fail, verify the PLC tag mapping. Display issues are hardware-level and cannot be calibrated.
