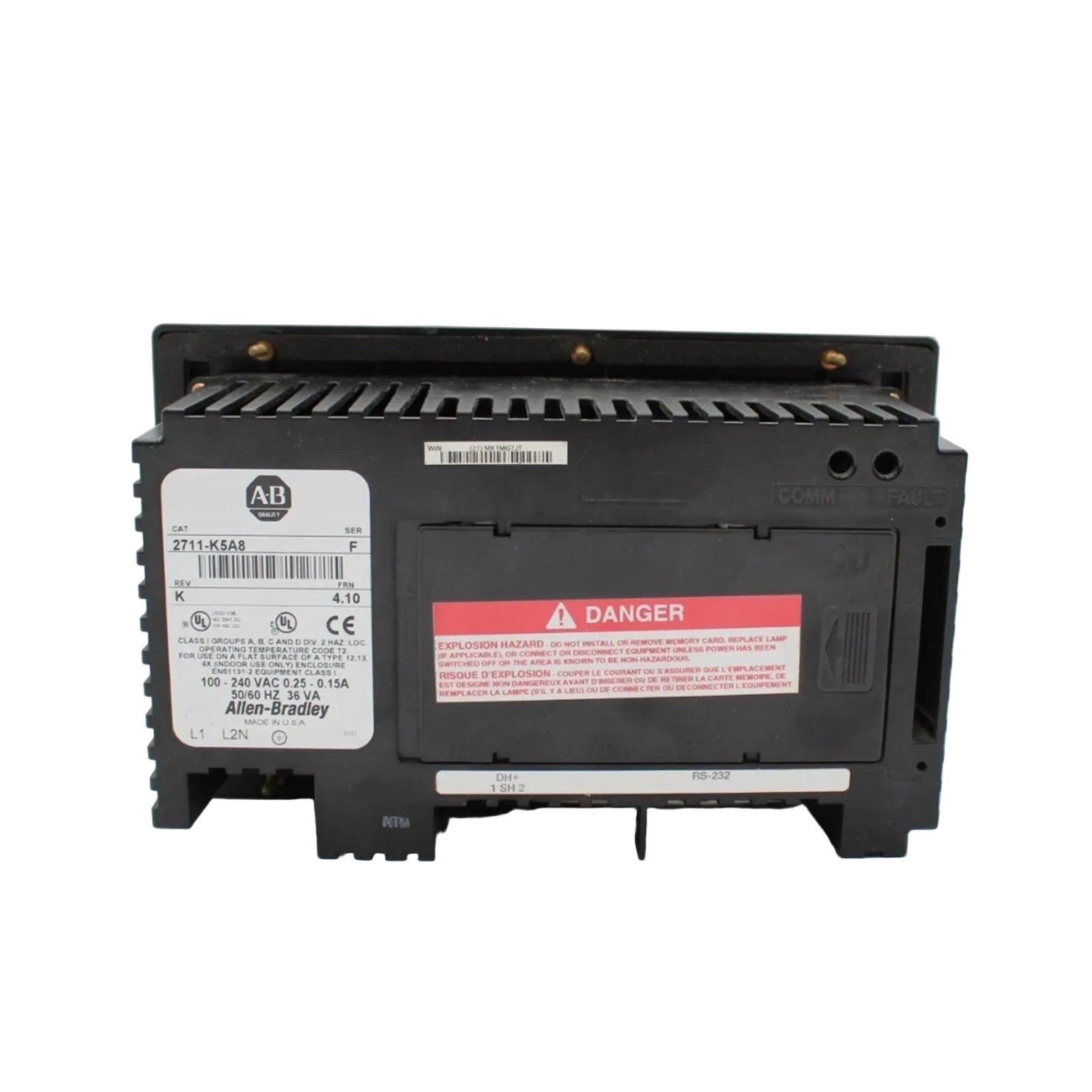

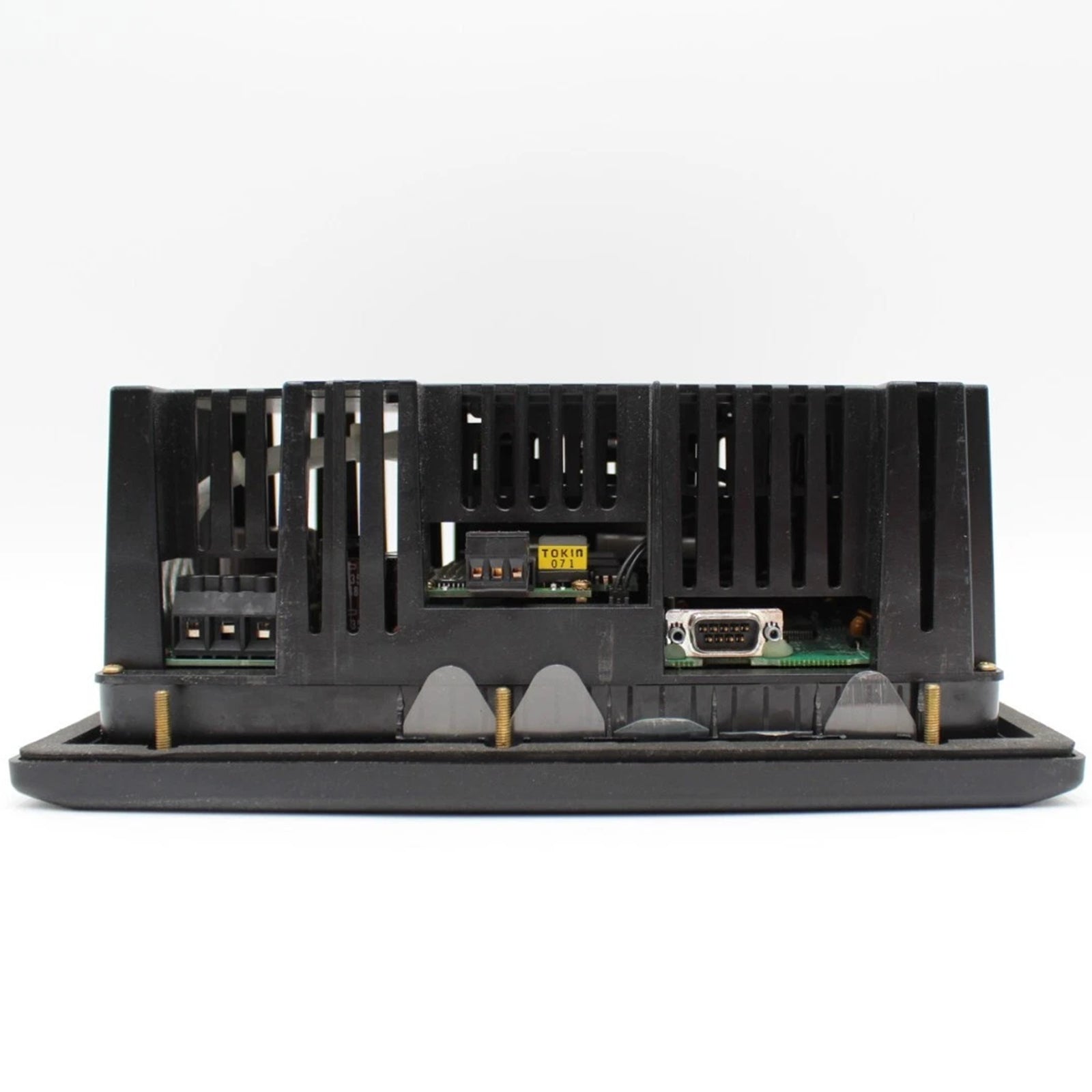

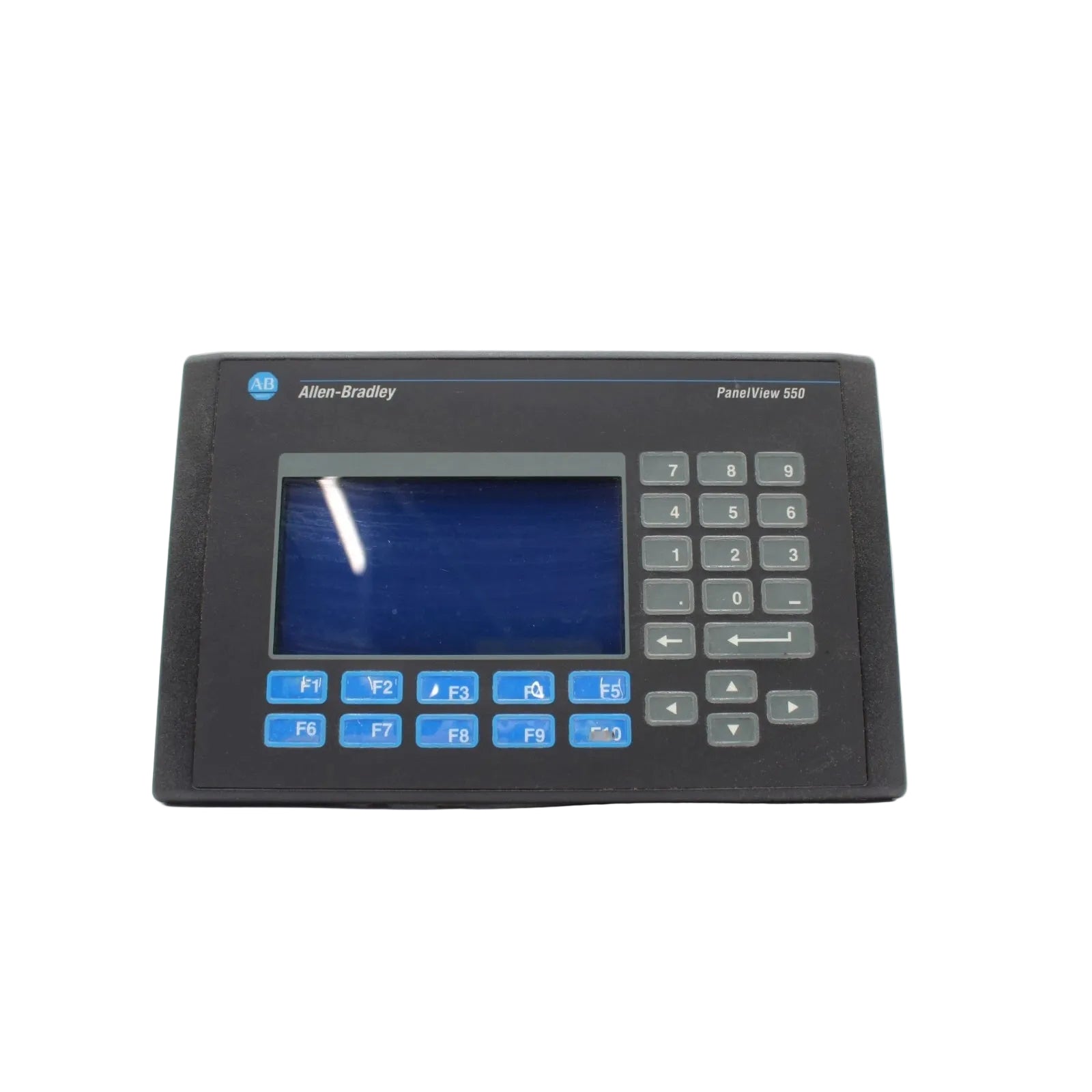

Configured for localized human-machine interaction in automated control systems, the Allen-Bradley 2711-K5A8 (2711-K5A8 Operator Interface) provides direct physical and electrical execution of visualization and data entry tasks via an integrated keypad.

Model Identification Data

The 2711-K5A8 is a monochrome terminal belonging to the PanelView 550 series. This hardware component incorporates a 5.5-inch display and an RS-232 printer port for event logging. Production of this unit was discontinued by the manufacturer effective 06/30/2012.

Hardware Technical Specifications

Industrial Controller Connectivity

The device architecture supports backplane bus communication velocity consistent with PanelView Standard requirements, ensuring synchronization with connected PLC controllers. The firmware structure provides compatibility for predefined register mapping, facilitating consistent data transmission across serial links. High-density I/O monitoring is maintained through direct memory polling, minimizing interface latency during runtime operations.

Scope of Delivery

• Allen-Bradley 2711-K5A8 operator terminal unit.

• Package excludes serial communication cables, interface configuration software, and mounting hardware unless explicitly listed in the purchase order.

Field Installation Guidelines

• Power Isolation: De-energize the 100-240 VAC supply source prior to terminal installation or cable termination to prevent electrical arcs.

• Grounding: Secure the terminal chassis to a low-impedance earth ground to attenuate electromagnetic interference (EMI) affecting the monochrome display driver.

• Panel Cutout Integrity: Verify the dimensions of the mounting aperture to ensure the front bezel gasket achieves a proper seal, preventing dust ingress in industrial cabinet environments.

• ESD Mitigation: Utilize a grounded wrist strap when connecting internal components or memory media to prevent static discharge to the logic circuits.

Logistics and Transit Standards

• Delivery time: 2-7 days when payment finish.

• Dispatched via DHL/FEDEX/UPS.

• All hardware is shipped utilizing anti-static industrial packaging to provide protection against physical shock and electrostatic discharge during international transit.

Frequently Asked Questions

• How is the device firmware updated?

  The PanelView 550 firmware is static; operational updates are limited to the application project file transferred via the configuration port.

• What indicates a display failure?

  Flickering or total loss of contrast on the monochrome display typically indicates a failure of the internal backlight inverter circuit.

• Can the unit communicate with multiple PLCs?

  Communication is limited to the protocol defined in the application project; ensure the serial link driver is compatible with the target controller node.

• What causes communication parity errors?

  Parity errors are generally caused by baud rate mismatches or excessive signal noise on the RS-232 link; verify cable shielding and termination.

• Is the unit hot-swappable?

  No. The unit must be fully de-energized before removing communication cables or modules to prevent backplane bus faults.
