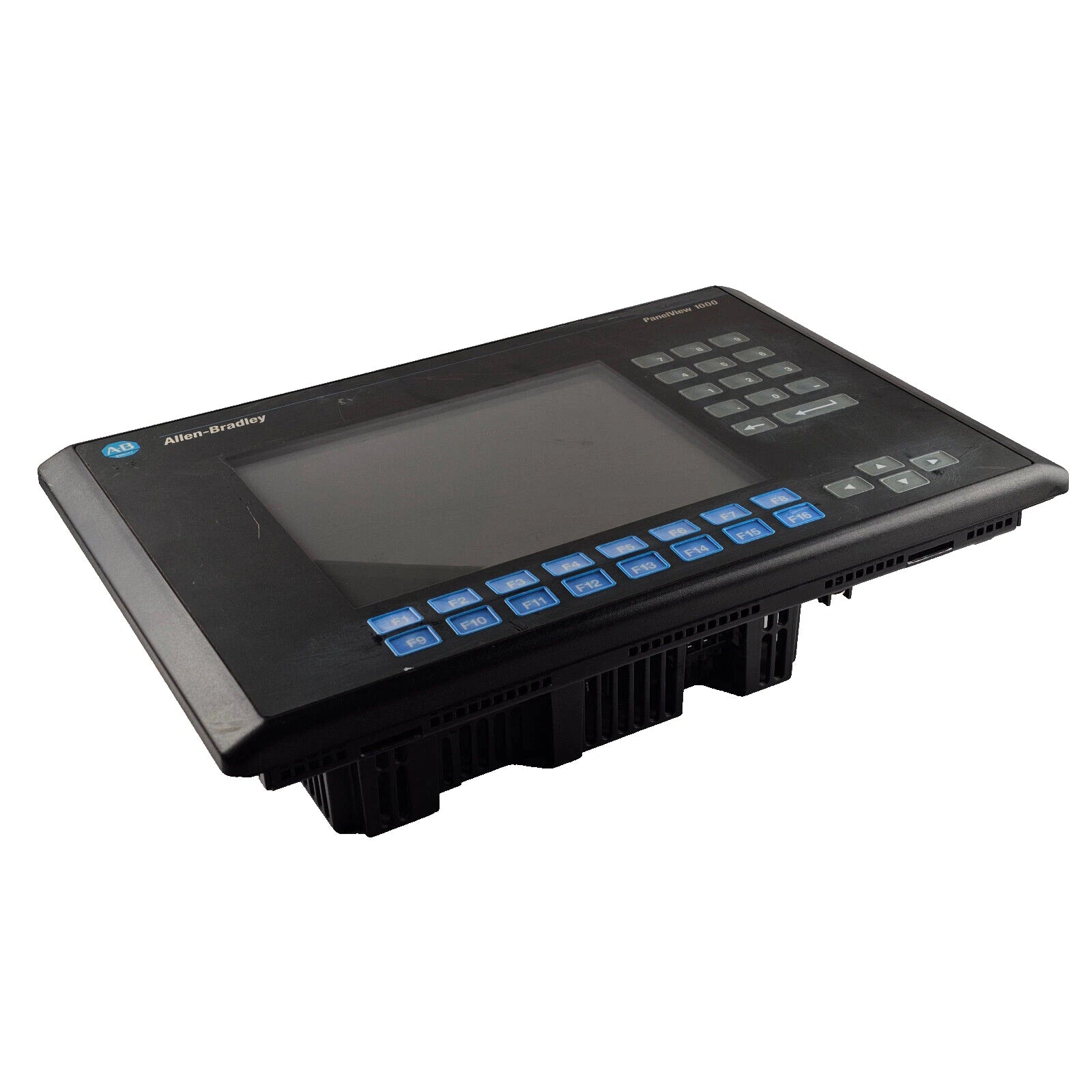

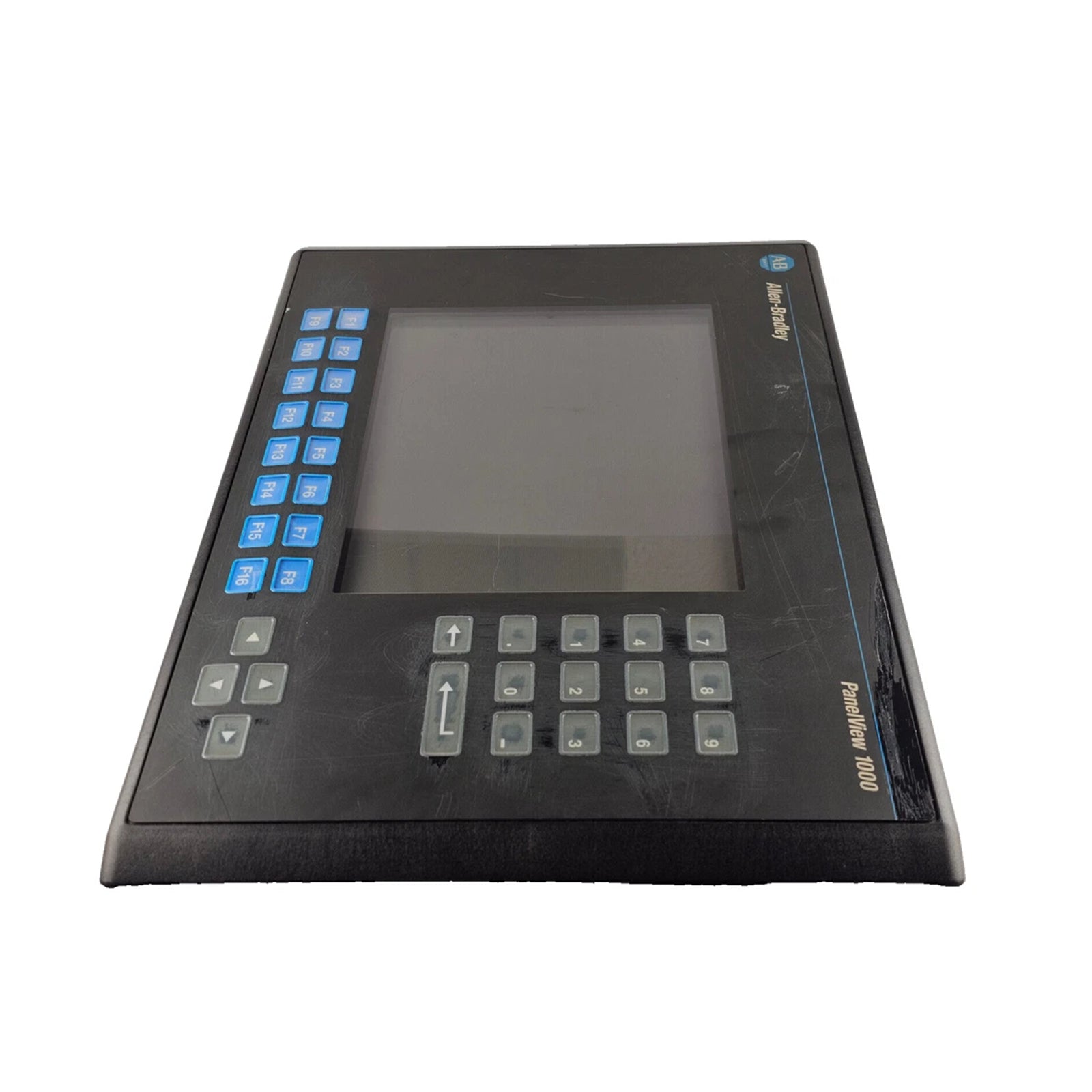

The Allen-Bradley 2711-K10G9X, also cataloged as the 2711K10G9X Operator Interface, operates as a dedicated hardware component for localized machine state monitoring and operator control within DH-485 and RS-232 communication network platforms.

Model Identification Data

The 2711-K10G9X is a 10 inch grayscale terminal providing high-density pixel visualization for standard process monitoring. It utilizes a keypad-based entry system and supports standard RS-232 communication for data exchange and printer interface integration.

Hardware Specifications

Industrial Control Compatibility

The Allen-Bradley terminal supports firmware flash compatibility to ensure sustained synchronization with legacy and current control platforms. System designers must account for the specific backplane bus communication velocity requirements when integrating this terminal into broader I/O networks. Deterministic performance is contingent upon the proper configuration of communication parameters to prevent signal degradation across the RS-232 physical layer.

Ordering Information

• 1 x 2711-K10G9X PanelView 1000 Operator Terminal

• 1 x Mounting hardware kit

• 1 x Installation documentation and regulatory safety sheet

• Note: Communication cabling and application transfer cables are provided separately.

Field Installation Guidelines

• Panel Preparation: Ensure the mounting surface provides a flat, rigid seal area. Cutout dimensions must be verified prior to installation to ensure compliance with NEMA/IP ratings.

• Electrical Connection: Use a dedicated 100-240 VAC power source. Ensure the ground terminal is connected to a low-impedance earth ground to mitigate EMI.

• Communication Wiring: Route DH-485 and RS-232 cables away from high-voltage AC lines. Shielding must be terminated correctly to avoid ground loops.

• Environmental Stability: Avoid installing in environments exceeding rated thermal limits; ensure adequate airflow behind the unit to allow for heat dissipation.

Logistics and Transit

• Delivery time: 2-7 days when payment finish.

• Dispatched via DHL/FEDEX/UPS.

• All units utilize anti-static industrial packaging to prevent electrostatic discharge (ESD) and mechanical impacts during transport.

Technical FAQs

• How is probe health tested? (Applicable for diagnostic verification): Health is monitored via internal status registers; loss of communication with the host controller triggers a system-level alarm status.

• What causes unstable gap voltage? (System signal stability): Unstable communication signals are often the result of improper termination resistors or shielding interference on the RS-232 line.

• How often should calibration be verified? (Display maintenance): Contrast and brightness should be verified if environmental operating temperatures deviate significantly from the reference setup.

• What is the expected service life? (Hardware durability): Service life is determined by the duty cycle of the internal backlight and the number of keypad actuations.

• Can the terminal operate in hazardous environments? (Safety): Only if the terminal is installed within a properly rated NEMA enclosure suitable for the classified environment.

• What extension cables are compatible? (Physical connectivity): Use shielded cables matching the impedance requirements for RS-232 communication to minimize signal reflection.

• Is the memory capacity expandable? (Memory limitations): No, the 1008 KB non-volatile and 310 KB RAM are fixed hardware limitations that cannot be upgraded in the field.
