Product Overview

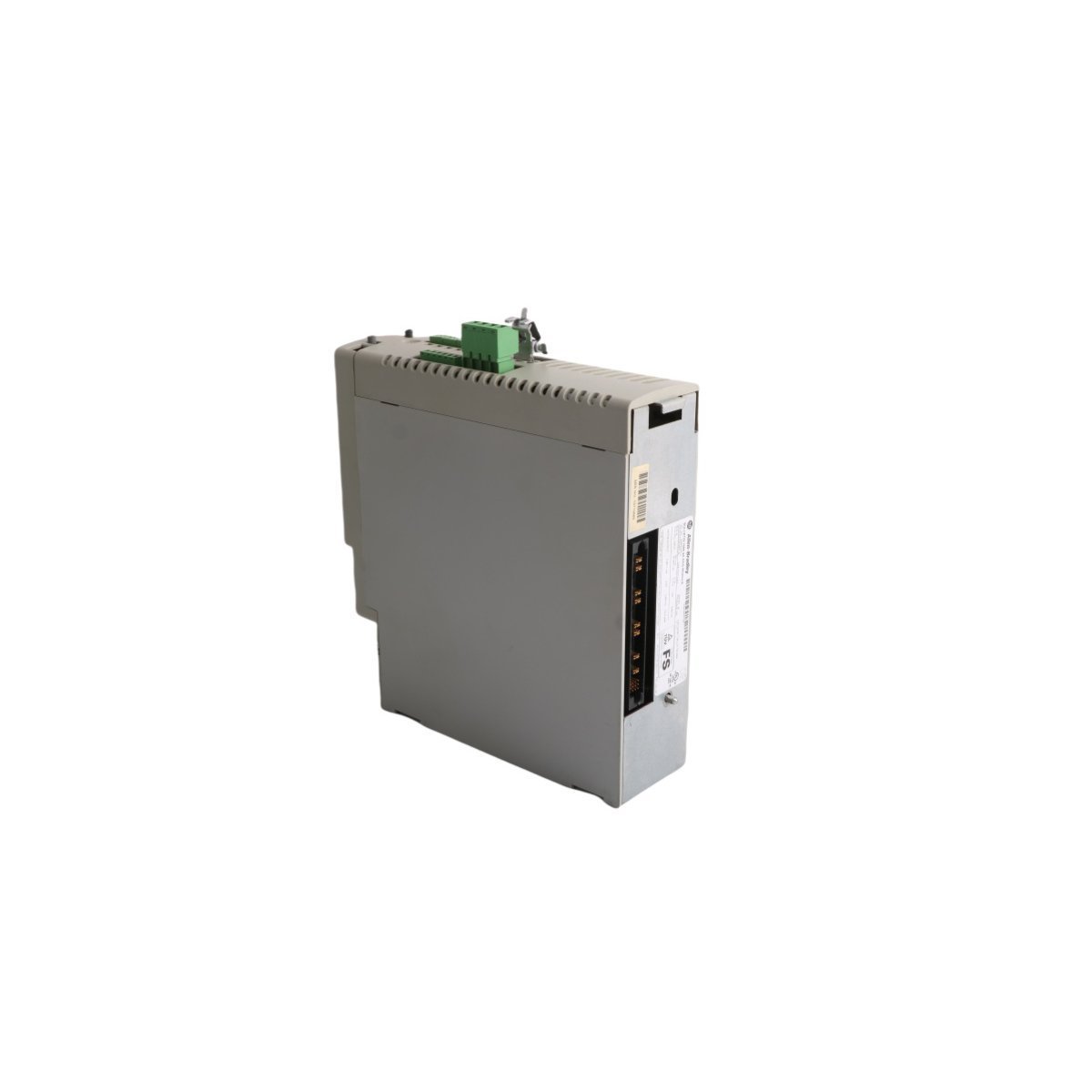

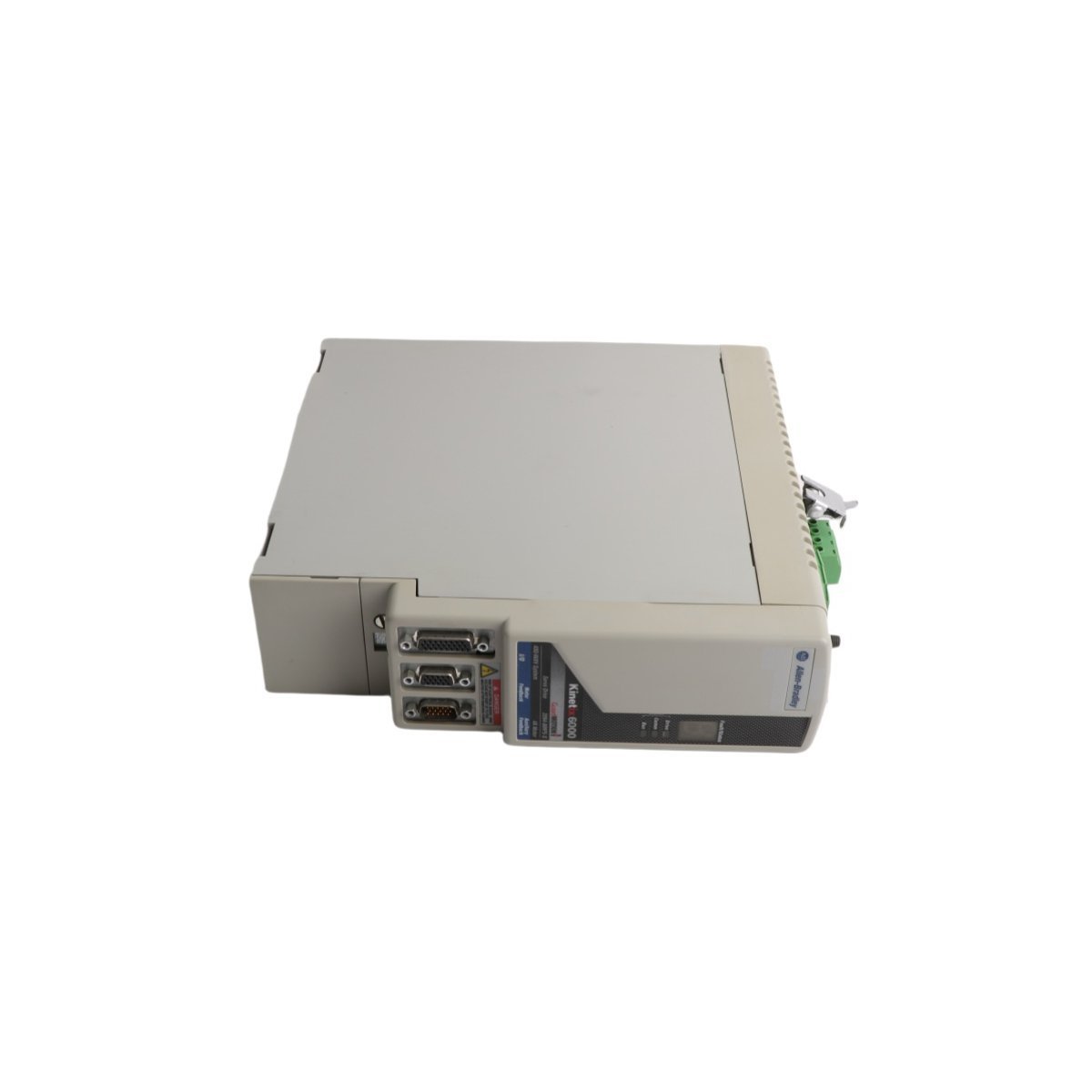

The Allen Bradley 2094-BMP5-M is a high-performance axis module engineered for the Kinetix® 6000 and Kinetix 6200/6500 multi-axis servo drive systems. This power module provides the essential electrical drive stage for high-precision motion control applications, delivering 1.8kW of continuous output power. Designed to streamline machine architecture, the 2094-BMP5-M integrates seamlessly onto the Integrated Multi-axis (IAM) rail system, facilitating rapid installation and significantly reduced cabinet wiring compared to traditional standalone drives.

This module is highly versatile, supporting both SERCOS and EtherNet/IP network communication when paired with the appropriate control header. Its modular design allows for independent axis replacement and scaling, making it a critical component for complex automation lines in packaging, material handling, and automotive assembly where synchronized motion and high-speed responsiveness are paramount.

Technical Specifications and Performance

The 2094-BMP5-M is characterized by high-frequency loop response and robust power handling capabilities for demanding industrial cycles.

• Module Type: Axis Power Module (Multi-Axis)

• Continuous Output Power: 1.8 kW

• Continuous Output Current: 2.8 A (RMS)

• Peak Output Current: 7.0 A (RMS)

• Bus Input Voltage: 650V DC (Derived from IAM module)

• Output Voltage: 0–480V AC (3-Phase)

• Velocity Loop Frequency: 500 Hz

• Current Loop Frequency: 1300 Hz

• PWM Frequency: 8 kHz

• Internal Shunt Resistance: 115 Ω

• Energy Absorption: 10 Joules (75μF capacitance)

• Physical Dimensions: 28.5 x 25.5 x 7.0 cm

• Weight: 2.9 kg (6.4 lbs)

Key Functional Characteristics

• Integrated Safety Features: The module supports advanced safety functions, including Safe Torque Off (STO) and Safe Speed Monitoring. These embedded capabilities reduce the need for external safety relays and simplify compliance with global machinery safety standards (SIL3/PLe).

• Efficiency and Heat Management: With an efficiency rating of approximately 98%, the 2094-BMP5-M minimizes thermal loss, reducing the cooling requirements within the control enclosure and extending the operational life of the electronics.

• Intelligent Diagnostics: The front-panel LED indicators provide immediate status regarding power application and fault conditions. Advanced internal diagnostics allow for real-time monitoring of acceleration, speed, and torque via the controller software.

• Simplified Connectivity: Utilizing Phoenix-style terminal blocks, the module offers secure and vibration-resistant connections for motor power (U, V, W), motor brakes, and external dynamic braking units if required.

• Backward Compatibility: While optimized for Kinetix 6200 and 6500 series applications, the 2094-BMP5-M maintains a migration path for legacy Kinetix 6000 systems, allowing for easy hardware updates without complete system redesigns.
