Product Overview

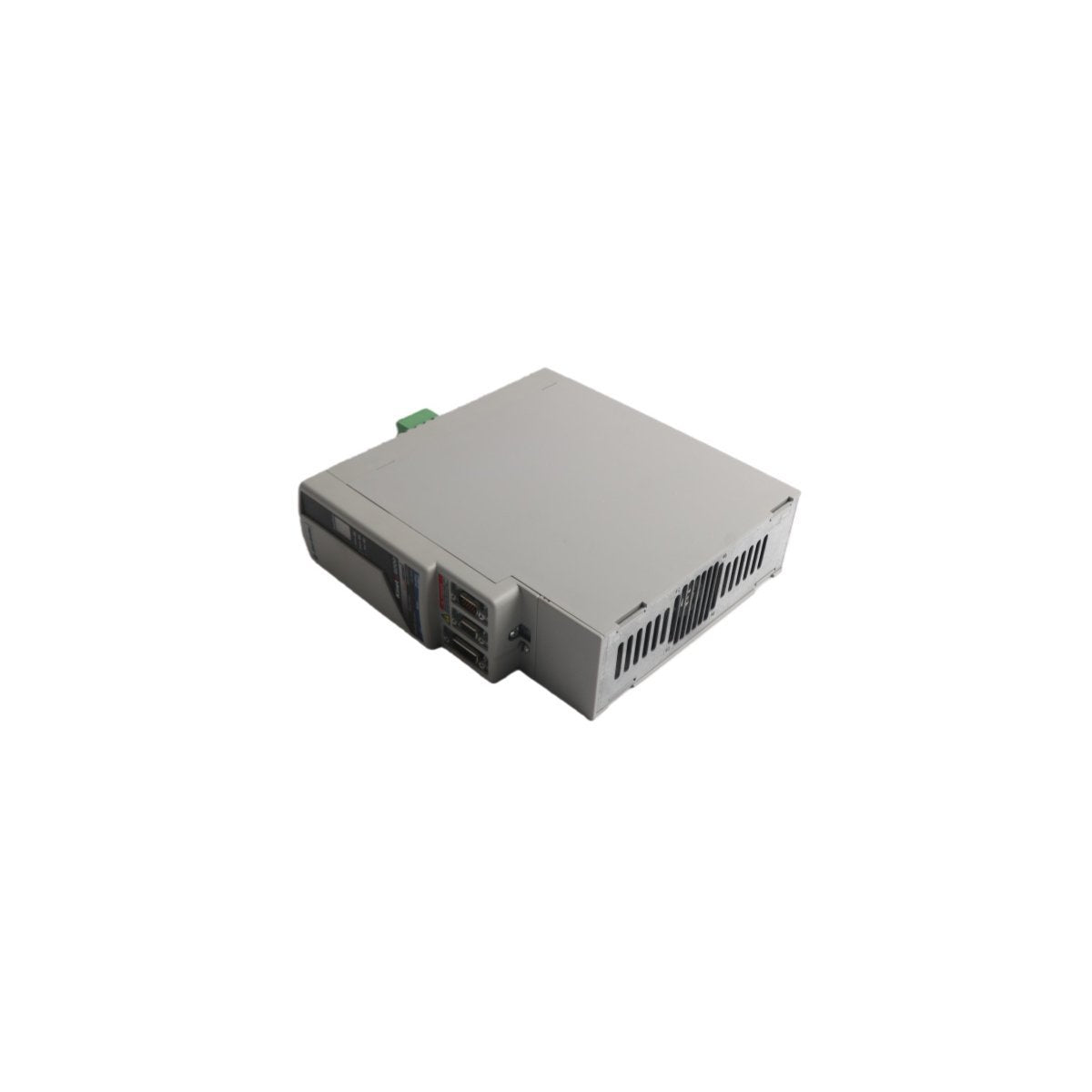

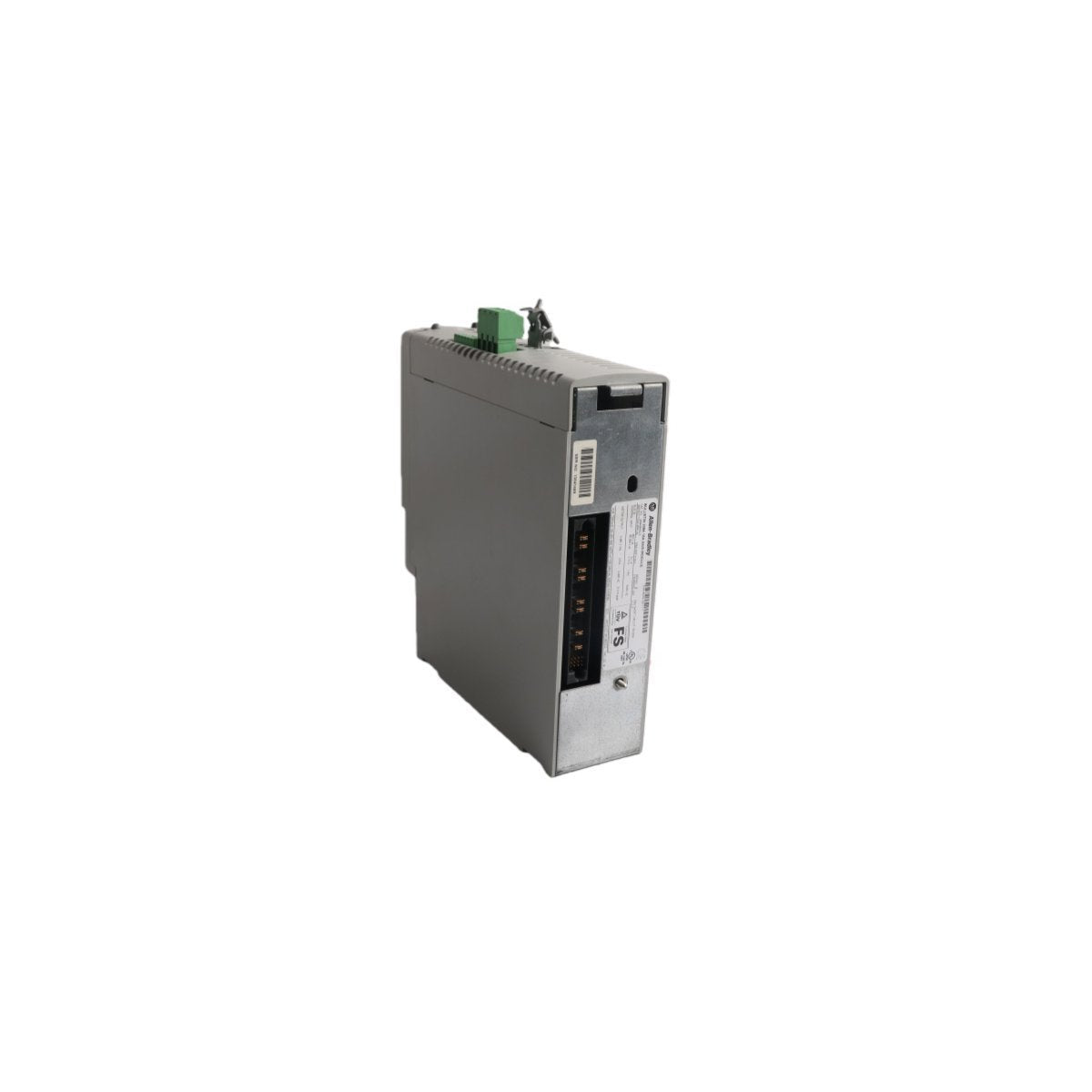

The Allen-Bradley 2094-BM02-M is a high-performance modular inverter section designed for the Kinetix 6200 and Kinetix 6500 multi-axis servo drive platforms. Operating on a 460V three-phase power bus, this axis module provides a continuous output current of 15A. It serves as the power stage of a modular drive system, requiring a compatible control module (such as the 2094-EN02D-M for EtherNet/IP or 2094-SE02F-M for SERCOS) to function as a complete single-axis servo controller.

The 2094-BM02-M is engineered to simplify complex motion tasks by integrating high-power density with advanced safety protocols. Its modular "plug-and-play" design allows it to be easily mounted onto an IAM (Integrated Axis Module) power rail, significantly reducing cabinet wiring complexity and assembly time in multi-axis machinery configurations.

Technical Characteristics and Performance

This axis module is distinguished by its robust power handling and integrated safety intelligence, which are essential for modern high-speed production environments.

• Power Rating: 460V AC Three-Phase input; 15A peak inverter output.

• Modular Compatibility: Designed for use with Kinetix 6200 (SERCOS) and Kinetix 6500 (EtherNet/IP) control modules.

• Integrated Safety: Supports Safe Torque Off (STO) and Safe Speed Monitoring, facilitating ISO 13849-1 PLe/SIL3 compliance.

• Operational Monitoring: Real-time tracking of Safe Maximum Speed, Safe Direction, and Safe Maximum Acceleration.

• Network Versatility: Enables a seamless transition between traditional SERCOS fiber optic networks and high-speed EtherNet/IP synchronized motion.

• Diagnostic Interface: Provides advanced fault detection and status reporting to minimize troubleshooting intervals.

• Thermal Management: Optimized heat dissipation for consistent performance in dense cabinet installations.

Industrial Applications and Integration

The 2094-BM02-M is widely utilized in sectors where synchronized motion and personnel safety are paramount. Its ability to maintain "Safe Speed" allows operators to perform routine maintenance or adjustments without completely de-energizing the system.

• Automotive Manufacturing: Precise control of robotic welding cells and synchronized assembly line conveyors.

• High-Speed Packaging: Managing multi-axis cartoning, labeling, and filling machines requiring rapid acceleration and deceleration.

• Material Handling: Powering automated storage and retrieval systems (AS/RS) and high-load gantry systems.

• Converted Paper and Printing: Ensuring accurate tension and registration control in continuous-web printing presses.
