Product Overview

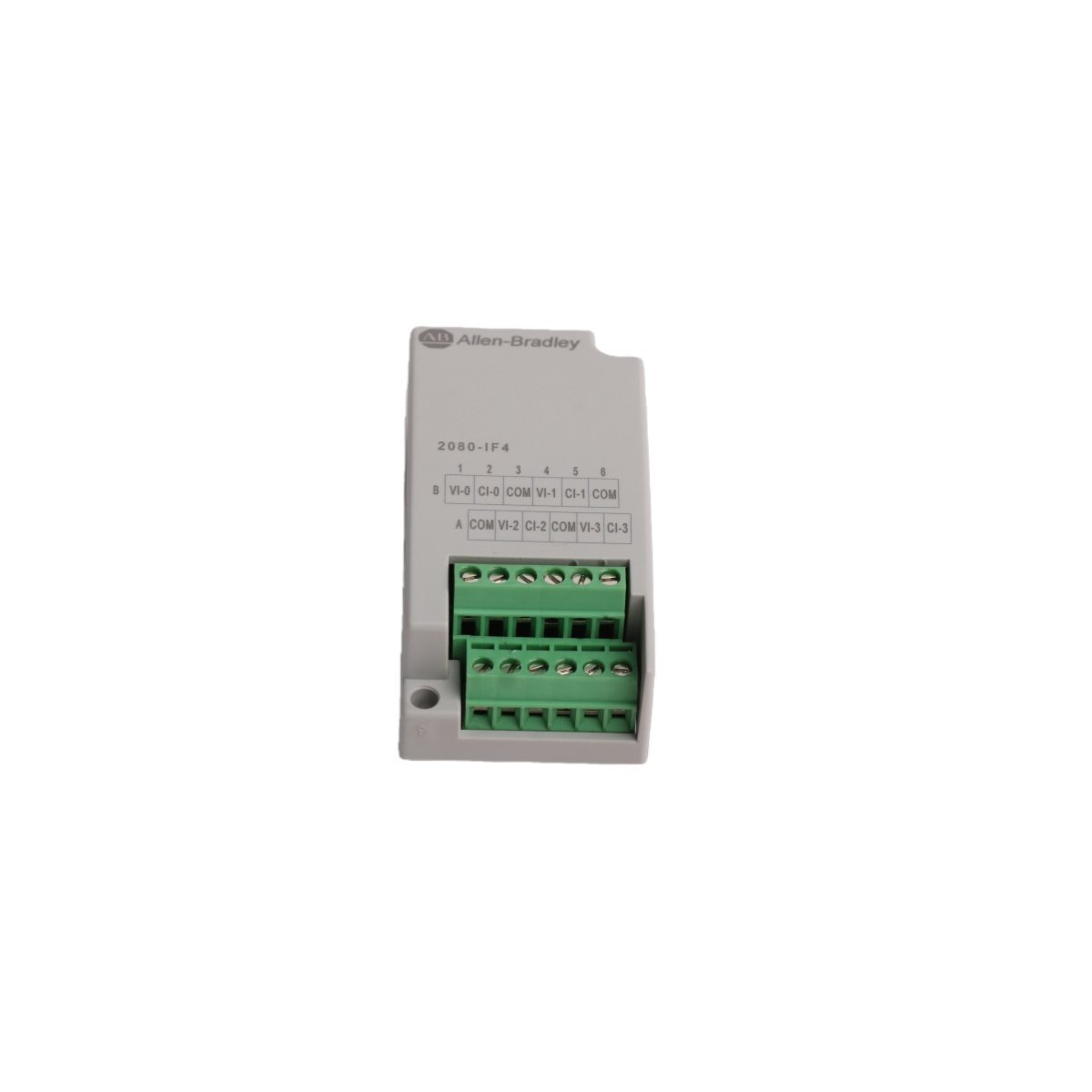

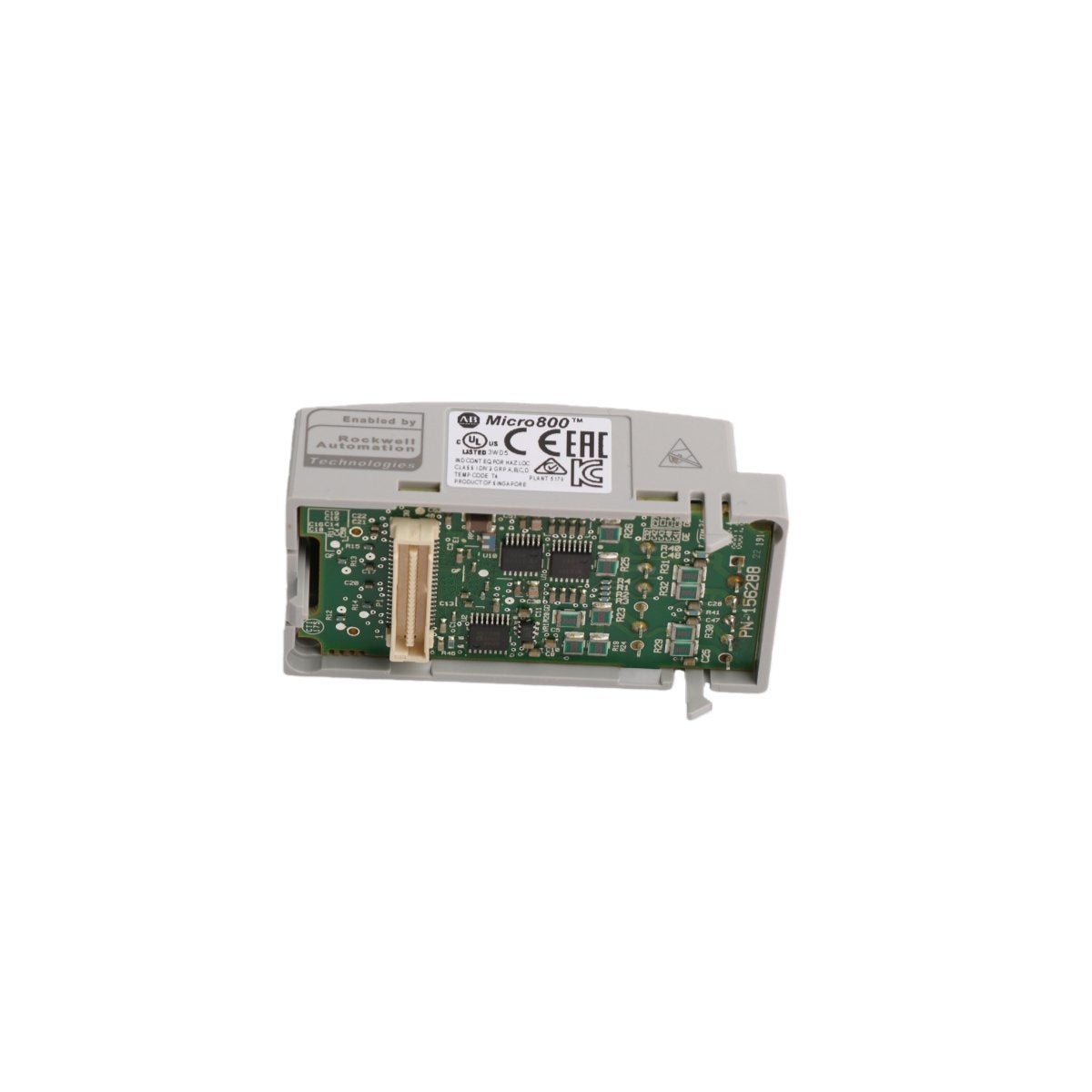

The Allen-Bradley 2080-IF4 is a high-resolution analog input expansion module designed specifically for the Micro800 PLC family. This plug-in component allows engineers to increase the I/O density of Micro810, Micro820, Micro830, Micro850, and Micro870 controllers without increasing the physical footprint of the PLC on the DIN rail. By plugging directly into the front-facing slots of the controller, the 2080-IF4 provides a cost-effective solution for integrating sensors such as pressure transducers, temperature transmitters, and flow meters.

This module is engineered for precision, converting continuous analog signals into 16-bit digital values. Its versatile design supports multiple signal types, making it a universal choice for diverse process control and monitoring tasks in industrial automation.

Technical Capabilities and Performance

The 2080-IF4 delivers high-performance signal conditioning and data conversion for critical process variables.

• Input Channels: 4 single-ended channels.

• Signal Support: Selectable voltage (0–10V DC) or current (0–20mA).

• Resolution: 16-bit unipolar (0 to 65535 counts), providing granular data for sensitive measurements.

• Accuracy and Repeatability: Precision engineered with a repeatability of ±0.1% of full scale.

• Input Impedance: Voltage inputs at >1 MΩ; Current inputs at <250 Ω.

• Power Source: Bus-powered via the controller backplane; requires no external power supply wiring.

Installation and Software Integration

The 2080-IF4 is designed for "plug-and-play" mechanical installation and streamlined software commissioning.

• Space Efficiency: The plug-in architecture preserves the slim profile of the Micro800 series, ideal for compact control panels.

• Configuration: Fully supported by Connected Components Workbench (CCW) software, allowing for easy channel scaling and signal type selection.

• Wiring Interface: Features integrated terminal blocks for secure field-side connections.

• Operational Environment: Designed to withstand industrial electrical noise (EMC) and variations in ambient temperature ranging from -20°C to 65°C.

Physical and Shipping Specifications

• Module Dimensions: 62 x 31.5 x 20 mm

• Shipping Weight: 0.9 kg (Standardized package weight).

• Manufacturing Origin: USA.

• Compatibility: Compatible with any Micro800 controller featuring an available plug-in slot.
