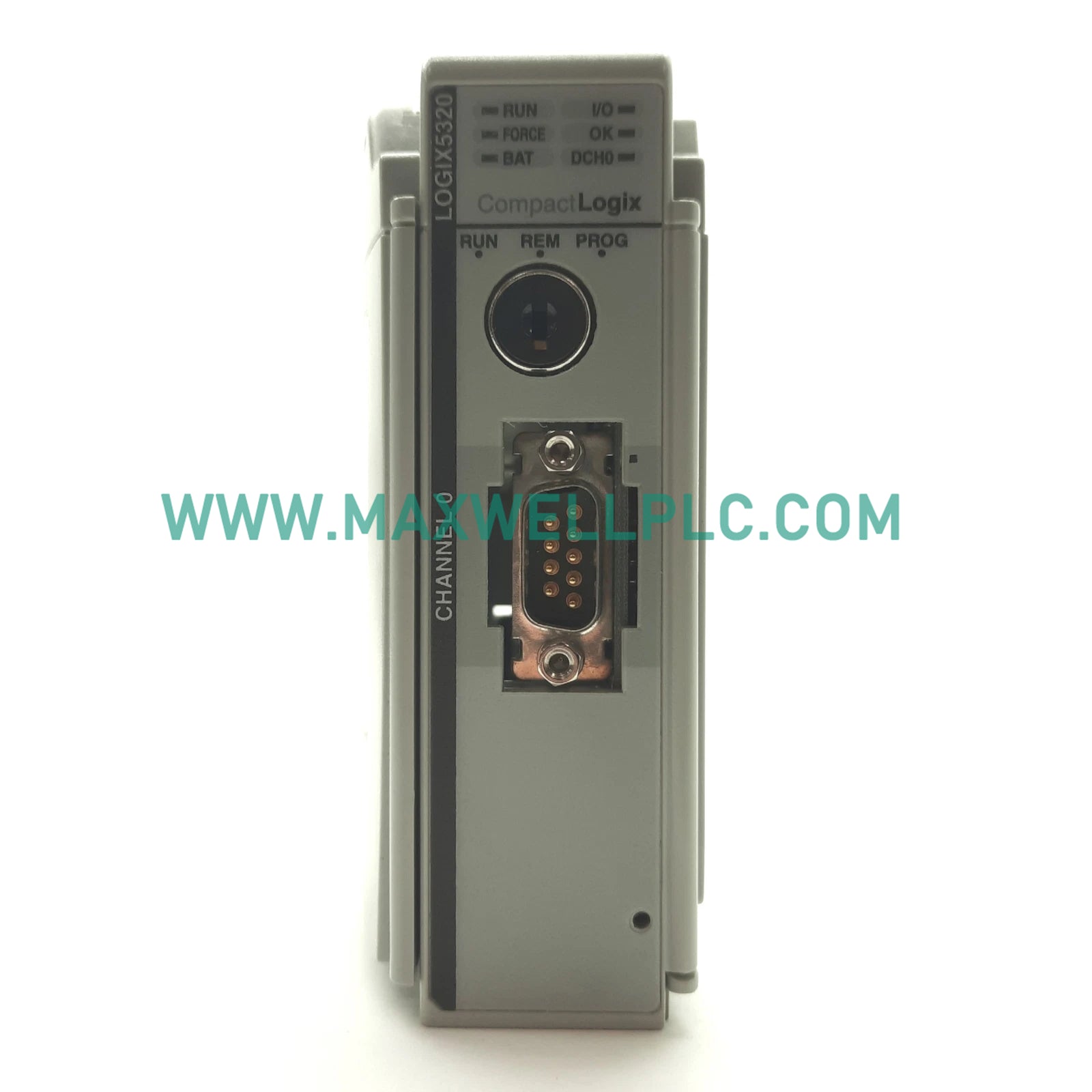

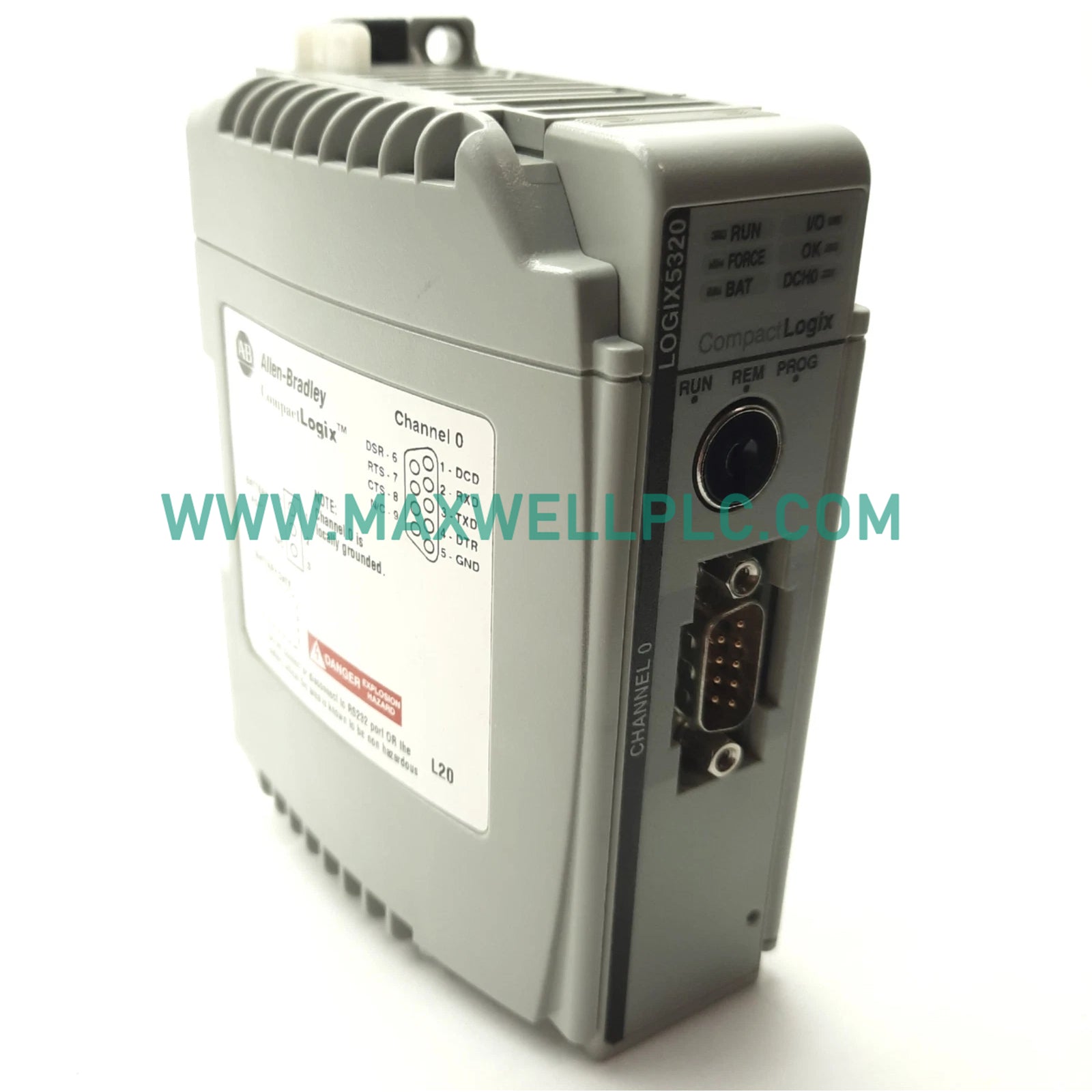

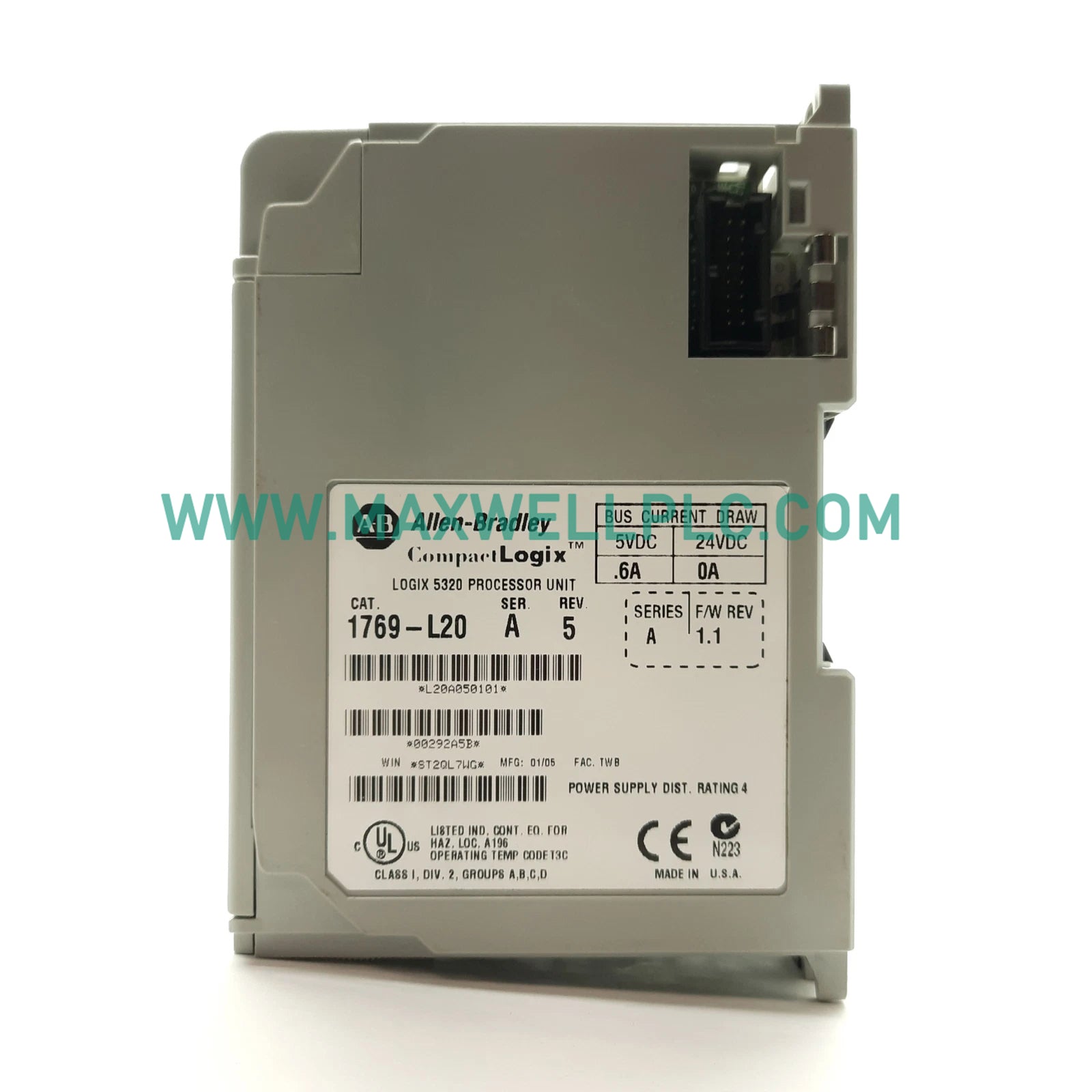

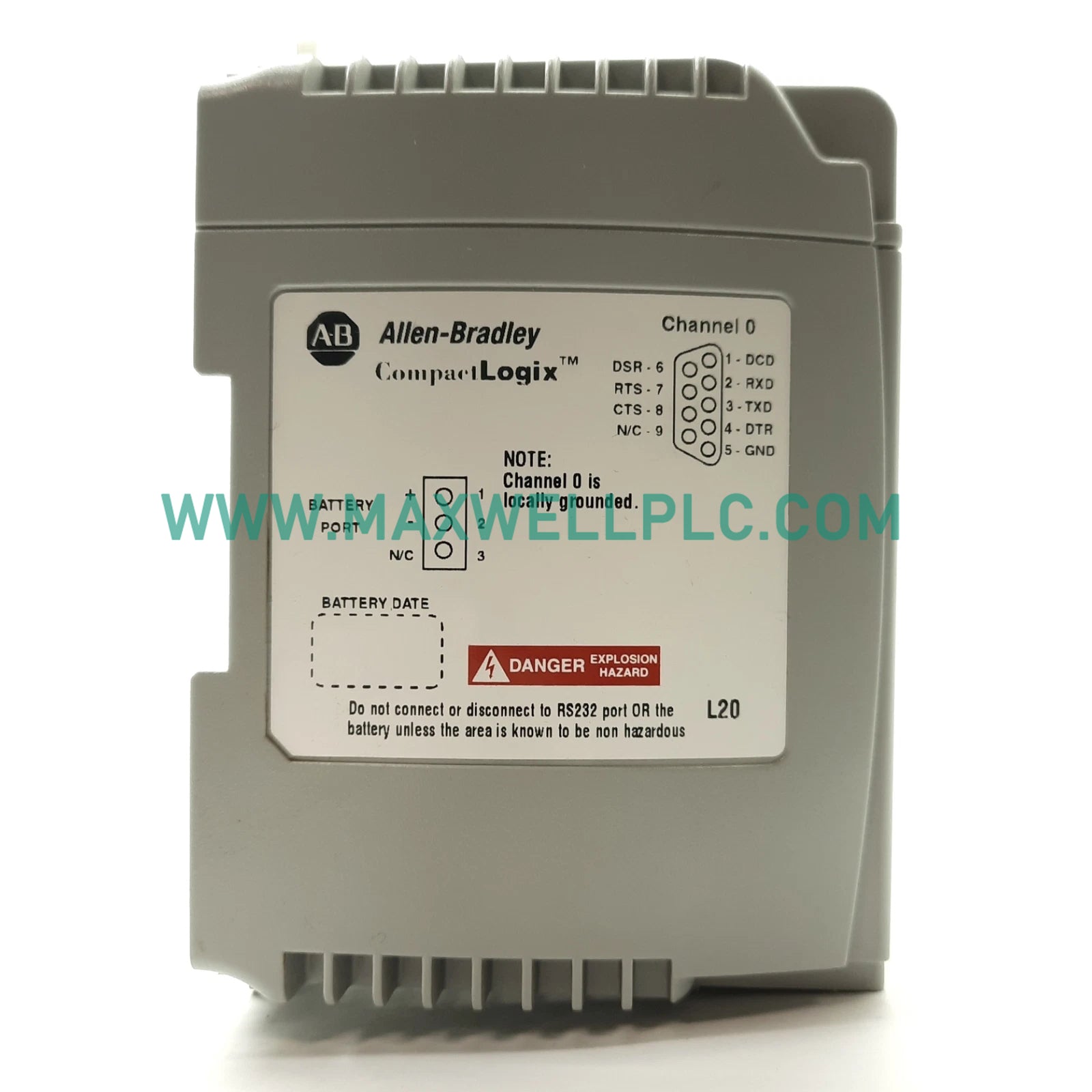

Allen-Bradley 1769-L20 CompactLogix 5320 Processor Module
-
Dimensions: 5.7 x 13.3 x 10.2 cm
-
Country of origin: USA
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The Allen-Bradley 1769-L20 CompactLogix 5320 Processor is a compact programmable automation controller designed for small to medium-sized industrial automation systems. As part of the CompactLogix platform, the 1769-L20 delivers reliable control capabilities while supporting flexible expansion through the Allen-Bradley 1769 Compact I/O architecture.
Equipped with 64 KB of user memory, the processor is suitable for machine sequencing, discrete control, data management, and process automation applications. The integrated RS-232 communication interface allows connectivity with programming terminals, operator interfaces, serial devices, barcode systems, and other industrial equipment requiring serial communications.
The 1769-L20 supports up to eight local Compact I/O modules across two I/O banks, enabling scalable system configurations without increasing cabinet space requirements. Its compact design makes it particularly suitable for OEM machinery, packaging equipment, material handling systems, and manufacturing cells where space efficiency is important.
Designed for industrial environments, the processor operates reliably within a wide temperature range and high humidity conditions. The Allen-Bradley 1769-L20 remains a practical solution for maintaining existing CompactLogix installations, replacing failed controllers, and extending the lifecycle of legacy automation systems.
Key Features
-
CompactLogix 5320 processor architecture
-
64 KB user memory capacity
-
Integrated RS-232 communication port
-
Supports up to 8 local 1769 Compact I/O modules
-
Supports up to 2 I/O banks
-
Compact footprint for control panel installations
-
Compatible with Allen-Bradley CompactLogix systems
-
Suitable for machine and process control applications
-
Wide industrial operating temperature range
-
Designed for OEM, retrofit, and maintenance projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | 1769-L20 |
| Spare Model | 1769L20, 1769-L20/A |
| Product Type | CompactLogix 5320 Processor |
| Manufacturer | Allen-Bradley |
| Product Family | CompactLogix |
| User Memory | 64 KB |
| Communication Interface | RS-232 |
| Maximum I/O Modules Supported | 8 Modules |
| Maximum I/O Banks Supported | 2 Banks |
| Backplane Current @ 5V DC | 600 mA |
| Backplane Current @ 24V DC | 0 mA |
| Power Dissipation | 3 W |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% Non-Condensing |
| Tariff Code | 8537101190 |
| Country of Origin | USA |
| Shipping Location | Xiamen, China |
| Estimated Dimensions | 5.7 × 13.3 × 10.2 cm |
| Weight | 0.2 kg |
Common Search Terms
-
Allen-Bradley 1769-L20
-
Allen-Bradley 1769L20
-
1769-L20 CompactLogix Processor
-
1769-L20/A Controller
-
CompactLogix 5320 CPU
-
CompactLogix PLC Processor
-
Allen-Bradley PLC Controller
-
Rockwell 1769-L20 Module
-
64KB CompactLogix Processor
-
RS-232 PLC Processor
-
CompactLogix Replacement Controller
-
Industrial Automation CPU Module
Typical Applications
-
Packaging and labeling machinery
-
Conveyor and material handling systems
-
Assembly line automation
-
OEM machine control platforms
-
Industrial process monitoring systems
-
Manufacturing equipment control
System Compatibility
The Allen-Bradley 1769-L20 is commonly used with the following components:
-
Allen-Bradley 1769 Compact I/O modules
-
Allen-Bradley 1769 power supply modules
-
CompactLogix local expansion systems
-
RSLogix 5000 programming software
-
Studio 5000 Logix Designer (legacy project support)
-
Allen-Bradley PanelView operator terminals
-
PowerFlex AC drives
-
Allen-Bradley communication interface modules
Benefits Of Using Genuine Modules
Using a genuine Allen-Bradley 1769-L20 processor helps ensure compatibility with existing CompactLogix hardware and software environments. Original modules support predictable controller performance, simplify maintenance activities, and reduce integration risks. Genuine components also provide reliable diagnostics, stable communications, and long-term operational consistency in critical automation applications.
Alternative Models
-
Allen-Bradley 1769-L23E-QB1B CompactLogix Controller
-
Allen-Bradley 1769-L23-QBFC1B CompactLogix Controller
-
Allen-Bradley 1769-L31 CompactLogix Processor
-
Allen-Bradley 1769-L32C CompactLogix Controller
-
Allen-Bradley 1769-L32E CompactLogix Controller
-
Allen-Bradley 1769-L35CR CompactLogix Controller
-
Allen-Bradley 1769-L35E CompactLogix Controller
-
Allen-Bradley 1768-L43 CompactLogix Controller
Industry Applications
-
Industrial Manufacturing
-
Automotive Production
-
Food and Beverage Processing
-
Packaging and Converting
-
Water and Wastewater Treatment
-
Pharmaceutical Manufacturing
-
Oil and Gas Facilities
-
Energy and Utilities
-
Material Handling Systems
-
OEM Equipment Manufacturing
Why Buy From Maxwell PLC
Maxwell PLC provides genuine industrial automation components, professional technical support, global shipping services, and extensive experience in PLC, DCS, SCADA, SIS, and process control systems, helping customers maintain and support critical automation infrastructure worldwide.
Frequently Asked Questions
1. What is the Allen-Bradley 1769-L20 used for?
The 1769-L20 is a CompactLogix 5320 processor used for machine automation, manufacturing systems, and industrial process control applications.
2. How much user memory does the 1769-L20 provide?
The processor includes 64 KB of user memory for control programs, data storage, and automation tasks.
3. What communication interface is available on the 1769-L20?
The controller features an integrated RS-232 serial communication port.
4. How many I/O modules can the processor support?
The 1769-L20 supports up to eight local Allen-Bradley 1769 Compact I/O modules.
5. Is the 1769-L20 compatible with CompactLogix systems?
Yes. The processor is designed for use within Allen-Bradley CompactLogix control architectures utilizing 1769-series I/O modules.
6. Which software is used to program the controller?
Programming is typically performed using RSLogix 5000 software and supported Studio 5000 Logix Designer environments.
7. What operating conditions does the processor support?
The processor operates from 0°C to 60°C and supports relative humidity levels from 5% to 95% non-condensing.
8. Can the 1769-L20 replace an existing controller?
Yes. The 1769-L20 is commonly used as a replacement for existing 1769-L20 and 1769-L20/A processors in installed CompactLogix systems.
Related Products
-
Allen-Bradley 1769-L31 CompactLogix Processor
-
Allen-Bradley 1769-L32E CompactLogix Controller
-
Allen-Bradley 1769-L35E CompactLogix Controller
-
Allen-Bradley 1769-PA2 Power Supply Module
-
Allen-Bradley 1769-IA16 Digital Input Module
-
Allen-Bradley 1769-OB16 Digital Output Module
-
Allen-Bradley 1769-IF4 Analog Input Module
-
Allen-Bradley 1769-OF4 Analog Output Module
