Product Overview

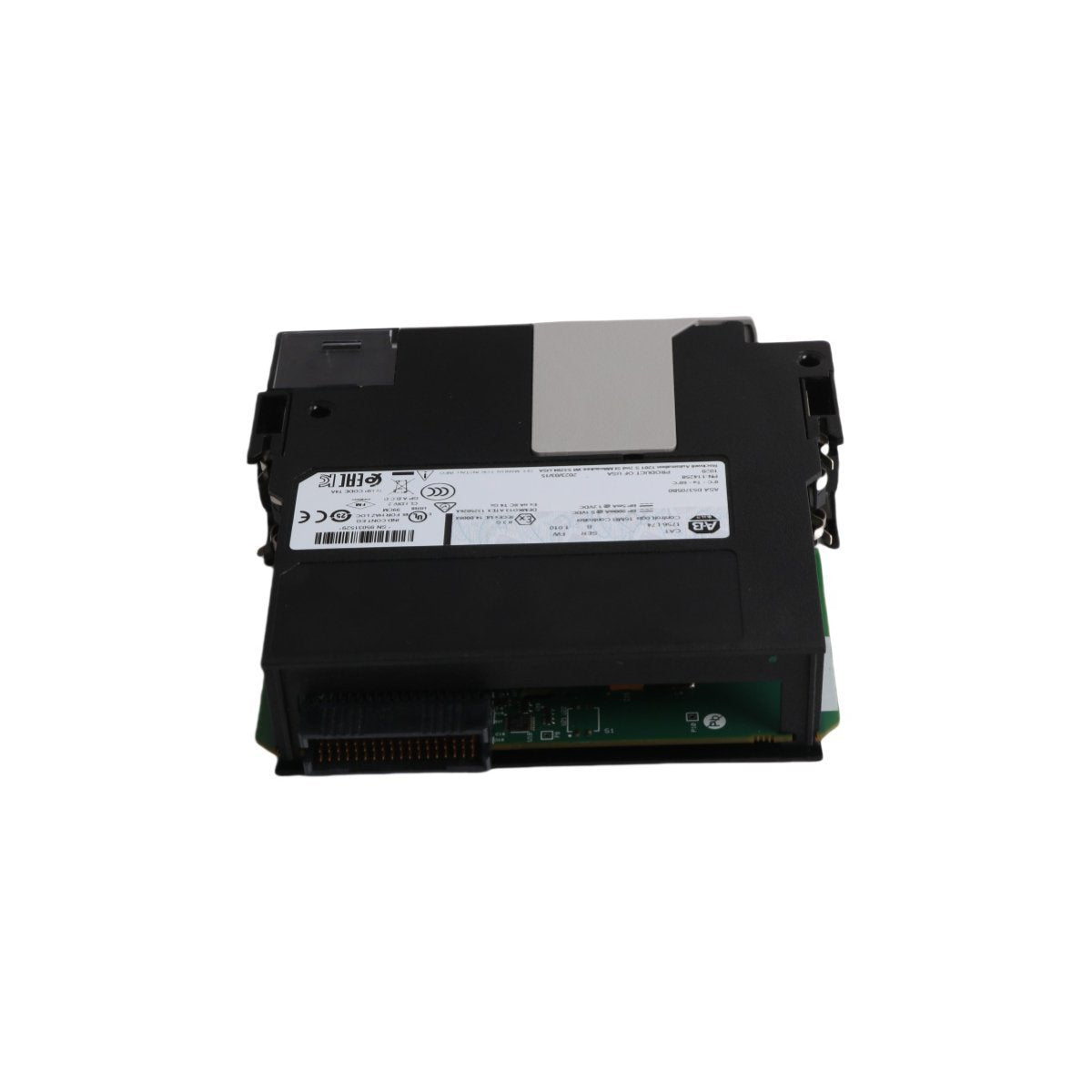

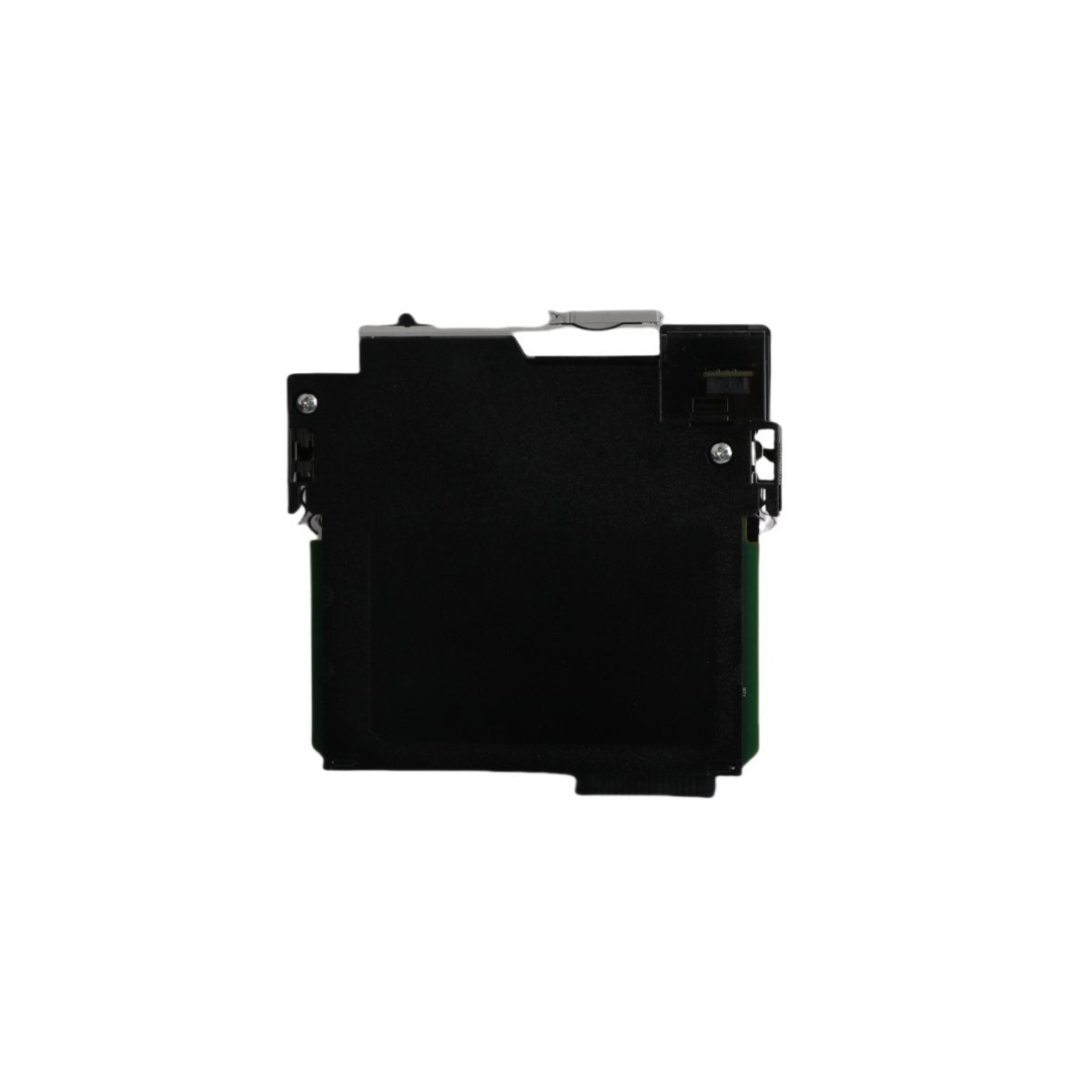

The Allen-Bradley 1756-L74 is a high-capacity programmable automation controller (PAC) within the ControlLogix 5570 family. Designed for large-scale, multidiscipline industrial applications, this module provides the computational power required for complex discrete, motion, process, and safety control. Featuring a significant 16 MB user memory, the 1756-L74 is engineered to manage extensive I/O counts and sophisticated control algorithms without compromising scan times. It serves as a central intelligence unit in a ControlLogix chassis, facilitating seamless data coordination across the backplane to communication interface modules and I/O cards.

Technical Characteristics

The 1756-L74 is distinguished by its memory density, integrated diagnostics, and high-speed synchronization capabilities:

High-Density Memory and Performance With 16 MB of available user memory, this controller supports massive code libraries and extensive data logging. It utilizes the common Logix control engine, providing a unified programming environment that simplifies development and reduces engineering time for complex system architectures.

Onboard Energy Storage and Data Security The 1756-L74 eliminates the need for lithium batteries through an integrated energy storage module. In the event of power loss, this onboard capacitor provides sufficient energy to transfer volatile memory to the internal non-volatile storage, ensuring program integrity. For permanent storage, the unit includes an 1 GB Secure Digital (SD) card (1784-SD1), with support for larger capacities up to 2 GB.

Integrated Motion and Network Versatility This processor can coordinate up to 100 axes of motion control, making it ideal for high-precision synchronized machinery. It interfaces with EtherNet/IP, ControlNet, and DeviceNet networks via chassis-based communication modules, supporting a vast array of distributed I/O and third-party devices.

Multi-Controller Redundancy To support high-availability applications, the 1756-L74 supports full controller redundancy. Multiple processors can be placed in the same chassis or separate chassis to ensure that control is maintained in the event of a hardware fault, providing "bumpless" switchover for critical processes.

Technical Specifications

• Brand: Allen-Bradley / Rockwell Automation

• Model Number: 1756-L74

• Module Type: Programmable Automation Controller (PAC)

• Series: ControlLogix 5570

• User Memory: 16 MB

• I/O Memory: 0.98 MB

• Optional Non-volatile Memory: 1 GB (1784-SD1 included)

• Digital I/O (Max): 128,000

• Analog I/O (Max): 4,000

• Total I/O (Max): 128,000

• Controller Tasks: 32 Tasks (1000 programs per task)

• Weight: 0.26 kg

• Dimensions: 3.5 x 14.5 x 14.5 cm

Application Areas

The 1756-L74 is a preferred solution for demanding infrastructure and production environments:

• Advanced Manufacturing: High-speed assembly and synchronized robotics.

• Process Automation: Managing complex loops in chemical, oil, and gas refining.

• Food & Beverage: Coordinating expansive packaging lines with high I/O density.

• Mining & Heavy Industry: Controlling large-scale material handling and mineral processing equipment.
