Product Overview

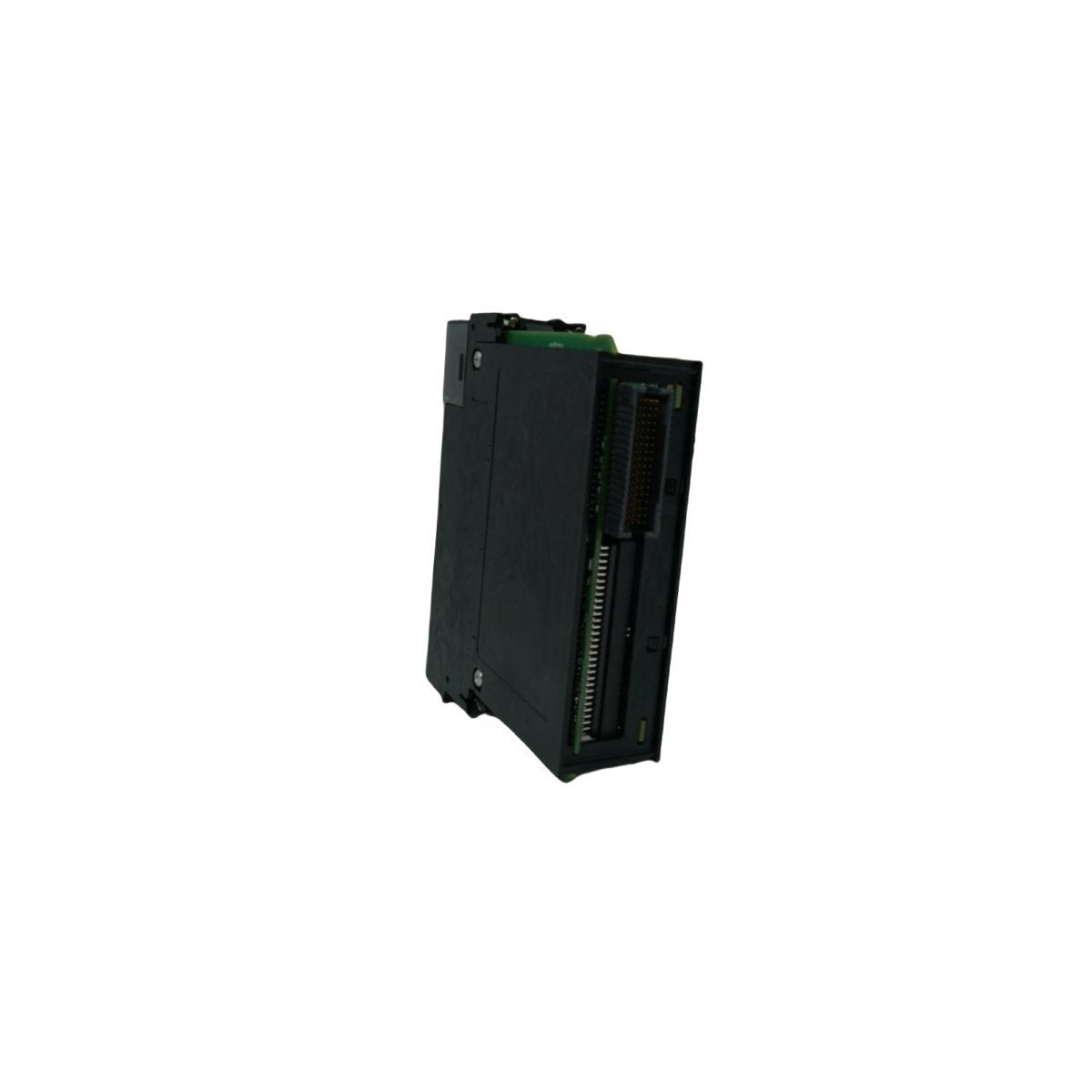

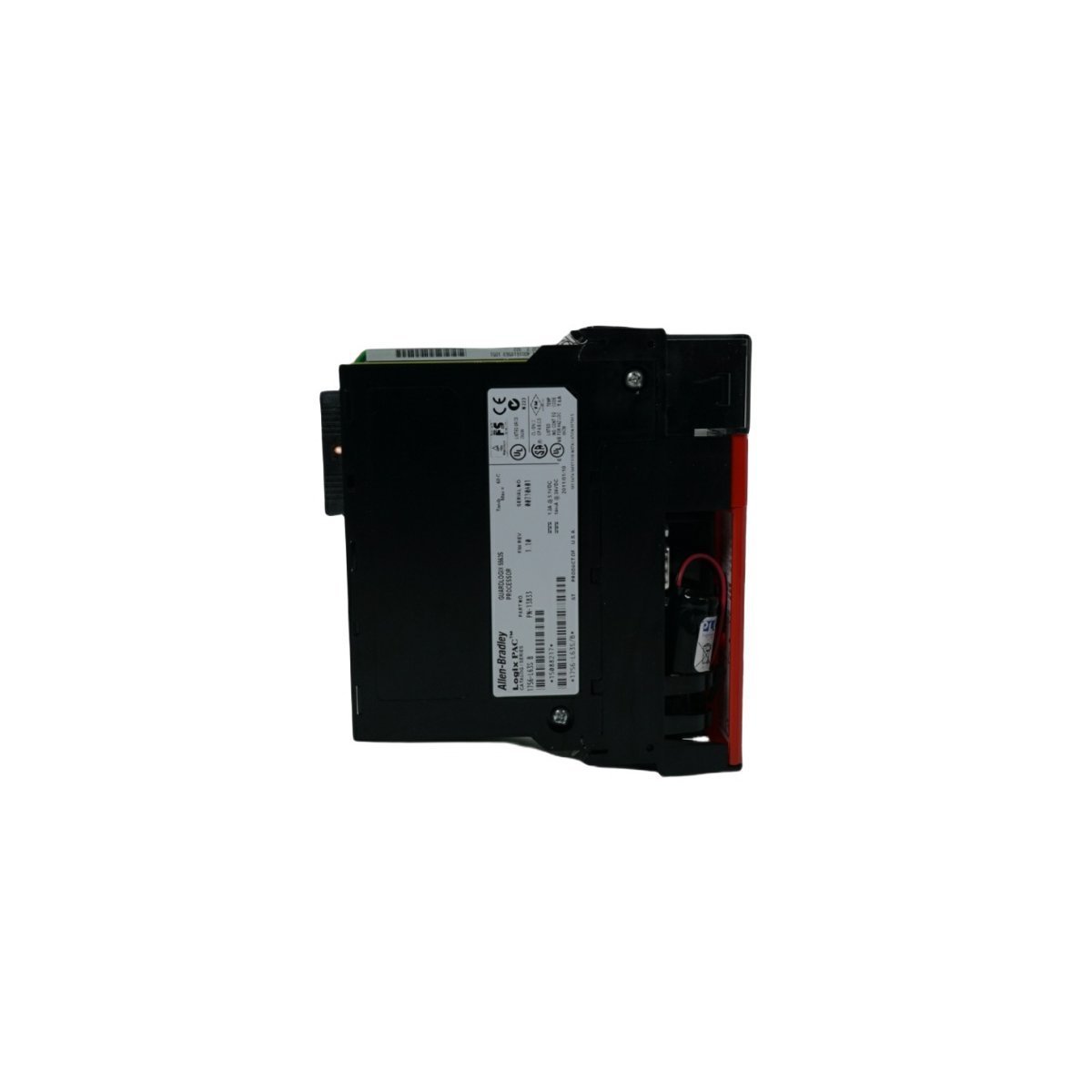

The 1756-L63S is a high-performance GuardLogix safety controller developed by Allen-Bradley for the ControlLogix platform. This processor is engineered to provide integrated safety and discrete control within a single chassis, making it a primary choice for complex industrial automation environments. It features 8 MB of standard user memory and 478 KB of dedicated safety memory, facilitating the execution of sophisticated logic and extensive data processing.

As part of the GuardLogix family, the 1756-L63S is designed to meet stringent global safety standards, including SIL 3 and PLe (Performance Level e), when used in conjunction with a safety partner module. This dual-processor architecture provides a 1oo2 (One Out of Two) voting structure, ensuring that safety functions are executed with a high degree of diagnostic coverage and fault tolerance.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Controller Model: 1756-L63S

• Safety Series: GuardLogix 5563S

• Standard User Memory: 8 MB

• Safety Memory: 478 KB

• Safety Rating: Up to SIL 3, PLe / Cat. 4 (with 1756-L63SP partner)

• Digital I/O Capacity: 128,000 maximum

• Total Analog I/O: 4,000 maximum

• Chassis Slots: Occupies one slot (requires safety partner in adjacent slot)

• Operating Modes: RUN, PROGRAM, REMOTE (Keyswitch selectable)

• Weight: 0.32 kg

• Dimensions: 3.6 cm x 13.9 cm x 15.2 cm

Operational Functionality and Applications

The 1756-L63S excels in applications requiring high-speed processing and integrated safety, such as automotive assembly, material handling, and heavy machinery control. By utilizing the EtherNet/IP or ControlNet networks, it facilitates seamless communication across the enterprise. The module eliminates the need for a separate safety PLC, as it manages both standard control and safety-related tasks simultaneously.

Data integrity is maintained through a built-in lithium battery, ensuring the retention of critical program data during power loss. The processor supports advanced instructions for motion control, complex mathematical calculations, and comprehensive diagnostic reporting. Its integration within the Studio 5000 Logix Designer environment allows for streamlined configuration and reduced engineering time for safety-instrumented systems.

Installation and Integration

The module is installed directly into any slot of a 1756 ControlLogix chassis. For safety-certified operation, it must be paired with the 1756-L63SP safety partner. The hardware features a front-facing keyswitch for manual mode transitions and diagnostic LED indicators that provide real-time status updates on processor health, communication activity, and force conditions.
