Product Overview

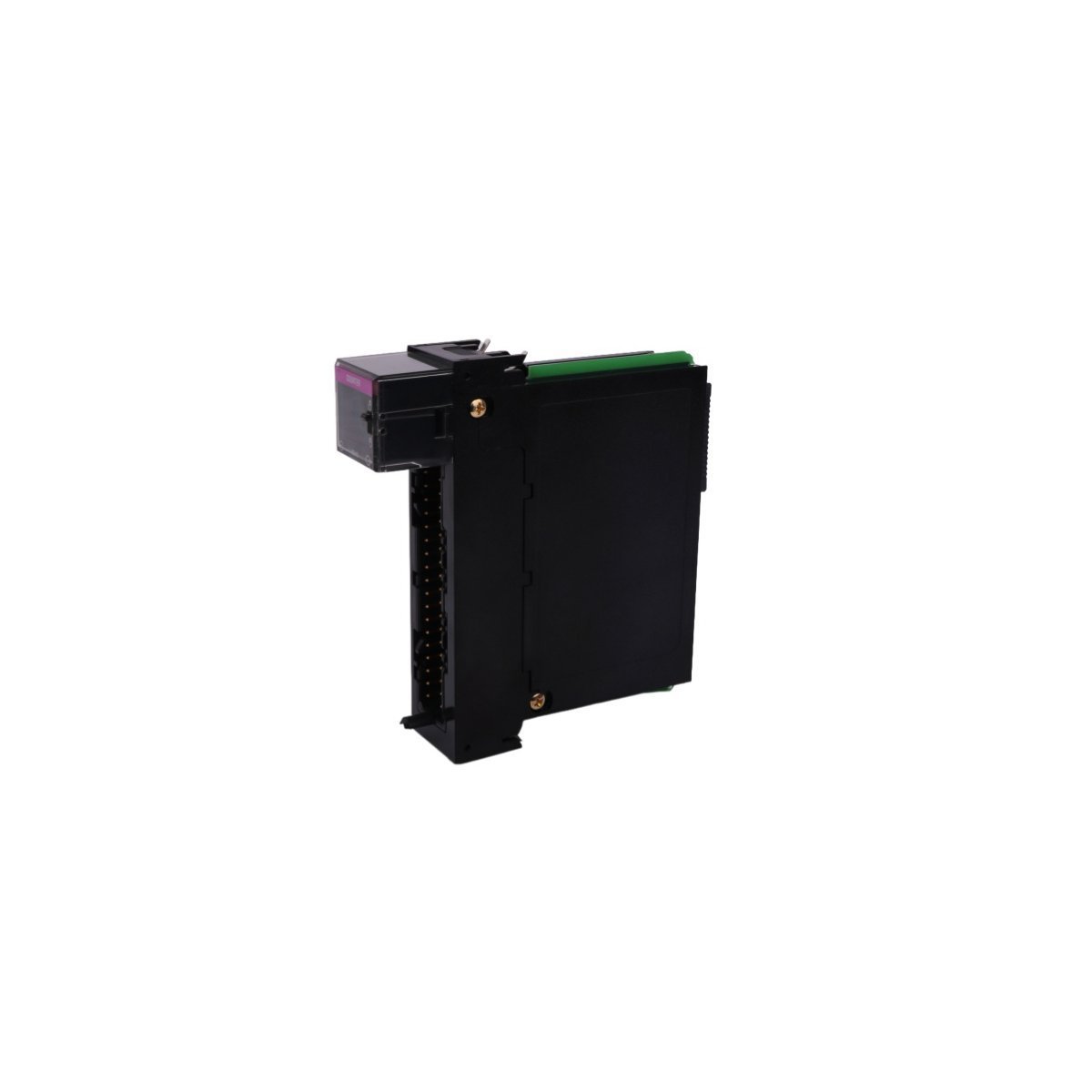

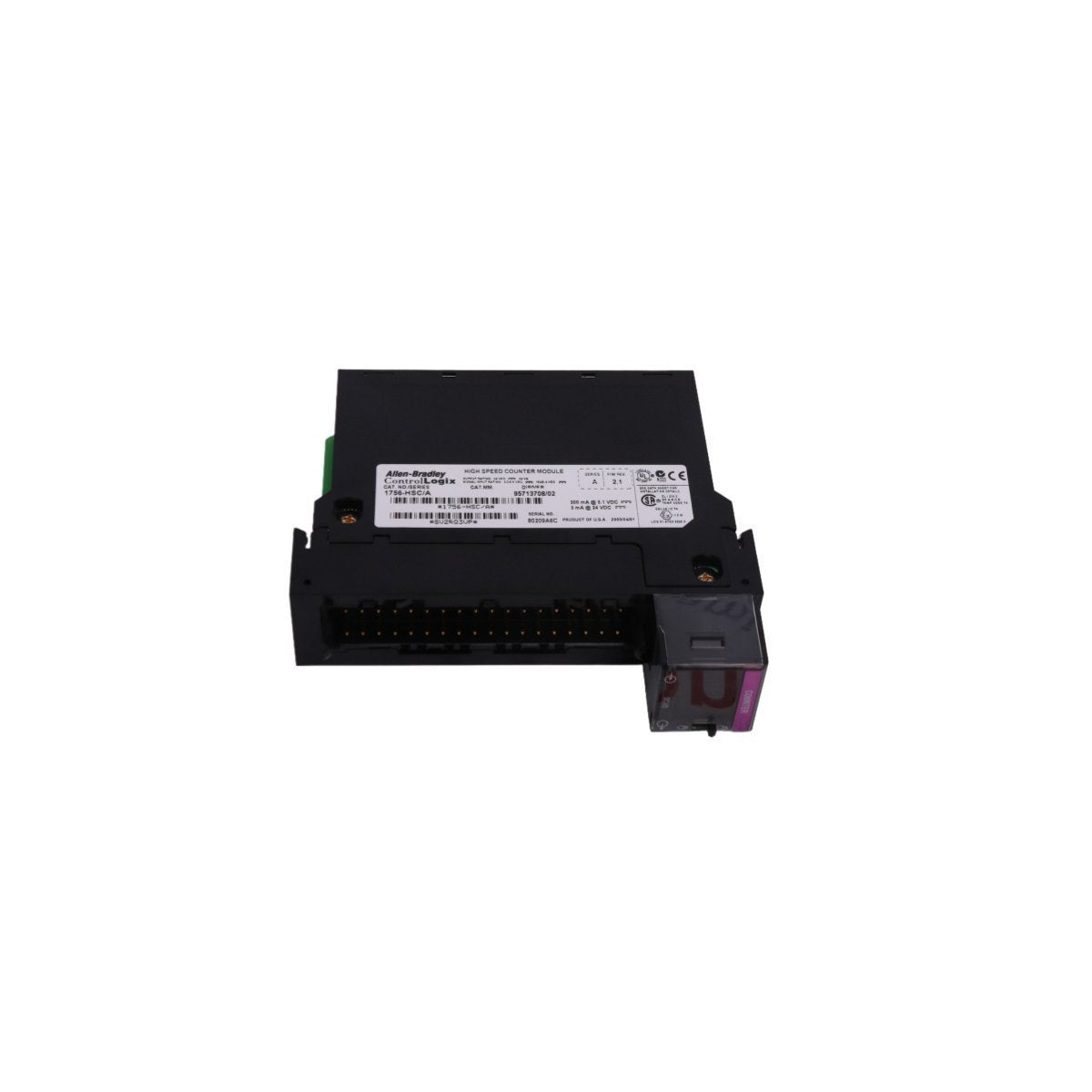

The Allen-Bradley 1756-HSC/B is a specialized high-speed counter module engineered for the ControlLogix™ platform. Designed to manage rapid pulse signals that exceed the scanning capabilities of standard I/O, this module provides deterministic counting and frequency measurement for high-precision industrial applications. It features two independent counter channels and four on-board digital outputs, allowing for instantaneous hardware-level output triggering based on count values, which bypasses controller scan time latency.

By offloading high-speed pulse processing from the main CPU, the 1756-HSC/B ensures that the system can accurately track position, velocity, and flow in real-time. This module is essential for applications utilizing incremental encoders, flow meters, or high-speed proximity sensors, supporting a vast count range of up to $\pm 8,388,607$ or $0$ to $16,777,215$ depending on configuration.

Technical Characteristics

• Channel Configuration: Two high-speed counters with support for three inputs per channel (A, B, and Z for encoder pulse, direction, and reset).

• Maximum Frequency: Supports pulse rates up to 1 MHz in counter mode and 250 kHz for quadrature encoders.

• Integrated Outputs: Four 24V DC digital outputs for high-speed hardware-to-hardware response.

• Response Time: Ultra-fast output activation within 0.05 ms.

• Operational Modes: Supports Counter, Frequency Measurement, Rate Calculation, and Pulse Width Modulation (PWM) tracking.

• Encoder Compatibility: Interfaces seamlessly with 5V or 24V incremental encoders and specialized sensors like the Allen-Bradley 845 series.

• Chassis Requirements: Occupies a single slot in any ControlLogix 1756 I/O chassis.

• Operating Temperature: 0°C to 60°C (32°F to 140°F).

• Power Requirements: Draws 300 mA at 5.1V DC and 3 mA at 24V DC from the backplane.

• Dimensions: 3.5 x 13 x 14.5 cm.

• Weight: 0.9 kg.

Functional Applications and System Logic

The 1756-HSC/B is optimized for motion-centric automation where millisecond accuracy is non-negotiable. In packaging and material handling, it serves as the primary interface for tracking conveyor position via quadrature encoders. Its "Pulse Width Measurement" mode allows for the precise calculation of duration between signal edges, which is critical for measuring part lengths or identifying sensor timing anomalies.

Through the Studio 5000 Logix Designer interface, users can configure "presets" and "rollover" values. When a count reaches a specific preset, the module’s on-board outputs can fire immediately to stop a motor or trigger a reject gate, ensuring the physical action occurs at the exact calculated position regardless of the PLC’s logic scan time. This hardware-level execution makes the 1756-HSC/B a cornerstone for precision machining, bottling lines, and high-speed sorting systems.
