Product Overview

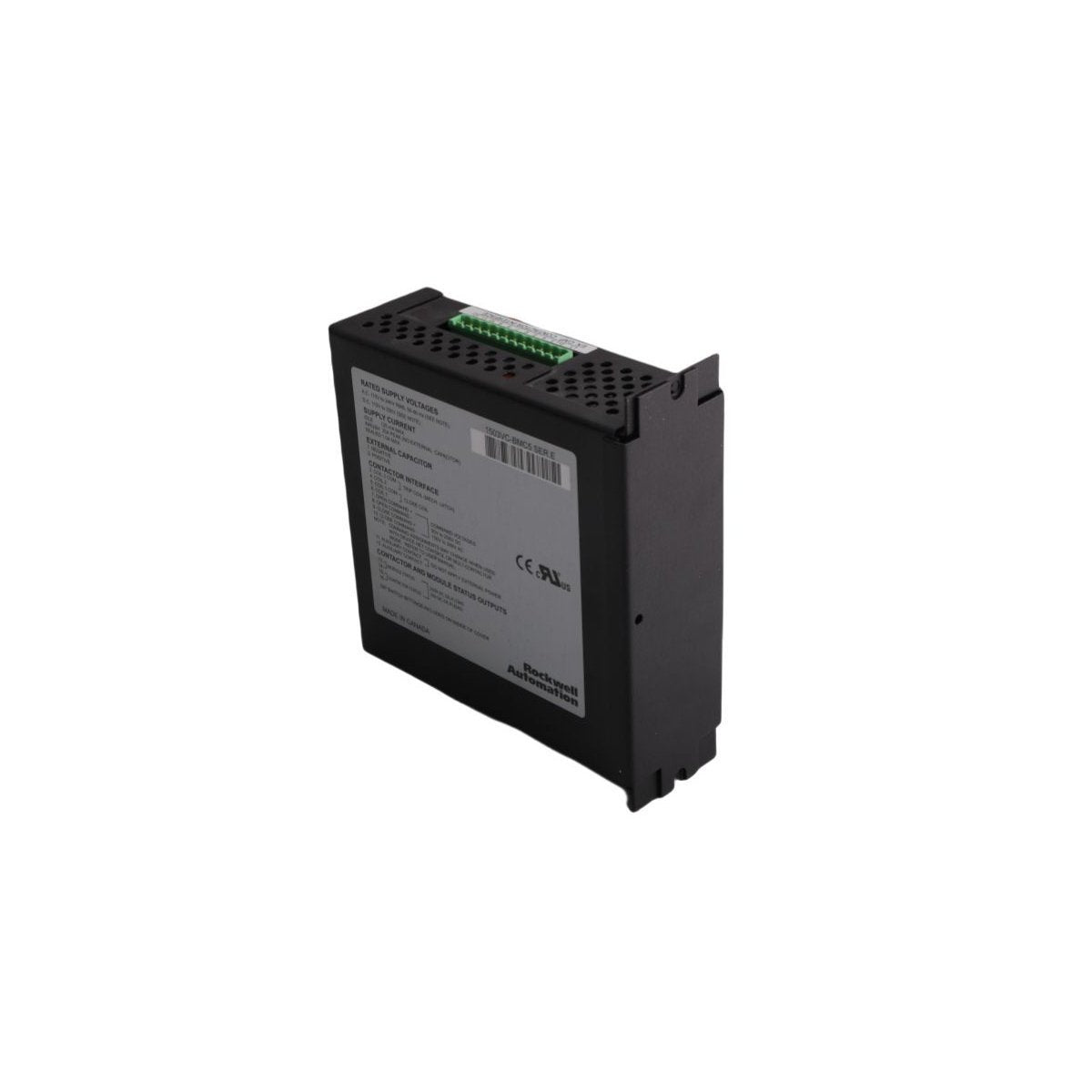

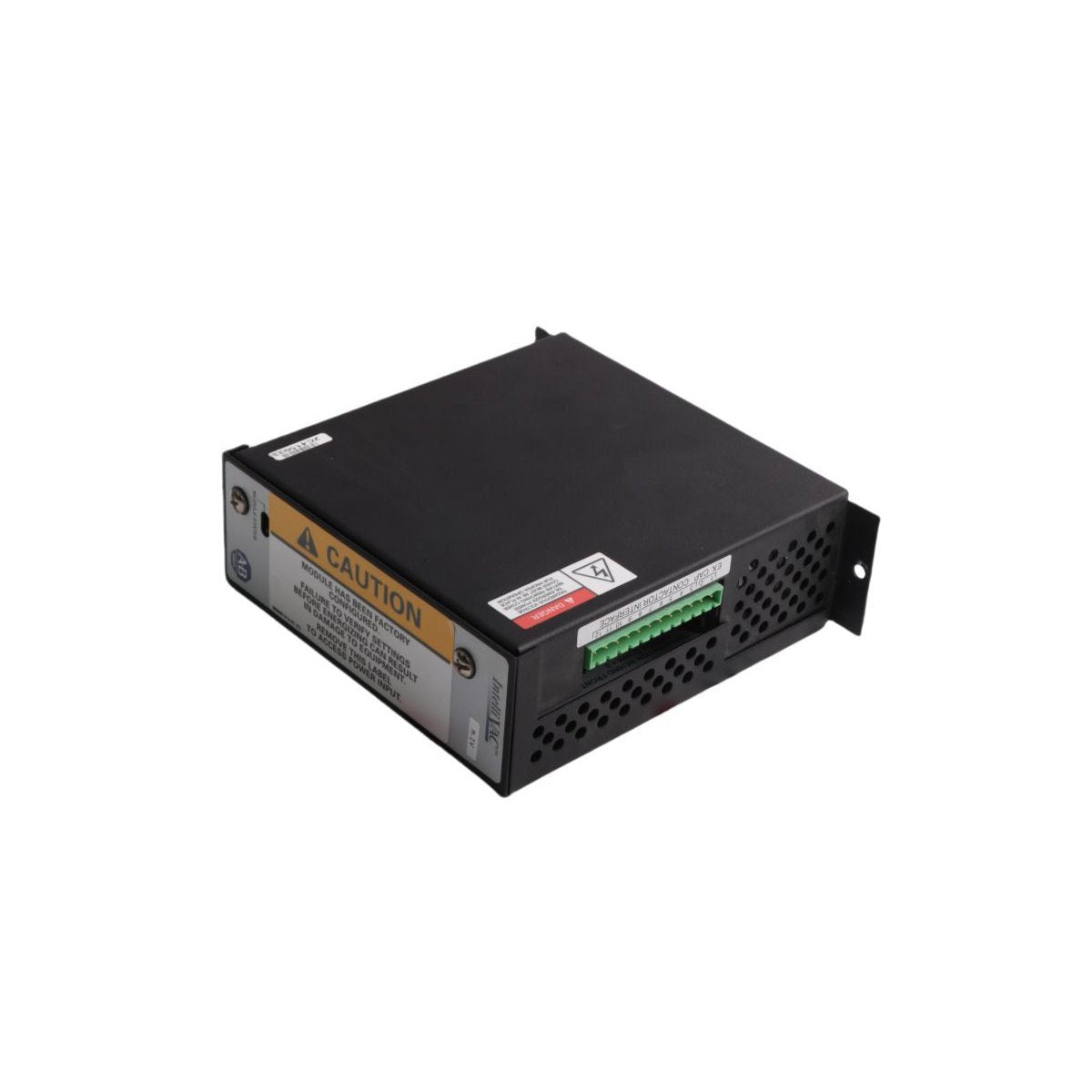

The Allen-Bradley 1503VC-BMC5 is a specialized IntelliVAC™ control interface engineered to manage and protect Bulletin 1502 vacuum contactors. This high-performance module acts as the intelligent core for medium-voltage motor control centers, providing the precise electronic logic required to operate contactors rated for 400A and 800A service. By integrating advanced microprocessor-based control, the 1503VC-BMC5 optimizes contactor closing and opening sequences, which significantly reduces contact wear and extends the mechanical life of the vacuum bottles.

Unlike standard electromechanical controllers, the 1503VC-BMC5 provides a universal interface capable of managing both electrically held and mechanically latched contactor configurations. Its ability to provide consistent coil voltage regulation ensures reliable operation even in industrial environments prone to significant line voltage fluctuations.

Advanced Control and Protection Logic

The 1503VC-BMC5 is designed to enhance system safety through a comprehensive suite of monitoring and control features.

• Dual Contactor Logic: Features selectable firmware parameters to drive either electrically held coils or mechanical latching mechanisms, providing versatile application across different switchgear designs.

• Broad Power Compatibility: Supports a wide universal input range of 110V to 240V AC at both 50Hz and 60Hz, making it a globally compatible solution for international power grids.

• Precision Coil Management: Regulates the energy delivered to the contactor coils to prevent overheating and ensure a positive, high-speed seat during the closing cycle.

• Integrated Fault Monitoring: Provides critical feedback loops that help prevent operation during phase loss or overload conditions, shielding high-value motors from catastrophic electrical failure.

• Streamlined Integration: Features a compact form factor designed for rapid mounting within standard Bulletin 1500 motor control center (MCC) buckets.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model Number: 1503VC-BMC5

• Module Type: IntelliVAC Control Module

• Compatibility: Bulletin 1502 Vacuum Contactors (400A / 800A)

• Input Voltage: 110V–240V AC (Nominal)

• Frequency: 50/60 Hz

• Control Modes: Electrically Held / Mechanically Latched

• Operating Temperature: 0°C to 60°C (32°F to 140°F)

• Storage Temperature: -40°C to 85°C (-40°F to 185°F)

• Dimensions: 6.0 x 16.7 x 18.5 cm

• Weight: 1.2 kg (2.65 lbs)

Industrial Utility and Safety Compliance

The 1503VC-BMC5 is a vital component for power distribution and motor control in heavy industry:

• Mining and Minerals: Reliable starting for large grinders and conveyors in dusty, demanding environments.

• Petrochemical: Providing safe, spark-free switching within vacuum-sealed chambers for volatile atmospheres.

• Water Treatment: Managing high-capacity pumps where continuous operation and fault protection are critical.

• Power Generation: Serving as a robust auxiliary contactor controller for plant-side utility management.
