Product Overview

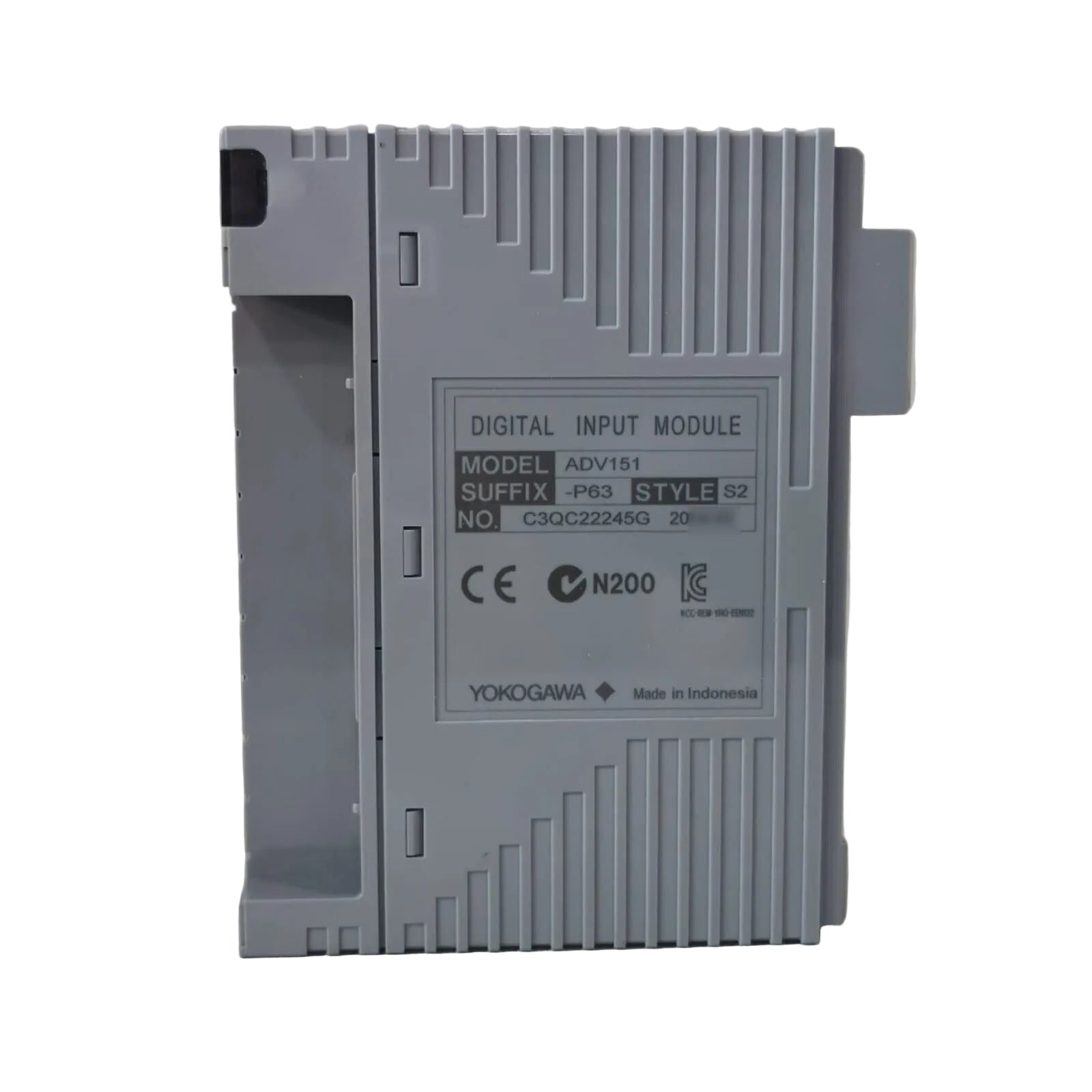

The Yokogawa ADV151-P63 is a high-density digital input module engineered for the CENTUM VP integrated production control system. It serves as a critical interface for collecting binary state data from field equipment, such as switches, relays, and sensors. This specific P63 variant is built for demanding environments, featuring a wide operating temperature range and G3-level conformal coating for superior corrosion resistance. With 32 isolated channels and integrated status LEDs, it provides operators with real-time visual verification of signal presence, ensuring high availability and simplified troubleshooting in complex automation architectures.

System Specifications and Hardware Parameters

Deployment Scenarios and Process Environments

The ADV151-P63 is optimized for industrial sectors where environmental stability and high-density monitoring are paramount. Typical applications include:

• Harsh Industrial Sites: Utilizing the G3 coating and extended temperature range for installation in non-climate-controlled cabinets or areas with corrosive atmospheric gases.

• Discrete Signal Monitoring: Tracking the status of limit switches, valve positions, and motor starters across large-scale manufacturing lines.

• Safety and Alarm Logic: Integrating contact closures for fault detection and emergency shutdown sequence triggers within a DCS.

• Infrastructure Management: Monitoring distributed power distribution panels and auxiliary equipment states in remote utilities.

FAQ

Q: Does the ADV151-P63 support both sink and source wiring configurations?

A: Yes, the module is designed to accommodate both sinking and sourcing current inputs at a rated voltage of 24V DC, providing flexibility for various field sensor types.

Q: What is the benefit of the G3 option included with this model?

A: The G3 option refers to the ISA-S71.04 standard for corrosion resistance. This means the module’s internal components are protected by a conformal coating, making it suitable for environments with high levels of sulfur or chlorine gases.

Q: Can this module be used in explosive atmospheres?

A: No, the ADV151-P63 variant is designated as a non-explosion-proof module. For hazardous areas, a model with intrinsic safety or appropriate protection certifications would be required.

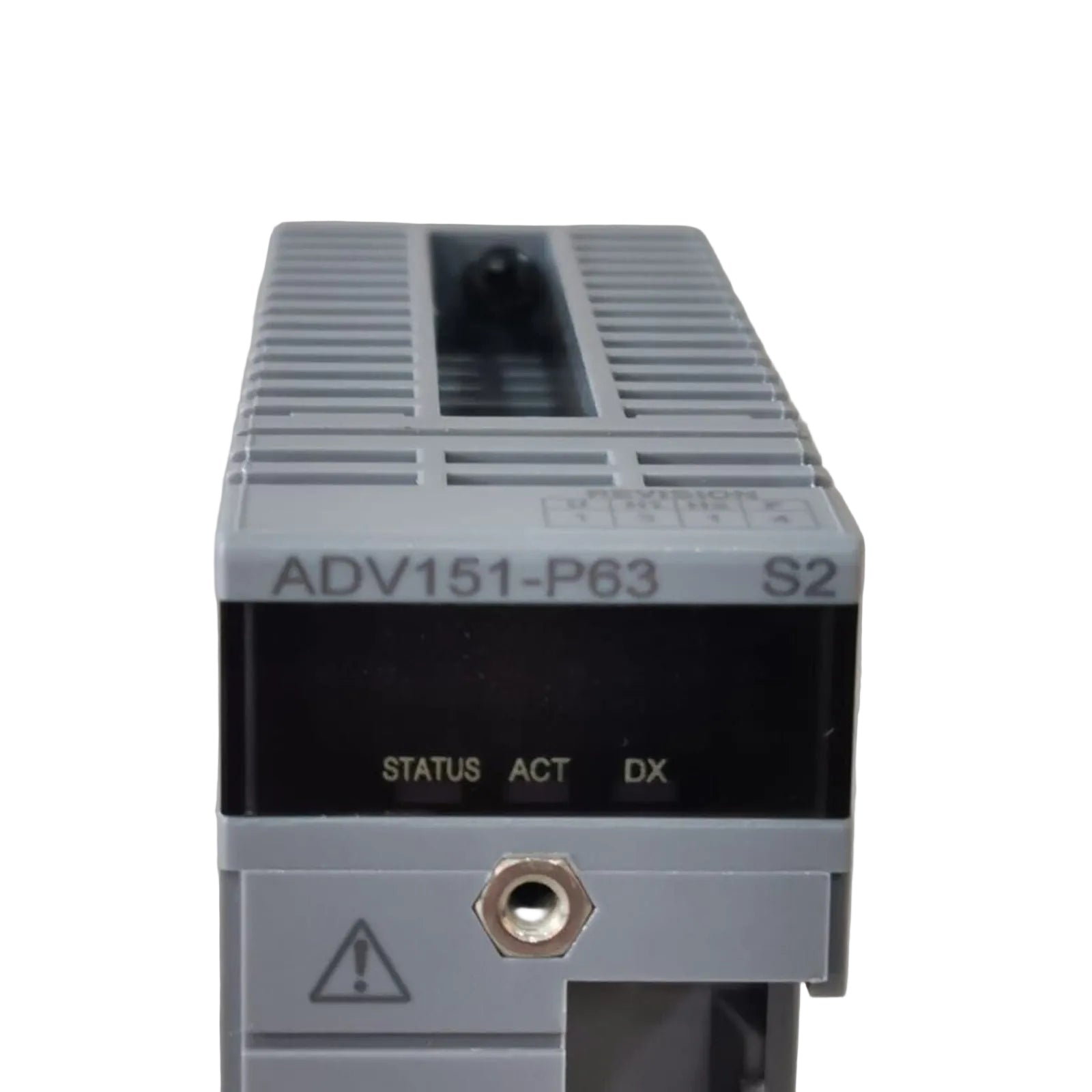

Q: How do the status displays function on the front of the unit?

A: Each of the 32 channels has a corresponding LED indicator. These provide immediate visual feedback; when the input voltage meets the "ON" threshold, the light illuminates, assisting in rapid field-side diagnostics.

Q: Is there a specific cable required for external wiring?

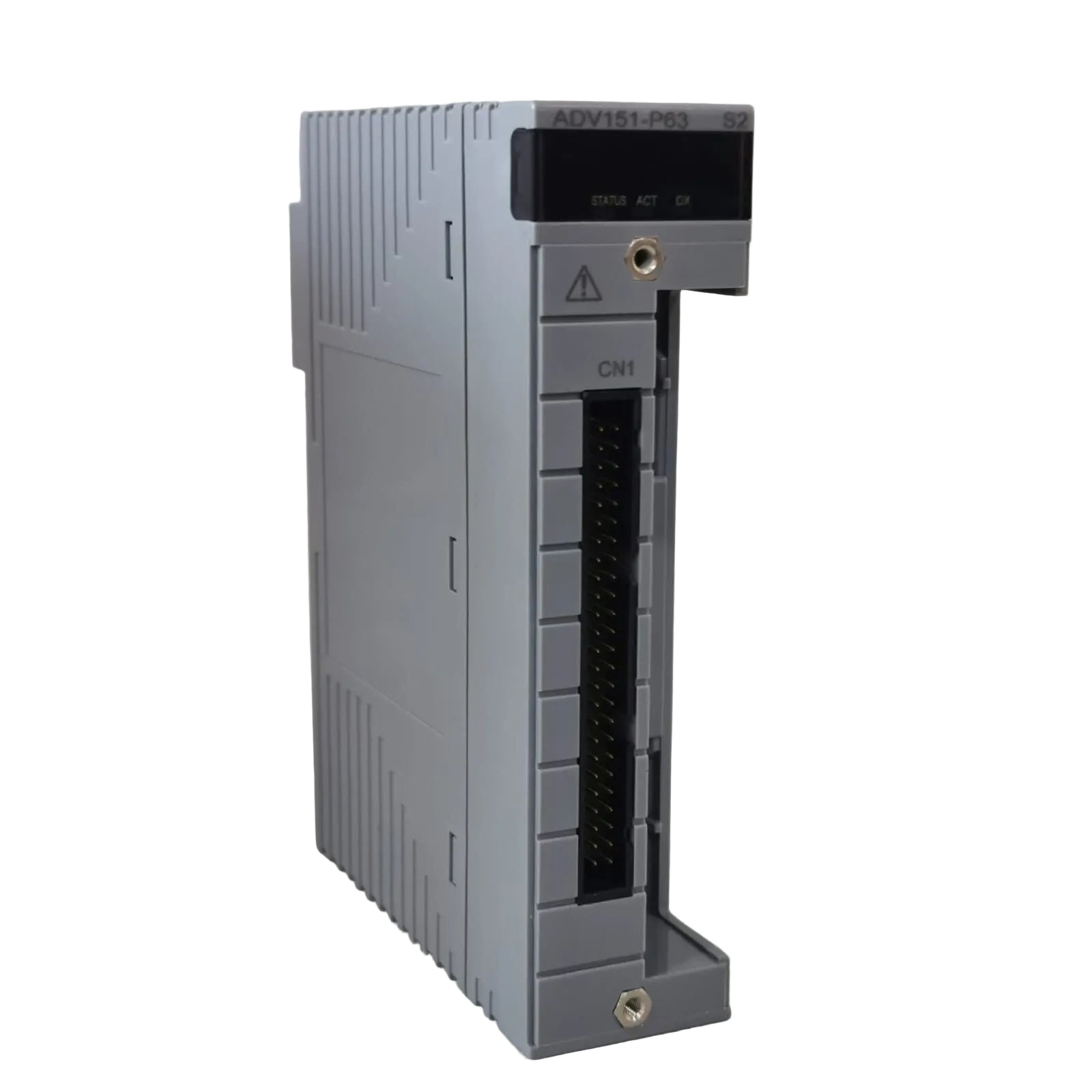

A: While pressure clamp terminals can be used, the module also supports high-density wiring via the AKB331 dedicated cable or standard MIL connector cables for faster installation and maintenance.
