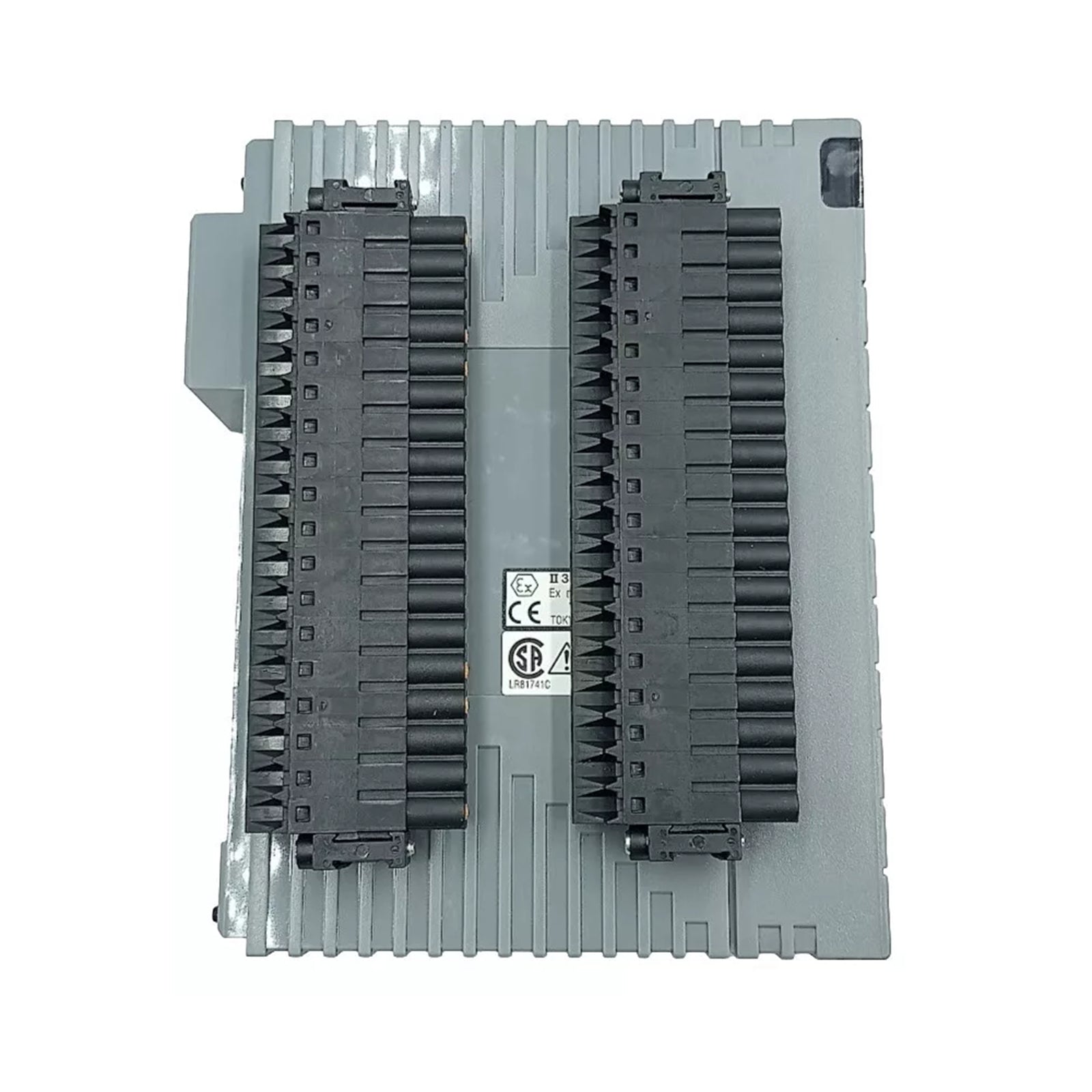

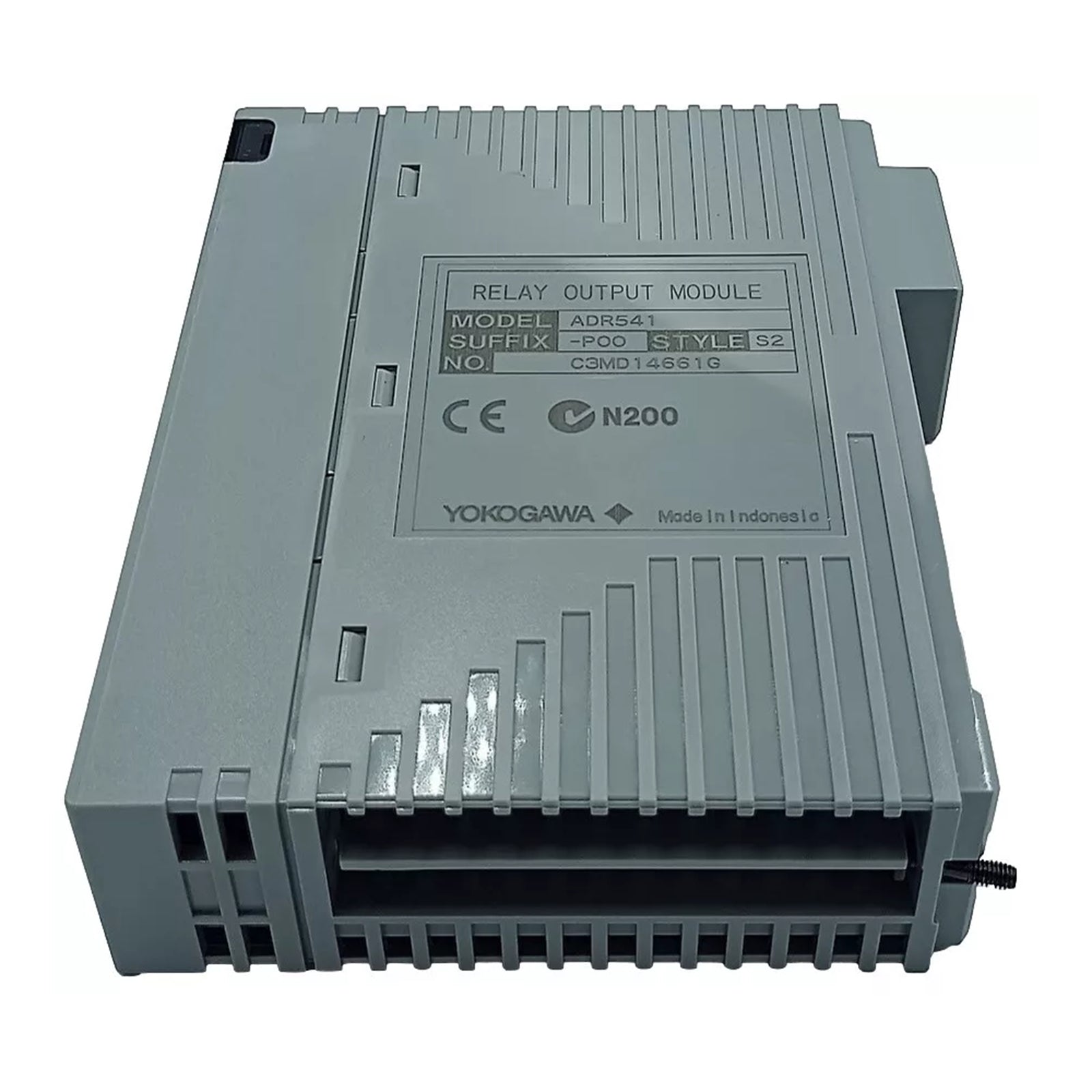

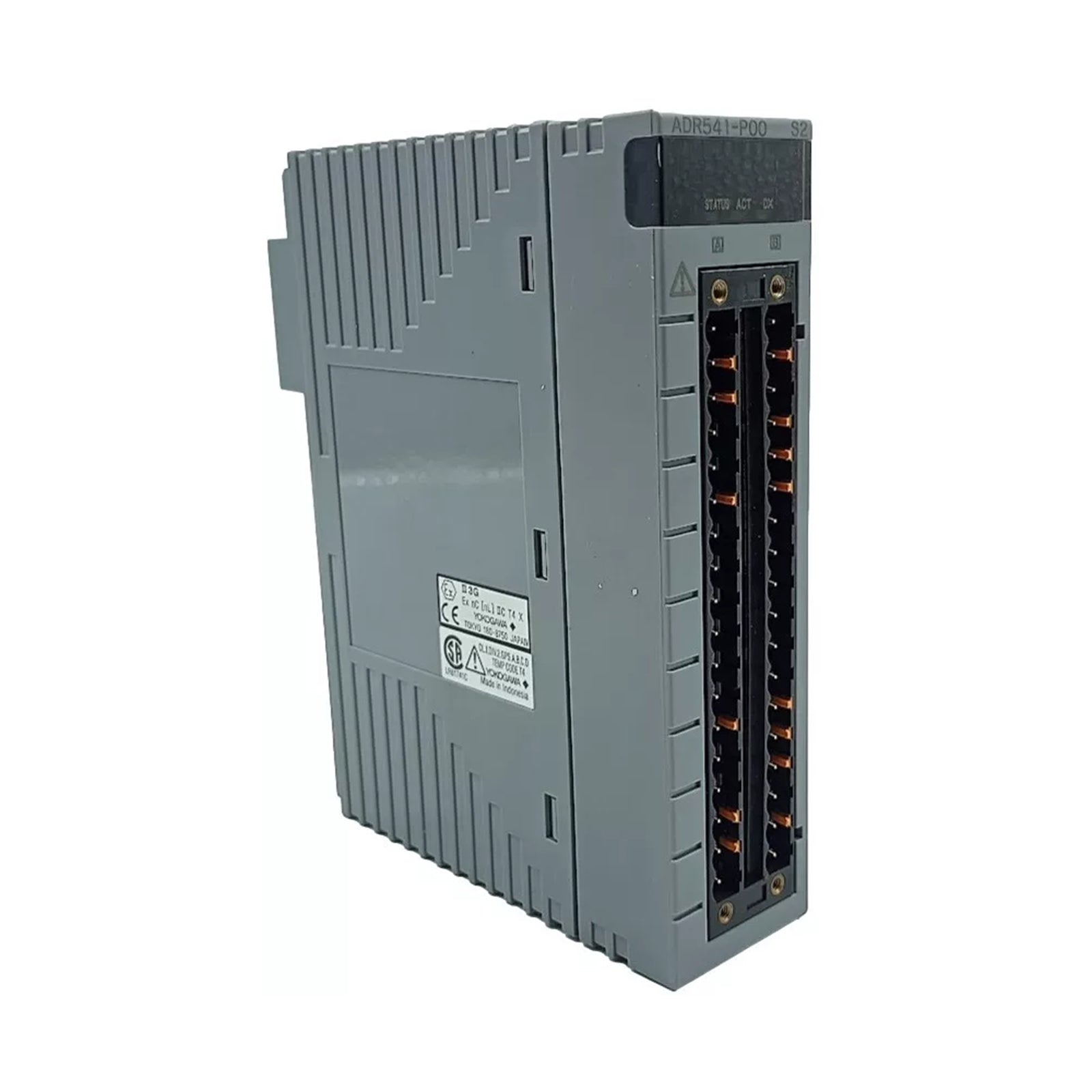

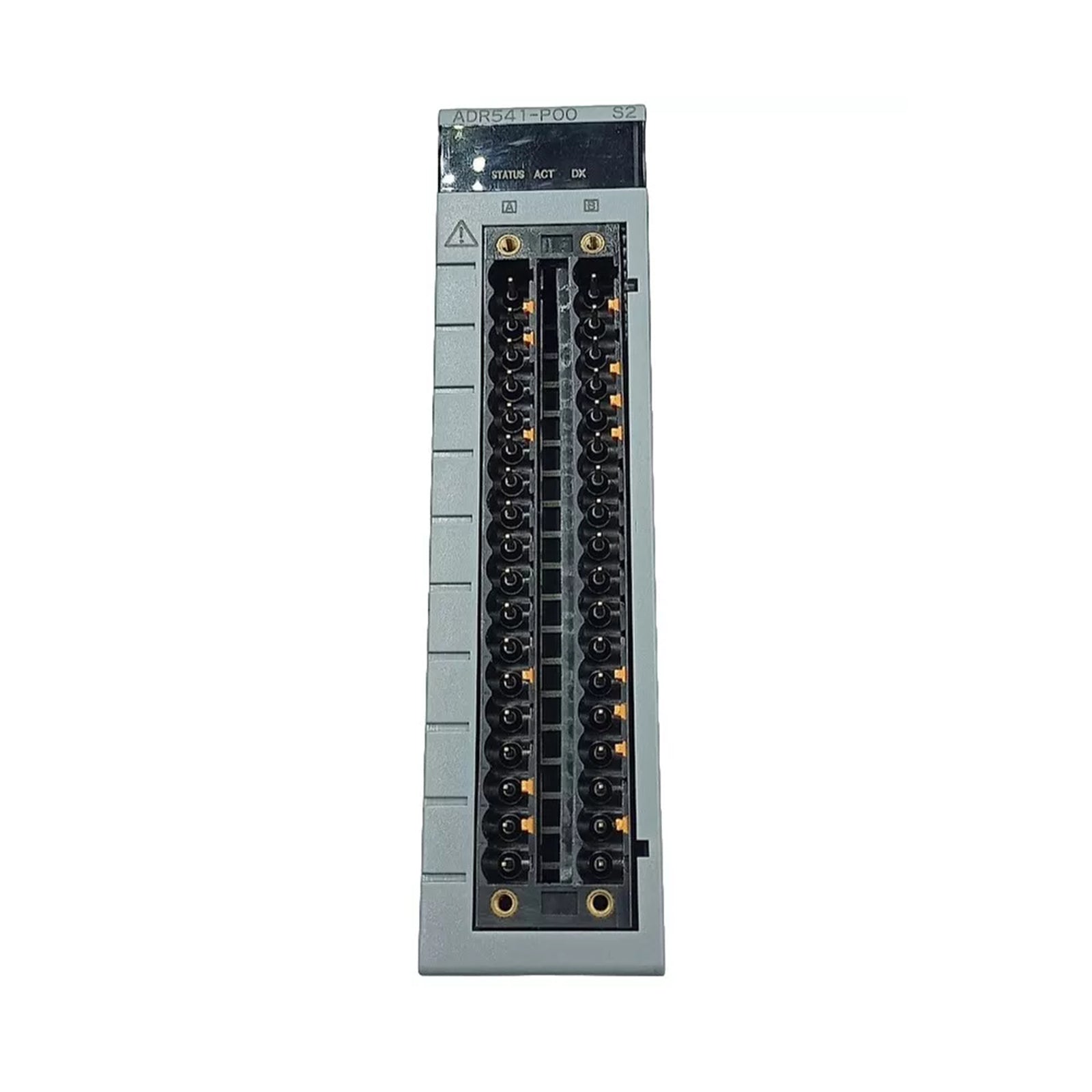

Product Overview

The Yokogawa ADR541-P00 serves as a specialized 16-channel relay output module engineered for the ProSafe-RS Safety Instrumented System (SIS). This module provides mechanical dry contact switching, offering a robust physical interface for driving high-power field devices, interposing relays, and emergency signaling equipment. In critical infrastructure such as gas turbine control and petrochemical emergency shutdown systems, the ADR541-P00 delivers the essential galvanic isolation required to separate the sensitive safety processor from high-voltage field-side electrical noise. Its high-reliability relay architecture ensures a definitive "fail-safe" state during power loss or system faults. By integrating hardware-level diagnostic feedback, the module allows the safety controller to verify the mechanical state of the contacts, maintaining the strict functional safety integrity required for SIL3 certification.

Technical Configuration

The ADR541-P00 utilizes a specific hardware designation to define its interface and environmental protection level:

P - Pressure-Clamp Terminal Support

The "P" designation indicates that the module features integrated support for pressure-clamp terminal blocks. This design simplifies field wiring by allowing direct wire insertion, significantly reducing the time required for cabinet assembly and field maintenance.

0 - Standard Protection Revision

The first "0" identifies the hardware revision optimized for standard industrial operating conditions. It maintains consistent switching speeds and contact resistance ratings within the specified temperature range.

0 - Standard Environmental Coating

The final "0" confirms the standard environmental specification. This module is ideal for deployment in controlled control room environments or properly sealed enclosures that meet Class G1/G2 air quality standards.

Technical Specifications

Engineering Advantages

The ADR541-P00 offers significant engineering advantages in applications involving heavy inductive loads or mixed-voltage signaling. Unlike solid-state outputs, its mechanical relays handle high inrush currents without the need for additional snubber circuits in many standard configurations. The module provides true physical disconnection, which is a critical requirement for certain safety isolation protocols in high-risk zones. Furthermore, the ADR541-P00 features a long mechanical life span, ensuring millions of switching cycles even in demanding alarm-annunciation roles. Its seamless integration with the ProSafe-RS platform allows for comprehensive software-based monitoring of relay health, identifying potential contact welding or aging before a safety failure occurs.

Installation Guide

When deploying the ADR541-P00, ensure the module is securely locked into the I/O base plate using the top and bottom latches to prevent vibration-induced signal loss. Use the pressure-clamp terminal blocks to connect field wiring, ensuring a wire gauge between 0.5 mm² and 2.0 mm² for optimal contact.

Engineers must consider the total power dissipation of the rack when all 16 relays are energized simultaneously. To prevent arc damage and extend the life of the mechanical contacts, we highly recommend installing external surge absorbers (diodes for DC or varistors for AC) when driving highly inductive loads like large solenoid valves. Always verify that the field-side voltage does not exceed the module's rated capacity of 250 V AC or 125 V DC to avoid internal flashover. For high-availability safety loops, configure the ADR541-P00 in a redundant pair on the base plate to enable hot-swapping without disrupting the active safety function.

Technical FAQs

Q1: Can the ADR541-P00 be used for safety-related emergency shutdowns?

A1: Yes, the ADR541-P00 is a core component of the ProSafe-RS system and is certified for use in SIL3 safety loops when applied according to the safety manual.

Q2: Is it possible to mix AC and DC voltages across different channels?

A2: While the module provides channel-to-channel isolation, we recommend grouping voltages by module to prevent accidental cross-contamination of power sources during maintenance and troubleshooting.

Q3: What is the maximum current capacity per channel for the ADR541-P00?

A3: Each channel supports up to 2 A. However, the total module current must stay within the limits of the power supply and base plate specifications.

Q4: Does the module support "Line Monitoring" for relay contacts?

A4: The ADR541-P00 supports contact status readback, allowing the system to verify the relay's position. For full open/short circuit line monitoring, specialized digital output modules or external monitoring resistors are typically required.
