Product Overview

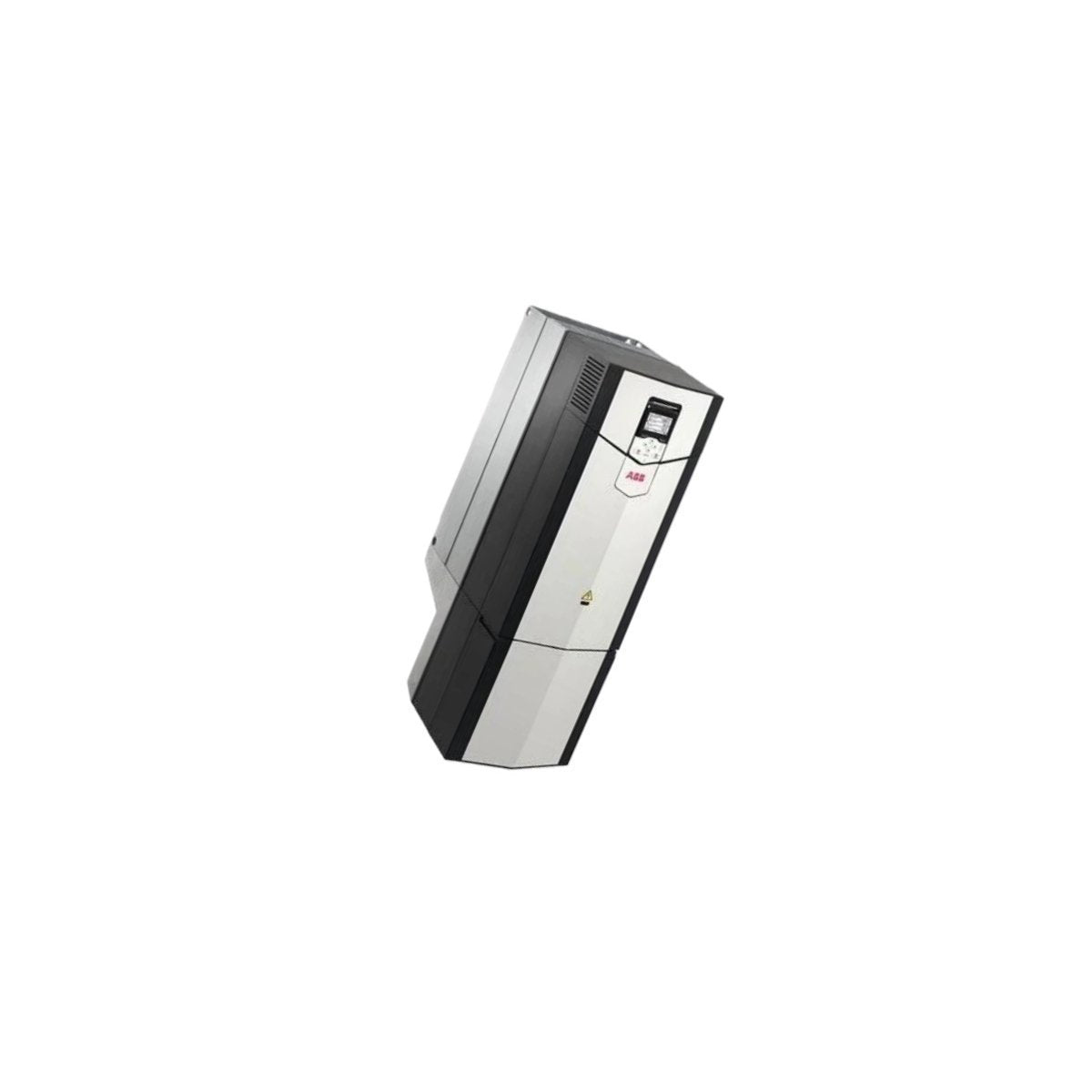

The ABB ACS880-01-156A-5 is a premium, wall-mounted single drive designed to simplify the complexities of industrial motor control. Part of the ACS880 industrial drive series, this unit is engineered for precision control of a wide variety of AC motors, including induction, permanent magnet, and synchronous reluctance motors (SynRM). It provides a high-power output of 90 kW within a compact footprint, specifically optimized for space-constrained installations without sacrificing performance. By utilizing Direct Torque Control (DTC) technology, the ACS880-01-156A-5 delivers exceptional motor torque and speed accuracy without the need for encoders, ensuring high-level reliability for mission-critical industrial processes.

Hardware Parameters and Key Technical Characteristics

The ACS880-01-156A-5 is built with an all-compatible architecture, featuring high-grade environmental protection and integrated harmonic mitigation.

• Model Identification ACS880-01-156A-5

• Power Rating 90 kW (125 hp) for heavy-duty applications

• Nominal Current 156 A continuous output current

• Input Voltage Range 380 V to 500 V (IEC) / 460 V (UL)

• Enclosure Rating IP55 (UL Type 12) as standard, protecting against dust and low-pressure water jets

• Motor Control Direct Torque Control (DTC) for open and closed-loop operation

• Integrated Hardware Built-in harmonic filtering choke and internal brake chopper support

• Safety Features Integrated Safe Torque Off (STO) as a standard hardware function

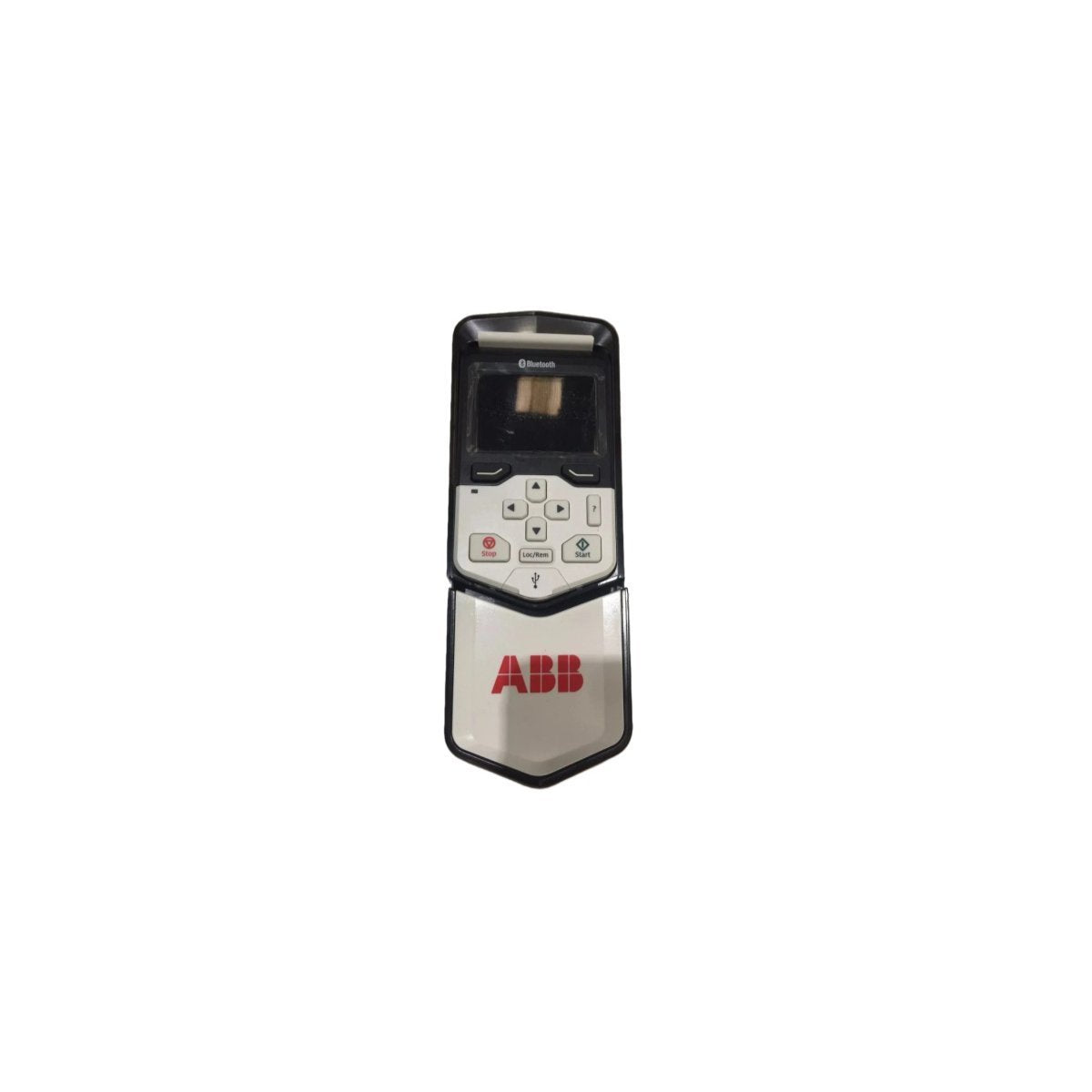

• Interface Multi-language control panel with USB port for easy commissioning and PC tool connection

• Expansion Capabilities Supports multiple fieldbus adapters (Profinet, Ethernet/IP, Modbus) and I/O extension modules

• Weight Note: Standard weight for this frame size is approx. 45–55 kg (data sheet 1.22 kg likely refers to control unit only)

• Dimensions Optimized frame size for wall-mounting efficiency

Industrial Applications and Operational Use Cases

This variable speed drive is tailored for heavy-industry environments where torque precision and system uptime are non-negotiable.

• Pumping and Fluid Management Precise control of centrifugal pumps in water treatment and chemical processing, reducing energy consumption and water hammer effects.

• Material Handling Managing high-inertia loads on industrial conveyors and cranes, providing smooth acceleration and regenerative braking capabilities.

• Compression and HVAC Operating large-scale industrial compressors and ventilation fans with optimized speed control to match process demand.

• Extruders and Mixers Delivering high starting torque and constant speed accuracy for plastics and rubber manufacturing machinery.

• Infrastructure and Mining Reliable operation of grinders, crushers, and winches in harsh environmental conditions where dust protection (IP55) is critical.
