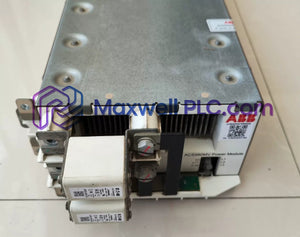

The ABB ACS580MV_PEBB_R2 2UBA004416R0002, also cataloged as the ACS580MV_PEBB_R2 AC servo drive amplifier controller, operates as a dedicated hardware component for high-power switching regulation and torque execution within ACS580 medium-voltage drive architectures.

System Configuration & Module Identifiers

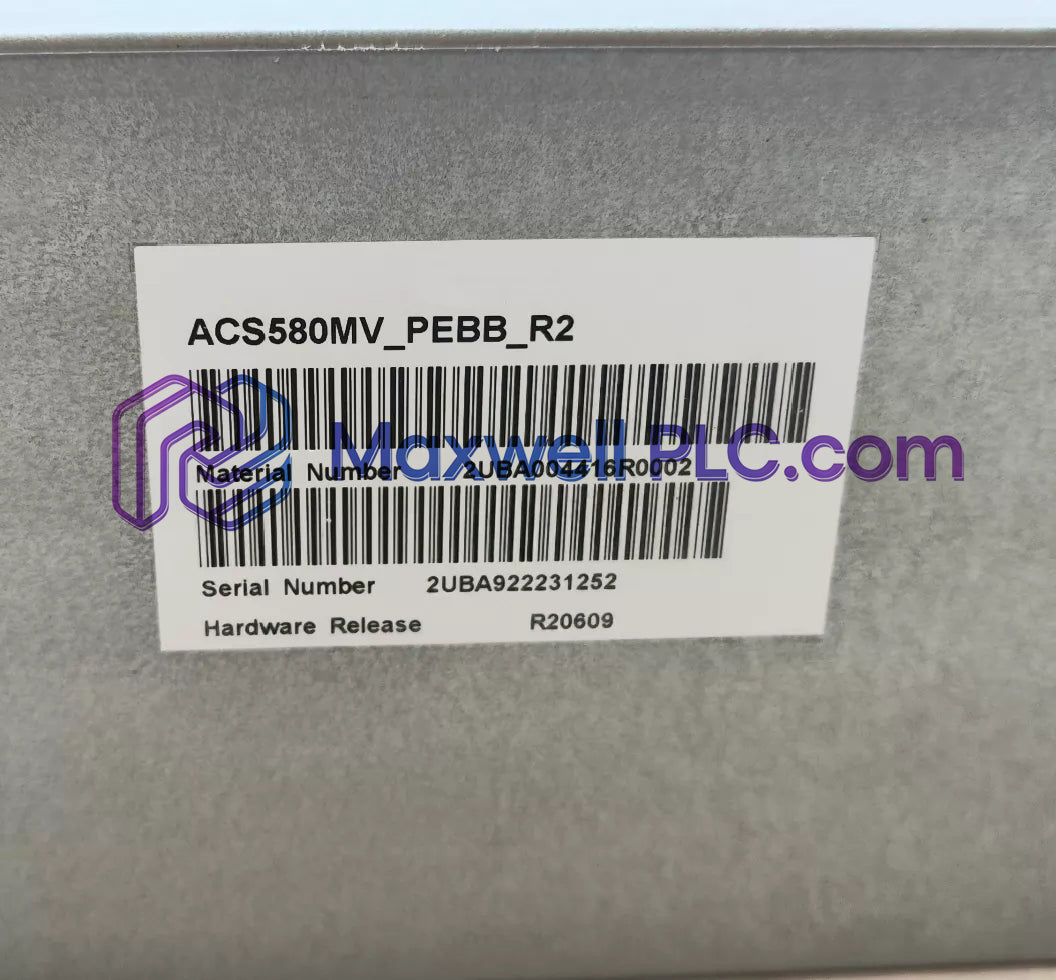

• Full Assembly Order Code: 2UBA004416R0002
• Hardware Variant Designation: ACS580MV_PEBB_R2
• System Architecture: Power Electronic Building Block (PEBB) power phase module
• Control Operating Mode: Sensorless Vector Control (SLVC) mode
• Primary Motor Support: 0.75 kW to 560 kW dynamic power rating

Physical & Technical Parameters

Control Backplane Integration & Deterministic Networks

The internal controller board relies on optimized backplane bus communication velocity licences to maintain cycle synchronization across the power stack. High-speed optical data links interface with main control units across Profinet / EtherNet/IP deterministic networks, enabling real-time gating pulses and current loop execution. Firmware flash compatibility provides seamless software matching across power module hardware iterations.

Shipment Logistics & Hardware Scope

• 1 x ABB ACS580MV_PEBB_R2 PEBB amplifier assembly (2UBA004416R0002)
• 1 x Optical fiber link harness kit
• 1 x Installation and ground bus mounting sheet

Field Installation & Chassis Mounting Rules

• Power Isolation & Discharge: Disconnect main line input voltage and wait at least 5 minutes to confirm complete DC bus capacitor voltage dissipation before touching power terminals.
• Fiber Optic Handling: Maintain minimum bend radius limits for fiber optic control channels connecting the power cell to the main control hub to avoid signal attenuation.
• Chassis Grounding: Bolt the module frame securely to the enclosure backplate ground bus using lock washers to achieve low-impedance electrical contact.
• Thermal Management: Keep air intake pathways clear and verify functional operation of enclosure cooling fans to prevent thermal trip shutdowns.

Engineering Support FAQ

• What primary control mode governs speed and torque accuracy on this module?

  The unit operates in Sensorless Vector Control (SLVC) mode, yielding +/-5 % torque accuracy and a 1:100 speed control range without encoder feedback.

• What peak current output is supported by this amplifier module assembly?

  The hardware power stack is rated to handle output current levels up to 1300 A under nominal operating conditions.

• Can this power module be hot-swapped while the drive cabinet is energized?

  Hot-swapping is strictly prohibited; high-voltage AC input and DC bus potentials must be de-energized prior to removal.

• How are control signals transmitted from the main controller to the PEBB assembly?

  Gating signals and diagnostic status messages are transmitted over noise-immune fiber optic lines linked directly to the board logic.

• What voltage range is tolerated on the main AC power input terminals?

  The power stage accepts 3-phase AC input supply voltages ranging from 200 to 690 VAC.

• What firmware precautions are required when replacing a single PEBB unit?

  Firmware flash compatibility must be verified between the newly installed PEBB module control board and the master drive controller.

• What is the ambient operating temperature range for the amplifier inside the drive housing?

  The module is designed for continuous operation within an ambient temperature envelope of 0 to +40 deg C.

• How is electrical noise suppressed across the power phase switches?

  Proper chassis grounding, balanced fiber optic isolation, and twisted-pair auxiliary feedback connections minimize high-frequency noise interference.
