Product Overview

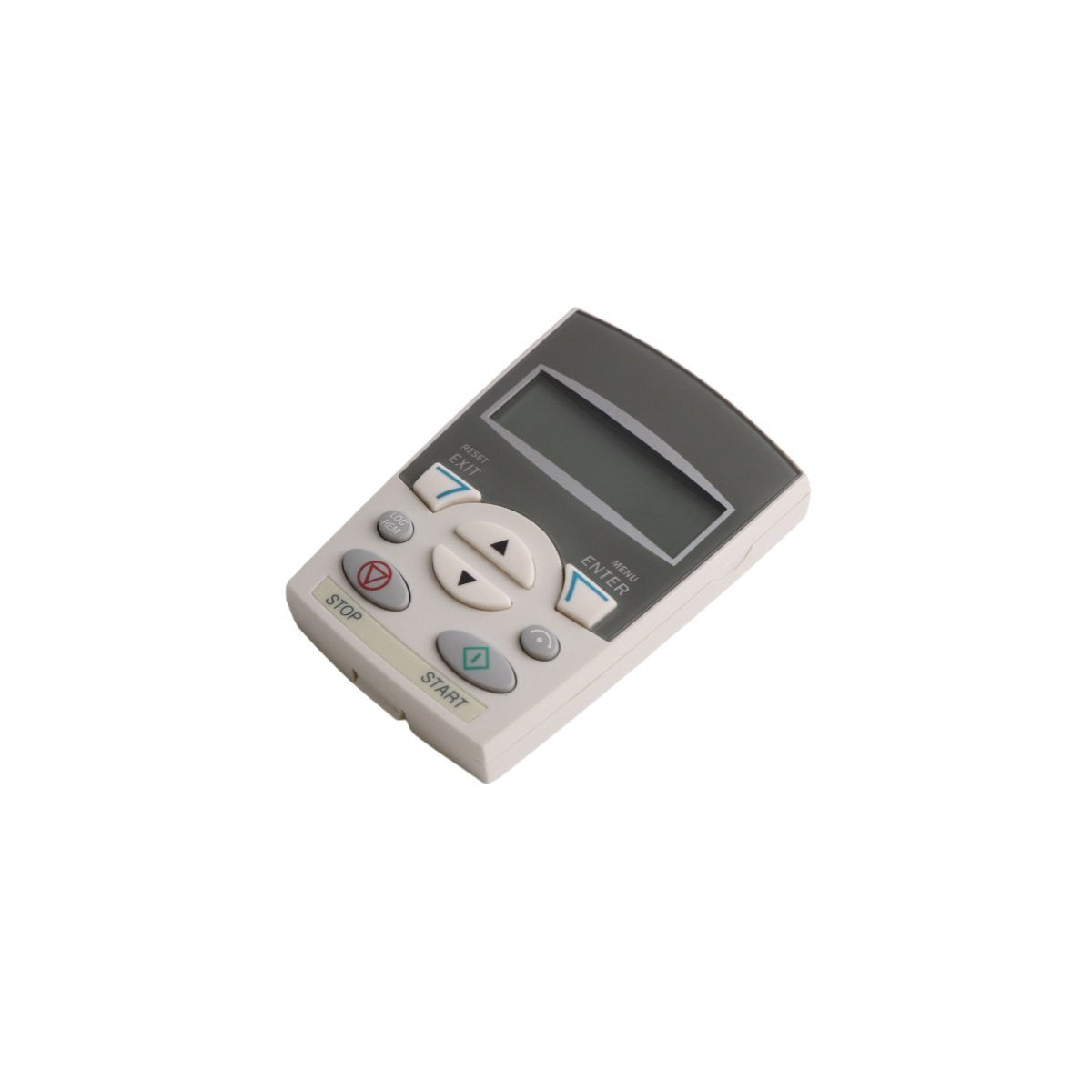

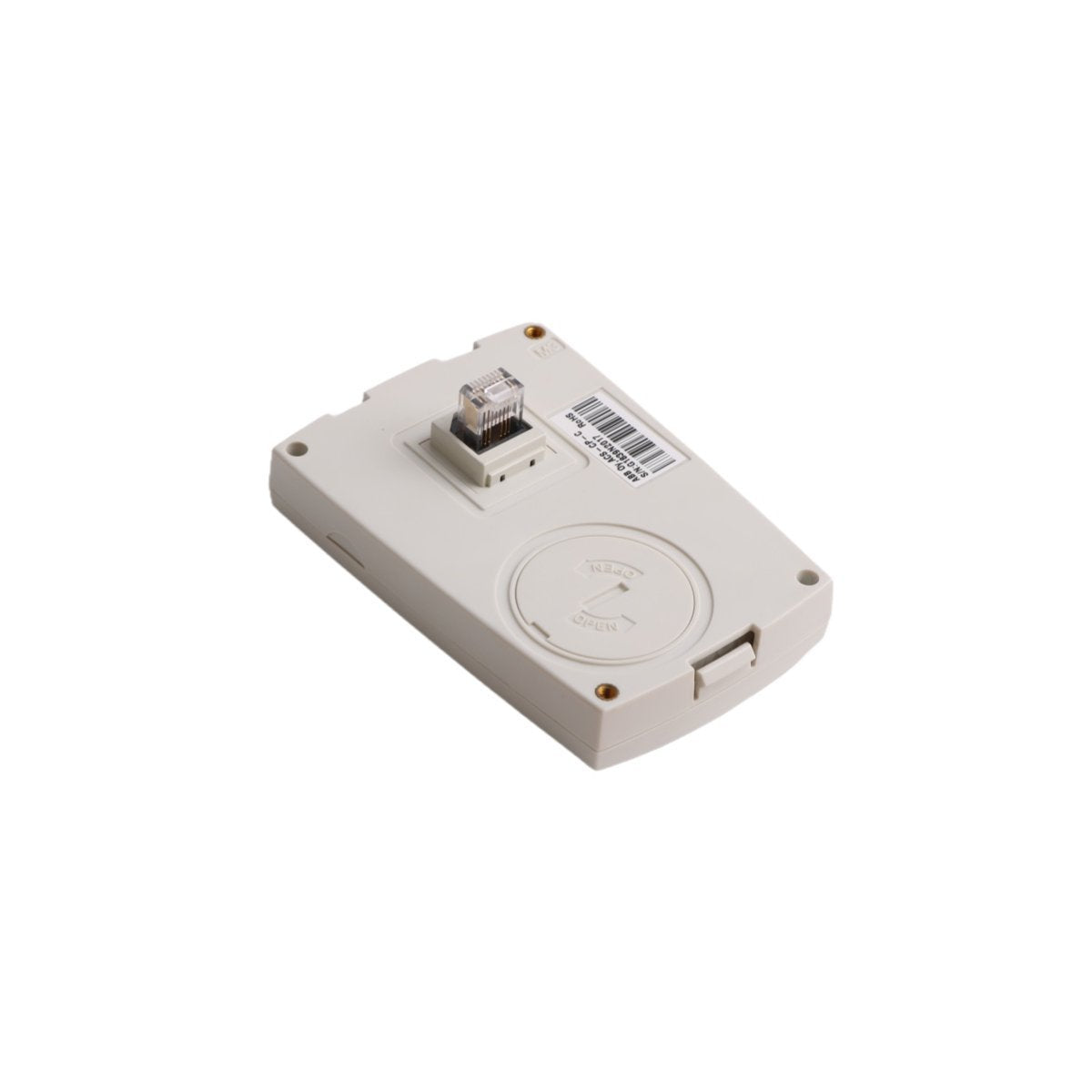

The ABB ACS-CP-C is a streamlined human-machine interface (HMI) engineered specifically for the management of low-voltage AC drives. This basic control panel provides an efficient gateway for operators to monitor, configure, and troubleshoot drive performance in real-time. By utilizing a simplified numeric interface, the module removes unnecessary complexity, focusing on core drive variables and parameter adjustments. Its architecture is optimized for high-demand industrial environments, ensuring that motor control remains accessible and responsive. Whether used for initial commissioning or routine maintenance, the ACS-CP-C serves as a fundamental component for maximizing the uptime of ABB’s versatile drive families.

Hardware Specifications and Technical Architecture

The following data represents the physical and functional parameters of the ACS-CP-C module:

Industrial Deployment and Sector Applications

• Drive Commissioning: Accelerates the deployment of multiple motor controllers by using the built-in parameter upload/download tool to clone configurations between drives.

• HVAC Systems: Ideal for monitoring fan and pump speeds in building automation where simple, numeric feedback is preferred over complex graphics.

• Manufacturing Assemblies: Integrated into localized control stations to allow floor operators to make rapid speed adjustments to conveyors and mixers.

• Maintenance & Diagnostics: Serves as a portable or fixed diagnostic tool to identify drive faults and reset operational parameters without requiring a PC connection.

FAQ

Q: Can the ACS-CP-C be used to transfer settings from an ACS355 to an ACS550?

A: While the panel supports parameter copying, it is generally intended for transferring data between identical drive series to ensure parameter mapping remains consistent and safe.

Q: Does this panel support multi-language text descriptions?

A: No, the ACS-CP-C is a basic numeric panel. It uses parameter codes and numerical values rather than full-text descriptions. For multi-language text, the Assistant Control Panel (ACS-CP-A) is recommended.

Q: Is the panel hot-swappable while the drive is powered?

A: Yes, in most applications, the control panel can be attached or removed while the drive is energized, provided the drive is not currently performing a critical write operation to the permanent memory.

Q: How does the "Parameter Copy" function benefit large-scale installations?

A: It significantly reduces human error and setup time by allowing a master configuration to be saved to the panel's internal memory and then deployed to dozens of other drives in seconds.

Q: What is the benefit of the numeric display over a graphical one?

A: The numeric display offers high visibility in various lighting conditions and provides a rugged, low-cost solution for applications that only require fundamental data monitoring.
