Product Overview

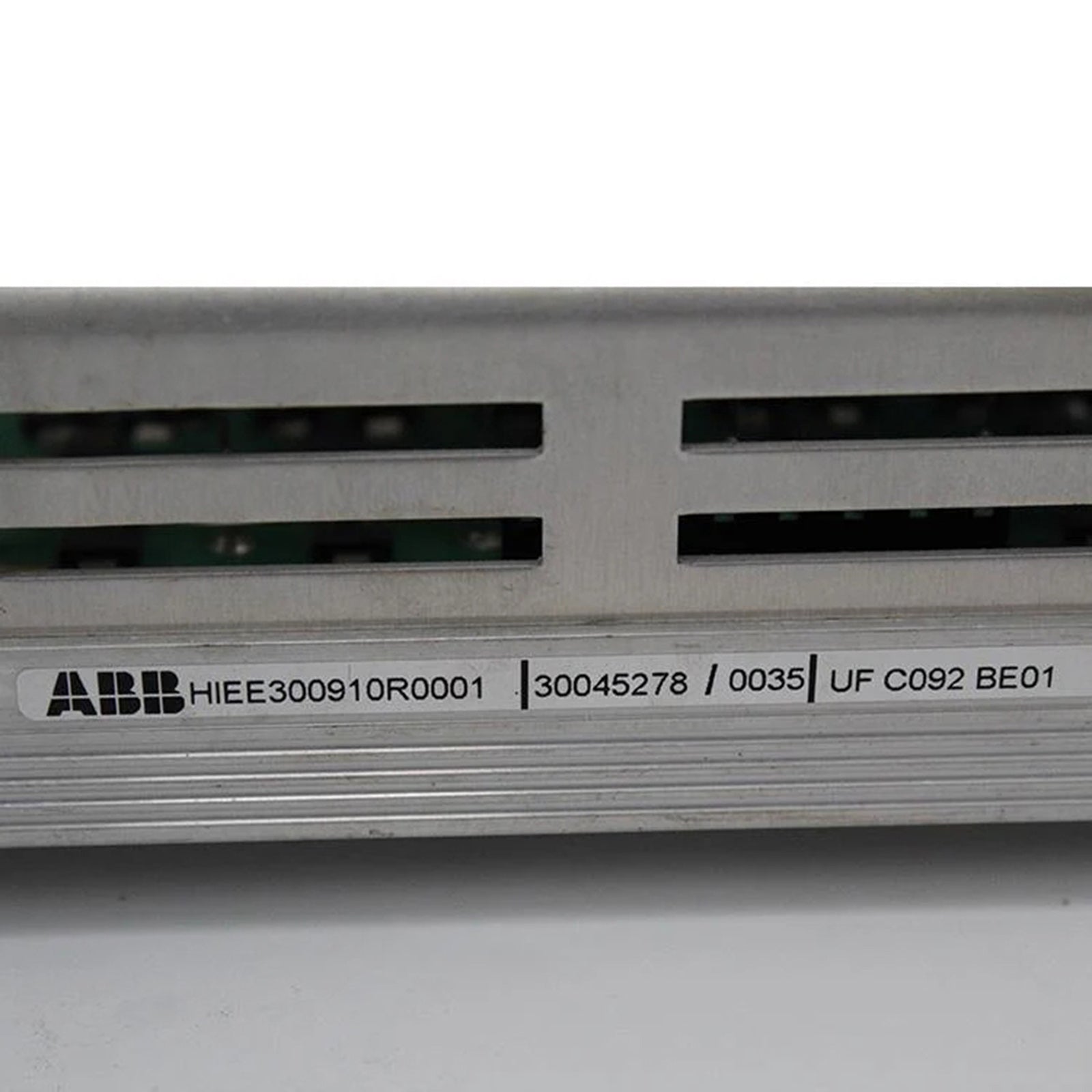

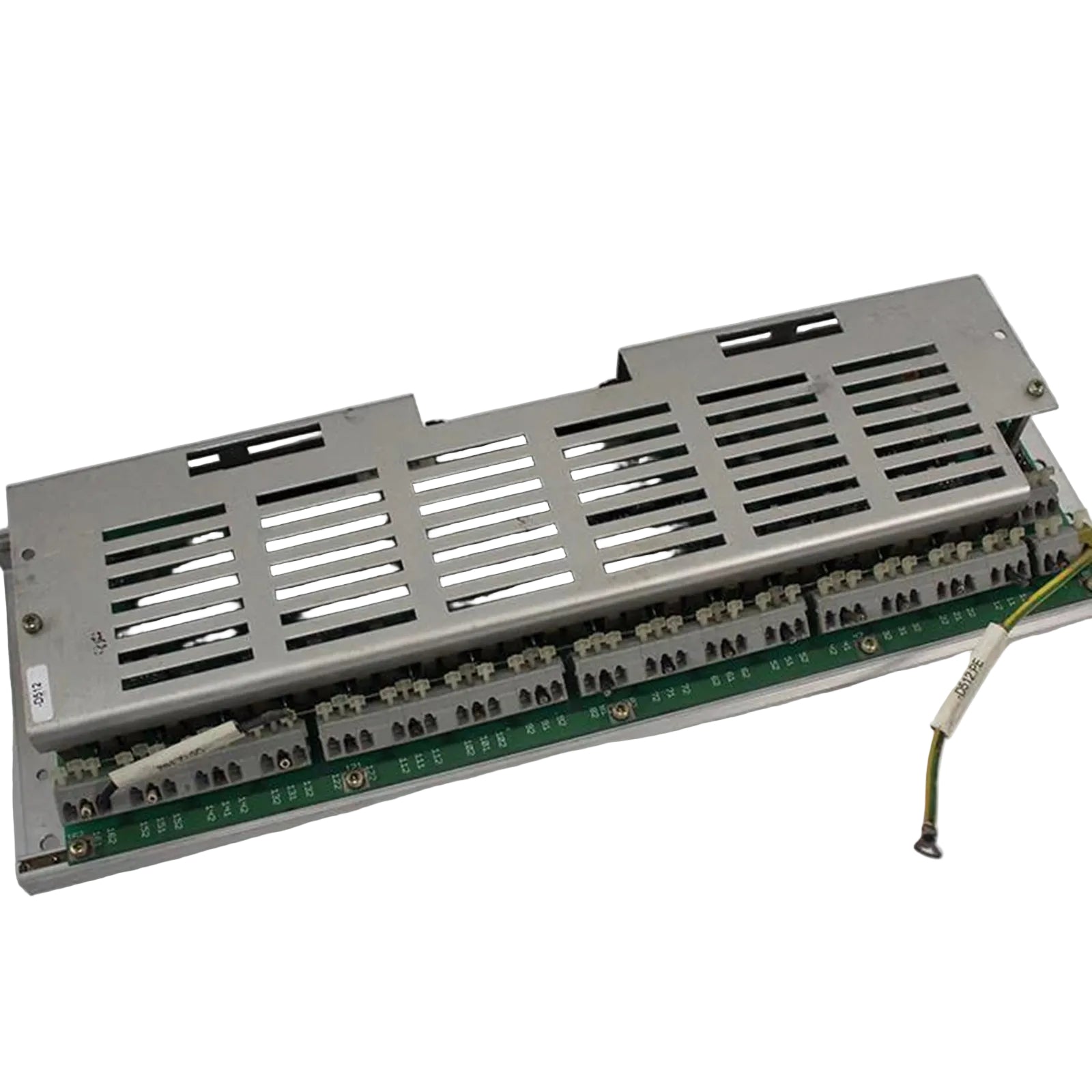

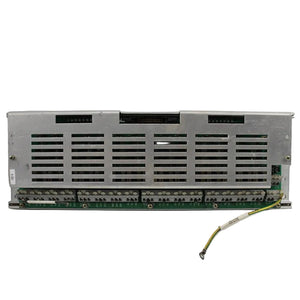

The ABB UFC092BE01 HIEE300910R0001 serves as a high-reliability binary input module engineered specifically for the ABB UNITROL series of automatic voltage regulators (AVR) and static excitation systems (SES). This critical processing interface captures high-speed discrete telemetry—such as generator breaker status, emergency trip interlocks, and cooling system alarms—and converts it into noise-immune data for the core control processor. Power generation facilities deploy this module within large-scale synchronous generator systems (including gas, steam, and hydroelectric plants) where real-time monitoring of excitation parameters directly impacts grid synchronization and generator safety. By maintaining exceptional signal conditioning speeds, the UFC092BE01 prevents control loop latency and secures critical turbine-generator assets against unexpected grid disturbances.

Hardware Architecture & Signal Isolation

The UFC092BE01 utilizes specialized circuitry optimized to meet the strict electrical requirements of power plant generator control rooms.

High-Voltage Galvanic Isolation Matrix

The module incorporates a robust array of onboard optical couplers. This isolation barrier separates the sensitive microchip logic of the UNITROL processing core from the harsh, high-voltage field wiring circuits, successfully blocking destructive ground potential differences and inductive surges.

High-Speed Binary Debouncing Engine

To ensure instantaneous system protection responses, the board processes discrete signals with minimal propagation delay. Built-in hardware filters remove false transients and contact bounce common in large industrial contactors, delivering an accurate and clean data stream to the central excitation logic.

Technical Specifications

The following data table outlines the precise physical proportions, logistics categories, and certified operational metrics for this module.

Field Deployment & Installation Blueprint

Following standard power engineering guidelines prevents early board failure and keeps the system fully compatible with active excitation parameters.

Subrack Alignment and Connector Protection

Before inserting the module, verify that the UNITROL subrack power supply is turned off. Carefully slide the UFC092BE01 along the card chassis tracks to ensure the high-density backplane connector mates straight and true with the master housing socket without damaging any pins.

Shield Termination Standards

Route all external input wires through shielded, twisted-pair cables. Ground these cable shields at the entry point of the excitation cubicle using low-resistance copper grounding clamps to block high-frequency electromagnetic noise caused by nearby thyristor switching circuits.

Thermal Convection Spacing

Maintain clean ventilation paths across the top and bottom of the module subrack housing. Adequate clearance prevents heat from building up around the onboard isolation components, keeping the system running reliably in high-temperature turbine rooms.

Engineering Performance Advantages

This excitation component provides exceptional technical advantages over general industrial input cards.

Extreme Electrical Noise Immunity

The module architecture is heavily shielded against electromagnetic interference (EMI) and radio frequency interference (RFI). This allows the board to operate reliably right next to high-current thyristor bridges and generator field windings without experiencing signal errors.

Direct Integration with UNITROL Automation

The UFC092BE01 communicates directly with standard UNITROL diagnostic systems. It seamlessly passes channel health and status changes straight to the plant operator's main DCS interface, enabling rapid troubleshooting and minimizing maintenance windows.

Ordering and Manifest Configuration

Your industrial procurement shipment package contains the following components:

(1) Genuine ABB UFC092BE01 HIEE300910R0001 Binary Input Module

(2) Factory-sealed heavy-duty anti-static barrier bag

(3) Technical tracking data certificate

Please note that the main UNITROL backplane subrack, terminal blocks, internal bus connection ribbons, and configuration application software are sold separately.

Logistics Management & Shipping Parameters

Our international supply chain system guarantees safe transport and fast delivery to prevent unplanned downtime at your power generation site.

Shipping Schedule

All orders are packaged and cleared for global express shipping within 2 to 7 business days following payment verification.

Express Courier Networks

We manage international transport through premier freight networks, including DHL, FedEx, and UPS, providing full tracking status from dispatch to delivery.

Sensitive Component Protection

To safeguard the high-precision processing components from electrostatic damage or transit vibration, the board is wrapped in anti-static industrial film and housed in an impact-resistant, foam-lined shipping box.

Diagnostics & Technical FAQ

Q1: What is the recommended troubleshooting path if an active input loop does not change state in the UNITROL controller?

A1: Use a digital voltmeter to check for wetting voltage directly across the module's terminal connectors. If voltage is present but the onboard status LED does not light up, check the system event logs for channel-specific overload errors. If the LED does light up but the software state remains unchanged, inspect the backplane bus connection or check for a parameter mismatch in the controller configuration.

Q2: Can this module be used interchangeably between UNITROL 5000 and older UNITROL systems?

A2: The UFC092BE01 HIEE300910R0001 is designed for specific system architectures. Always verify that your system firmware version matches the module requirements and cross-reference your original equipment manual to ensure exact backplane compatibility before replacement.

Q3: How does the conformal coating on this binary input module protect against harsh power plant environments?

A3: The factory conformal coating protects the circuit traces against airborne contaminants, moisture, and conductive dust, such as coal or carbon brush dust. This protection prevents localized short circuits and tracking faults, ensuring reliable performance in demanding turbine environments.
