Product Overview

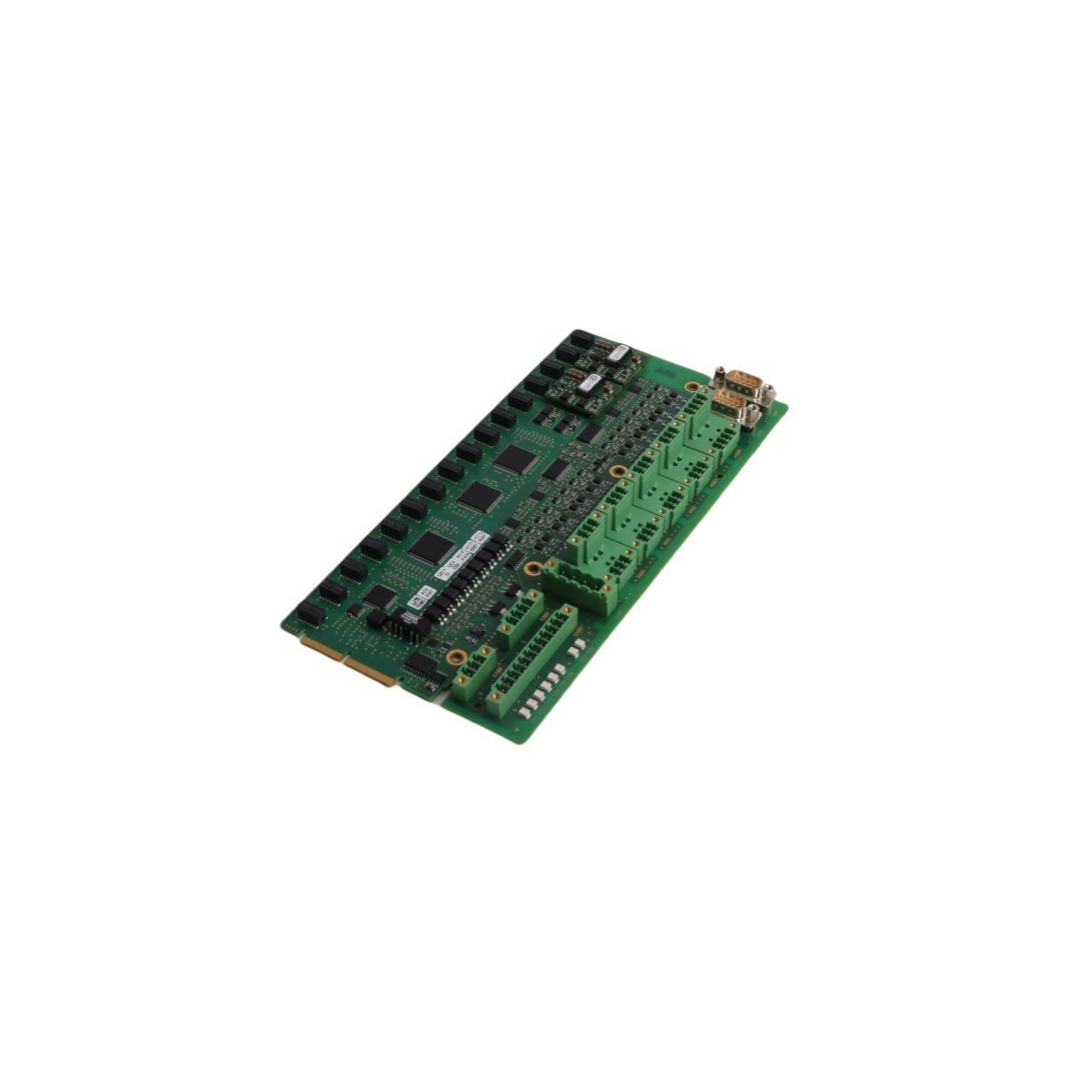

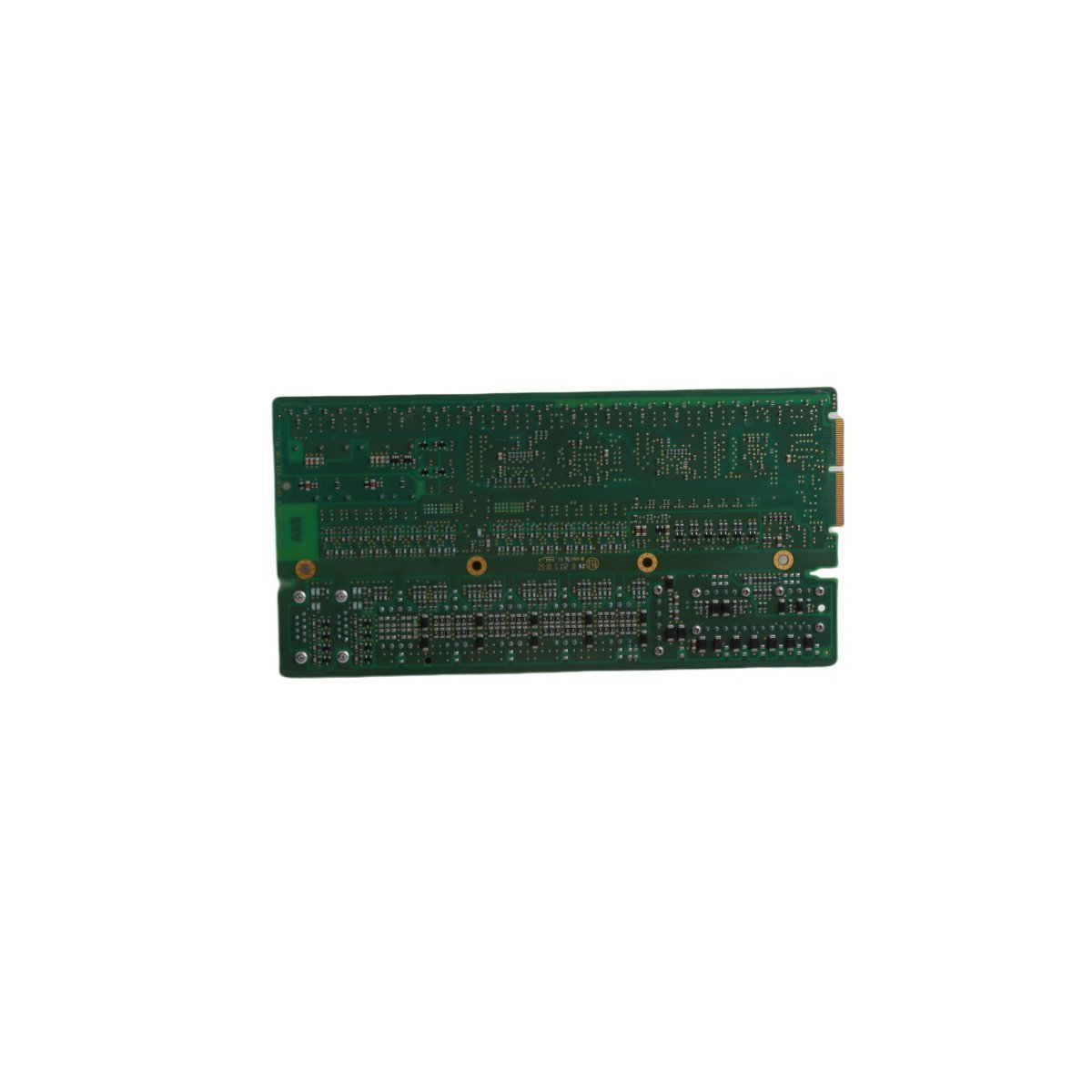

The ABB UCD216A (Order Number: 3BHE027632R0101) is a high-density, 16-channel digital I/O control board primarily utilized as a core main board within the Advant Controller and AC800M series. It serves as a vital interface in Distributed Control Systems (DCS), managing high-speed signal processing and real-time data exchange between the central processor and field instrumentation. This Swedish-engineered module is designed for mission-critical reliability, featuring redundant power inputs and a ruggedized build to ensure continuous operation in power generation, petrochemical, and heavy manufacturing environments.

Technical Architecture and Hardware Parameters

The UCD216A is built to provide high-precision signal management under rigorous industrial conditions:

• Board Model: UCD216A

• Ordering Designation: 3BHE027632R0101

• I/O Capacity: 16 Configurable Digital Channels (24 VDC)

• Onboard Memory: 128 MB DDR RAM / 32 MB Flash

• Physical Weight: 3.7 kg (Robust industrial assembly)

• Unit Dimensions: 76 mm x 381 mm x 229 mm

• Environmental Protection: Conformal coating for moisture and chemical resistance

• Communication Interface: Ethernet (TCP/IP), Modbus RTU/TCP, and Profibus DP support

• Operational Temperature: -20°C to +70°C

• Supply Voltage: 24 VDC (Redundant input supported)

Industrial Applications and Strategic Use Cases

The UCD216A is essential for high-availability control architectures:

• Turbine and Generator Control: Managing the rapid digital sequencing required for excitation systems and turbine safety interlocks.

• Process Interlocking: Executing complex logic for emergency shutdown (ESD) systems where low latency is mandatory.

• Smart Factory Integration: Serving as a communication gateway to link legacy PLC signals with modern Ethernet-based DCS networks.

• Harsh Environment Deployment: Operating within unconditioned remote cabinets thanks to its wide temperature tolerance and conformal coating.

FAQ

Q: Is the UCD216A compatible with the AC 800M controller?

A: Yes, the UCD216A (3BHE027632R0101) is specifically designed to work within the AC 800M and Advant Master frameworks, often serving as a high-performance I/O processor.

Q: What does the "conformal coating" on this board provide?

A: The coating is a protective non-conductive film that shields the delicate electronic circuitry from dust, humidity, and airborne contaminants common in industrial plants.

Q: Does this module support redundant power?

A: Yes, the UCD216A features dual 24 VDC inputs, allowing for a redundant power supply configuration to prevent system downtime in the event of a power source failure.

Q: How are the 16 I/O channels configured?

A: The channels are typically configured through ABB’s Control Builder software, where each point can be assigned specific digital input or output functions based on the field application.

Q: What is the typical lead time for a brand-new UCD216A?

A: While lead times vary by region, this is a standard component in the ABB S800/AC800M range and is frequently available in stock for immediate shipment to support plant maintenance.
