Product Overview

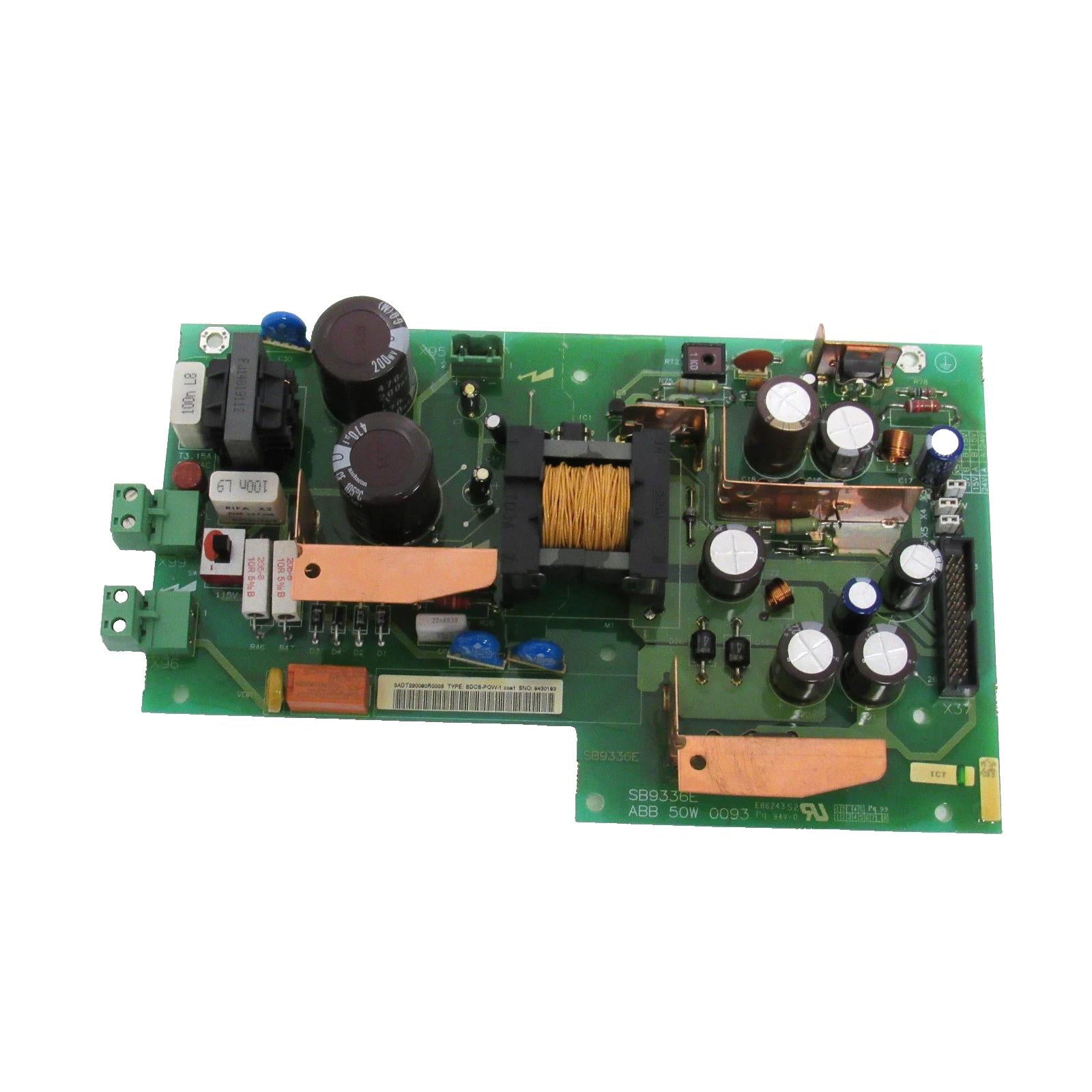

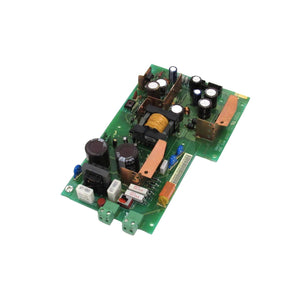

The ABB SDCS-POW-1 3ADT220090R0003 serves as a high-precision, industrial-grade power supply board designed for critical DCS installations and large-scale industrial drive control units. Engineered to provide uncompromised voltage stability, this module converts a standard 24 VDC input into multiple isolated multi-channel outputs, directly powering core processing units, diagnostic circuitries, and fieldbus communications interfaces.

By delivering highly regulated +5 VDC, positive/negative 15 VDC, and +24 VDC power rails, the SDCS-POW-1 isolates delicate microprocessors from the destructive voltage transients and harmonic distortions inherent to heavy industrial environments. This stable power regulation prevents sudden control loop drops or processor resets in high-demand operations, including metallurgy plants, paper mills, and deep-sea drilling vessels where continuous operation represents a critical safety parameter.

Multi-Channel Power Conversion Architecture

The core hardware design of the SDCS-POW-1 leverages highly efficient switch-mode power conversion technology to deliver multi-rail power with minimal thermal dissipation. The module integrates dedicated voltage regulators for each individual output branch, meaning load variations on the higher-draw +24 VDC line will not cause voltage sag or signal fluctuation on the high-precision positive/negative 15 VDC analog control rails.

Advanced onboard filter networks eliminate high-frequency ripple currents, providing ultra-clean power to downstream motor control boards and network transceivers. Galvanic isolation barriers split the primary input circuit from secondary distribution loops. This structural layout blocks common-mode noise and prevents localized ground faults from propagating to central supervisory networks.

Power Matrix & Physical Parameters

Engineering Commissioning & Cabinet Grounding

Successful deployment requires strict observance of spatial positioning and thermal management guidelines within the electrical enclosure. Maintain a minimum clearance gap of 20mm above and below the board assembly to facilitate natural convective airflow across the voltage regulators and power inductors.

Connect the heavy-gauge chassis grounding trace directly to the main cabinet ground bus using a low-impedance copper braid. This specific grounding strategy shunts high-frequency electromagnetic noise away from the internal processing logic. Ensure that input power lines maintain a minimum separation distance of 100mm from high-voltage AC motor lines to eliminate inductive cross-coupling during startup sequences.

Environmental Endurance & Cross-Platform Synergy

The SDCS-POW-1 possesses an extended operational temperature profile spanning from -20 to +70 degrees Celsius, enabling uninterrupted operation in unconditioned control rooms and harsh desert climates. Specially formulated overcurrent and overvoltage protective clamps safeguard the board against sudden line surges, ensuring steady delivery of power during major plant grid disruptions.

This rugged component delivers perfect cross-platform synergy, allowing plant managers to link critical drive electronics back to major DCS networks such as Honeywell Experion PKS or Siemens S7 architectures. The ultra-low ripple voltage profile maintains signal clarity across standard fieldbus protocols, boosting data accuracy for advanced process optimization and automated emergency stop systems.

Factory Procurement Package

(1) Original ABB SDCS-POW-1 3ADT220090R0003 Power Supply Board

(2) Pre-Installed Terminal Block Connectors

(3) Factory Compliance Certification Card

Express Logistics Protocol

Delivery time: 3-5 days when payment finish. We route critical infrastructure hardware exclusively through elite global networks including DHL, FEDEX, and UPS to guarantee expedited arrival. To counter potential atmospheric moisture and electrostatic challenges during transport, components travel inside hermetically sealed anti-static industrial packaging surrounded by reinforced, form-fitting high-density foam padding.

Hardware Support Diagnostics

Q1: What specific systems utilize the SDCS-POW-1 power supply board?

A1: This board serves primarily as the central internal power distribution layer for ABB DCS drive families, converting incoming bulk DC voltage into precise micro-voltages for internal logic processors.

Q2: How does the module handle a sudden short circuit on one of its output rails?

A2: The onboard circuitry deploys immediate, independent short-circuit protection on each power rail, turning off the compromised channel while keeping the rest safe from thermal overload.

Q3: Is the 3ADT220090R0003 fully backward compatible with older SDCS-POW-1 revisions?

A3: Yes, this part number represents a direct functional replacement for legacy SDCS-POW-1 versions, maintaining identical mounting holes and terminal connection layouts.
