Product Overview

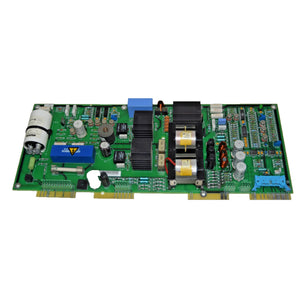

The ABB SAFT172POW (Part Number 58094498) operates as a vital legacy internal power supply board engineered under the Stromberg brand and integrated into ABB high-power variable frequency drives (VFDs) and large synchronous motor control systems. This industrial power card stabilizes internal logic voltage distributions, delivering ripple-free power rails to gate driver circuits and microprocessor control assemblies. Heavy automation processes—including maritime propulsion systems, high-capacity mining conveyances, and continuous pulp mills—rely on this rugged infrastructure board to eliminate unexpected control voltage drops. Despite its discontinued status by the original manufacturer, this module prevents whole-system control failures and safeguards heavy rotating machinery from unsafe operational trips.

Power Regulation & Switching Topology

The hardware architecture of the SAFT172POW focuses on extreme stability and low harmonic interference within heavy-duty inverter structures.

High-Frequency Transient Suppression

The onboard filter matrix aggressively eliminates high-frequency common-mode noise and input line fluctuations generated by thyristor and IGBT switching cycles. This ensures that adjacent control backplanes receive exceptionally stable and precise DC reference voltages.

Thermal Efficiency Design

The physical board layout separates heat-generating power resistors and linear regulators from sensitive timing circuits. This targeted thermal zoning maintains clean, predictable voltage conversion curves across extended production runs without suffering thermal degradation.

Hardware Dimensional Data Matrix

The following table highlights the exact mechanical, transport, and international classification parameters verified for this power card.

On-Site Retrofitting & Grounding Manual

Implementing proper engineering steps preserves the life expectancy of legacy electronic hardware during field replacement.

Safe Capacitor Bleed-Down Window

Before sliding this power card out from the drive housing, verify that the master mains breaker remains locked out. Wait a minimum of 20 minutes for the primary inverter DC-link capacitor banks to discharge below 50V to prevent high-voltage shock or component damage.

Low-Impedance Structural Grounding

The multi-point mounting holes must sit flush against unpainted, clean metal standoffs inside the drive enclosure. A low-impedance connection directly to the master drive housing shunts parasitic high-frequency switching noise away from the logic circuits.

Ribbon Cable Alignment Rules

Ensure total alignment of multi-pin bus connectors prior to locking down the card. Misaligned header pins or uneven insertion pressures on aged backplane ribbons can create a localized short circuit, damaging the voltage-regulation channels instantly upon power-up.

Extreme Duty Engineering Profiles

This power module provides outstanding durability that outperforms modern commercial power hardware within demanding manufacturing plants.

Protection Against Airborne Contaminants

A heavy, factory-applied conformal coating seals the trace runs against airborne carbon dust, moisture droplets, and corrosive chemicals. This preventative barrier stops conductive bridges from forming, keeping the drive online in hostile refinery and smelting plants.

Direct Compatibility with Legacy Drives

The board mirrors the mounting points and electrical interfaces of early Stromberg systems perfectly. This eliminates the need for expensive mechanical retrofits, software reconfiguration, or entire system upgrades, saving thousands in capital expenditures.

Manifest Configuration Breakdown

Your industrial emergency spare consignment contains the following equipment:

(1) Original ABB Stromberg SAFT172POW Power Supply Board

(2) Factory-certified static shielding containment wrap

(3) On-site hardware inspection label

Please note that external wiring looms, heavy mounting screws, replacement bus fuses, and system-level drive manuals are not included in this standalone product package.

Specialized Logistics Management

Our global logistics system safely delivers obsolete components directly to your facility on an expedited schedule.

Despatch Window

Orders ship out within 2 to 7 business days after full payment validation and logistics screening.

Approved Transit Networks

We coordinate all international transport through premier global express freight couriers, using DHL, FedEx, or UPS with full real-time tracking indicators.

Industrial Static Mitigation

To protect fragile components from damage during international transit, the board is sealed inside thick anti-static shielding bags and nested in a multi-layered, shock-absorbing foam enclosure.

Drive Maintenance & Diagnostic FAQ

Q1: How can an engineer identify a failing voltage rail on the SAFT172POW without causing a drive trip?

A1: Technicians can check the designated voltage test pins along the edge of the card using a calibrated digital voltmeter. Comparing these real-time values to the factory baseline (e.g., +5V, +12V, -12V rails) allows you to spot a failing linear regulator before the variance trips the drive's main under-voltage protection circuit.

Q2: Does the SAFT172POW require firmware pairing with the primary drive processor board upon installation?

A2: No. The SAFT172POW functions as a pure hardware power conversion component. It initializes immediately and outputs steady voltage rails once input power is applied, requiring no software parameter loading or firmware synchronization.

Q3: What causes localized discolored spots near the capacitors on an existing SAFT172POW board?

A3: Discoloration usually indicates extended thermal stress from long duty cycles or an internal capacitor breakdown. If you notice localized darkening or bulging components on your active board, swap it immediately with a sealed backup unit to prevent a sudden power failure and subsequent production shutdown.
