Product Overview

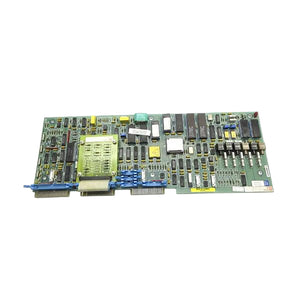

The ABB SAFT103CON 57777290 serves as the primary CPU control PCB circuit board for high-power industrial drive systems. Engineered to handle high-velocity algorithmic processing, this main control board manages real-time motor control loops, firing pulse generation, and critical system diagnostics. It delivers precision speed and torque regulation across heavy-duty applications, including mining hoists, metal rolling mills, and large-scale marine propulsion systems where downtime compromises operational viability.

By executing complex vector control processing and managing communication between fieldbus networks and power semiconductors, the SAFT103CON guarantees stable operations under intense dynamic loads. This module ensures rapid fault detection and implements immediate shutdown protocols during overcurrent or overvoltage events, preserving the structural integrity of the entire drive train and preventing catastrophic system failure.

Processor Architecture & Control Infrastructure

The internal architecture of the SAFT103CON relies on a high-speed microprocessor core designed to execute complex motor control firmware with zero latency. It interfaces directly with power electronic modules through optimized internal data busses, executing high-frequency switching calculations to optimize energy efficiency and minimize total harmonic distortion within the motor windings.

Advanced onboard gate-drive communication channels enable this board to synchronize power module firing sequences continuously. Dual-channel isolation design prevents high-voltage feedback from the power stage from infiltrating the digital processing core. The integrated memory chipset stores critical fault logs, run-time parameters, and application macros, preserving configuration data during sudden power disruptions.

Core Component Matrix

On-Site Deployment & Static Protection Guidelines

Engineers must adhere to strict Electrostatic Discharge (ESD) protocols when handling this central processor card. Always utilize a grounded wrist strap and a dissipative work mat during installation inside the drive cabinet enclosure to prevent microscopic gate damage to the processing chips.

Mount the board securely using all factory-designated screw locations to ensure optimal chassis grounding and vibration damping. Route high-voltage gate-drive cables completely separate from low-voltage signal wires to mitigate electromagnetic interference. Verify that firmware versions match existing parallel drive units before executing system initialization to ensure absolute control loop synchronization.

Industrial Environmental Resilience & System Integration

The SAFT103CON features heavy-duty conformal coating across its entire surface, defending delicate tracking circuitry from conductive dust, moisture, and corrosive atmospheric elements common in heavy industrial processing plants. It handles heavy mechanical vibrations and continuous thermal cycling without exhibiting component drift or signal degradation.

This controller integrates seamlessly into broader factory automation architectures, facilitating rapid data transfers to supervisory distributed control systems like ABB Ability or Honeywell Experion PKS. This open compatibility allows operators to extract real-time motor diagnostics, thermal trends, and power consumption metrics for advanced predictive maintenance strategies.

Kit Inclusions & Fulfillment

Your hardware shipment arrives packed with the following components:

(1) Original ABB SAFT103CON 57777290 CPU Control PCB

(2) Set of Board-Level Configuration Jumpers

(3) Factory-Sealed Anti-Static Storage Enclosure

Logistics & Global Shipping Channels

Delivery time: 2-7 days when payment finish. We route all critical electronic components via global express services including DHL, FEDEX, and UPS to minimize asset downtime. Every circuit board undergoes protective sealing in multi-layer anti-static industrial packaging and rests within customized shock-absorbent foam enclosures to survive harsh international transport conditions.

Technical Field Support

Q1: What is the significance of the SAFT 400F380E part number cross-reference?

A1: The cross-reference indicates compatibility with specific engineered drive frame sizes and corresponding voltage class configurations within the same product family.

Q2: Does this board require independent firmware flashing prior to installation?

A2: Yes, the control board must be loaded with the correct application software version matched to your specific motor parameters and drive configuration before powering up the system.

Q3: How does the board indicate real-time fault states during operation?

A3: Onboard surface-mounted LED status indicators provide immediate visual feedback regarding power availability, CPU activity, and active system fault codes.

Q4: What payment methods are accepted for rapid international dispatch?

A4: We accept standard corporate wire transfers, secure credit cards, and verified online B2B payment platforms to ensure immediate order processing and shipment validation.

Q5: Can this unit handle continuous operations in high-humidity environments?

A5: The board utilizes industrial-grade conformal coating to withstand high relative humidity, but must be housed inside an appropriately rated IP54 or climate-controlled drive cabinet to avoid condensation.
