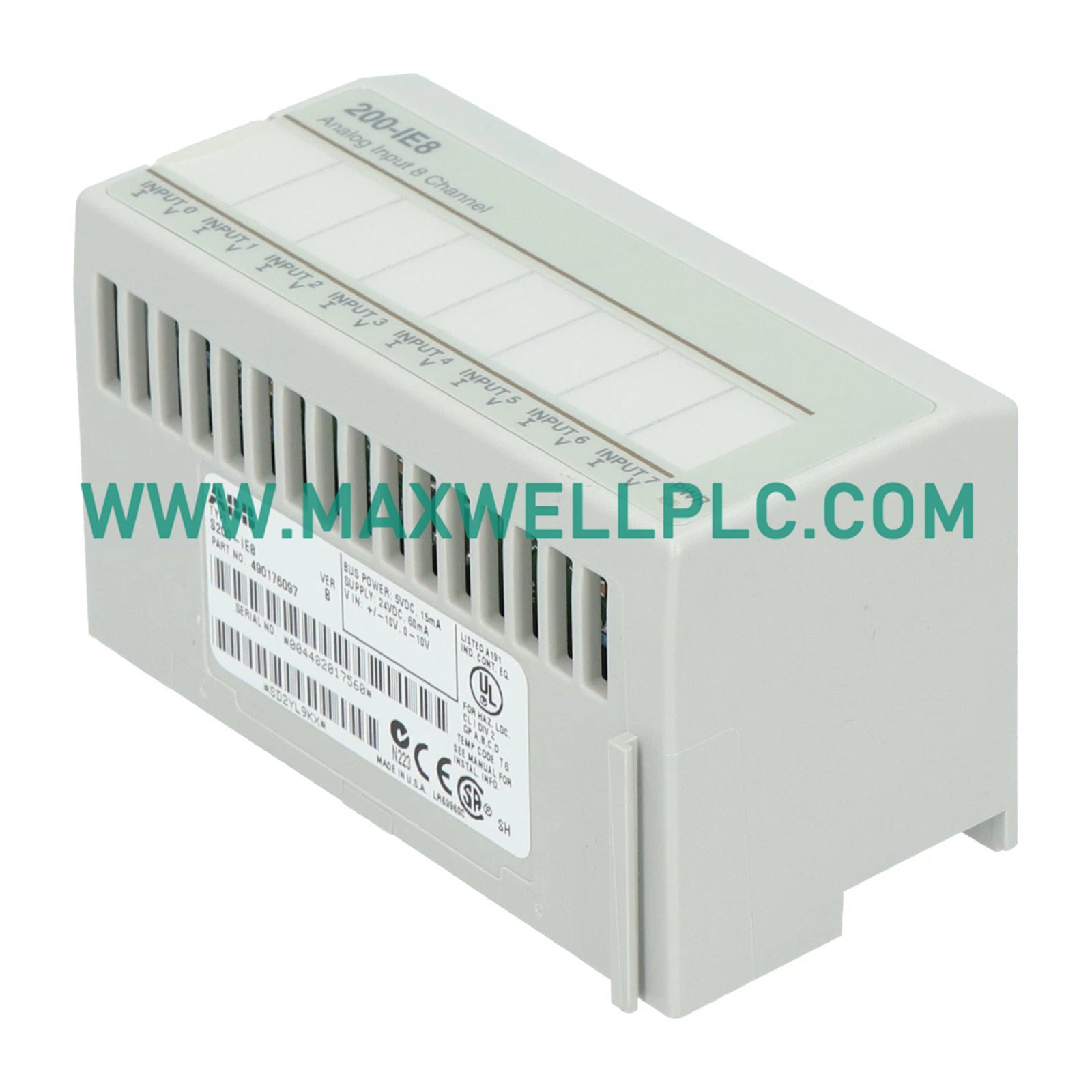

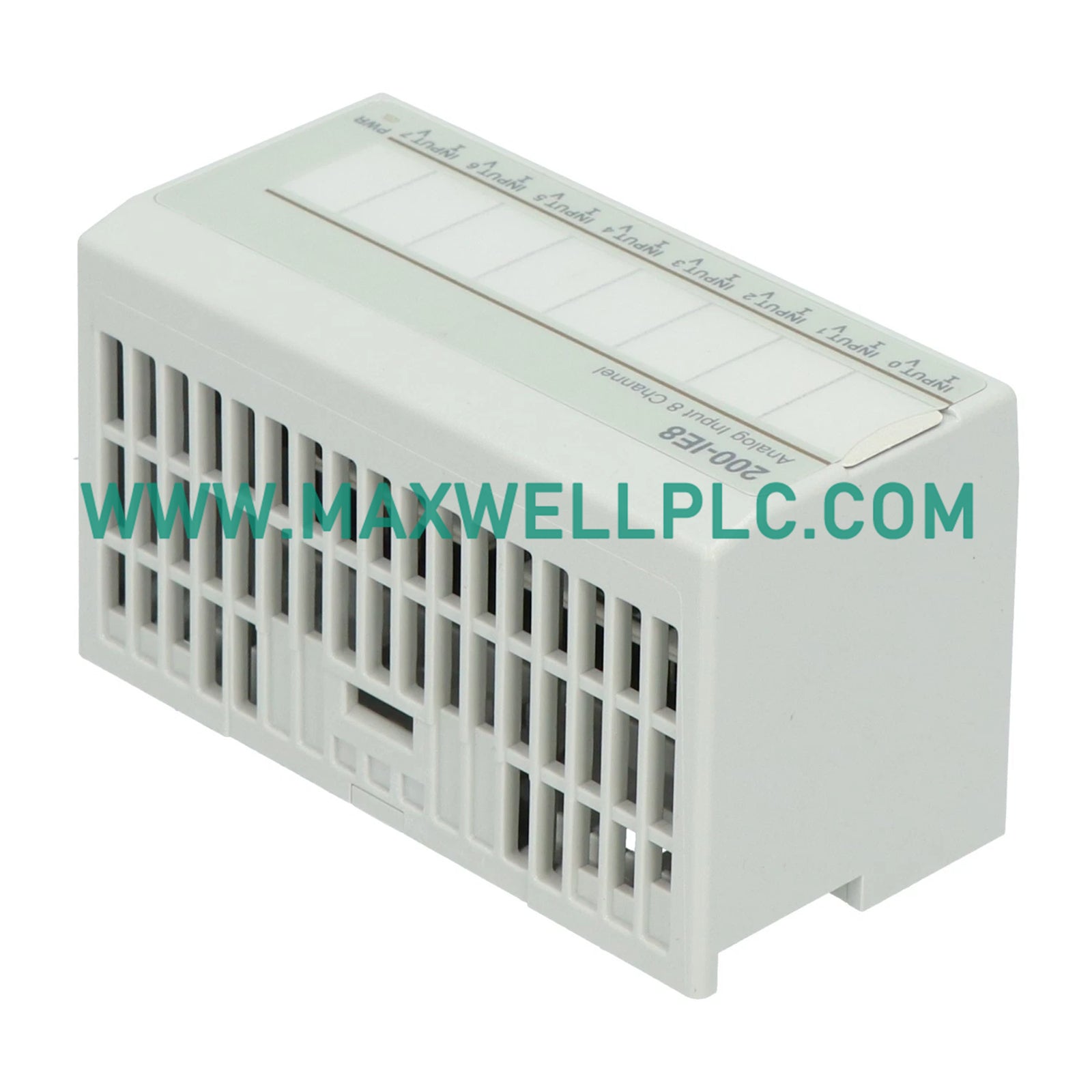

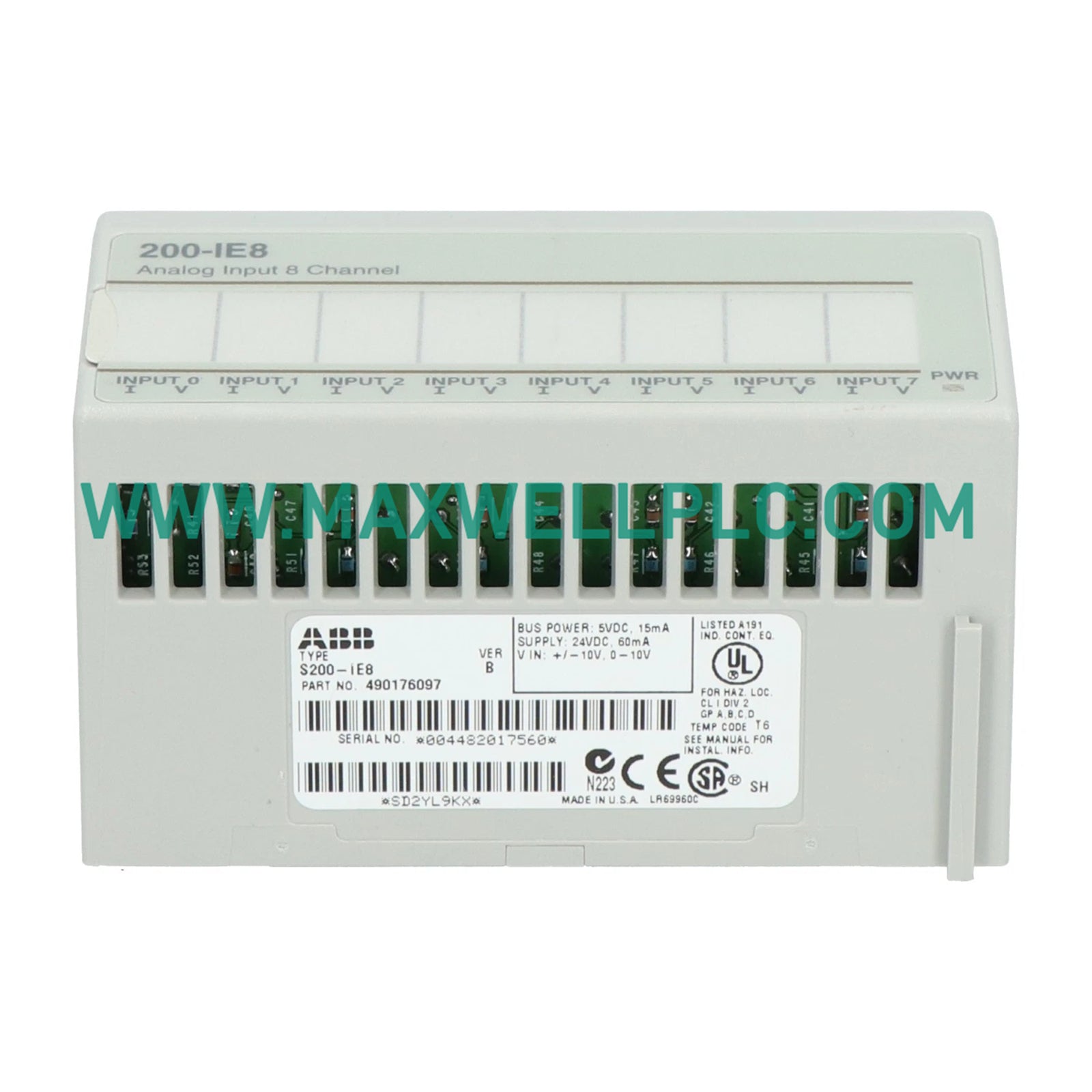

The ABB S200-IE8, also cataloged as the 200-IE8 Analog Input Module, operates as a dedicated hardware component for multi-channel analog signal conversion and voltage monitoring within S200 I/O platforms.

Part Number Breakdown and Variant Identification

• Primary Product Model: S200-IE8
• Alternative Catalog Part: 200-IE8
• Legacy Identifier: 490176097 S200IE8
• Hardware Architecture: 8-Channel Analog Input Module

Hardware Specifications

Industrial Control and Network Integration

Configured for high-density analog acquisition in industrial control systems, the ABB S200-IE8 manages deterministic network communication across backplane architecture. The integrated backplane bus communication velocity synchronizes real-time data exchange with central processing units, while firmware flash compatibility permits field updates and parameter scaling. I/O density scaling optimizes cabinet footprint by terminating eight independent loops through compact terminal connections.

Ordering Info

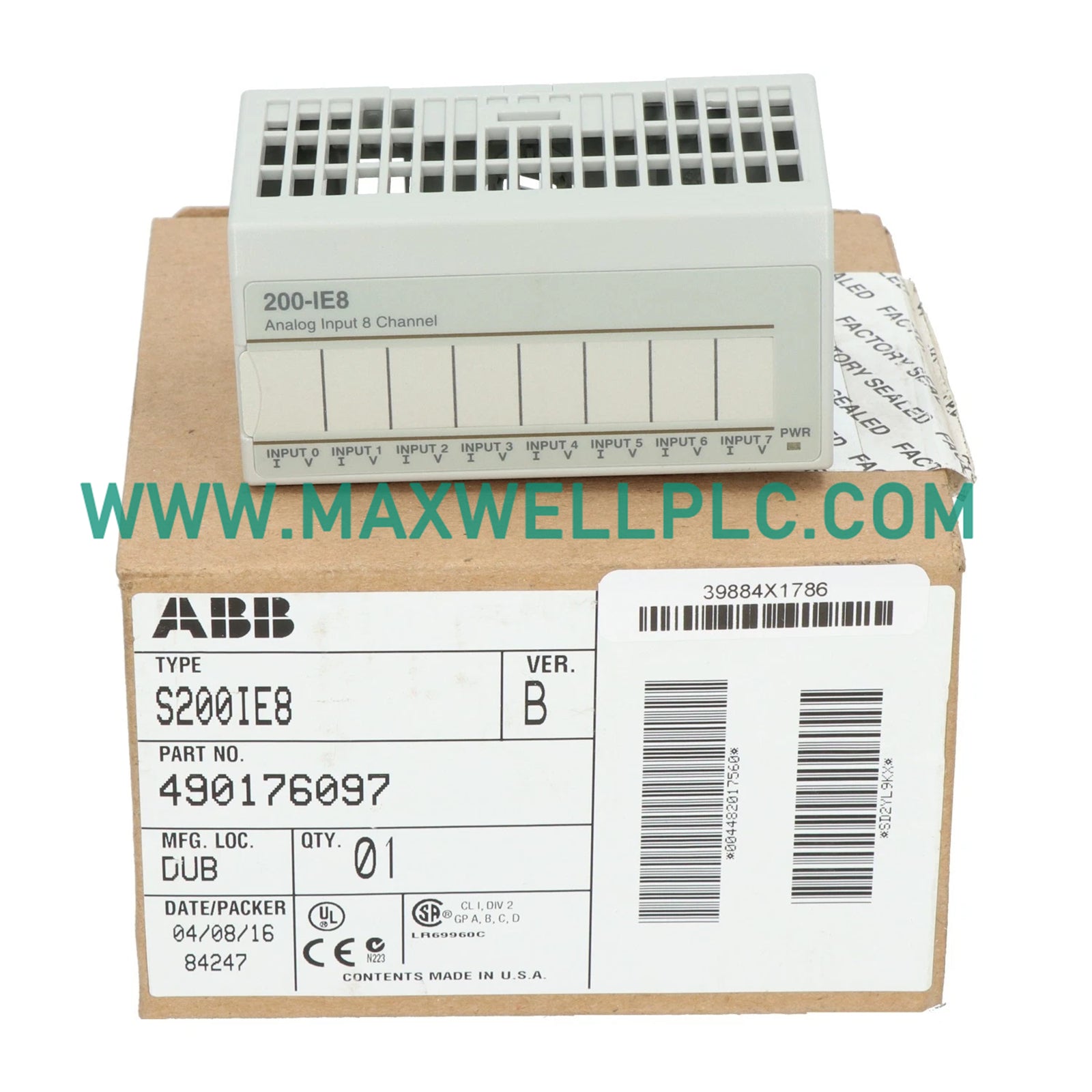

• 1 x S200-IE8 Analog Input Module unit
• 1 x Terminal block connector interface
• 1 x ESD protective storage enclosure

Field Installation Guidelines

• DIN Rail Mounting: Secure the module firmly onto a grounded 35 mm metallic DIN rail, ensuring positive mechanical locking prior to module energization.
• Shield Grounding: Terminate all analog signal cable shields to the designated ground bar adjacent to the I/O base to prevent electromagnetic noise induction.
• Power Isolation: Disconnect external 24 VDC supply loops before inserting or extracting the module from the active backplane rack.
• Wiring Segregation: Route low-voltage analog input conductors through dedicated wire ducts separate from high-voltage AC or DC power cables.

Frequently Asked Questions

• Does the S200-IE8 support live hot-swap replacement during active system operation?

  No. Insertion or removal of the module while system power is active can cause bus communication errors or internal logic component damage.

• What is the nominal operating voltage required for module logic circuitry?

  The module operates on a regulated 24 VDC supply delivered directly through the system backplane interface.

• How many independent input channels are available on this hardware variant?

  The unit provides eight discrete analog input channels capable of processing standard industrial signal ranges.

• What is the primary cause of analog reading fluctuations on field channels?

  Inadequate cable shielding, improper ground reference potential, or electromagnetic interference from adjacent high-power lines typically cause signal instability.

• Are there any physical configuration jumpers located on the module PCB?

  No. Input channel configuration and scaling parameters are managed entirely through software settings within the programming environment.

• What environmental conditions must be maintained inside the control cabinet?

  The enclosure must remain free of corrosive gases, conductive dust, and maintain ambient temperatures within the specified thermal limits.

• How are field sensors connected to the module input terminals?

  Field wiring is terminated via pluggable terminal blocks that interface directly with the front face of the hardware module.

• What diagnostic features are integrated into the module hardware?

  On-board status light-emitting diodes provide visual feedback regarding module operational health, power status, and channel error states.
