Product Overview

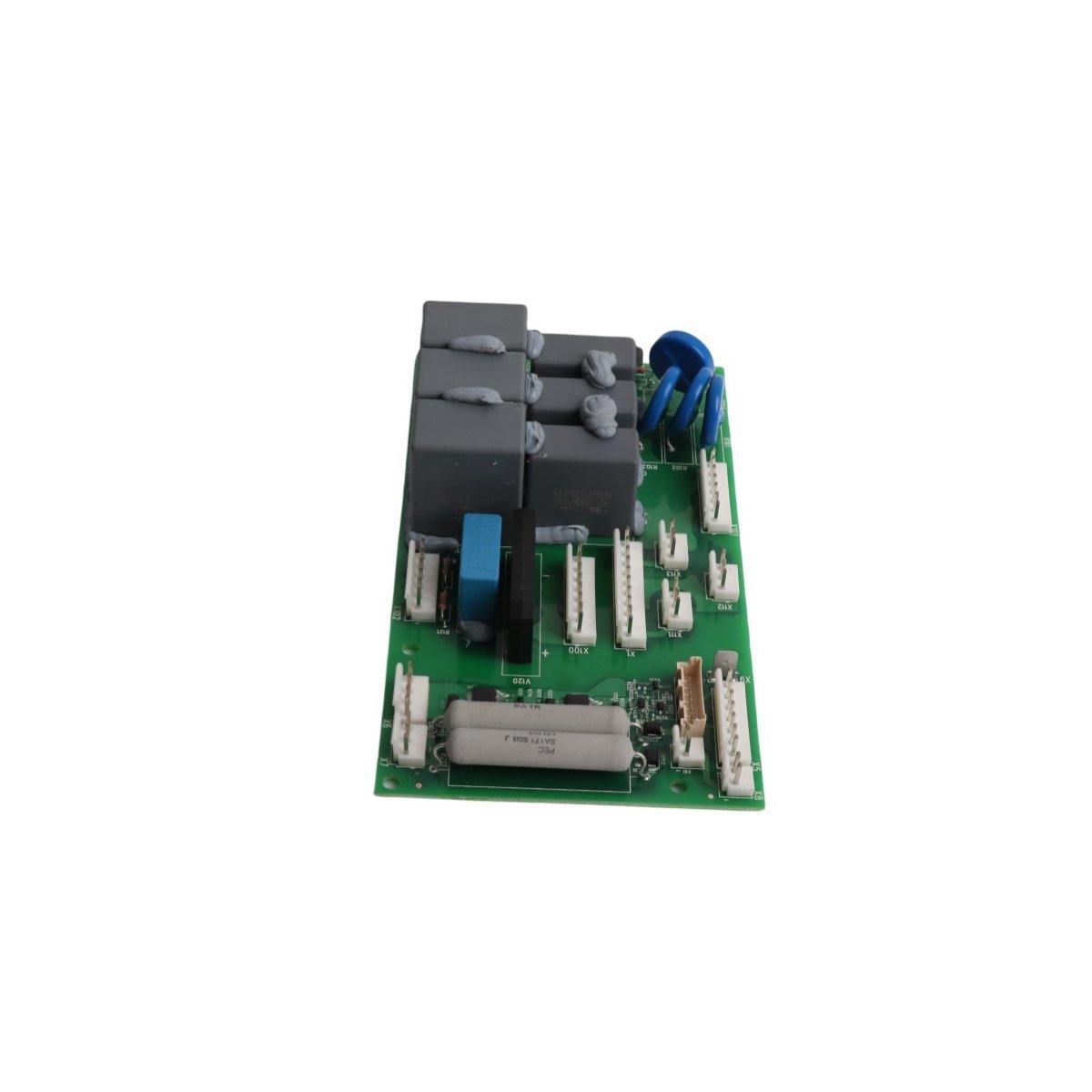

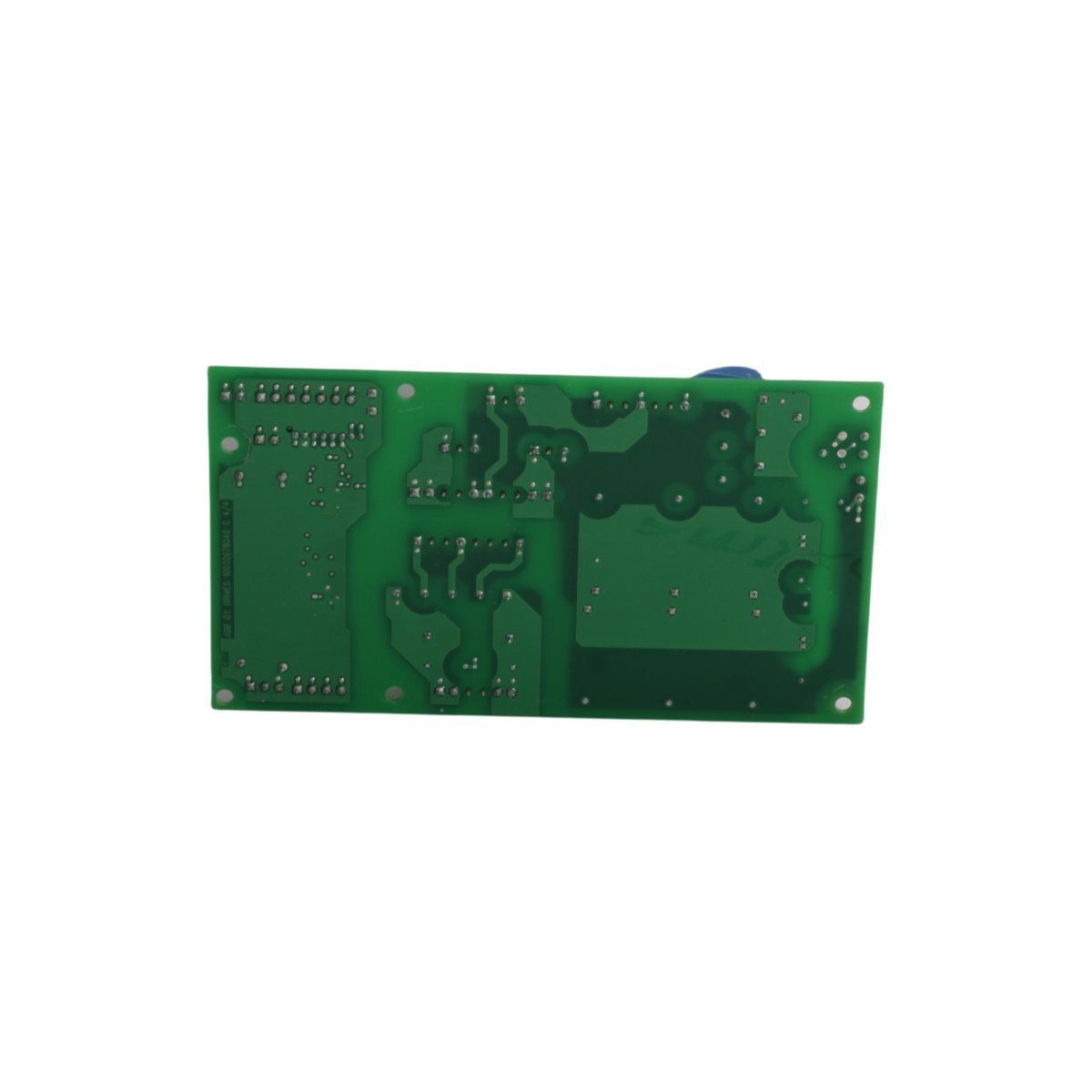

The ABB QVAR-5B2, identified by part number 3AXD50000509201, is a precision-engineered control module designed to regulate charging sequences and manage reactive power compensation within industrial power systems. This board acts as an intelligent interface that optimizes energy consumption by correcting power factors and stabilizing voltage across electrical networks. Developed for seamless integration into Distributed Control Systems (DCS), the QVAR-5B2 ensures that power conversion remains efficient and that harmonic distortion is minimized. Its high-performance circuitry is specifically built to handle the rigorous switching requirements of modern industrial drive and excitation systems, enhancing overall network reliability.

Hardware Architecture and Functional Parameters

• Model Series QVAR-5B2

• Order Reference 3AXD50000509201

• Input Voltage Compatibility 380V to 480V AC

• DC Output Range 12V to 600V DC

• Current Rating 10A to 100A Variable Support

• Operating Thermal Range -10 to +60 Degrees Celsius

• Storage Thermal Tolerance -20 to +70 Degrees Celsius

• Communication Interface Integrated Ethernet Router Connectivity

• Physical Mass 0.24 kg

• Unit Dimensions 23.5 x 7.5 x 8 cm

• Manufacturing Origin Sweden

• HS Code 8537101190

Industrial Deployment Scenarios

The 3AXD50000509201 charging board is a foundational component in energy-heavy sectors where power quality is a priority. Key applications include:

• Reactive Power Compensation Managing capacitor banks to improve power factor in large manufacturing plants.

• Excitation Control Regulating the initial charging sequence for generator excitation systems in power utilities.

• Medium Voltage Drives Serving as the pre-charge control interface for high-capacity frequency converters.

• Grid Stabilization Implementation in substation automation to maintain steady voltage levels during load fluctuations.

• Energy Storage Systems Coordinating the charging cycle for DC bus systems in industrial battery storage units.

Q: What is the primary role of the QVAR-5B2 in an electrical network?

A: It regulates charging voltages and currents while managing reactive power to ensure the electrical system operates at peak efficiency with a high power factor.

Q: Can this board handle high-voltage DC applications?

A: Yes, the board is designed to support a wide DC charging range reaching up to 600V, making it suitable for medium-voltage industrial drive systems.

Q: Is this module compatible with Ethernet-based diagnostic tools?

A: Correct, the 3AXD50000509201 includes communication support for Ethernet router services, allowing for remote monitoring and real-time status updates.

Q: What environmental conditions are required for storage?

A: The module is built for ruggedness and can be stored in unconditioned warehouses within a temperature range of -20 to +70 Degrees Celsius without component degradation.

Q: How does the compact size benefit system integrators?

A: With a weight of only 0.24 kg and a slim profile, the board can be easily integrated into crowded control cabinets or added as a retrofit to existing DCS racks without major modifications.
