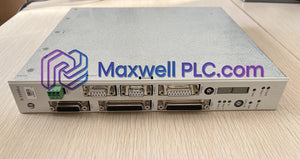

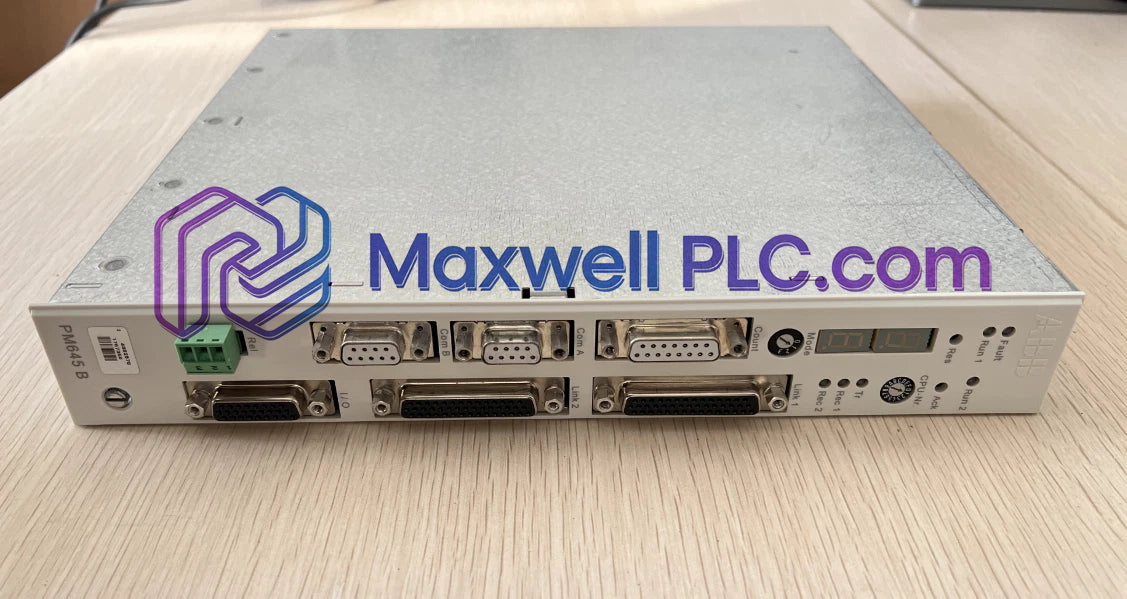

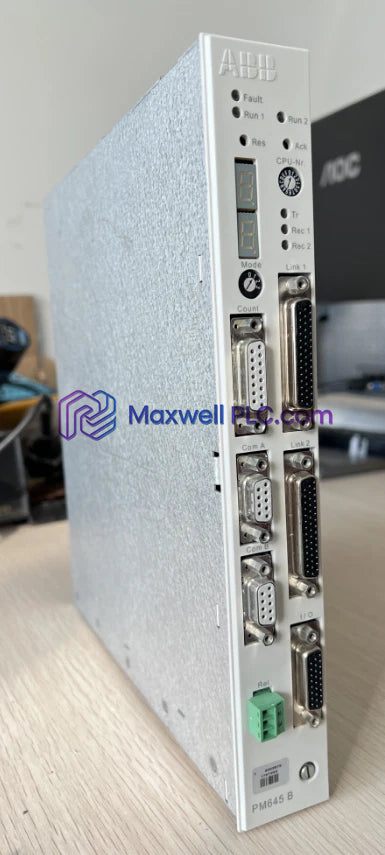

The ABB PM645B 3BSE010537R1, also cataloged as the PM645B Processor Module, operates as a dedicated hardware component for centralized application logic execution and bus communication management within Advant Controller 160 (AC160) platforms.

Technical Identifier Matrix

• Primary Part Number: 3BSE010535R1
• Spare Part Number: 3BSE010537R1
• Base Model Code: PM645B (PM645C compatible variant)
• Tariff Code: 8537109060

Hardware Specifications

Backplane Bus Throughput and Deterministic System Scaling

The ABB PM645B 3BSE010537R1 integrates directly with the Advant Controller 160 backplane structure to deliver fast execution cycle updates and communication synchronization across local and remote I/O subracks. The module manages task scheduling and memory execution without causing bus latency or frame drop during high-density I/O scan intervals.

Flash firmware architecture maintains system data integrity and protocol execution consistency across AF100 and system bus channels. Backplane electrical isolation protects core processing paths from transient field surges, while backplane bus clocking maintains microsecond-level synchronization across redundant control slots.

Package Contents & Ordering Information

• 1x ABB PM645B 3BSE010537R1 Processor Module
• 1x Subrack Mechanical Guide Key Set
• 1x Hardware Installation Sheet

Field Installation Guidelines

• Subrack Insertion: Insert the board into the designated controller rack slot using top and bottom card guides. Firmly seat the rear multi-pin connector into the backplane socket.
• Mechanical Retaining: Tighten upper and lower front panel captive screws to lock the module into position and ensure chassis frame earth continuity.
• Grounding Requirements: Verify the subrack frame is connected to single-point cabinet earth ground using a dedicated copper braid. Ensure earth loop resistance remains under 100 ohm.
• Thermal Management: Maintain unobstructed air circulation paths above and below the AC160 subrack to prevent cabinet heat buildup from exceeding 55 deg C.
• Shielding Standard: Terminate communication cable shield braids to metal grounding clamps on the subrack to provide 360-deg braid shielding against ambient high-frequency noise.

Frequently Asked Questions

• What is the primary difference between part numbers 3BSE010535R1 and 3BSE010537R1?

  3BSE010535R1 designates the original system CPU module unit code, whereas 3BSE010537R1 identifies the direct spare part assembly number.

• What system backplane platform supports the PM645B processor module?

  The module installs into the Advant Controller 160 (AC160) and Advant Controller 110 (AC110) subrack system architectures.

• Is hot-swapping permitted for the PM645B processor inside the controller subrack?

  No, input power to the subrack backplane power supply must be isolated prior to removing or inserting the processor module.

• What physical dimensions are specified for the PM645B module?

  The module measures 5.1 cm x 27.9 cm x 27.9 cm and has a total net weight of 1.70 kg.

• What grounding resistance limit is required for AC160 subrack cabinet grounding?

  The cabinet chassis single-point functional ground must maintain an earth loop resistance of less than 100 ohm.

• What is the operating temperature range for the PM645B in field cabinets?

  The processor module is rated for continuous field operation across ambient temperatures from 0 to 55 deg C.

• How are noise immunity and signal integrity maintained across communication lines?

  Field communication interfaces require 360-deg braid shielding connected directly to the subrack ground bar.

• Where is the PM645B 3BSE010537R1 processor module manufactured?

  The product origin for the PM645B processor module is Sweden.
