Product Overview

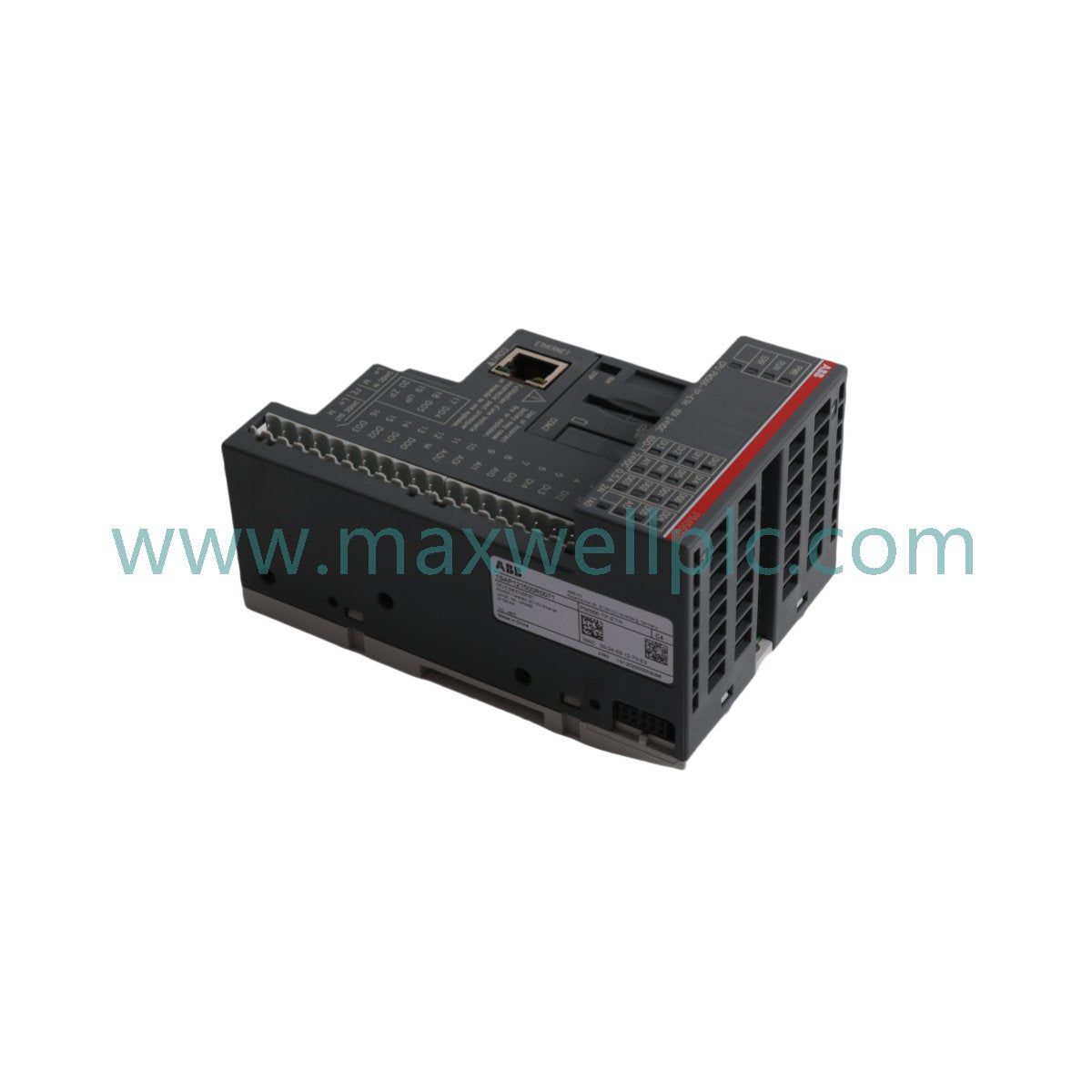

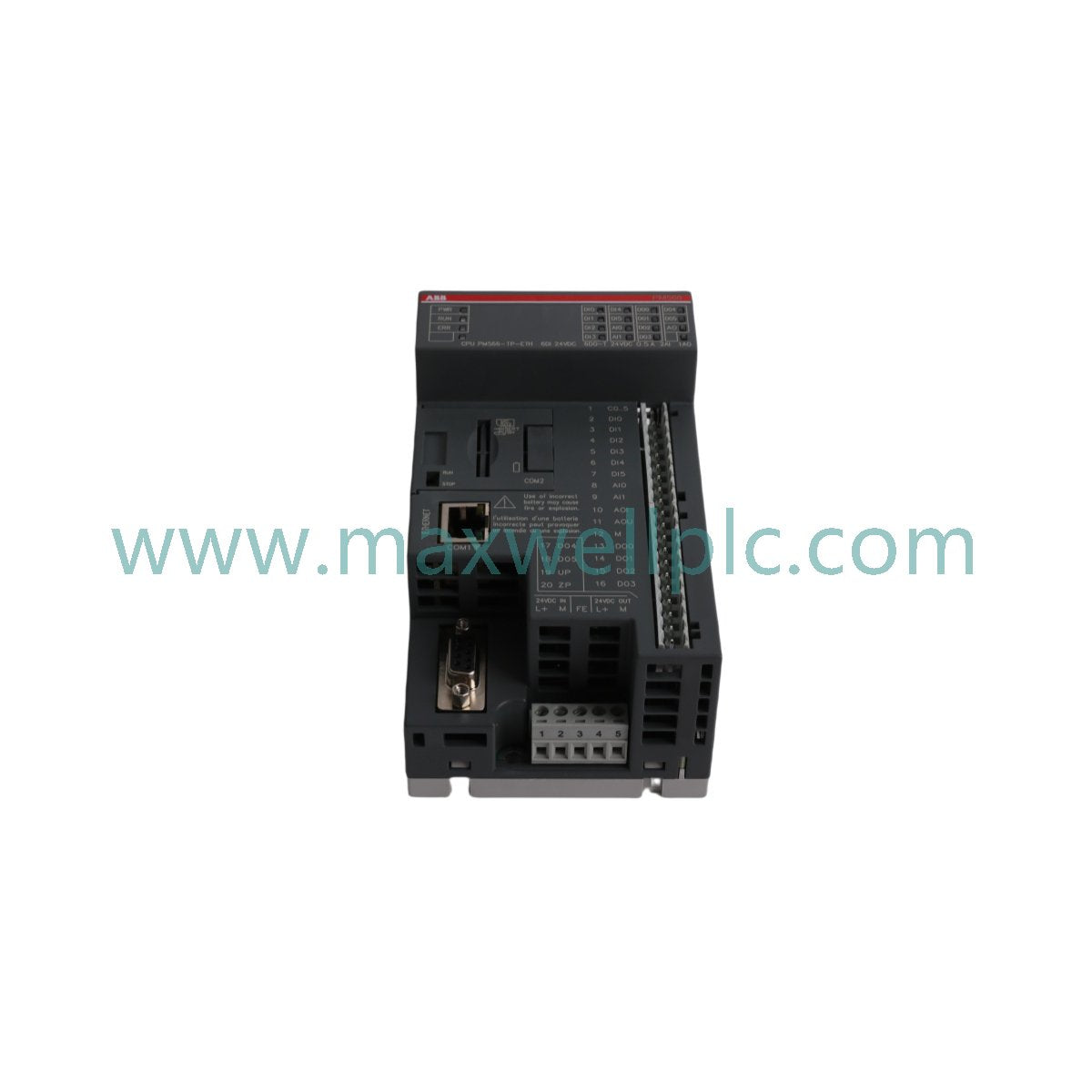

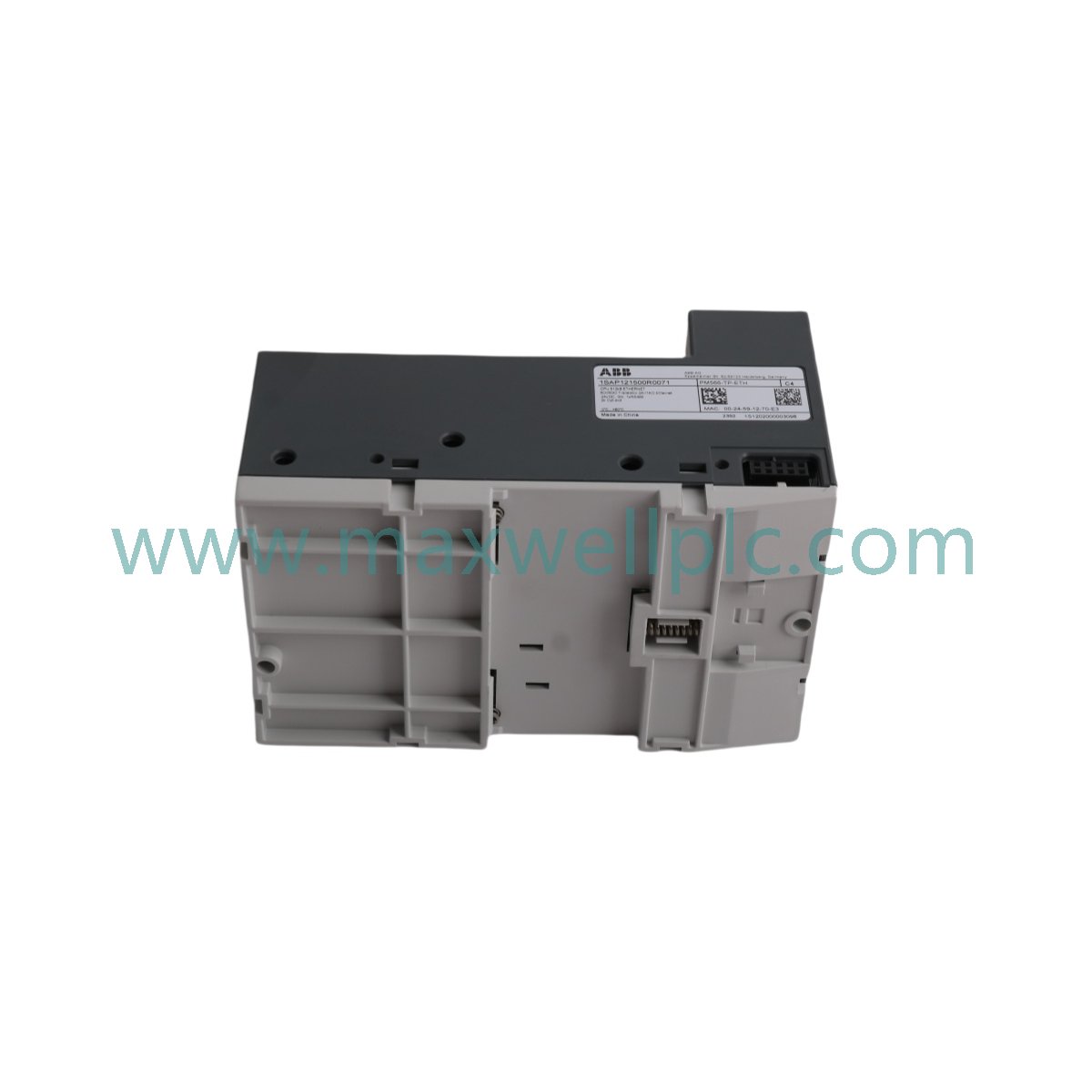

The PM566-TP-ETH (1SAP121500R0071) CPU Processor serves as the primary PM566-TP-ETH CPU Processor used to execute control or monitoring functions across automation platforms. This controller is designed for the AC500-eCo range, providing localized logic execution for small-scale industrial applications. It integrates essential processing power with onboard I/O capabilities, facilitating direct interface with field devices. The architecture allows for scalable expansion using S500 and S500-eCo modules, ensuring that the controller can be adapted to specific signal requirements within factory automation or machine control environments.

Technical Specifications

Brand-Specific Technical Block

The PM566-TP-ETH utilizes ABB backplane communication protocols to facilitate high-speed data exchange between the CPU and attached I/O modules. The processor firmware is optimized for the AC500-eCo architecture, supporting consistent cycle times and stable logic execution. Connectivity is managed through integrated Ethernet and RS-485 interfaces, allowing the module to act as a node in wider industrial networks. I/O density can be increased via the system bus, and the controller maintains firmware compatibility with standard ABB programming environments to ensure seamless integration within larger AC500 system topologies.

Ordering Information

• Included items: CPU Module, pluggable terminal blocks, documentation guide.

• Standard package: Industrial anti-static sealed enclosure.

• Optional accessories: SD memory cards for program storage, DIN rail mounting clips, communication cable kits.

Installation Guidelines

• Mount the unit on a standard 35 mm DIN rail in a vertical orientation to ensure optimal heat dissipation.

• Connect the 24 V DC power supply using appropriately sized copper conductors, ensuring polarity is observed.

• Ground the module chassis to the cabinet common earth to minimize electromagnetic interference (EMI).

• Ensure field wiring is shielded and routed away from high-voltage AC cables to maintain signal integrity.

• Verify the secure connection of all pluggable terminal blocks before applying power to the backplane.

• Respect the minimum clearance requirements around the device to ensure unobstructed airflow for thermal regulation.

Frequently Asked Questions

Q: Does the PM566-TP-ETH support hot-swap behavior?

A: The module does not support hot-swapping; power must be removed from the system before installation or removal of the unit.

Q: How does the unit manage backplane load?

A: The internal power supply provides a limited current to the local backplane bus; expansion modules must not exceed the specified power budget.

Q: What is the redundancy switching delay for this unit?

A: This CPU model is intended for standalone or non-redundant configurations and does not feature active redundancy switching logic.

Q: Is firmware compatibility required for expanded I/O?

A: Yes, the CPU firmware must be verified against the catalog version of any S500/S500-eCo expansion modules attached to the system.

Q: Does the unit provide signal isolation?

A: The onboard digital and analog I/O are isolated from the CPU logic circuits as per standard AC500-eCo design specifications.

Q: What are the field wiring constraints?

A: Use flexible or stranded wire with proper ferrules, adhering to the terminal block capacity specifications to ensure reliable electrical contact.

Q: Can the RS-485 port be used for fieldbus master configuration?

A: The RS-485 port supports standard serial protocols; configuration depends on the specific project setup in the programming software.

Q: How is the processing time affected by I/O load?

A: Increased I/O configuration may slightly alter scan cycle times; monitor execution timing via the system diagnostic tools.
