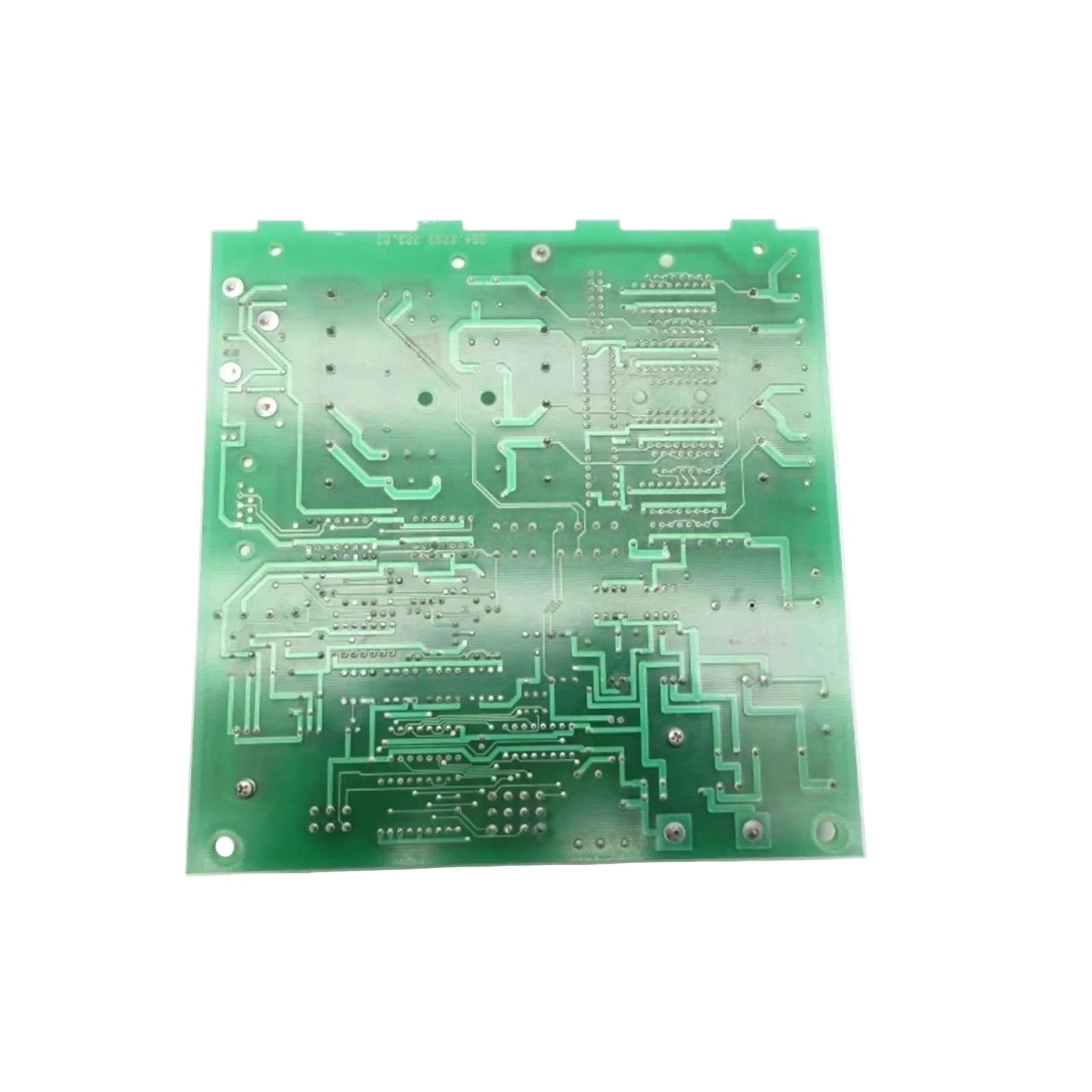

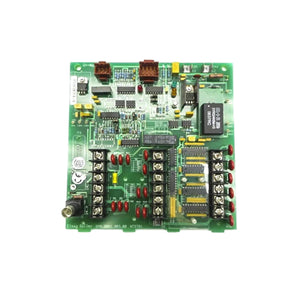

The ABB NTST01, also cataloged as the NTST01 Time Synch Termination Unit, operates as a dedicated hardware component for master clock distribution and clock synchronization wiring within Infi 90 hardware structures. The assembly serves as the direct physical termination interface for incoming temporal references, verifying clock signal alignment and forwarding uniform sub-millisecond synchronization pulses to the corresponding processing nodes on the control network.

Physical and Electrical Parameters

Clock Synchronization and Deterministic Network Velocities

The logical architecture of the NTST01 interfaces directly with internal processing layers, relying on optimized trace lengths to distribute master timing inputs without degrading backplane bus communication velocity parameters. The physical termination circuit matches clock signaling parameters to ensure strict time coordination over multi-node I/O density scaling options. Continuous clock path verification secures firmware flash compatibility validation by maintaining synchronized internal timestamps across all processing nodes, reducing transmission jitter during diagnostic queries.

Component Engineering Questions

Q: Does the NTST01 termination unit utilize an active internal power supply link?

A: No. The board operates primarily as a passive termination routing device, transferring external master clock signaling inputs directly to the internal cabinet cables without requiring an independent power connection.

Q: Can the sync cable assemblies be removed from the unit while the backplane is active?

A: Yes, the external signal cabling can be removed without interrupting controller backplane power, but doing so will instantly stop master clock updates, causing the associated controller modules to rely on their internal crystal oscillators.

Q: What mechanisms are utilized to handle line reflection on the synchronization lines?

A: The board contains onboard passive matching resistors to terminate the timing line at its characteristic impedance, suppressing signal reflections that could cause false triggering on the master clock edge.

Field Assembly Guidelines

• Mount the unit securely inside the enclosure panel, using standard mounting standoffs to ensure adequate electrical isolation from the cabinet backplate.

• Connect the master shield terminal block on the board to the system high-frequency reference ground using a short, low-impedance conductor.

• Keep timing input cables separated from high-current AC lines or variable frequency drive wires to avoid induced noise on the time-sync pulses.

• Inspect terminal screws for correct clamping pressure to ensure consistent electrical contact and avoid signal degradation.

Packaging Manifesto

• 1 x ABB NTST01 Time Synch Termination Unit

• 1 x Interface Terminal Block Strip

• 1 x Technical Wiring Layout Reference

Freight Management and Carrier Logistics

Consignments are finalized and packed for freight handover within a 2-7 days when payment finish window. Dispatch routing is managed via premium international carriers including DHL, FEDEX, or UPS. The components are enclosed in protective anti-static industrial packaging and surrounded by specialized high-density insulation to prevent mechanical damage or environmental degradation during transit.
