Product Overview

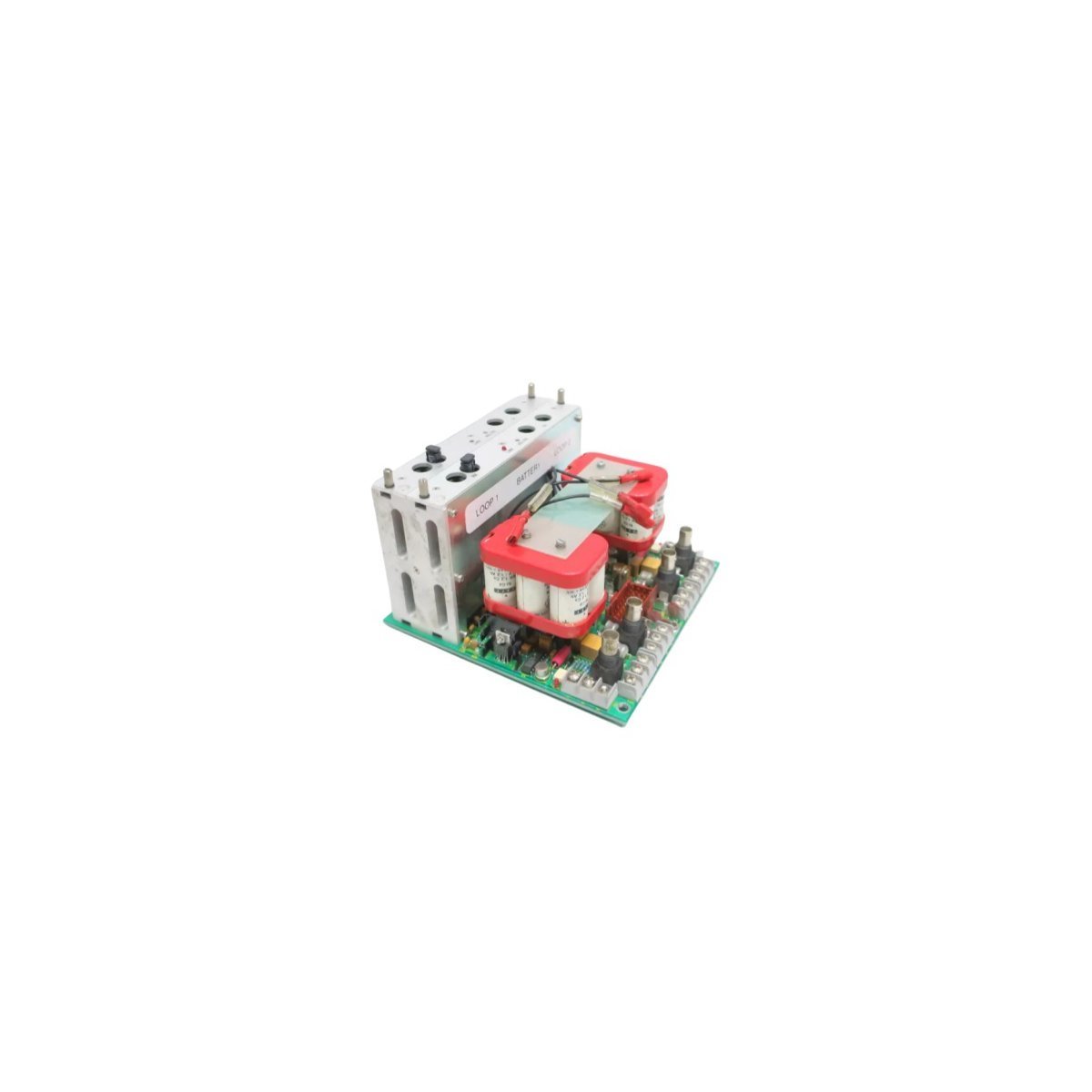

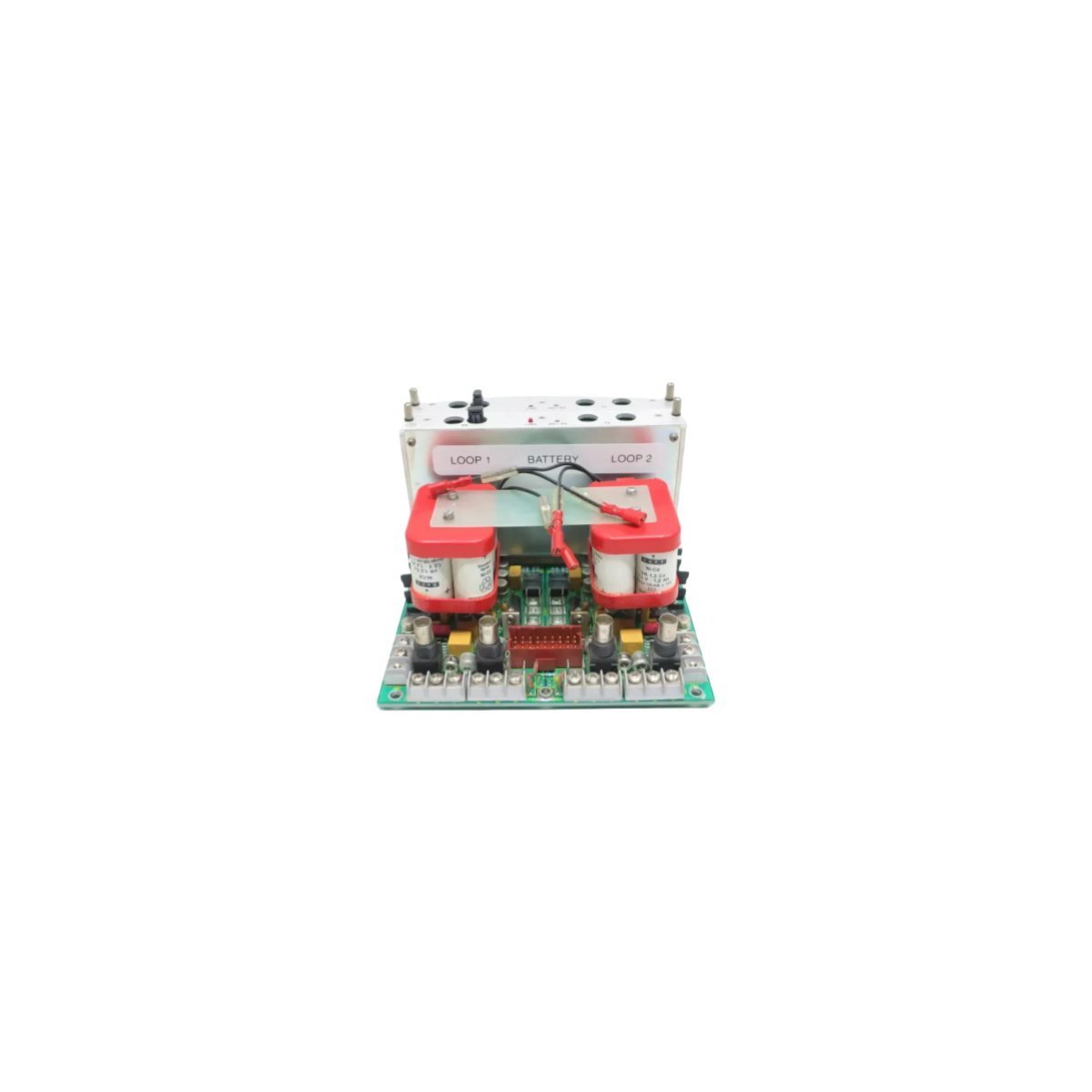

The ABB NTCF02 is a specialized Isolated Digital Input Module designed for the Bailey Network 90 and Infi 90 distributed control system (DCS) architectures. Serving as a critical interface between field-level binary signals and the system's processing logic, this module provides essential galvanic isolation. This separation prevents high-voltage transients and ground loop interference from damaging sensitive control electronics. Engineered for precision in signal acquisition, the NTCF02 ensures that discrete data from limit switches, sensors, and interlocks is transmitted accurately to the controller, maintaining the integrity of the overall automation loop in high-stakes industrial environments.

Component Architecture and Physical Specifications

Constructed with industrial-grade copper alloys and high-impedance insulation, the NTCF02 is built for electrical efficiency and longevity:

• Module Function: Isolated Digital Input Interface

• System Series: Bailey Infi 90 and Net 90

• Physical Mass: 0.2 kg

• External Dimensions: 12.7 x 17.8 x 17.8 cm

• Connection Interface: Terminal block assembly for flexible field wiring

• Protection Rating: IP20 (protection against solid particles and standard industrial debris)

• Temperature Tolerance: Operational range from -25°C to +70°C

• Regulatory Compliance: Certified to CE, UL, and IEC international safety standards

• Origin of Manufacture: Sweden

Professional Industrial Applications

The NTCF02 is a staple component in legacy and modern DCS infrastructures across several sectors:

• Power Generation: Capturing binary status updates from circuit breakers, relay contacts, and turbine auxiliary systems in Bailey-controlled plants.

• Process Manufacturing: Monitoring discrete inputs for valve positioning and pump status in chemical processing and pharmaceutical facilities.

• Signal Isolation: Used specifically in environments with high electromagnetic interference (EMI) where signal clean-up and isolation are required for controller stability.

• Critical Infrastructure Safety: Serving as a reliable input point for emergency shutdown (ESD) triggers and safety interlock systems.

FAQ

Q: What is the primary benefit of the isolation feature in the NTCF02?

A: Isolation protects the DCS backplane by ensuring there is no direct electrical path between the field wiring and the internal system logic. This prevents external surges from causing widespread system failure.

Q: Is the NTCF02 compatible with both Net 90 and Infi 90 systems?

A: Yes, this module is designed to be fully compatible with both the Bailey Network 90 and Infi 90 product ranges, allowing for seamless integration into existing rack assemblies.

Q: What type of wiring does the terminal block support?

A: The integrated terminal block is designed to support a variety of gauge wires, allowing for secure screw-terminal connections that facilitate easy maintenance and troubleshooting.

Q: How does the IP20 rating impact the module's installation?

A: An IP20 rating means the module is protected against large solid objects but is not waterproof. It should always be installed within a properly rated industrial enclosure or cabinet to protect it from moisture.

Q: Can this module operate in unconditioned outdoor control rooms?

A: With an operating floor of -25°C and a ceiling of +70°C, the NTCF02 is well-equipped for extreme thermal fluctuations often found in non-climate-controlled industrial settings.
