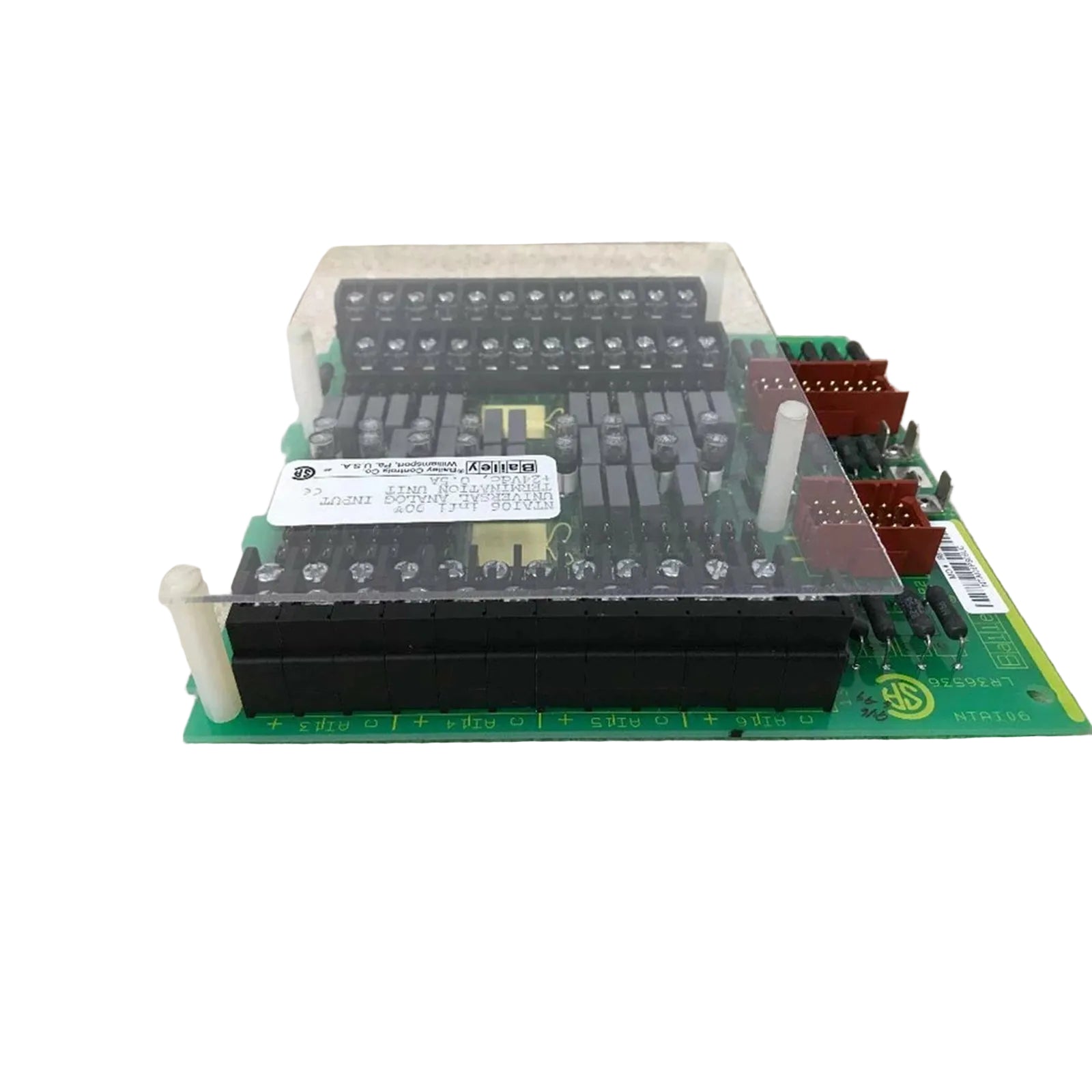

The ABB NTAI06, also cataloged as the NTAI06 Analog Input Termination Unit, operates as a dedicated hardware component for 16-channel field signal distribution and termination tasks within INFI 90 platforms. The hardware module marshals incoming universal analog process variables from field transmitters, routing filtered electrical current and voltage tracks through standard ribbon cable connectors into processing rack input sub-assemblies.

Design Revisions and Component Variants

The factory manufacturing designations align with specified operational circuit topologies:

• NTAI06: Standard production design index featuring local fused input networks.

• PNTAI06 / NTAI06R / YNTAI06: Alternate production branch identifiers denoting specific card footprint variants or alternate tracking indices.

Technical Parameters Profile

Backplane Bus Communication Velocity and I/O Density Scaling

The termination assembly forms a structural link within the process control layer, directly affecting localized I/O density scaling profiles by condensing 16 separate loops into a single multi-conductor cable grid. While the termination unit remains a passive or semi-passive connection matrix, field updates must preserve stable circuit characteristics to prevent transmission noise from diminishing downstream backplane bus communication velocity metrics. Cable tracking configurations must maintain strict compliance with host controller requirements to verify that firmware flash compatibility indices across the active I/O cards can correctly log signal diagnostic status variables.

Electrical and Hardware Infrastructure Query Logs

Q: Can field wiring terminations be disconnected while the main processing module remains active?

A: Yes, the structural termination block design permits independent connection isolation, but care must be taken not to short-circuit adjacent 24 VDC power loops, which can corrupt local register states.

Q: What onboard protection exists for individual loop overcurrent faults?

A: Each universal analog input channel loop incorporates dedicated physical fusing elements rated to limit current surges past the 0.5 Amp boundary line.

Q: How is signal reference isolation managed across the 16 universal channels?

A: The board layout utilizes separate return track grouping layouts to maintain individual loop trace definition and suppress signal degradation across adjacent parallel pathways.

Field Rigging and Enclosure Grounding Protocols

• Mount the termination assembly securely onto the designated internal rack cabinet chassis structure using the provided factory layout standoffs.

• Direct all field instrument cable shields to the common copper cabinet ground bus bar using short, low-impedance connection straps.

• Maintain separate physical wire ducts for high-power alternating current utility lines and low-voltage analog signal cables to eliminate inductive noise coupling.

• Torque field terminal terminal screws to standard engineering tolerances to prevent loose contact micro-arcing.

Procurement Package Content

• ABB Bailey INFI 90 NTAI06 Termination Unit Card

• Factory Fuse Cluster Installation Pack
