Product Overview

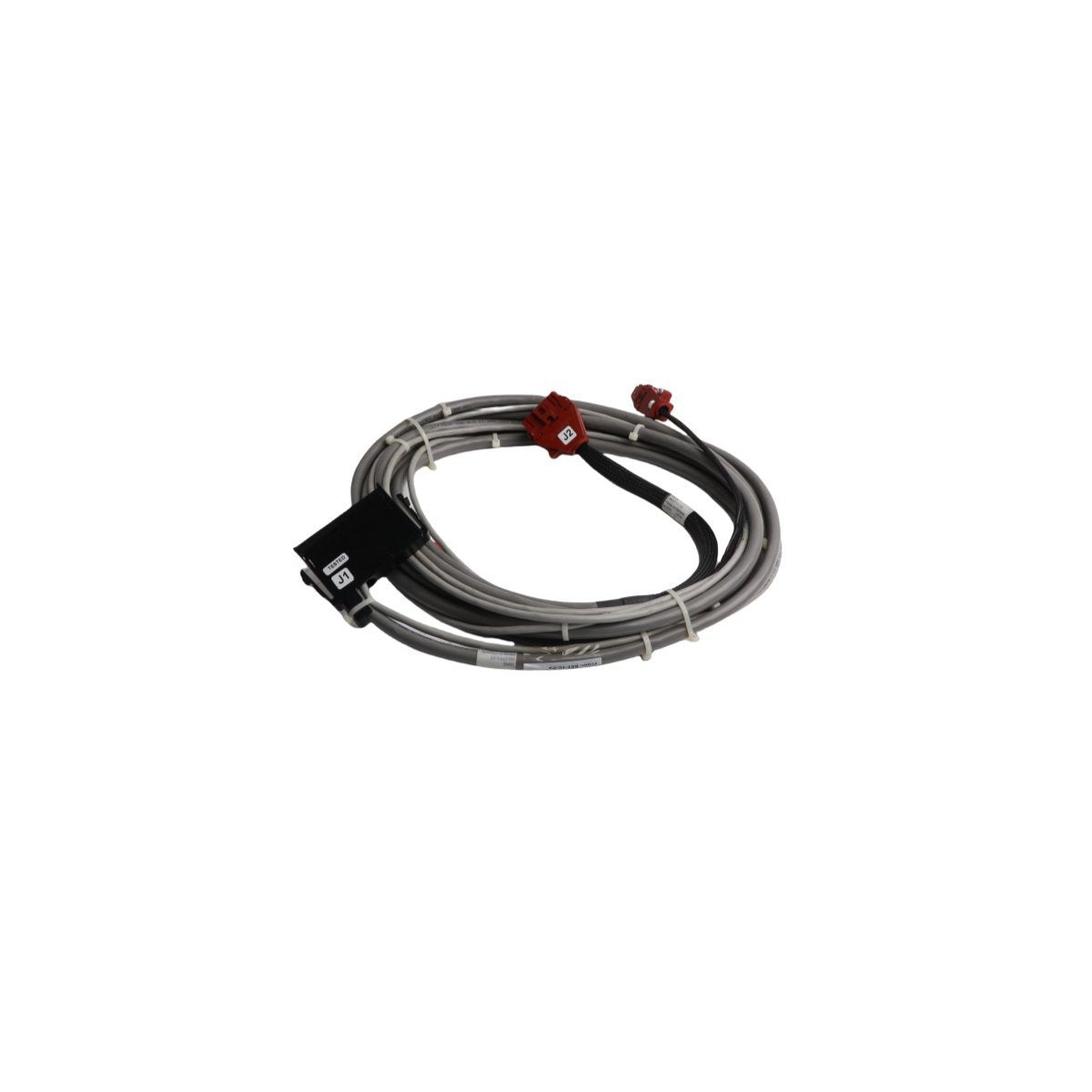

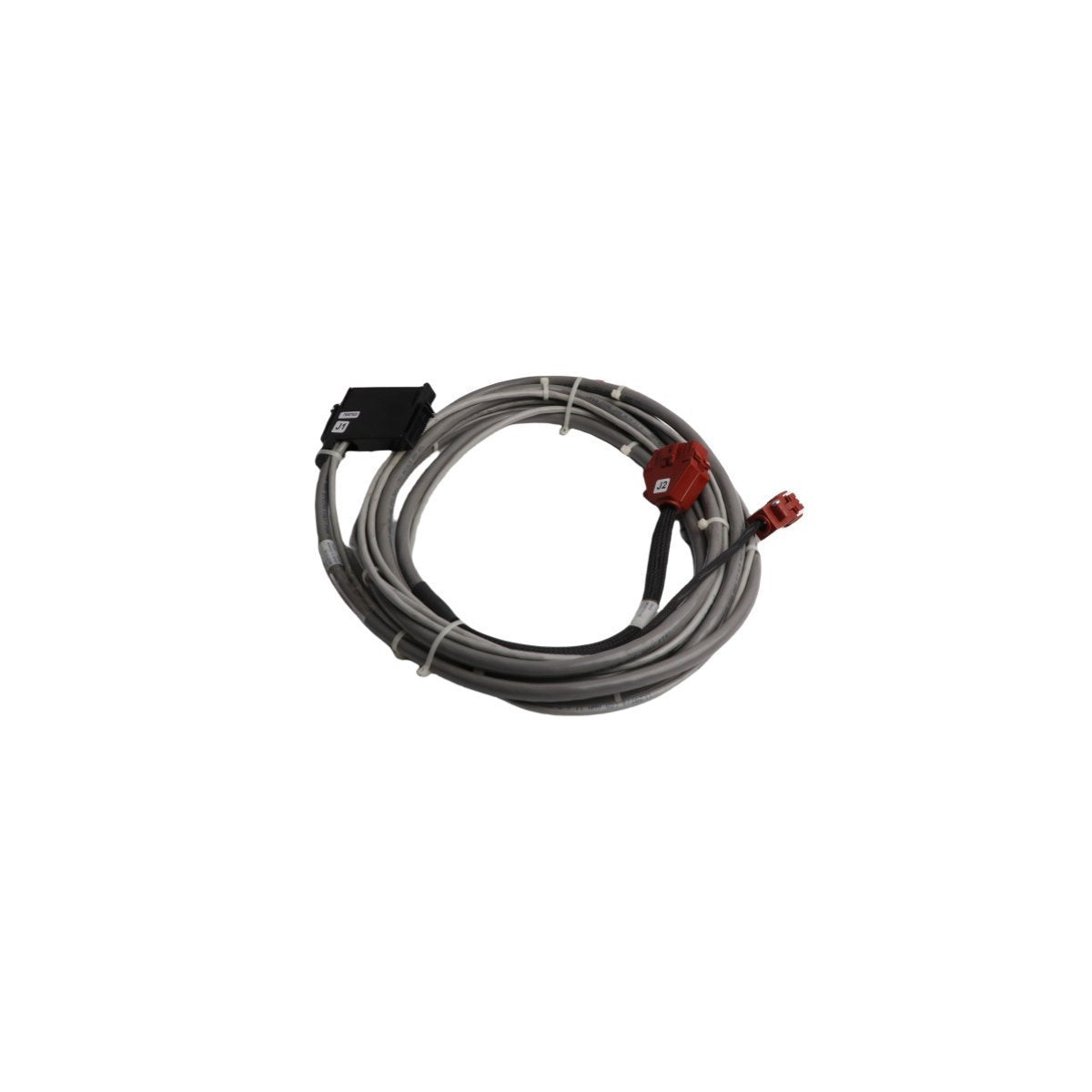

The NKST11-15 is a high-precision Sequence of Events (SOE) Time Synchronization Cable developed for the legacy Bailey Infi 90 and Net 90 Distributed Control Systems (DCS). This specialized interconnect is fundamental for maintaining temporal alignment across multiple controller nodes and I/O modules. By facilitating a unified time-stamping clock signal, the NKST11-15 ensures that process events, alarms, and trips are recorded with millisecond accuracy across the entire network. This level of synchronization is vital for post-fault analysis and Root Cause Analysis (RCA) in high-stakes industrial environments where the exact order of operational triggers must be verified.

Build Architecture and Performance Standards

Engineered to withstand the rigors of industrial cabinet environments, the NKST11-15 utilizes premium insulation and shielding to prevent signal drift or electromagnetic interference.

• Model Designation: NKST11-15

• Primary Purpose: SOE Clock Synchronization

• Compatibility: Bailey Controls Net 90 / Infi 90 Systems

• Conductor Gauge: 22 AWG optimized for low-latency signal transmission

• Insulation Type: High-performance TPE (Thermoplastic Elastomer)

• Jacket Material: Industrial-grade flexible PVC

• Thermal Tolerance: -40°C to +85°C operational range

• Ingress Protection: IP67 rated (water and dust resistant)

• Connector Profile: Support for M8/M12 interface configurations

• Safety Rating: Plenum-rated for fire safety compliance

• Physical Mass: 0.96 kg

• Logistics Details: Manufactured in Sweden; HS Code 8537101190

Strategic Industrial Utility and Deployments

The NKST11-15 is an essential utility for large-scale facilities that rely on high-resolution event logging to maintain safety and efficiency.

• Power Grid Sequence Analysis: Linking turbine control modules and boiler protection systems to synchronize the exact timing of emergency trips and load changes.

• Distributed Control Networking: Serving as the temporal heartbeat between geographically separated Infi 90 racks within a single plant infrastructure.

• Post-Fault Troubleshooting: Providing the precise time-stamping needed for engineers to reconstruct the chain of events during complex electrical or process failures.

• Hazardous Area Connectivity: Utilizing its IP67 and wide-temperature rating to maintain clock signals in environments prone to moisture or extreme thermal cycling.

• System Lifecycle Support: Acting as a critical replacement component for aging Net 90 architectures, ensuring that SOE functionality remains compliant with modern reporting standards.
