Configured for housing and routing power distribution to individual rack components in Infi 90 systems, the ABB IPCHS02 (IPCHS02 Power Chassis) provides direct physical/electrical execution.

Hardware Specifications

Deterministic Power Distribution and Backplane Integration

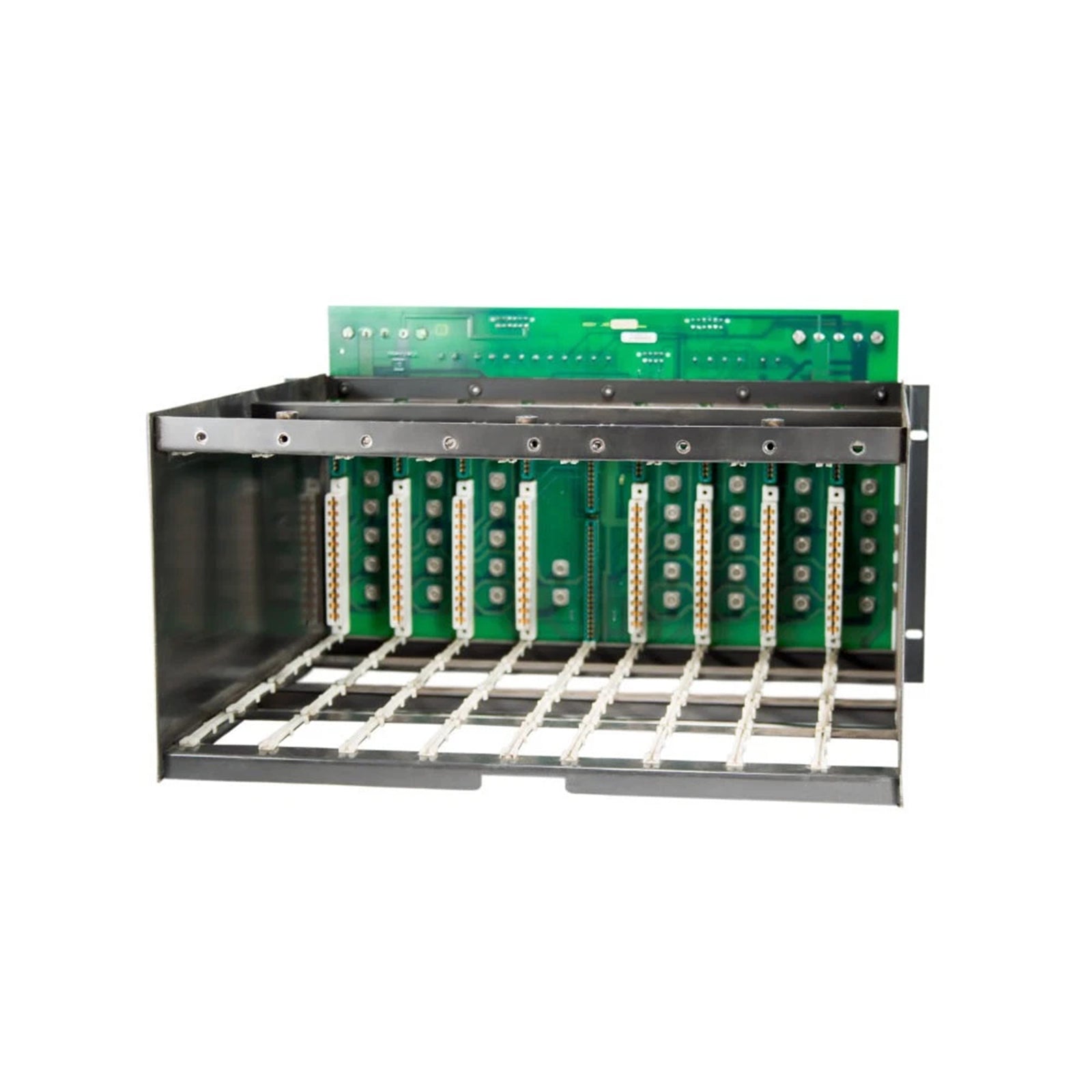

The IPCHS02 MPS II chassis serves as the central electrical backplane infrastructure for multi-slot power module installation. This hardware chassis executes stable voltage plane division to maintain continuous communication velocity across adjacent controller slots. The heavy-duty bus bars inside the backplane support full I/O density scaling profiles, preventing current starvation to attached functional cards. Electrical isolation boundaries within the internal chassis copper tracking preserve firmware flash compatibility levels by containing line harmonics and preventing high-amplitude noise injection into deterministic data highways.

Technical Performance FAQ

Q: What is the maximum current capacity rated for the main input distribution lines of this chassis?

A: The chassis backplane bus structure is designed to continuously manage up to a 20A current load over the designated 100-240V AC operational window.

Q: Can single power slots be populated independently to scale total output power?

A: Yes, the multi-slot layout accommodates parallel power module configurations to adjust power capacity between 500W and 2000W based on the total module density of the rack.

Q: Does the backplane cross-feed power between installed modules to handle a component fault?

A: The internal bus architecture provides shared power plane distribution, allowing separate power supplies to operate in a redundant configuration with zero switching delay when a supply fault occurs.

Hardware Mounting Protocol

• Enclosure Grounding: Connect the heavy-duty grounding lug on the rear plate directly to the main cabinet structural ground bus using a low-impedance copper strap.
• Module Alignment: Slide the power supply modules completely into the internal guide channels to ensure the high-current fork connectors seat properly onto the bus bars.
• Terminal Screws: Torque all incoming line terminal connections according to standard industrial specifications to minimize contact resistance under high-amp loads.
• Airflow Management: Maintain the specified clearance areas at the top and bottom of the chassis framework to permit unhindered thermal convection across the active power modules.

Fulfillment Component Checklist

• 1 x ABB IPCHS02 MPS II Power Chassis Assembly
• 1 x Terminal Cover Plate Block
• 1 x Pack of Rear Chassis Mounting Fasteners

Dispatch and Logistics Details

Delivery time: 3-5 days when payment finish through certified international freight channels including DHL, FEDEX, and UPS. All units are shipped inside high-density anti-static industrial packaging complete with shock-absorbent foam inserts to prevent structural or alignment degradation during transit.
