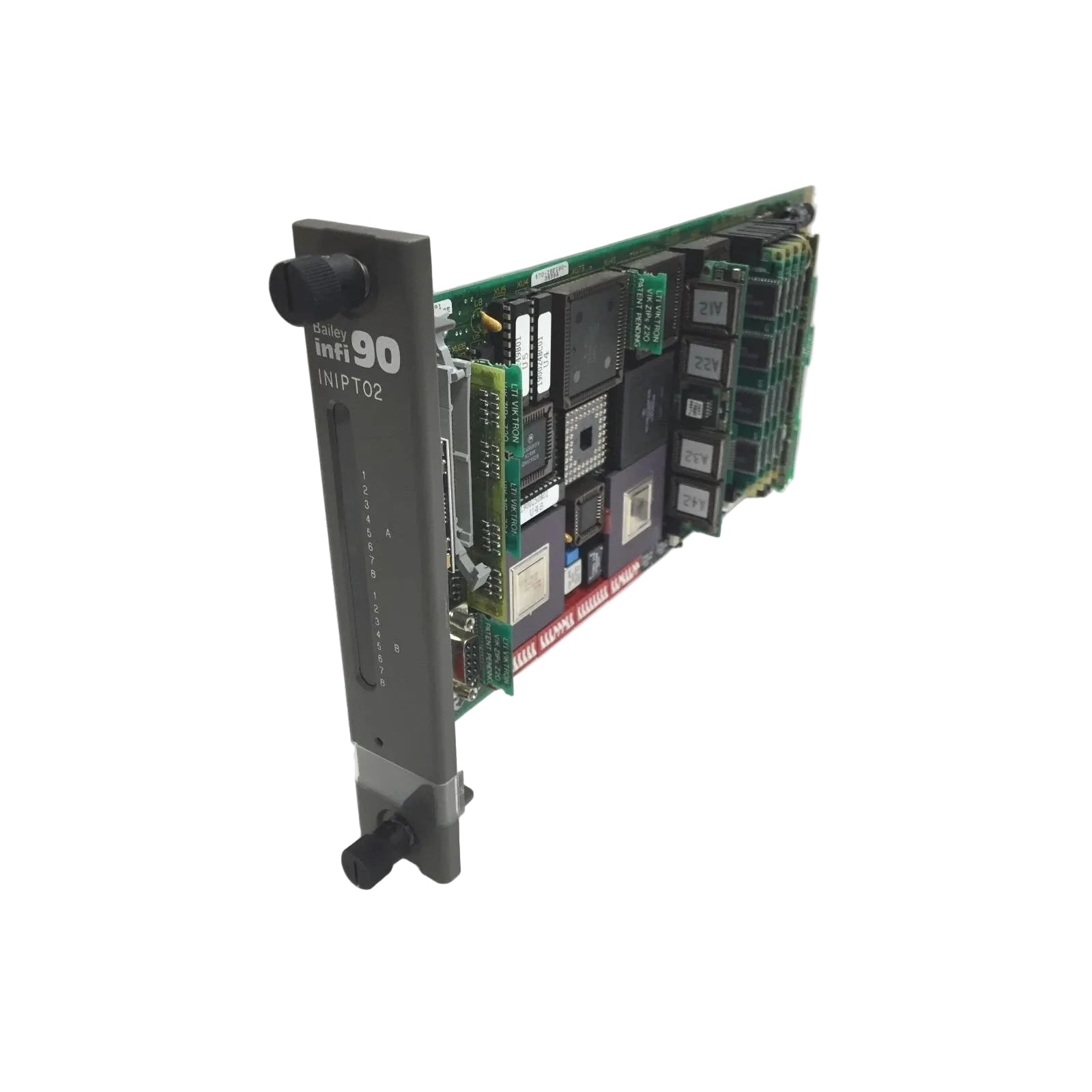

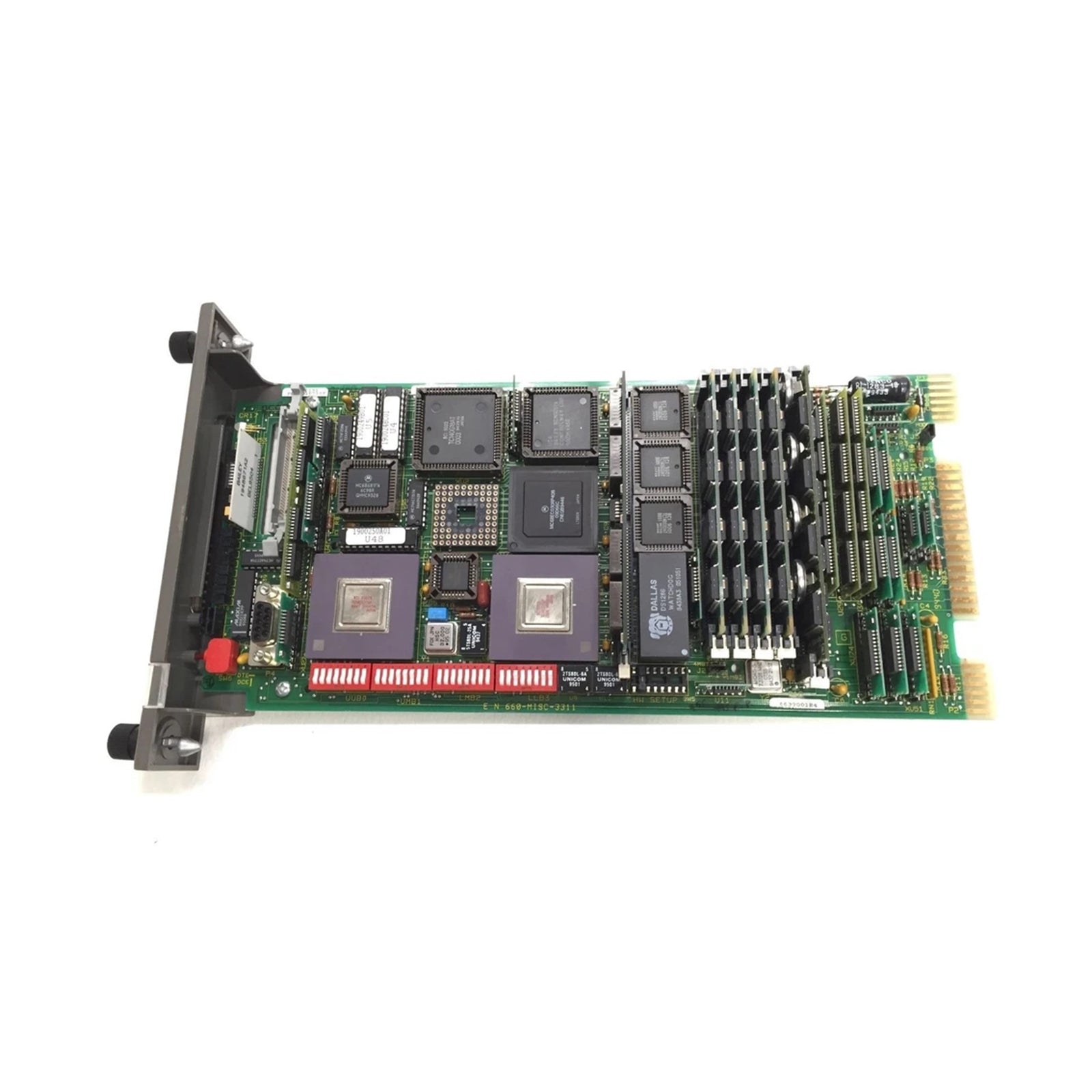

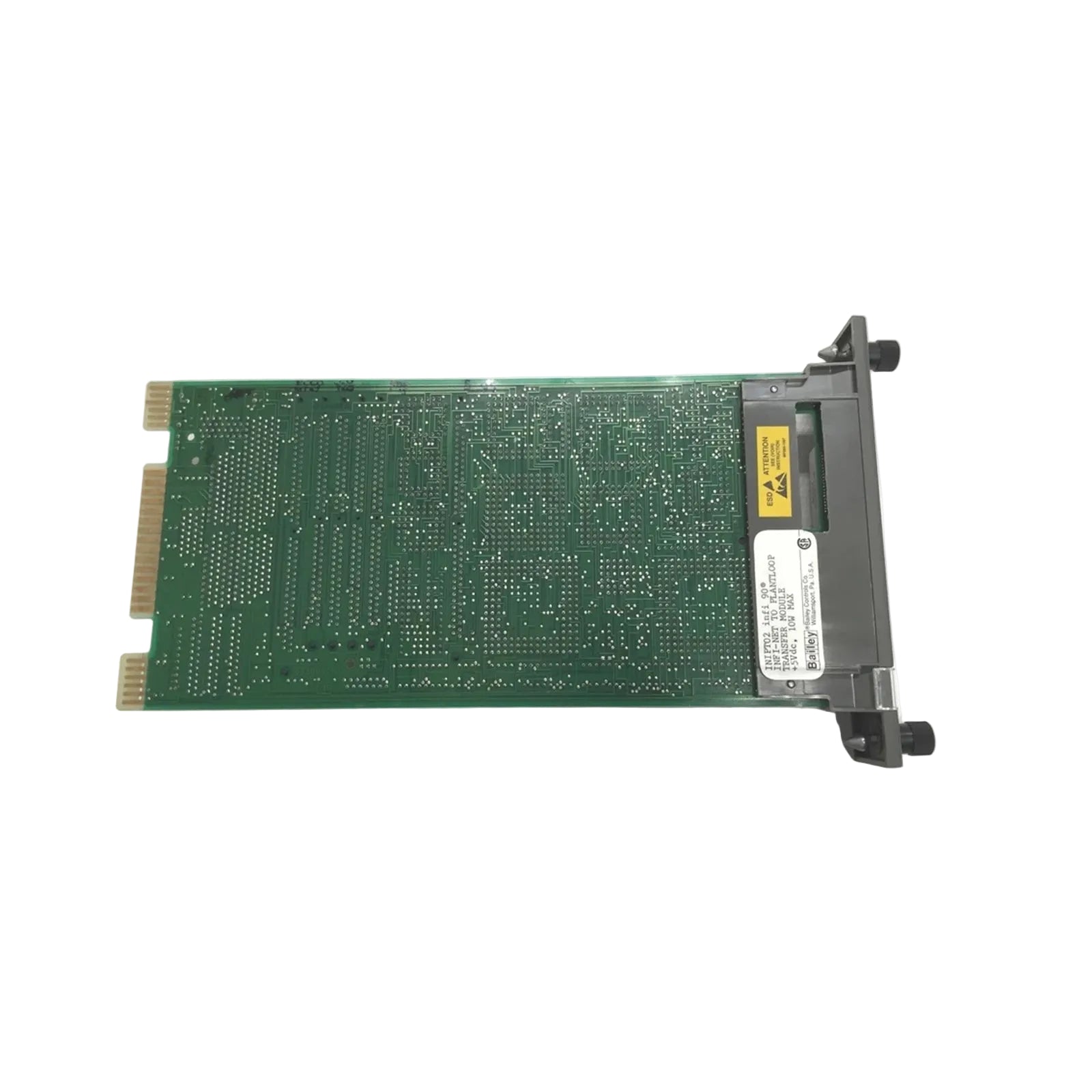

Configured for signal transfer between INFI-NET and Plant Loop control domains in Bailey INFI 90 architectures, the ABB INIPT02 (INIPT02 Plant Loop Remote Transfer Module) provides deterministic electrical and communication interface execution for distributed control loop integration across multi-level DCS networks. The module operates with 24 V DC supply input and supports remote loop transfer over distances up to 1000 m with controlled signal integrity handling.

Hardware Specifications

INFI-NET / Plant Loop Transfer Architecture Characteristics

The INIPT02 implements protocol-level and signal-level bridging between INFI-NET backbone communication and Plant Loop field control segments. Within ABB Bailey INFI 90 systems, the transfer module supports deterministic loop synchronization where timing alignment between supervisory commands and loop execution is maintained through controlled buffering and signal conditioning. Electrical isolation is applied between network-side logic and loop-side execution stages to reduce cross-domain noise propagation in long-distance cabinet-to-cabinet installations.

Frequently Asked Questions

Q: Does INIPT02 support hot-swap installation?
A: The module is typically installed in a powered-down rack segment. Hot-swap depends on system backplane configuration and rack design constraints.

Q: What is the maximum communication distance supported?
A: The transfer path supports up to 1000 m under defined Plant Loop configuration and cable specification limits.

Q: What is the power loading requirement on the backplane?
A: Typical consumption is 10-18 W at 24 V DC, depending on operational load and communication activity.

Q: Is galvanic isolation implemented between INFI-NET and Plant Loop sides?
A: Isolation is implemented between communication domains to reduce ground loop coupling and signal interference.

Field Installation Guidelines

The INIPT02 module shall be mounted in a standard ABB Bailey INFI 90 cabinet slot with proper mechanical locking. Seating must ensure full connector engagement without partial insertion to avoid backplane signal discontinuity. Shielded twisted pair cabling is required for plant loop signal routing, with shield termination performed at a single grounding reference point. Cable routing shall maintain separation from high voltage conductors to minimize induced noise. Verify 24 V DC supply stability before energizing the module.

Ordering Info

• ABB INIPT02 Plant Loop Remote Transfer Module unit

• Standard factory identification label and configuration baseline

• INFI 90 rack-compatible mounting interface

• Anti-static industrial packaging for transport protection

• System documentation set (if supplied with batch)

Delivery Information

Delivery time: 2-7 days when payment finish, shipped via DHL / FEDEX / UPS. Anti-static industrial packaging with shock-resistant foam and moisture barrier protection for industrial transit conditions.
