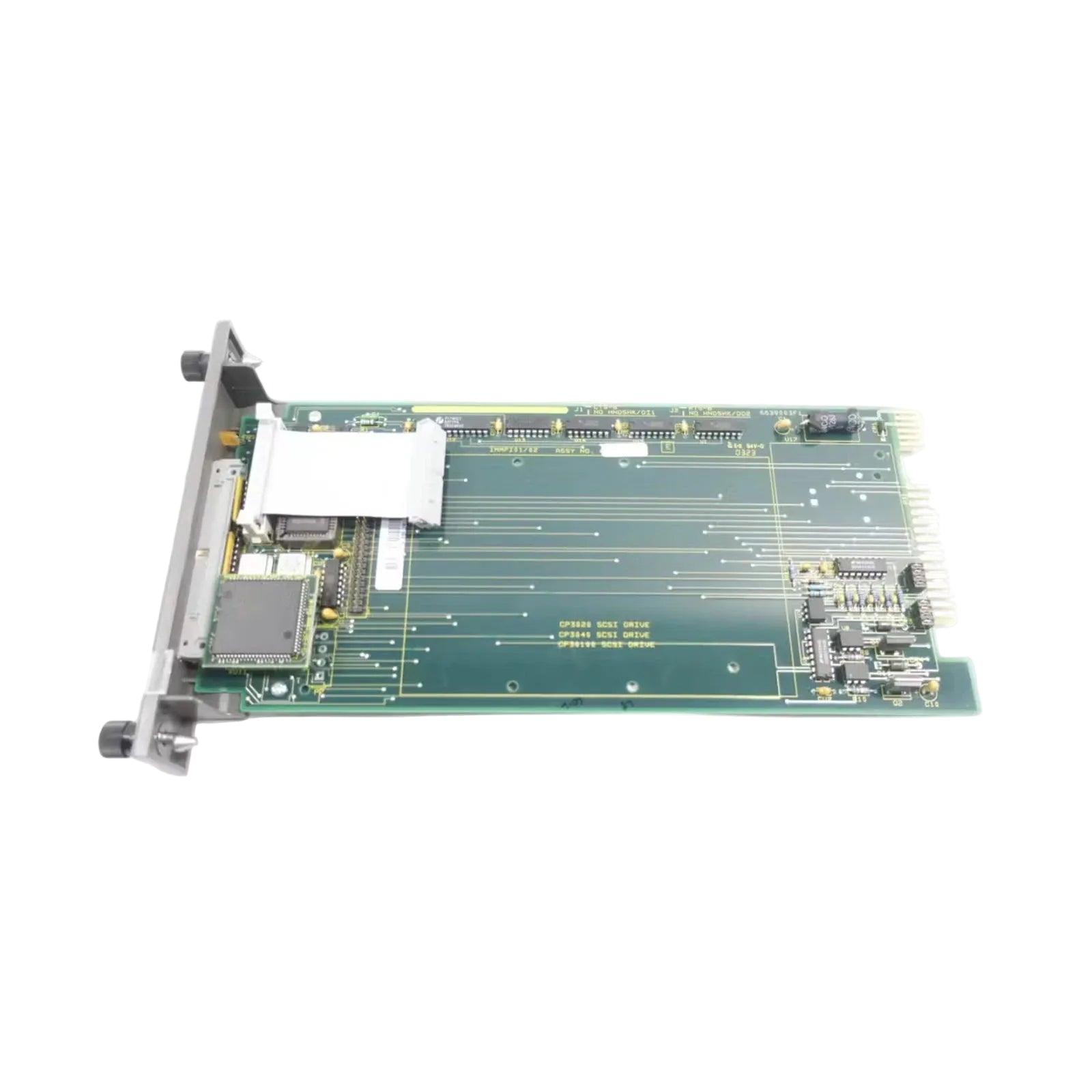

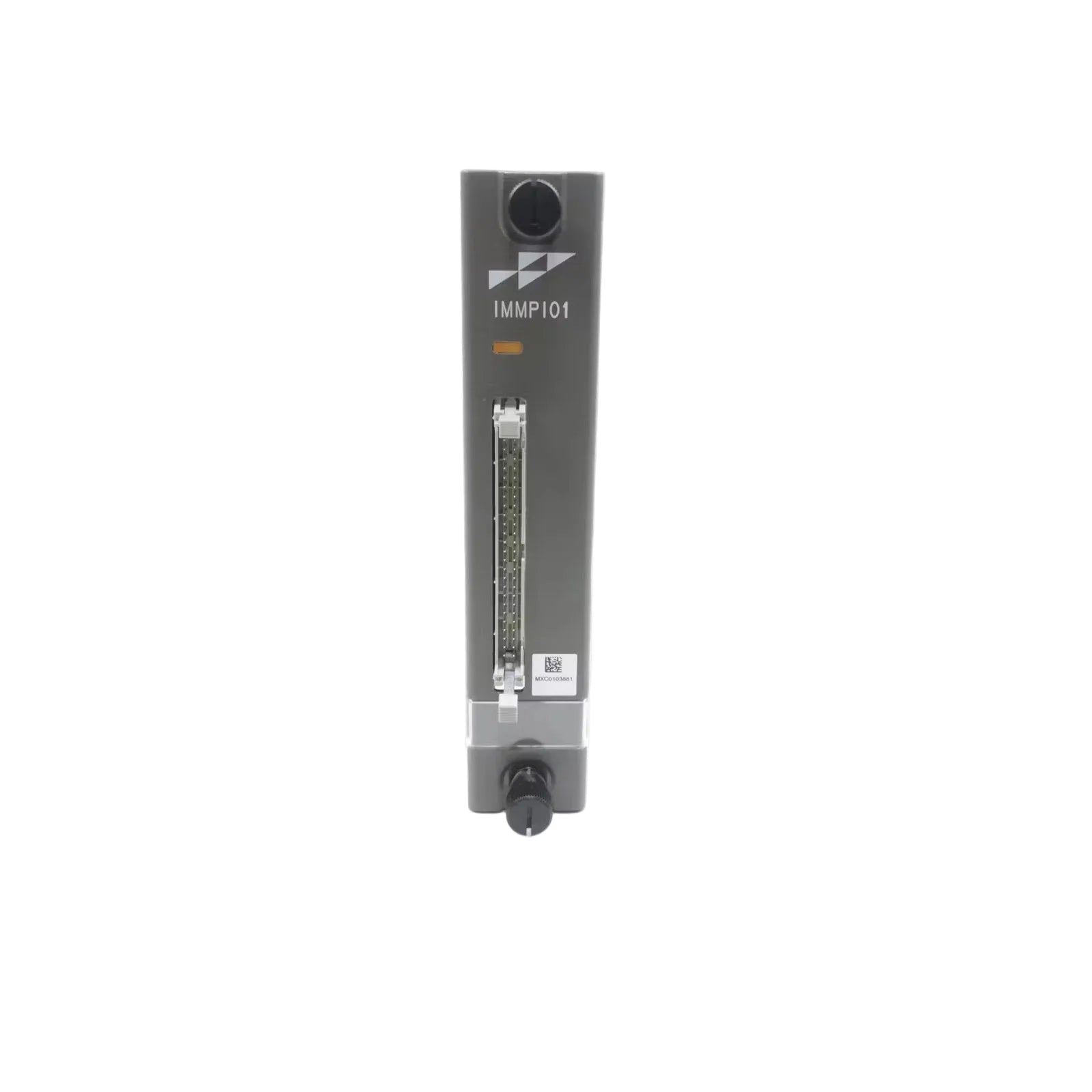

The ABB IMMPI01, also cataloged as the IMMPI01 Multi-Function Processor Interface, operates as a dedicated hardware component for serial data translation and peripheral bus communication routing within Infi 90 platforms.

Physical and Electrical Parameters

Backplane Bus Communication Velocity Licences and Processing Density

The module employs a 16-bit CMOS micro-architecture designed to bridge internal backplane bus communication velocity data packets directly to external supervision hardware. Onboard hardware execution filters processing cycles to optimize overall system sub-rack configurations, preventing local data collision bottlenecks across active channels.

The onboard 256 KB battery-backed RAM structure secures operating register parameters against power supply interruption, preserving configuration tables without triggering configuration errors. All data transfers across the parallel SCSI topology enforce strict firmware flash compatibility constraints, locking execution timelines down to deterministic intervals regardless of background I/O density scaling adjustments in adjacent slots.

Engineering Inquiries

Q: What is the primary purpose of the internal battery backup circuit on the IMMPI01?

A: The battery backup circuit maintains the state of the 256 KB RAM chip during an unpowered rack event, preventing the deletion of user-defined operational parameters and data registers.

Q: Is hot-swapping supported for this module in an active Infi 90 enclosure?

A: No. live insertion or extraction while the system backplane is energized creates transient signal noise and inductive currents that can fault the host controller execution thread.

Q: What configurations are accessible through the dual RS-232-C serial ports?

A: The ports act as terminal connections for external diagnostics, setup software interaction, or point-to-point interface links using asynchronous ASCII communications protocols.

Field Configuration and Mounting Procedures

• Verify all system power feeds are isolated before aligning the module into its designated slot track guides.

• Use a common ESD grounding wristband connected directly to unpainted cabinet metal during card setting manipulation.

• Route external RS-232-C communication leads separate from high-current power distribution wiring to prevent induced EMI data packet failure.

• Fasten both front faceplate captive hardware locks to ensure the structural ground planes achieve absolute connection continuity.

Factory Allocation Components

• One IMMPI01 Multi-Function Processor Interface module

• Factory integrated onboard backup cell initialization lead

• Technical parameter layout specification documentation sheet

Dispatch Operations

Delivery time: 2-7 days when payment finish, with rapid international transport processed through DHL/FEDEX/UPS courier networks. Modules are enclosed inside individual static-shielded anti-static industrial packaging layers surrounded by form-fitting high-density cushioning materials to mitigate physical transit strain.
