Product Overview

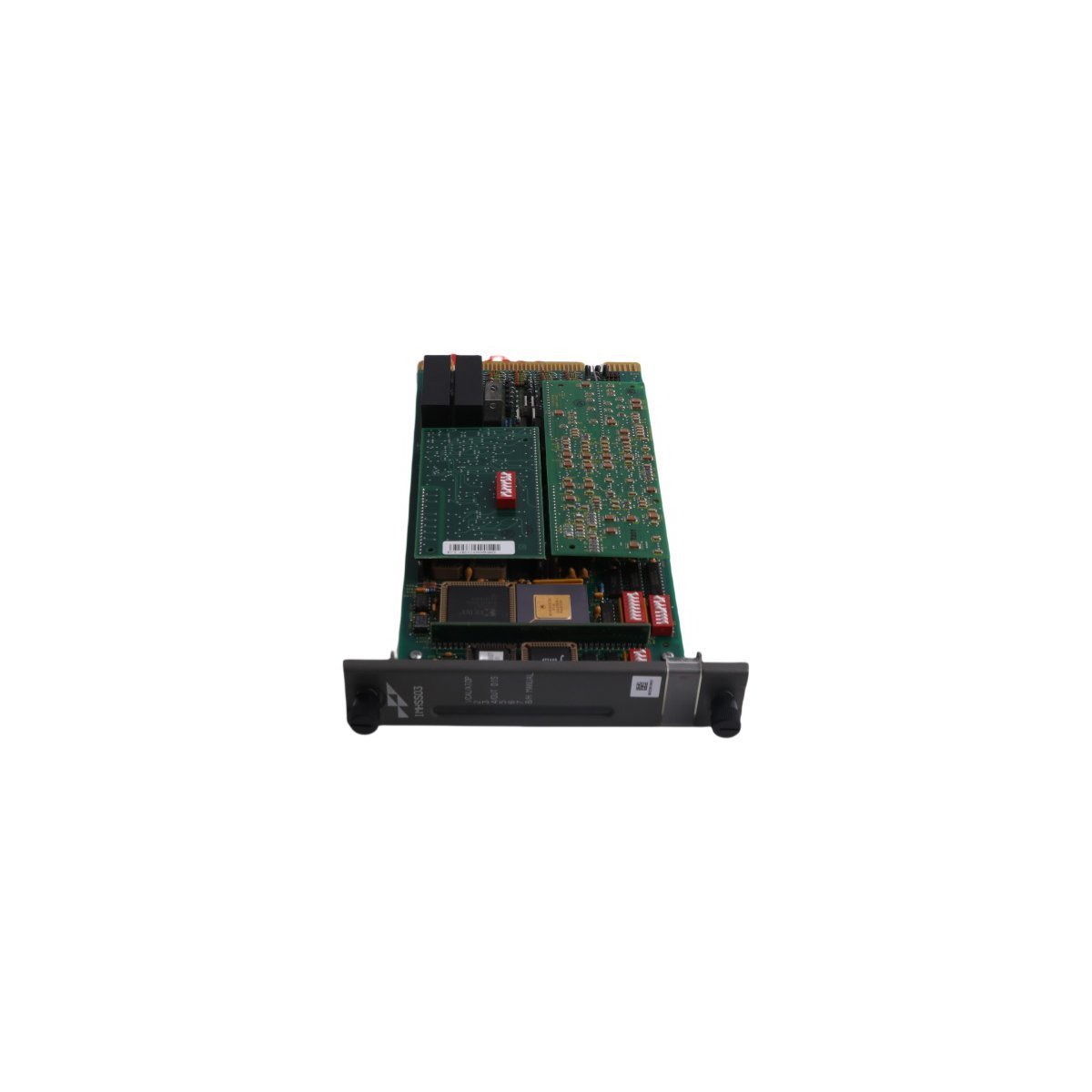

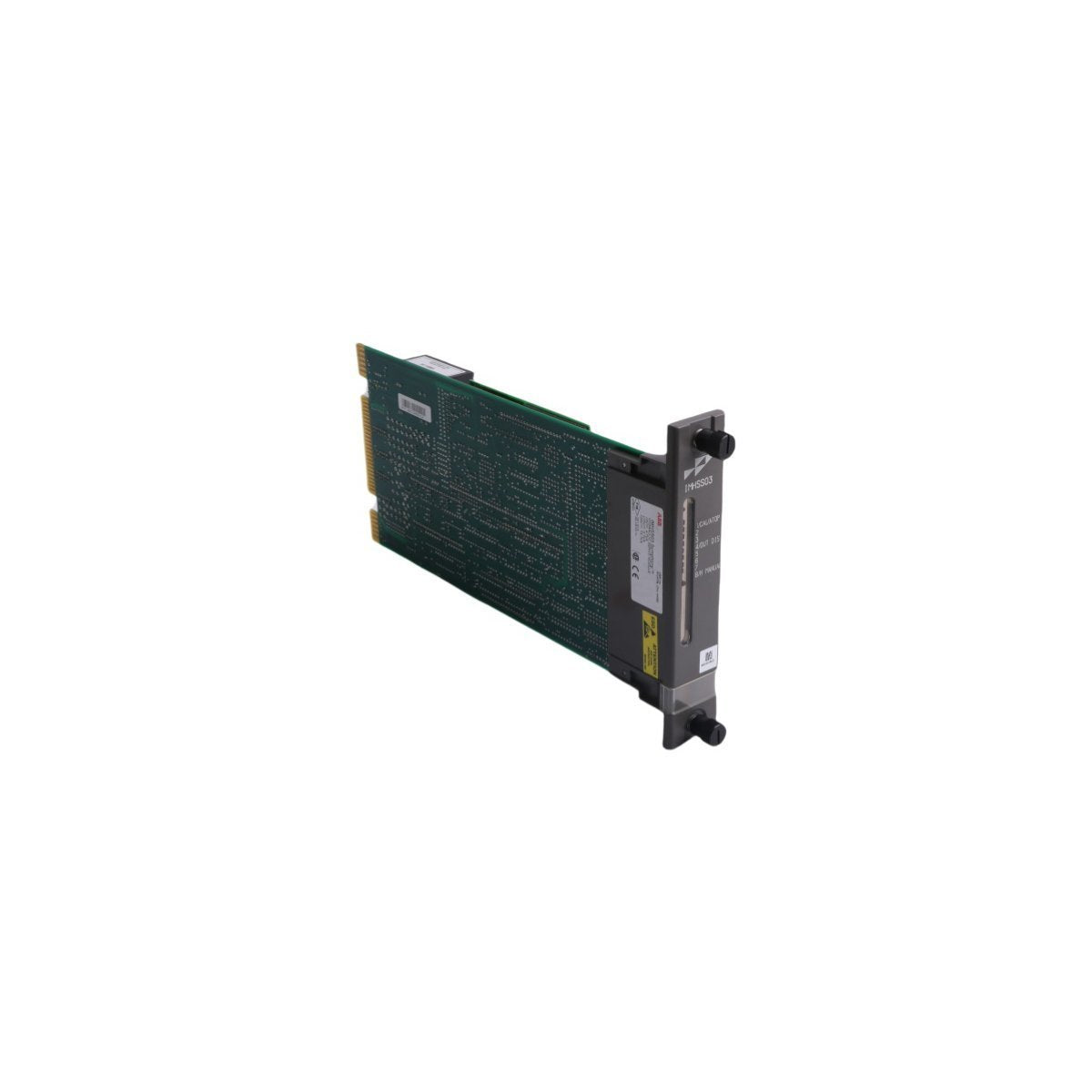

The IMHSS03 is a high-precision Hydraulic Servo Slave Module specifically engineered for the ABB Bailey Infi 90 and Symphony Harmony Rack (HR) series. This module functions as a critical interface for electro-hydraulic control loops, providing the high-speed processing required to drive servo valves and positioners with extreme accuracy. As a "slave" unit, it executes complex control algorithms received from a master controller, transforming digital logic into precise analog commands for hydraulic actuators. Designed for high-availability environments, the IMHSS03 ensures deterministic performance in fluid power applications where millisecond response times are vital to mechanical safety and process integrity.

Critical Engineering Specs and Hardware Attributes

The IMHSS03 is built to bridge the gap between digital control environments and the physical demands of hydraulic systems. It features specialized circuitry to handle high-frequency signal output and ruggedized components for thermal stability.

• Model Identification: IMHSS03

• Module Function: Hydraulic Servo Slave Interface

• Product Lineage: Bailey Infi 90 / Symphony Plus (Harmony Rack)

• Output Frequency: 50 kHz for ultra-responsive valve positioning

• Signal Type: Analog servo drive outputs and feedback inputs

• Physical Mass: 0.56 kg

• Dimensions: 3.5 x 31.5 x 17.7 cm

• Operational Hardening: Optimized for high-vibration and electromagnetic industrial zones

• Manufacturing Standards: Built to Swedish engineering quality specifications

• HS Tariff Classification: 8537101190

Industrial Deployment Scenarios

This hydraulic servo module is predominantly utilized in heavy industry sectors that rely on synchronized mechanical motion and high-force fluid dynamics.

• Steam Turbine Governing: Managing the precise positioning of steam inlet valves to regulate turbine speed and load in thermal power plants.

• Hydraulic Press Control: Orchestrating the rapid and accurate movement of large-scale presses in automotive and aerospace manufacturing.

• Hydroelectric Gate Regulation: Controlling the wicket gates and blade pitch of hydro turbines to maintain optimal power generation and grid frequency.

• Steel Mill Roll Positioning: Providing the high-speed feedback loop required for automatic gauge control (AGC) in rolling mills.

• Heavy Motion Simulation: Facilitating the rapid response required for industrial flight or marine simulators and structural testing rigs.
