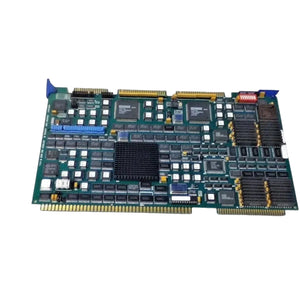

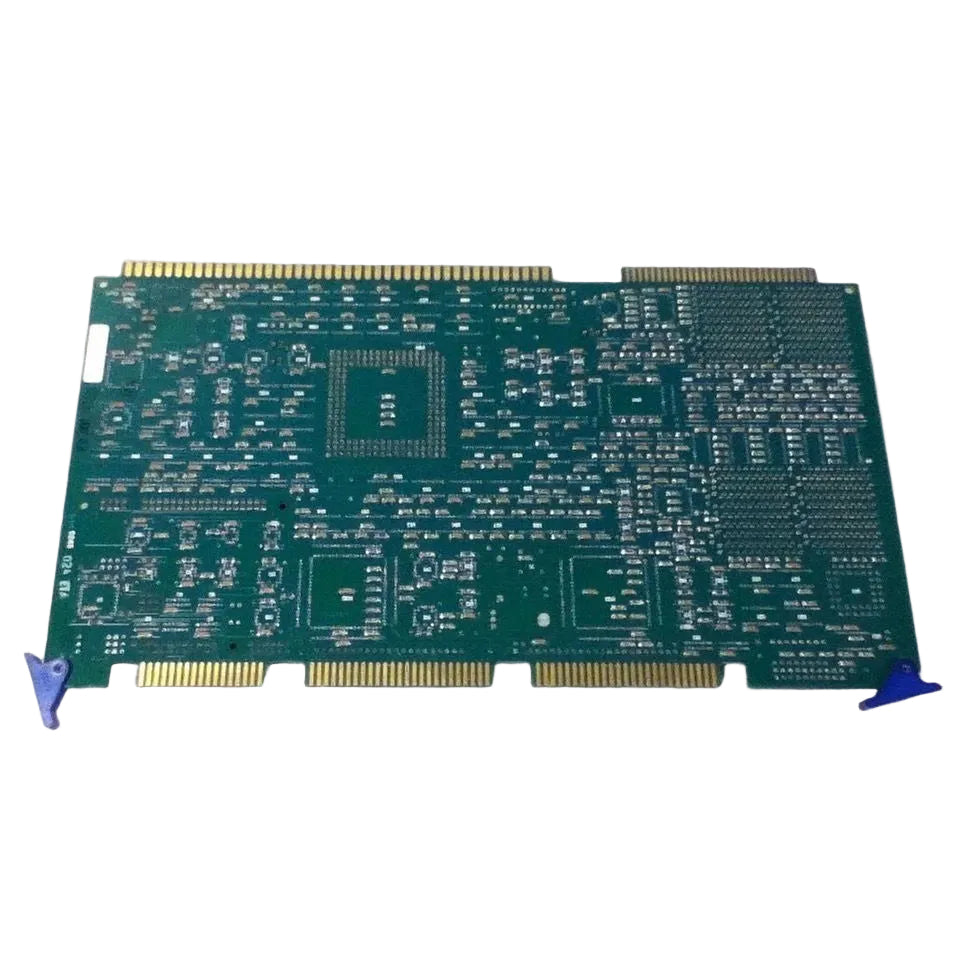

The ABB IIMPM02 serves as the primary IIMPM02 MULTI-BUS PROCESSOR MODULE utilized to execute multi-bus arbitration, central processing, and console communication routing across Bailey Infi 90 Series platforms. This master board manages high-speed internal bus transfers and serial communication lines to monitor system variables in real time. It computes automation logic configurations directly within local memory registers and interfaces via an integrated RS-232-C port to maintain constant data synchronization with external terminal nodes.

Hardware Parametric Matrix

Backplane Bus Communication Velocity and Density Scaling

This CPU platform interfaces directly with parallel backplane structures to execute data processing tasks at maximum backplane bus communication velocity. The architectural configuration accommodates scalable multi-rack layouts, facilitating complex I/O density scaling options across interconnected control nodes without inducing communication lag or cycle time extensions. The onboard processor coordinates real-time data flow through individual slots, executing cyclic verification procedures that enforce full firmware flash compatibility across all plugged peripheral modules to ensure continuous loop synchronization.

Technical Queries & Engineering Answers

Q: Does this main processor support unrestricted hot-swap module replacement during active run operations?

A: No. Live hot-swap removal of this primary processor card will instantly interrupt active backplane bus communication velocity across the rack segment. Pulling the CPU during execution halts state-machine monitoring loops and can lead to unpredicted control sequence failures or configuration loss in matching slot devices.

Q: How does a current drop on the +5 V DC logic rail affect the processing core?

A: The board relies on a steady 3 A draw at +5 V DC to sustain internal logic timing. A supply sag below official operational thresholds triggers an internal voltage-monitoring reset circuit, causing the module to cease operations instantly to prevent corrupt configuration data from being transmitted over the network bus.

Q: What are the main configuration requirements for establishing communication through the RS-232-C serial terminal interface?

A: Technicians must ensure that the connecting terminal hardware has identical transmission parameters, matching the processor module speed, parity configurations, and hardware flow control protocols. Incorrect pin assignment or cross-talk on unshielded lines will cause parity faults and suspend configuration terminal logging.

Mechanical Installation and Terminal Grounding

• Card Cage Insertion and Alignment: Place the circuit card edge boundaries inside the designated cabinet rails. Carefully push the module inward until the rear pins mesh with the backplane distribution block, then tighten the faceplate screws to eliminate mechanical play.

• Serial Line Separation Requirements: Route the RS-232-C console communication cable through isolated wire ducts separate from industrial high-voltage alternating current pathways to lower the risk of electromagnetic noise induction.

• Electrostatic Discharge Protection: Personnel must connect a dedicated grounding wrist strap to the bare metallic structure of the control enclosure prior to handling the processor card or modifying any logic jumpers on the board substrate.

Component Package Manifest

• 1 x ABB Bailey Infi 90 IIMPM02 Multi-Bus Processor Module

• 1 x Front Console Port Protective Cap

• 1 x Hardware Jumper Placement Datasheet
