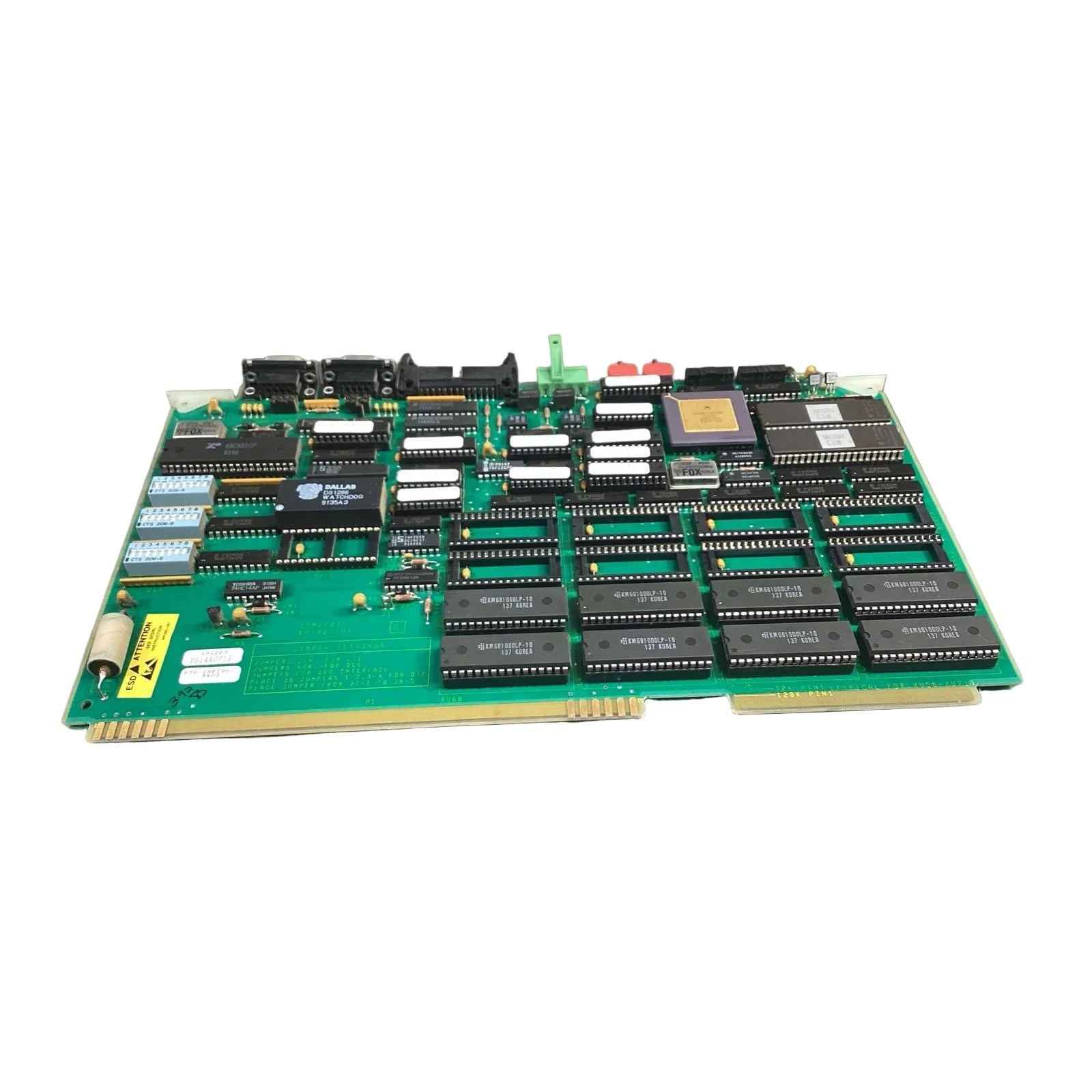

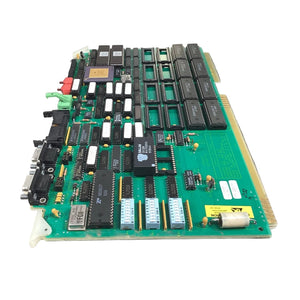

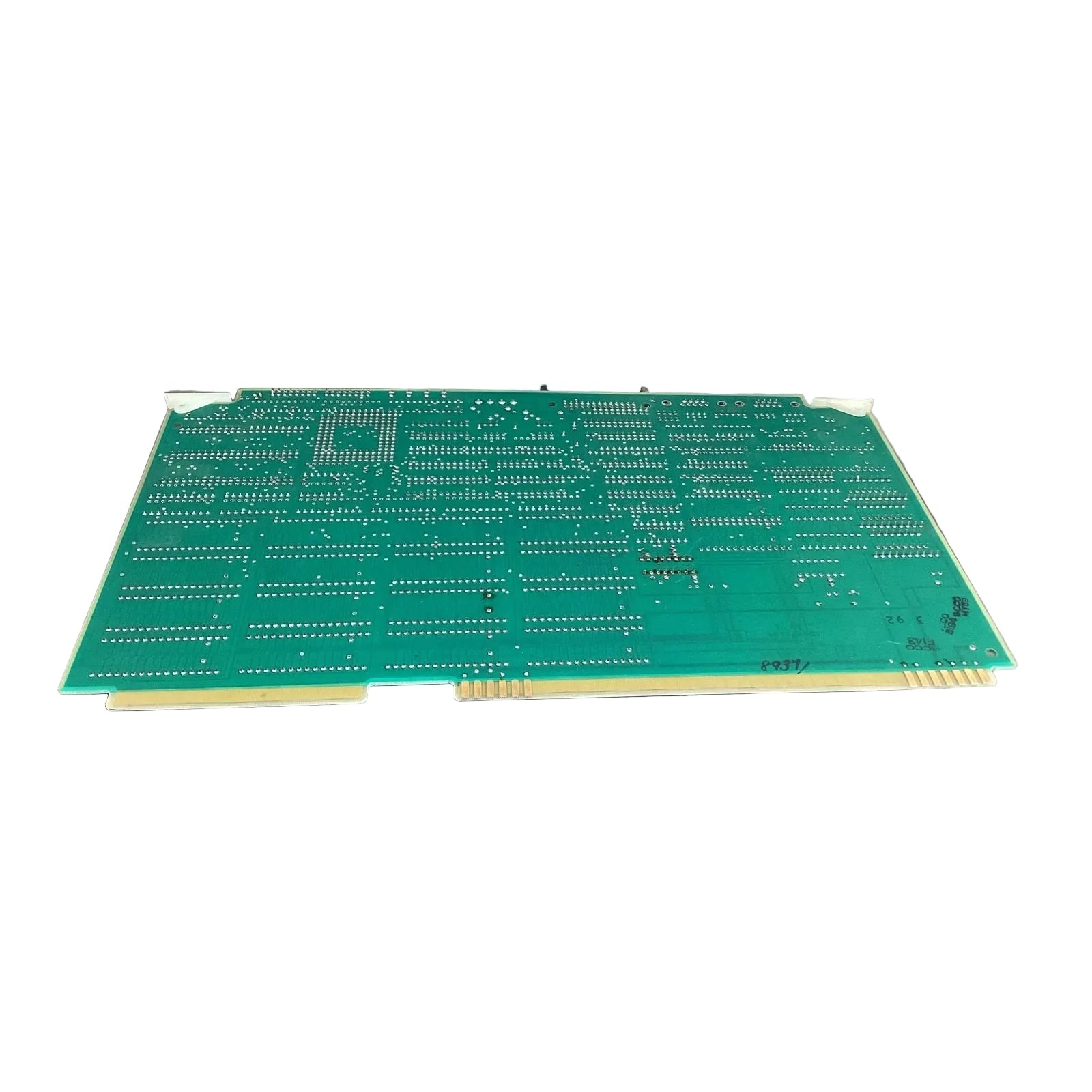

The ABB IIMCP01, also cataloged as the IIMCP01 Multibus Communications Processor, operates as a dedicated hardware component for high-capacity data packet routing and translation within PlantLoop system platforms. Engineered to handle up to 10,000 active data tags, the module executes concurrent physical layer data arbitration between internal processing units and external bus nodes, managing high-throughput message queues without operational latency stackups.

Technical Parameters

Deterministic Network Backplane & Firmware Synchronization

Operating as a central communication node within the Infi 90 multi-layered layout, the module provides structural alignment with factory backplane bus communication velocity configurations. The onboard 2 MB SRAM acts as a dedicated buffer space to cross-examine and sequence real-time network states while upholding strict firmware flash compatibility across legacy and contemporary system segments. This setup enforces timing integrity across deterministic network paths, preventing processing collisions between parallel bus tasks and I/O scan clusters.

Technical Inquiries & Diagnosis

Q: How does the 500 VDC port-to-bus galvanic isolation safeguard the inner loop subcomponents?

A: The isolation boundary breaks the direct metallic circuit between external communication links and the internal system backplane logic. This prevents high-voltage transient surges or ground loop currents from destabilizing the internal processor bus or damaging adjacent memory sectors.

Q: What operational risks develop if the supply input swings outside the +5 VDC ±5 % threshold?

A: Operating beyond this variance triggers the internal brownout protection loop, freezing data transmission across the 8-bit SCSI-1 interface. Volatile data arrays within the 2 MB SRAM run the risk of minor parity errors or transmission drops if the voltage profile fails to meet steady-state parameters.

Q: Is this module capable of sustaining continuous live hot-swap insertion steps into an active MMU backplane slot?

A: No. Uncontrolled module insertion during full rack power deployment generates substantial pin arc currents and logic disruptions along the active data bus line. Power must be isolated from the specific module rack segment prior to physical card installation or withdrawal procedures.

Field Installation Guidelines

• Backplane Insertion Mechanics: Verify alignment of the circuit card along the chassis tracks before final placement. Press the module firmly until the rear connector seats into the backplane pin block. Lock the module faceplate screws to maintain a stable ground reference.

• SCSI-1 Cable Interface Routing: The 8-bit SCSI-1 cable path must not run parallel to high-current AC cabling or frequency inverter motor feeds. Use double-shielded communication cables and ensure proper terminal resistance values are applied at both endpoints.

• Ambient Thermal Control: Maintain continuous cross-ventilation flow across the processing bin to prevent localized heat accumulation within the card enclosure, verifying that the operating threshold remains below +55 deg C.

Ordering Information

• 1 x ABB IIMCP01 Multibus Communications Processor Module (Spare: 663822701)

• 1 x Integrated Product Inspection Record Sheet

• Note: Communication connection cables, terminal sub-assemblies, and specialized software configuration media must be specified as separate line items.

Logistics Framework

Delivery schedules conclude within 2-7 days when payment finish verification is finalized. Consolidated shipments transfer out of Xiamen, China, handled exclusively by DHL, FEDEX, or UPS. Instruments travel sealed within specialized multi-layer anti-static industrial packaging, incorporating custom-cut non-conductive padding structures to suppress electrostatic discharge phenomena and dynamic physical impacts during dispatch.
