Product Overview

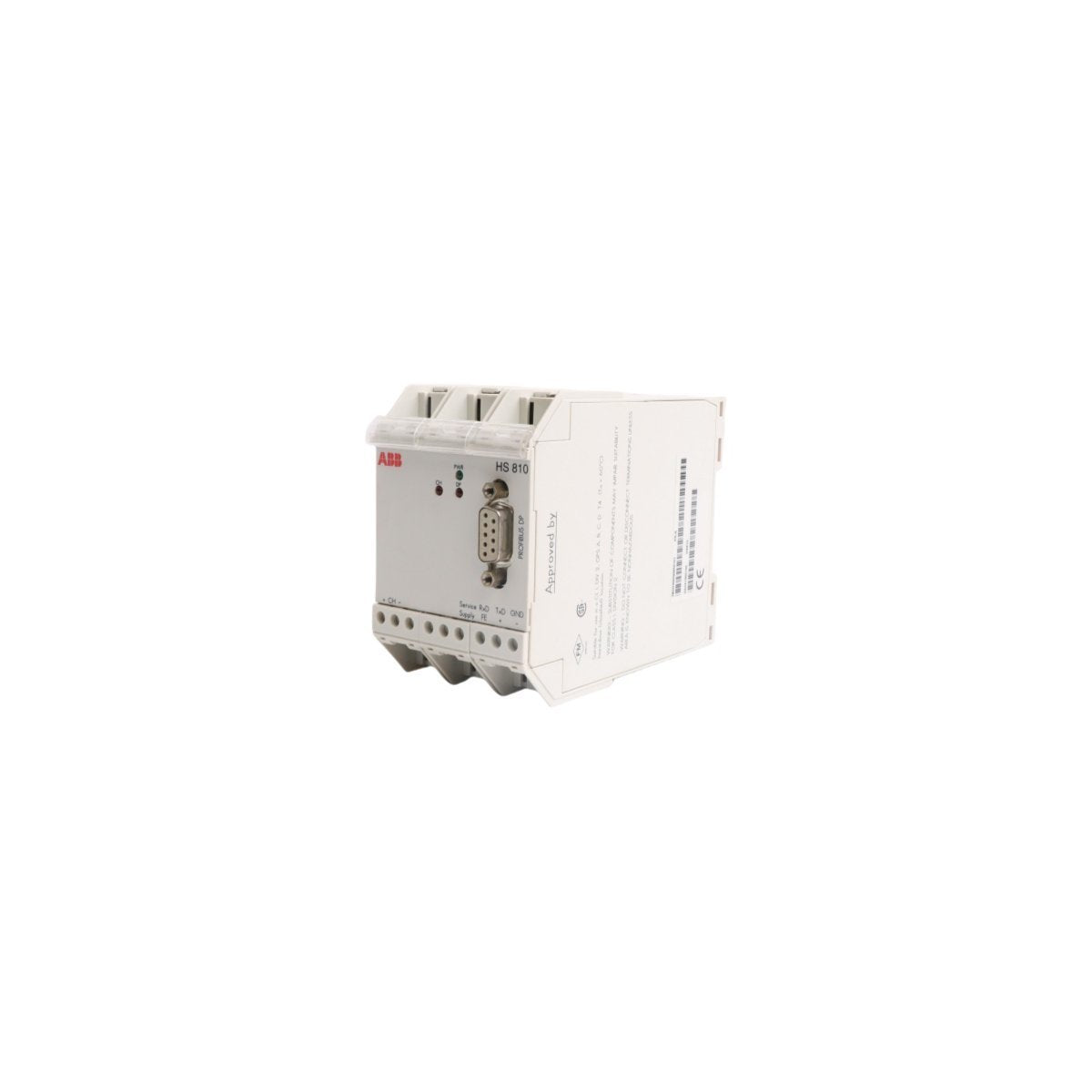

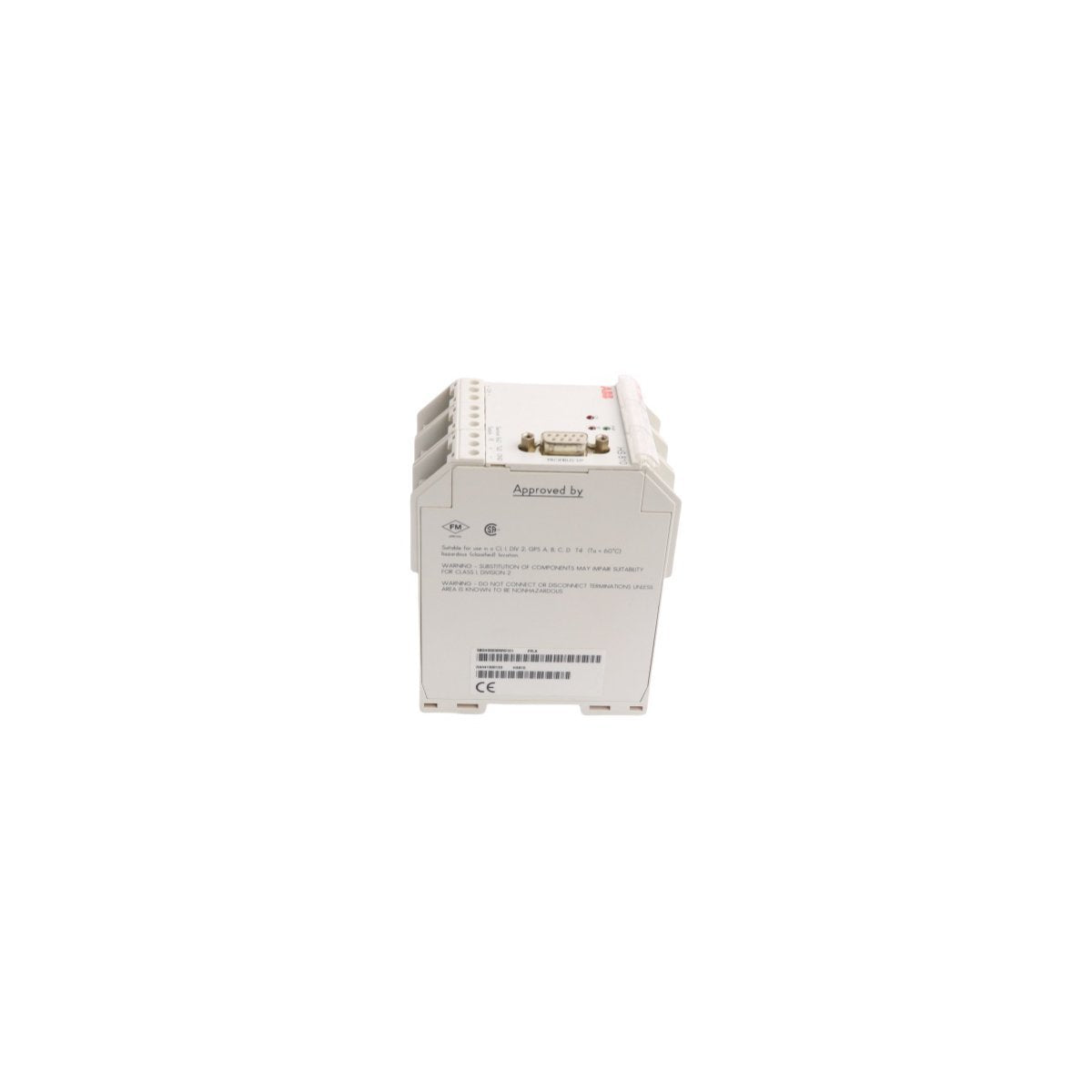

The ABB HS810 is a specialized gateway and head station engineered for the FieldIT product range, serving as the essential link between Profibus DP and Profibus PA segments. This module is designed to facilitate the high-speed exchange of process data from field instrumentation to the supervisory Distributed Control System (DCS). By managing the transition between the DP (Decentralized Periphery) and PA (Process Automation) protocols, the HS810 ensures that smart field devices are powered and communicated with across a unified bus architecture. Its primary role is to act as a master interface that simplifies complex wiring while maintaining the deterministic timing required for mission-critical automation.

Performance Specifications & Module Architecture

• Interface Model: HS810 Head Station

• Protocol Support: Profibus DP (RS-485) and Profibus PA (Manchester Bus Powered)

• Channel Capacity: Support for up to 8 independent channels for extensive field device integration

• Redundancy Logic: Integrated PROFIBUS DP redundancy to prevent single points of failure

• Operational Mass: 0.38 kg

• Physical Dimensions: 11.8cm x 13.6cm x 8.5cm

• Thermal Endurance: -20°C to +55°C (Operating); -40°C to +70°C (Storage)

• Communication Features: Seamless Ethernet router bridging for remote system telemetry

• Origin of Production: Sweden

• System Category: FieldIT Industrial Process Control

Professional Applications & Industrial Utility

The HS810 is predominantly utilized in process industries characterized by hazardous or geographically dispersed areas, such as oil and gas refineries, chemical processing plants, and pharmaceutical production lines. It serves as a vital Power Link Module, providing the necessary energy to PA field devices over the bus cable, which eliminates the need for separate local power supplies at every instrument. In heavy-duty manufacturing environments, the HS810's advanced diagnostic suite allows maintenance teams to perform real-time bus monitoring and proactive troubleshooting, identifying signal degradation or device faults before they lead to process interruptions. Its compact form factor is specifically designed for high-density cabinet mounting, allowing for efficient scalability in both brownfield upgrades and greenfield automation projects where space and reliability are at a premium.
