Product Overview

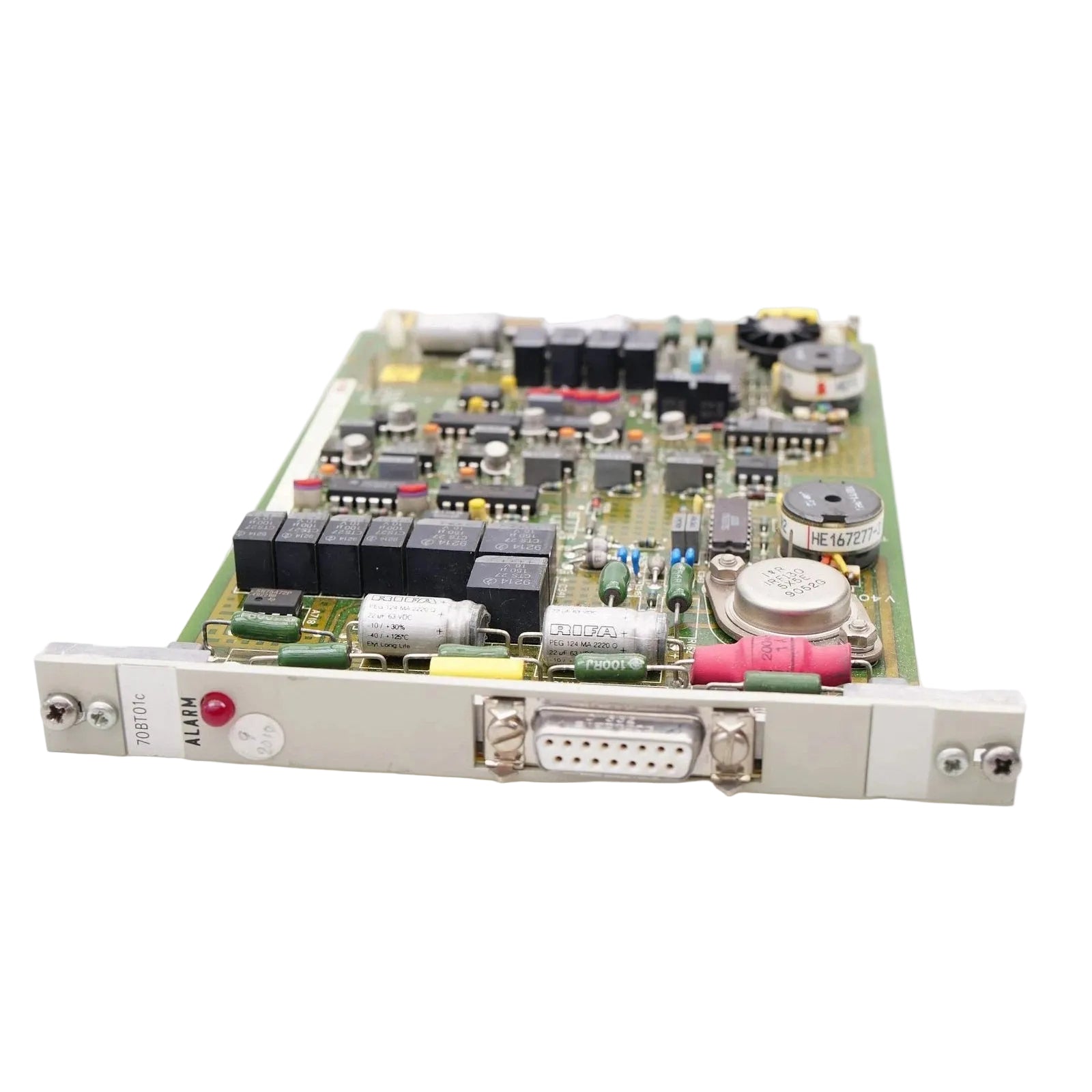

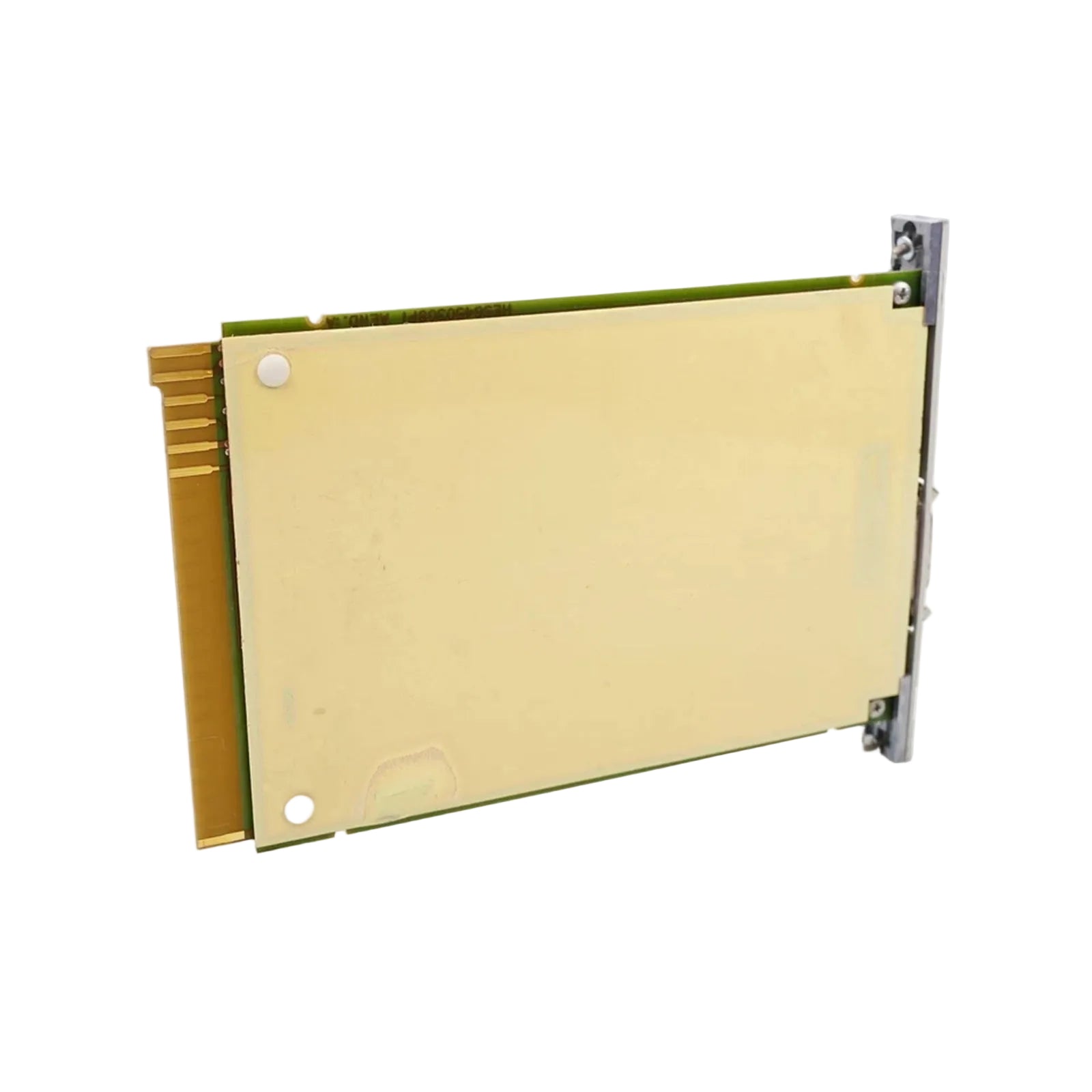

The ABB Procontrol P13 HESG447024R1 (Type 70BT01C) Bus Transmitter Module maintains high-speed, deterministic data transmission pathways within complex Distributed Control System (DCS) environments. Purpose-built for critical process industries such as large-scale power generation utilities, nuclear facilities, and massive petrochemical complexes, this communication card processes and broadcasts critical system states across the Procontrol backplane network. It manages localized binary data distribution smoothly, preventing timing latency and data packet loss in high-stress automated environments where real-time coordination directly impacts plant stability and structural safety.

By managing up to 32 binary inputs simultaneously, the 70BT01C transmitter offloads data packaging tasks from primary control processors to preserve maximum network loop performance. The module actively converts localized field-level binary signals into robust, noise-immune bus communication frames. This dedicated preprocessing ensures that emergency interlocking systems, high-speed trip networks, and centralized control monitors receive rapid, uncorrupted operational telemetry during major dynamic process shifts.

Processing Infrastructure & Dielectric Shielding

The internal hardware topology of the 70BT01C Bus Transmitter leverages a high-density processing layer that handles up to 32 parallel binary input channels without performance degradation. This micro-architecture scans, filters, and formats field status changes into deterministic data streams, ensuring the central Procontrol P13 bus receives accurate, jitter-free signal states under dense scanning schedules.

To survive the extreme electrical anomalies common to heavy industrial control cubicles, this module incorporates advanced optoelectronic coupling arrays. These barriers provide an exceptional 1500 VDC electrical isolation rating between the field input terminals and the internal system logic bus. This robust dielectric defense blocks severe common-mode voltage transients, inductive surges, and accidental ground faults from penetrating the primary control backplane, preserving total system network integrity.

Hardware Matrix & Operating Limits

Chassis Insertion & Shielding Protocols

Successful integration of the 70BT01C module depends on proper chassis alignment and strict electrostatic discharge (ESD) prevention protocols. Completely de-energize the target subrack before sliding the transmitter module along the chassis guide paths to prevent destructive card-edge arcing as the contacts engage the backplane.

Seat the module firmly until the rear multi-pin plug connects fully with the Procontrol backplane assembly, then tighten the integrated front faceplate retention hardware to secure a low-impedance ground path directly back to the common cabinet busbar. When interfacing external binary field cables to the termination unit, maintain a minimum bending radius of eight times the total wire sheath diameter. Keep all low-voltage signal conduits completely separate from alternating current (AC) power lines inside the marshalling enclosure to minimize capacitive cross-talk.

Environmental Toughness & Enterprise Synergy

The 70BT01C module utilizes an extended operational thermal profile spanning from -20 to +60 degrees Celsius, enabling reliable hardware performance inside tightly packed control enclosures subject to high localized heat accumulation. Conformal protective overlays cover the delicate component leads, defending the processing logic against conductive dust accumulation and atmospheric industrial moisture.

This bus transmitter integrates cleanly with existing Procontrol P13 control frameworks while allowing steady data bridge options to modern supervisory platforms such as Honeywell Experion PKS or Siemens S7 industrial architectures via specialized communications gateways. This multi-generation network synergy provides operations managers with direct access to legacy diagnostic logs and binary event data, allowing for optimized plant asset analytics and improved emergency stop system validation.

Box Contents Checklist

(1) New ABB HESG447024R1 70BT01C Bus Transmitter Module

(2) Pre-Configured Hardware Address Jumper Blocks

(3) Factory Quality Control Certification Slip

Expedited Global Logistics

Delivery time: 3-5 days when payment finish. We forward critical plant assets exclusively through elite global express handlers including DHL, FEDEX, and UPS to minimize downtime risks at your facility. To guarantee the hardware remains free from atmospheric humidity and electrostatic discharge risks during long-distance international transport, items travel within heavy-duty, heat-sealed anti-static industrial packaging pouches nestled inside custom-molded shock-absorbing foam protection cells.

Core Field Diagnostics

Q1: What does the 70BT01C type code define on this specific Procontrol card?

A1: The 70BT01C code designates the exact functional hardware family and board layout configuration as a dedicated 32-channel binary bus transmitter within the Procontrol P13 network.

Q2: How does the 1500 VDC isolation barrier benefit the wider DCS system architecture?

A2: The 1500 VDC barrier isolates the delicate digital processing core from the field terminals, ensuring that heavy external electrical surges do not burn out the central backplane bus.

Q3: Can this bus transmitter module be inserted into a live, powered subrack slot?

A3: No, you must isolate the power to the specific subrack or chassis segment before inserting or extracting the module to avoid data frame corruption or component edge damage.

Q4: What payment methods are accepted to clear this component for immediate warehouse release?

A4: We accept standard international corporate bank wire transfers, verified commercial credit cards, and major online industrial B2B purchasing platforms to clear shipping validation instantly.
