Product Overview

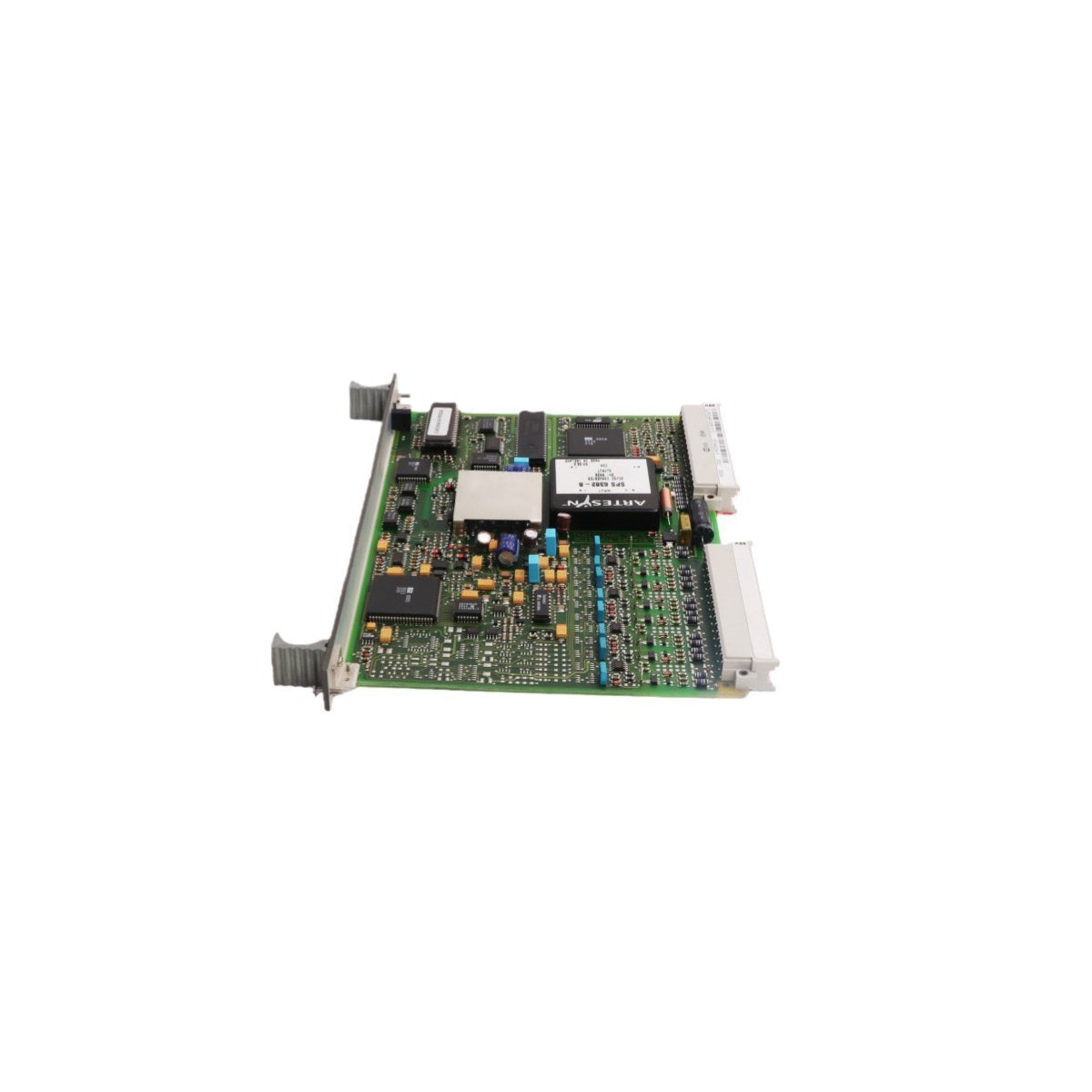

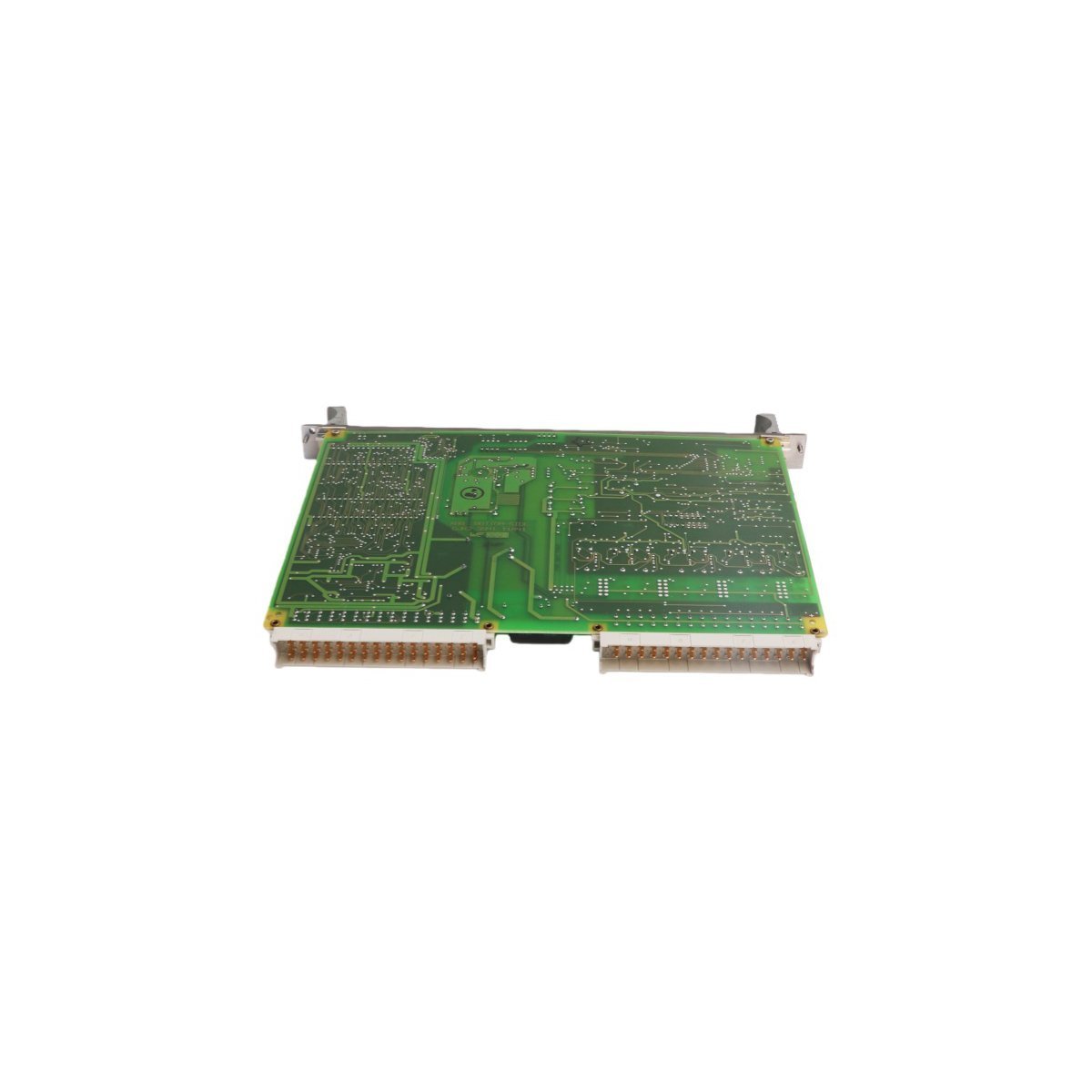

The ABB 81AA03A-E, identified by the specific order code GJR2394100R1210, is a high-precision analog output module engineered for the Procontrol P14 distributed control architecture. This module serves as a critical interface for converting digital control commands into precise analog signals required to drive field actuators, valves, and positioning elements. A standout feature of this hardware is its deep integration with the Configuration and Diagnostic System (CDS), which allows the module to broadcast its identity, physical location, and health status in real-time. This automated reporting capability ensures that the control system maintains a live, accurate graphical map of the hardware landscape, allowing for unparalleled visibility into complex automation infrastructures.

Architecture Specifications and Physical Data

• Active self-identification to the centralized diagnostic register.

• Color-coded status indicators for immediate fault recognition.

• Root-cause analysis support through direct software-to-hardware mapping.

• Hardened circuitry designed for continuous power generation environments.

Industrial Deployment Contexts

The GJR2394100R1210 81AA03A-E is primarily utilized in large-scale utility and industrial sectors where high-availability control is mandatory. Application environments include:

• Power Generation Facilities Controlling primary steam valves and fuel feed systems where precise analog regulation is vital for grid stability.

• Complex Infrastructure Monitoring Implementation in large-scale facilities requiring the automated graphical hardware identification features of the Procontrol P14 system.

• Thermal Management Driving proportional actuators in large cooling and heat exchange loops within heavy industrial complexes.

• Predictive Maintenance Programs Utilizing the onboard diagnostic register to identify drifting signals or hardware fatigue before system failure occurs.

Q: How does the 81AA03A-E assist in rapid troubleshooting?

A: The module automatically populates the CDS diagnostic register; when an anomaly occurs, the software highlights the specific module and displays a precise fault description, eliminating manual searching.

Q: Is the graphical representation of this module color-coded?

A: Yes, the Procontrol P14 system uses standardized color-coding on the operator interface to indicate whether the module is healthy, experiencing a warning, or in a fault state.

Q: What is the primary benefit of the CDS integration?

A: It allows for proactive maintenance by providing real-time data on the module’s location and status, ensuring that maintenance personnel know exactly which cabinet and slot to service.

Q: Can this analog output module be used in systems other than Procontrol P14?

A: This specific module is optimized for the P14 architecture to take full advantage of the specialized diagnostic features and communication protocols inherent to that ABB system.

Q: What is the significance of the Swedish origin of this board?

A: Being manufactured in Sweden ensures the hardware meets ABB’s highest quality standards for heavy industrial reliability, particularly in the energy and power sectors.
