Product Overview

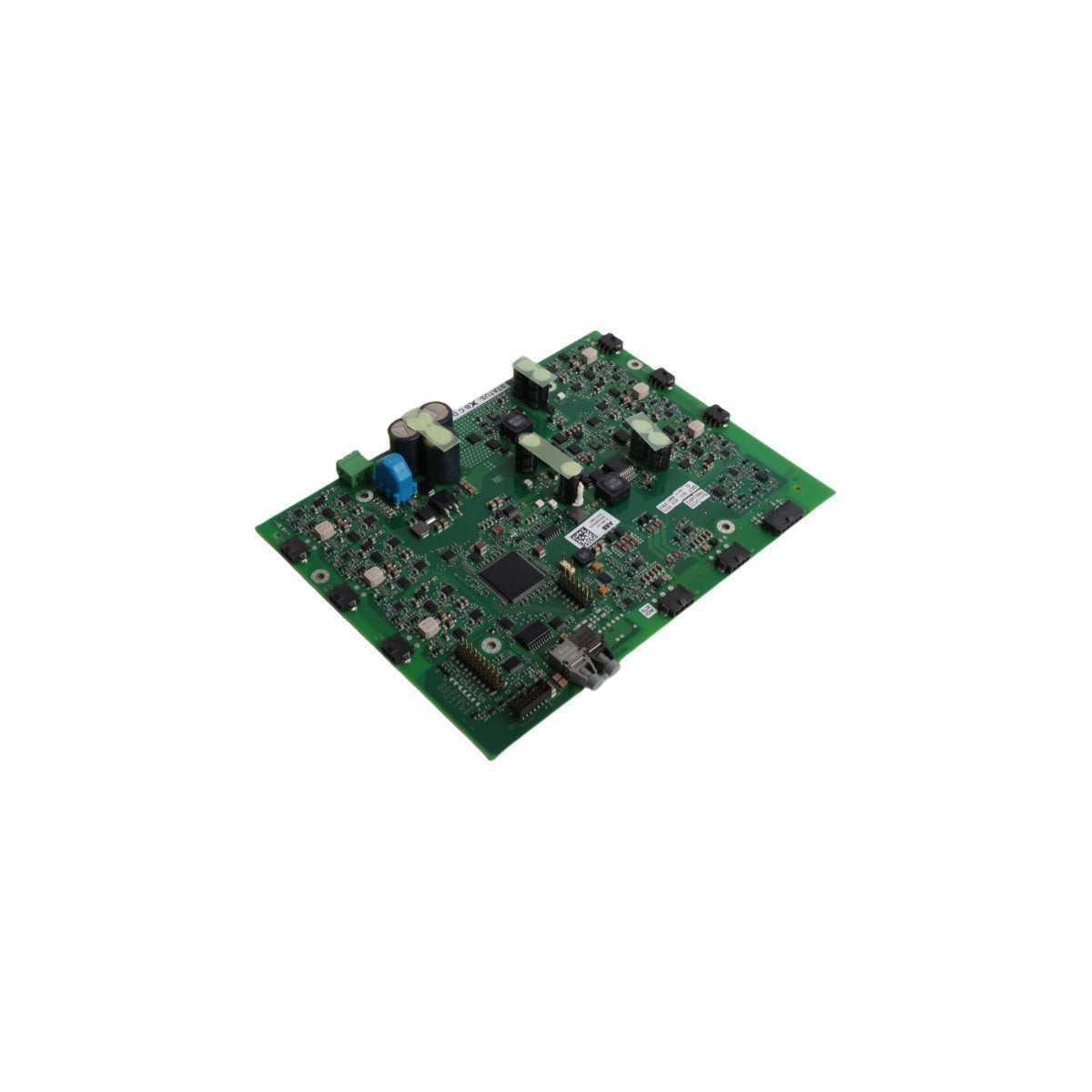

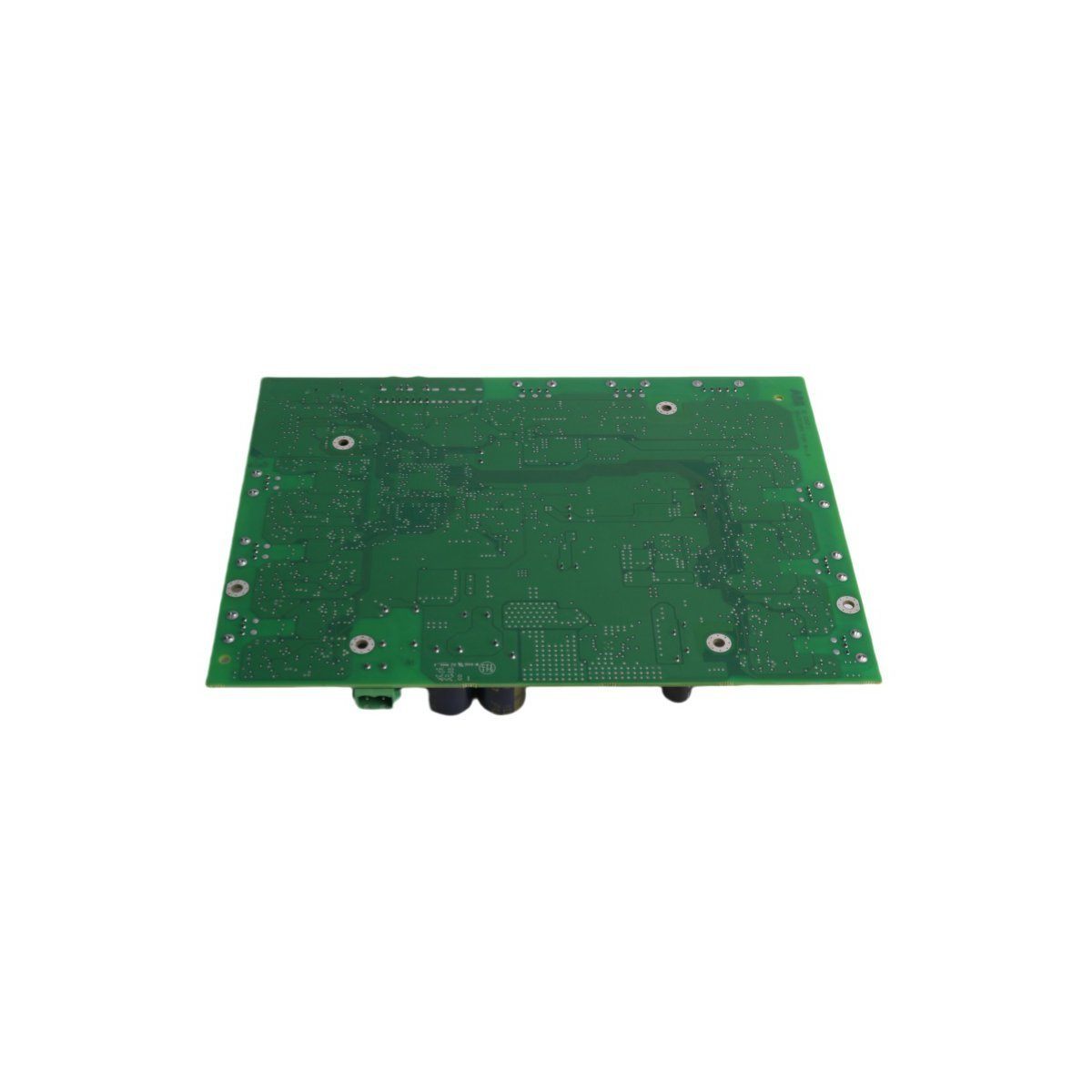

The ABB GCC960C102, cataloged under order number 3BHE033067R0102, is a high-reliability Phase Interface and Drive Board engineered for the Advant OCS and 800xA control platforms. This module serves as a critical link in industrial inverter and converter systems, facilitating precise signal modulation and power stage interfacing. Built to withstand the rigorous demands of heavy industry, the GCC960C102 ensures seamless data flow and command execution between the central control logic and field-level drive hardware. Its ruggedized Swedish construction and advanced circuitry make it a preferred choice for facilities requiring 24/7 operational continuity in unconditioned or volatile environments.

Environmental Endurance and Hardware Parameters

• Model Identification GCC960C102

• Part Reference 3BHE033067R0102

• Component Type Drive / Phase Interface Board

• Input Voltage Standard 24V DC Logic Power

• Operational Thermal Range -20 to +70 Degrees Celsius

• Storage Thermal Tolerance -40 to +85 Degrees Celsius

• Atmospheric Resilience 5 percent to 95 percent Non-condensing Humidity

• Module Mass 0.2 kg

• Physical Footprint 21.1 x 16.1 x 2.5 cm

• System Integration Distributed Control System (DCS) / Ethernet Router Support

• Manufacturing Origin Sweden

Specialized Industrial Deployment

The robust architecture of the 3BHE033067R0102 GCC960C102 makes it an essential component across various high-stakes sectors:

• Energy Generation Managing phase synchronization and drive control in power plant turbine systems.

• Petrochemical Extraction Reliable operation in outdoor oil and gas skids where temperature fluctuations are extreme.

• Heavy Metallurgy Controlling high-power motor drives in steel mills where dust and humidity are prevalent.

• Marine Systems Integration into shipboard automation for propulsion and auxiliary motor control.

• Advanced Processing Serving as a high-speed interface board in complex manufacturing lines requiring Ethernet-linked diagnostic feedback.

Q: What is the primary function of the GCC960C102 in an ABB system?

A: It acts as a Phase Interface Board that modulates signals between the control system and the drive power stage to ensure accurate motor regulation.

Q: Can this board be installed in outdoor control cabinets?

A: Yes, with an operating range of -20 to +70 Degrees Celsius and high humidity resistance, it is specifically designed for environments that experience significant climate variation.

Q: Is the 3BHE033067R0102 compatible with older Advant OCS systems?

A: The GCC960C102 is designed for cross-platform compatibility, supporting both legacy Advant OCS setups and modern 800xA distributed control architectures.

Q: How does the board prevent component degradation in humid areas?

A: The design incorporates high-quality protective coatings and materials that prevent condensation buildup and resist chemical corrosion in environments with up to 95 percent humidity.

Q: Does this drive board require specialized cooling?

A: While it has excellent thermal tolerance, it is generally recommended to maintain standard airflow within the DCS cabinet to ensure the longevity of all integrated components.
