Product Overview

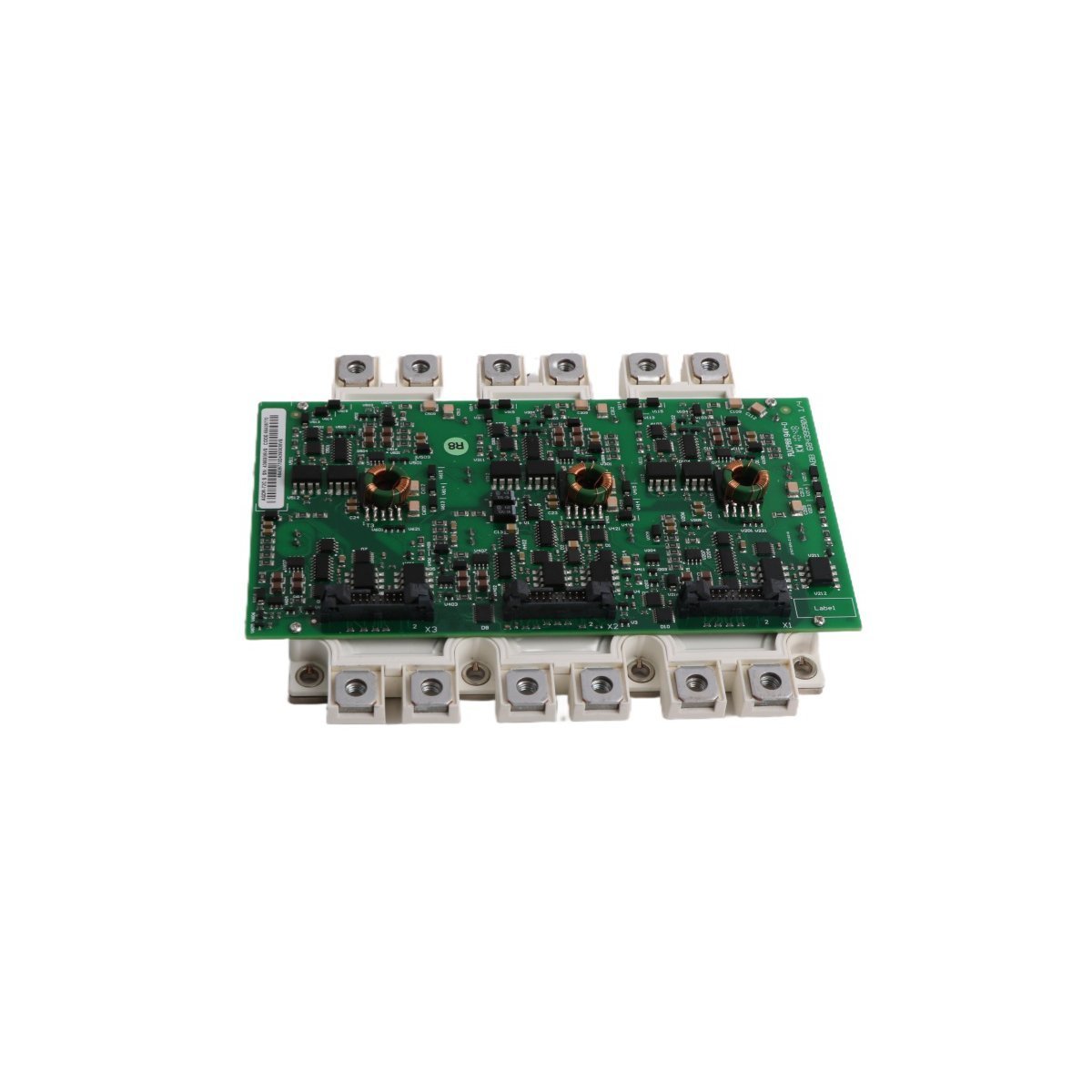

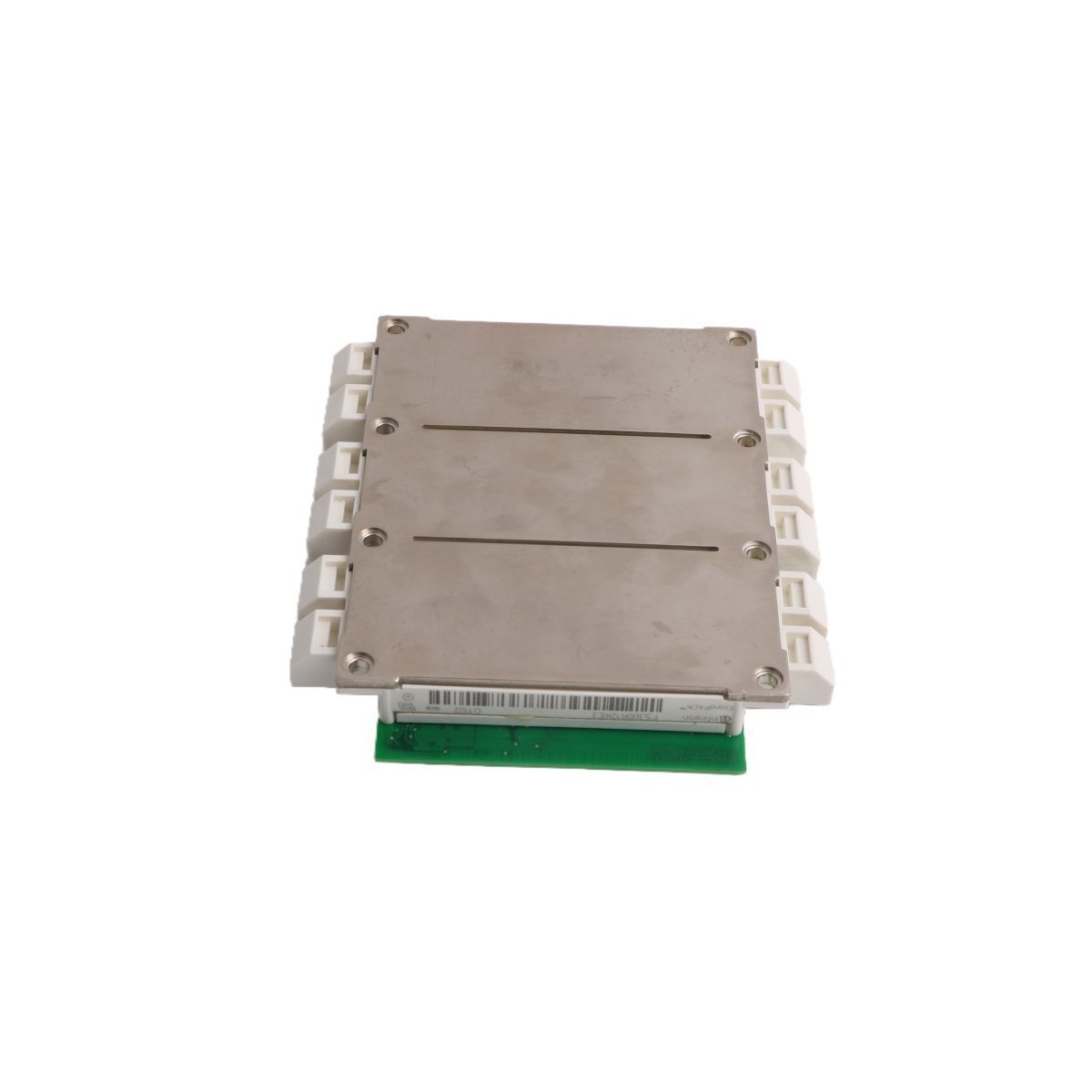

The FS300R12KE3/AGDR-62C is a high-capacity Insulated Gate Bipolar Transistor (IGBT) power module, engineered by ABB specifically for integration within ACS800 frequency converter systems. This unit functions as a critical switching element in the inverter stage, converting DC bus voltage into a variable-frequency AC output for precise motor speed and torque regulation. The module integrates both the power semiconductor chips and the gate driver circuitry (AGDR-62C), ensuring high-speed signal response and robust thermal management. By utilizing low-loss trench technology, it minimizes energy dissipation during high-power switching operations, making it a cornerstone for maintaining the efficiency of industrial drive cabinets.

Fundamental Hardware Attributes

The physical and electrical properties of the FS300R12KE3/AGDR-62C ensure reliable performance under extreme industrial conditions.

• Manufacturer: ABB

• Model Designation: FS300R12KE3/AGDR-62C

• Component Class: Power IGBT Module with Driver

• Net Weight: 2.36 kg

• External Dimensions: 14.5 x 18 x 15 cm

• Voltage Rating: 1200 V

• Continuous Current Rating: 300 A

• Thermal Resistance (IGBT): 0.08 K/W

• Thermal Resistance (Diode): 0.10 K/W

• Protection Hardware: Integrated NTC thermistor for real-time temperature tracking

• Connection Type: Press-fit contact technology for vibration-resistant electrical bonding

• Gate Threshold: 6 V gate-emitter threshold for optimized logic-level switching

• Manufacturing Origin: Sweden

Industrial Applications and Deployment

This power module is an essential spare part for facilities utilizing medium-voltage ACS800 drives. It is designed for continuous operation in heavy-duty sectors that demand high power density and minimal maintenance intervals.

Primary usage scenarios include:

• Mining and Extraction: Powering high-torque hoist motors and large-scale conveyor systems.

• Metal Processing: Driving rolling mills and cooling fan arrays where precise speed synchronization is mandatory.

• Material Handling: Managing the inverter stages for high-capacity industrial cranes and lifting equipment.

• Oil and Gas: Regulating the throughput of large centrifugal pumps and compressors in midstream and downstream operations.

The dual-component design (IGBT + AGDR board) simplifies field service, allowing technicians to restore original equipment specifications with a single, calibrated assembly.
