Product Overview

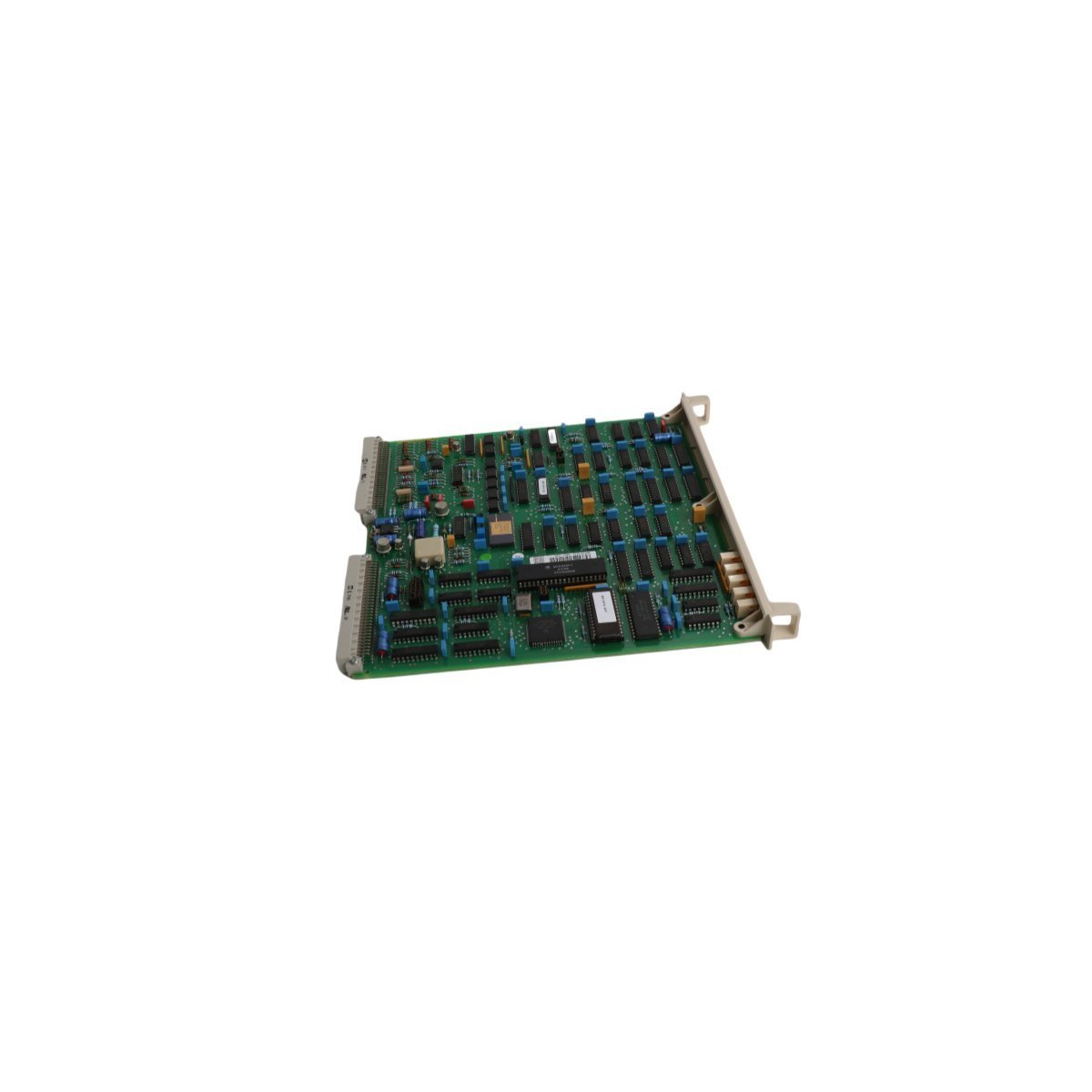

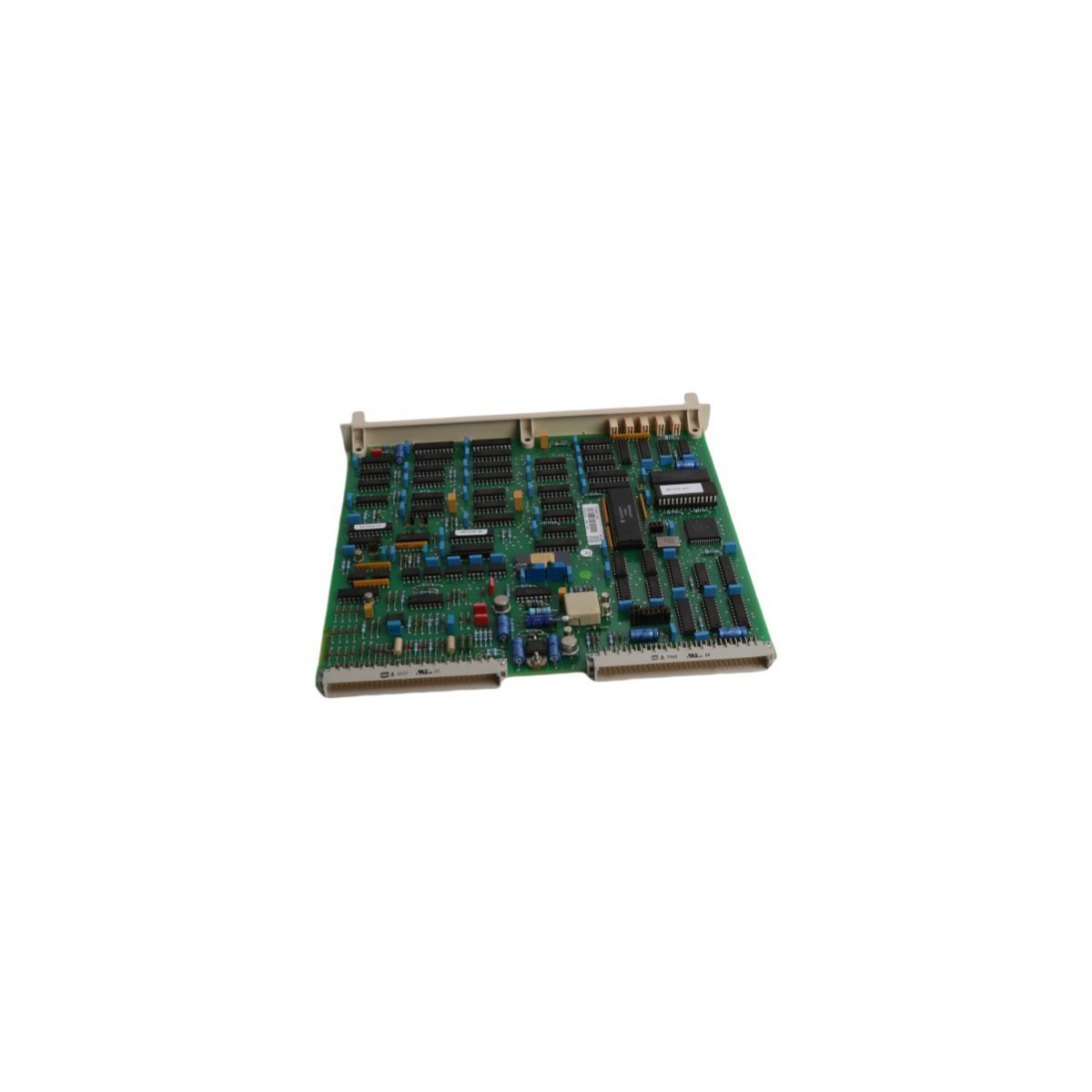

The ABB DSDP140B, identified by part number 57160001-ACX, is a specialized high-speed pulse processing unit designed for the Advant Controller systems within the S100 I/O family. This module serves as a critical interface for translating rapid pulse trains from field sensors—such as incremental encoders or flow meters—into actionable data for a Distributed Control System (DCS). By offloading the high-frequency counting tasks from the main processor, the DSDP140B ensures precise positioning and flow measurement without compromising system scan times. It is engineered for long-term stability in Sweden and maintains a compact form factor for dense control cabinet installations.

Essential Performance Specifications

• Module Architecture: Dual-channel high-speed counter interface.

• Pulse Frequency: Supports input signals up to 30kHz for high-velocity tracking.

• Voltage Rating: Nominal operating voltage of 24V DC (Standard I/O logic) with isolation capabilities.

• Physical Footprint: 2.0cm x 25cm x 24.5cm.

• Mass: Approximately 0.4 kg.

• System Compatibility: Fully integrated with ABB S100 I/O racks and MasterPiece 200/1 systems.

• Hardware Interface: High-density connection terminals for field wiring.

• Reliability: Built-in diagnostics for signal integrity and hardware status monitoring.

Strategic Industrial Implementations

The DSDP140B is deployed in sectors requiring millisecond-level accuracy for motion and quantity monitoring. In the pulp and paper industry, it is frequently utilized for paper machine speed synchronization and length measurement. Within chemical processing plants, it acts as the primary interface for turbine flowmeters to calculate precise volumetric totals. It is also extensively used in metal processing for strip thickness control and positioning of hydraulic actuators where high-frequency feedback is mandatory for safety and quality assurance.
