Product Overview

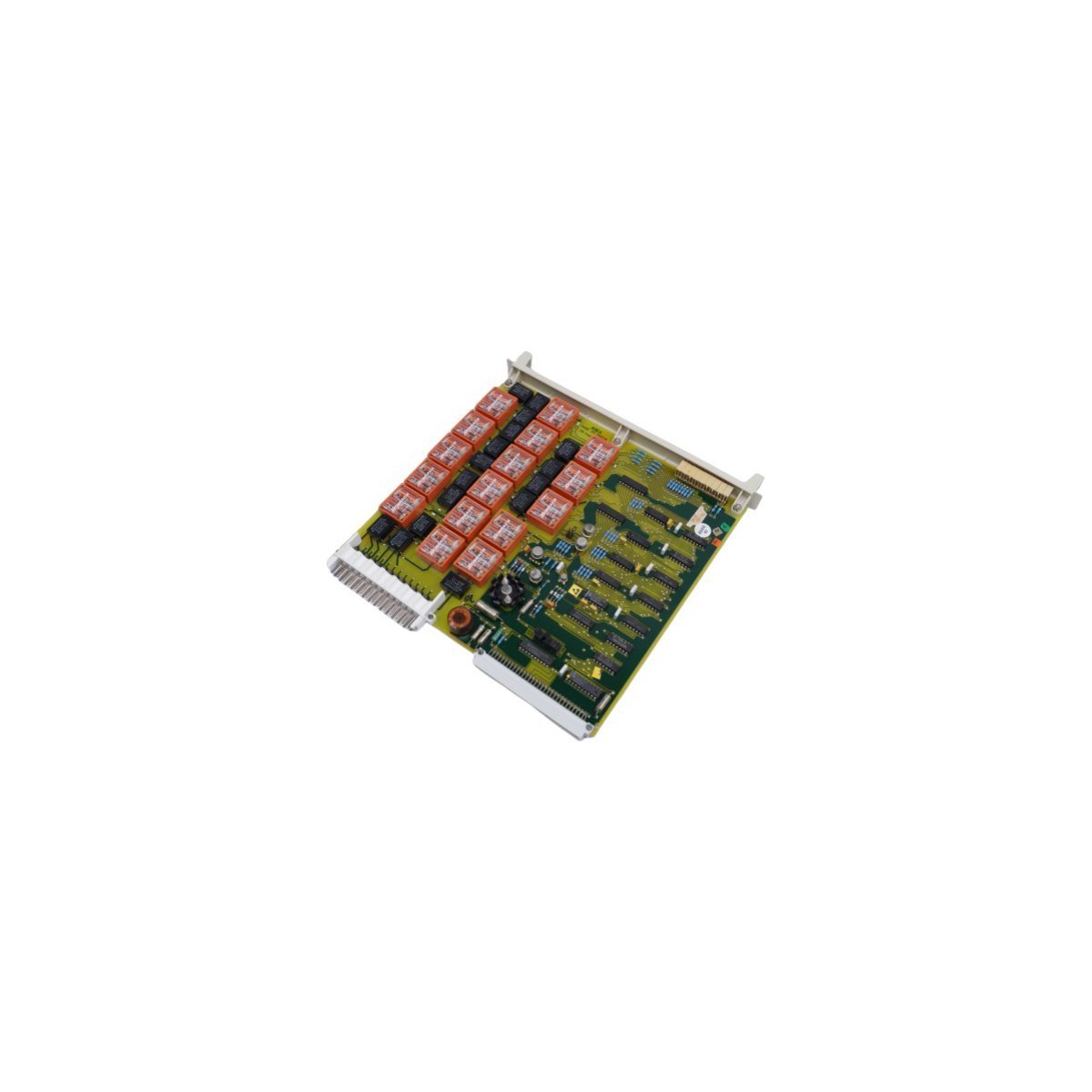

The DSDO131 57160001-KX is a specialized digital output component designed for the ABB Advant OCS and MasterPiece systems via the S100 I/O bus architecture. This module serves as a reliable link for the Distributed Control System (DCS), allowing the central processor to actuate field-side discrete equipment. By providing 16 independent output channels (typically configured as 2 groups of 8), the DSDO131 enables the automation of switches, relays, and motor starters. Engineered for high-speed logic execution and long-term durability, this unit is a staple in legacy system support and modern industrial expansions, ensuring deterministic control over critical process variables.

Hardware Specifications and Environmental Resilience

The DSDO131 is manufactured to rigorous Swedish quality standards, focusing on signal isolation and heat management within high-density control cabinets.

• Channel Configuration: 16 Digital Output points.

• Bus Compatibility: S100 I/O System.

• Network Integration: Supports data exchange through Ethernet-based routers and Modbus TCP/IP gateways.

• Operational Temperature: Verified for stable performance between -25°C and +60°C.

• Physical Mass: 0.58 kg (Shipping weight).

• Module Dimensions: 2cm x 25.5cm x 24.3cm.

• Isolation Features: Galvanic isolation between internal system logic and field-side electrical circuits.

• Power Efficiency: Optimized internal circuitry to reduce thermal load during high-frequency switching operations.

Strategic Process Deployment

This Digital Output module is extensively utilized in sectors where discrete control reliability is a prerequisite for safety and production efficiency. In power generation and utility management, the DSDO131 57160001-KX is often tasked with managing the sequencing of auxiliary pumps and valve actuators, where its high-speed processing prevents timing errors in automated start-up routines. It is equally effective in the chemical and manufacturing industries for controlling solenoid-driven machinery and status indicators. Because the DSDO131 is part of the long-standing S100 I/O family, it offers a stable replacement or expansion path for facilities utilizing MasterPiece 200 or Advant Controller 450 systems, allowing for the continued optimization of plant assets without requiring extensive field-wiring modifications.
