Product Overview

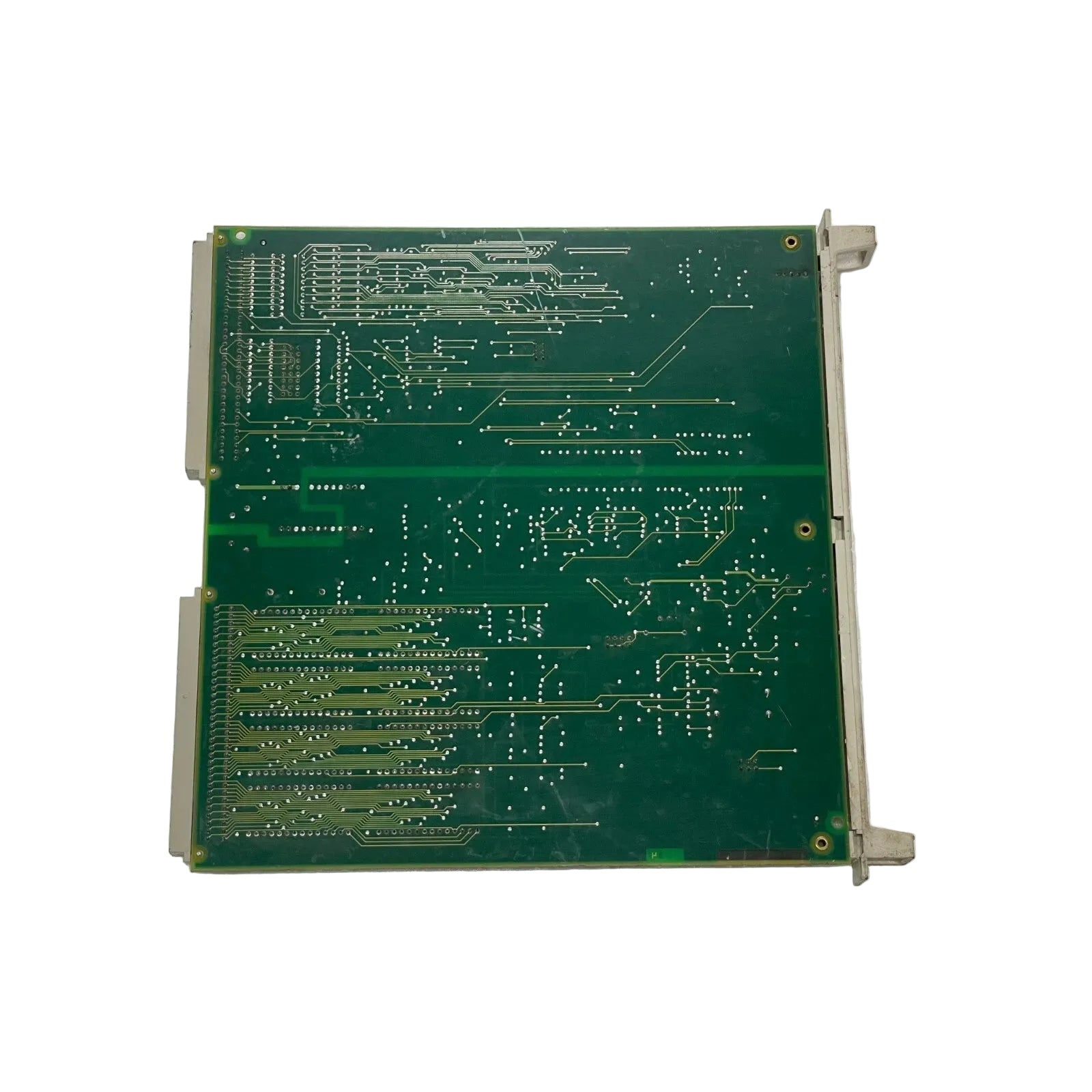

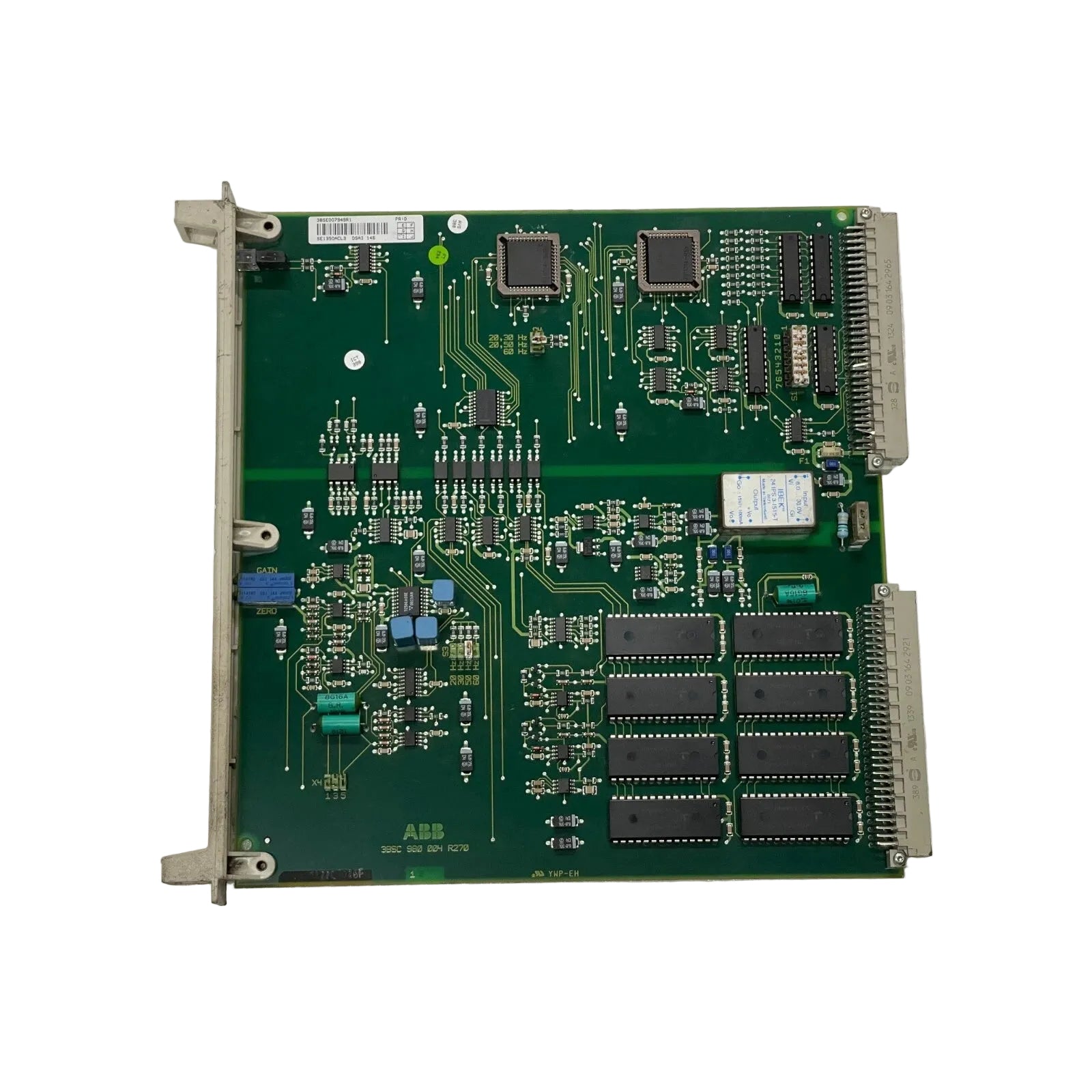

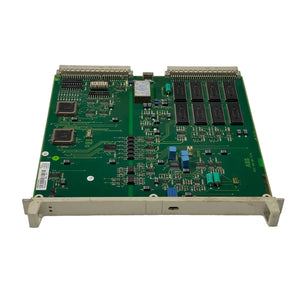

The ABB S100 I/O DSAI146 (Engineering Part Number: 3BSE007949R1) operates as a high-precision, industrial-grade RTD Analog Input Board engineered explicitly for the legacy Advant OCS and MasterPiece 200 series Distributed Control Systems. This vital processing module directly reads resistance temperature detectors to track core thermal states across large plant networks. It delivers unmatched reliability in critical applications, such as monitoring large motor bearings, supervising turbine winding temperatures, and handling distillation column heat profiles.

In high-capacity manufacturing complexes, unmitigated thermal drift or intermittent signal fluctuations compromise process safety margins and can trigger unnecessary emergency shutdowns. The DSAI146 module prevents this by providing deep physical isolation and direct hardware-level mains frequency suppression filtering at 20 Hz and 60 Hz. This onboard active filter design blocks heavy inductive noise generated by adjacent switchgear. By implementing this ruggedized thermal conversion module, instrumentation teams preserve raw signal accuracy and maintain absolute operational safety across thermal processes.

Signal Processing Matrix and Mains Filtering Engine

This analog hardware board utilizes a multi-channel analog-to-digital converter framework optimized for resistive element tracking. The dedicated internal circuitry continuously injects a stabilized, low-level sensing current through the field RTD elements to calculate precise resistance variances without inducing self-heating errors at the sensor tip.

Dual Frequency Noise Rejection

The built-in filtering matrix addresses the specific challenges of industrial power grids by incorporating selectable 20 Hz and 60 Hz mains frequency line attenuation profiles. This hardware-level filter actively suppresses electromagnetic hum and common-mode grid interference before the signal reaches the internal data conversion bus.

Broken Wire Lead Compensation

The card architecture integrates automated three-wire lead resistance compensation circuitry. It measures and cancels out the inherent copper wire resistance present over long cable paths from the marshalling rack to the field sensor, guaranteeing true process value registration at the control desk.

Physical Specifications and Functional Constants

Field Wiring Protocols and Module Mounting Guidelines

Insert the DSAI146 board carefully along the designated card guide channels of the S100 I/O subrack enclosure, pushing firmly until the heavy-duty rear multi-pin DIN plug seats fully into the active backplane.

Shielded Field Twisted Pair Termination

Technicians must route all field RTD signal cables through dedicated low-voltage cable trays away from 380V/410V AC power distribution lines. Ground the overall cable shield braid at a single instrumentation clean earth terminal bar within the local marshalling cabinet to eliminate stray ground current loops.

Three-Wire Lead Balancing

Always utilize matching wire lengths and equal gauge cross-sections for all three conductors connected to a single RTD channel. Mismatched conductor properties upset the bridge balance calculations inside the module, introducing permanent calibration offsets into the processed temperature readout.

Thermal Endurance and System Integration Capabilities

The DSAI146 board relies on a hardened, passive thermal design that allows continuous operation across hot marshalling cubicles without requiring individual spot cooling fans. The factory coating prevents trace tracking faults caused by humid environments and salty coastal air.

Unified Advant System Synergy

The module bridges directly into existing S100 rack arrangements, maintaining complete data bus compatibility with primary Advant controllers. This direct hardware replication allows facilities to swap aging or damaged input boards seamlessly, avoiding the extensive costs, safety risks, and lengthy validation procedures associated with a complete DCS migration.

Ordering info

The factory-certified spare parts fulfillment package contains the following verified components:

(1) Brand New ABB DSAI146 RTD Analog Input Board Module

(2) Pre-Configured Edge Alignment Rails

(3) Original Factory Quality Clearance Documentation

Expedited Global Freight and Protective Warehousing

Delivery time: 2-7 days when payment finish. All critical automation spares route through leading international courier services including DHL, FEDEX, and UPS to secure rapid, fully insured distribution worldwide. To protect the delicate CMOS components from damage, every board travels sealed inside specialized multi-layer anti-static industrial packaging complete with dense shock-deflecting open-cell foam padding.

Temperature Input Module Operations FAQ

Q1: How does the DSAI146 identify and display a broken field sensor wire or a completely burned-out RTD element?

A1: The module incorporates built-in over-range threshold monitoring logic. If a field wire snaps or the sensor opens, the loop resistance leaps toward infinity; the hardware immediately detects this value spike, marks the specific channel data flag as invalid on the system bus, and turns on the front panel red error LED to guide field service technicians.

Q2: What is the primary operational purpose of the 20 Hz and 60 Hz filter ratings specified on this board?

A2: These frequencies specify the exact notch settings of the onboard hardware filters. Technicians configure these parameters to match the local power grid frequency or nearby heavy machinery rotation signatures, enabling the card to drop out cyclical harmonic noise while reading sensitive low-voltage resistance signals.

Q3: Can an operator mix different sensor elements like Pt100 and Cu50 on the same DSAI146 board?

A3: The fundamental hardware channel matrix is optimized for standard industrial RTD curves. While the card reads basic resistance variations, engineers must configure the individual channel sensor types and scale curves inside the database software to ensure accurate translation of different metals across the shared input board.
