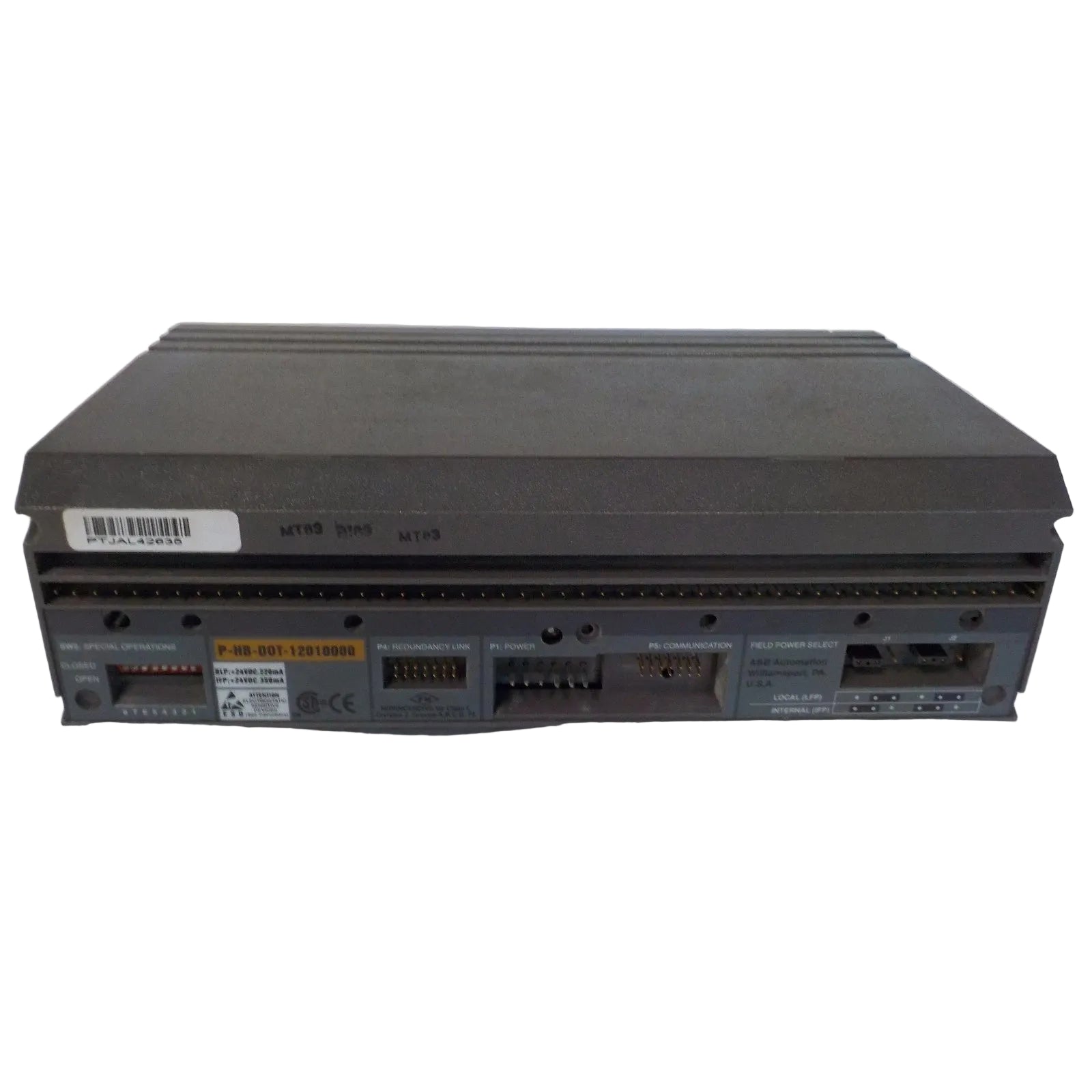

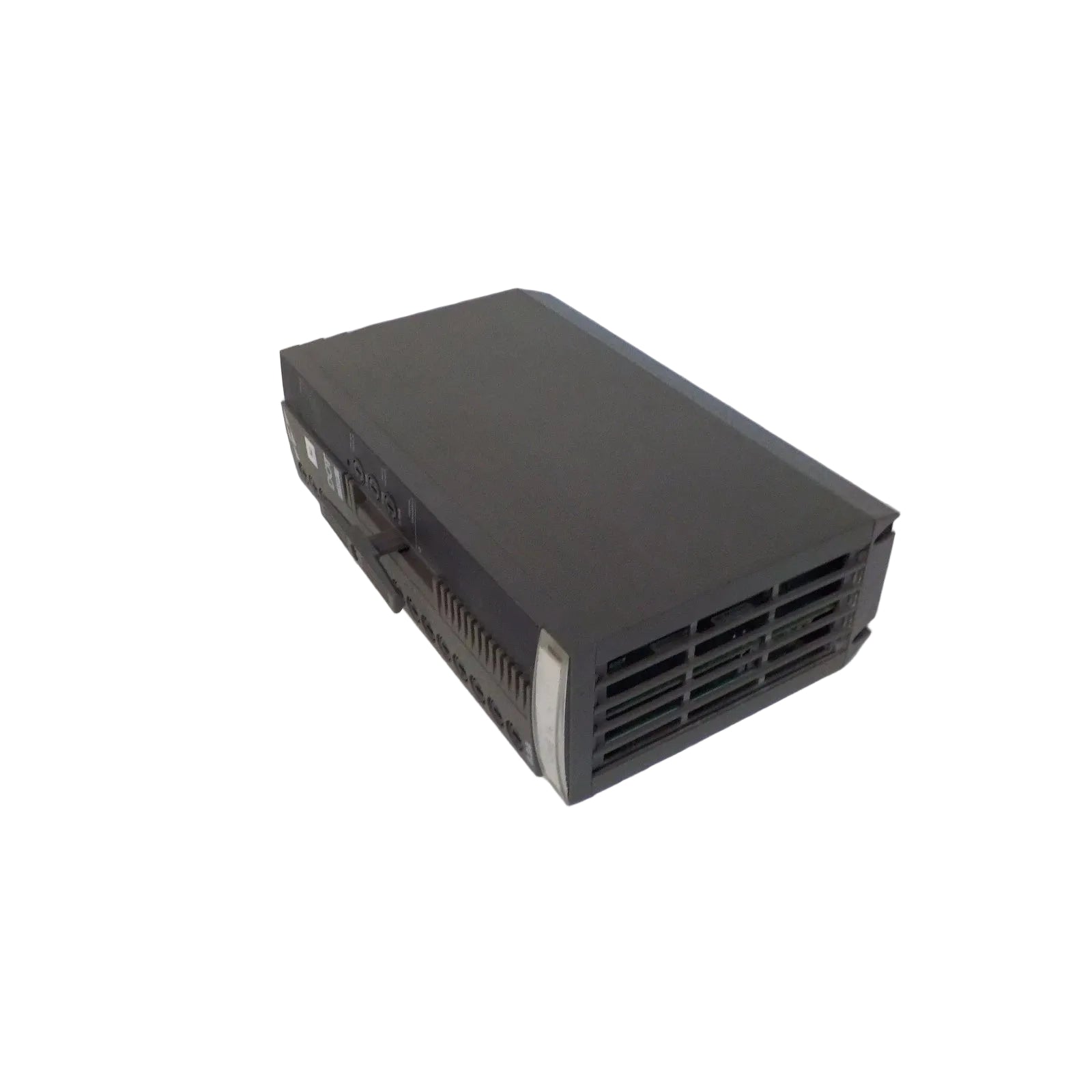

Configured for direct physical/electrical execution in Bailey Infi 90 systems, the ABB PHBDOT12010000 (DOT120 Digital Output Module) operates as a dedicated hardware component for switching external field circuits via electromechanical relays. The module routes logic-driven control actions from the process station to discrete field devices, providing 16 isolated Single Pole Double Throw (SPDT) relay channels capable of handling both AC and DC switching thresholds.

Technical Parameters

Firmware Flash and Deterministic Communications

The module incorporates an internal 16-bit processor running at 16 MHz to coordinate local block logic independent of the master controller cycle times. Firmware flash compatibility allows direct synchronization with the active Harmony system architecture. Peer-to-peer data distribution across duplicate blocks utilizes a dedicated redundancy link operating at a deterministic data rate of 1 Mbaud. This network configuration enforces time-critical output state verification and overrides output command conflicts prior to energizing the internal coil drivers.

Engineering FAQ

Q: What happens to the relay contacts if the 21.6 to 28.0 VDC block logic power drops below the minimum threshold?

A: A drop below 21.6 VDC forces the module into a hardware reset state, de-energizing all internal electromechanical relay coils. All 16 SPDT channels revert immediately to their unpowered, normally closed (NC) physical states.

Q: Can the 16 output channels mix 24 VDC and 240 VAC loads simultaneously across different channels?

A: Yes. Because the module utilizes individual electromechanical SPDT relays with a tested common mode isolation of 300 VDC/VRMS at 60 Hz, adjacent channels can switch distinct voltage types and potentials, provided the 3 A current limit per channel is not exceeded.

Q: Is this module hot-swappable while the Harmony Block communication network is active?

A: No. Power to the block logic terminal and the field power sources must be isolated before removing or inserting the module to prevent electrical arcing across the backplane pins and memory corruption within the 64 kb SRAM.

Terminal Field Installation Guidelines

• Mounting Orientation: Secure the module on the standard mounting plate. Ensure correct alignment with the backplane connectors to prevent bending the pins during insertion.

• Wiring Separation: Route low-voltage block logic power cables and high-voltage AC field wiring through separate conduits to prevent electromagnetic coupling.

• Grounding Protocol: Connect the chassis ground terminal directly to the master station instrument ground bus. Ensure a low-impedance path to ground to maintain the effectiveness of the continuous short-to-ground input protection.

• Conductor Sizing: Use copper conductors rated for at least 75 deg C to accommodate the maximum 3 A load per output terminal.

Ordering Info

• PHBDOT12010000 Digital Output Block (Main Unit)

• Integrated On-board Fuses (Pre-installed)

• Factory Test Certification Matrix

• Hardware Installation Leaflet
