Product Overview

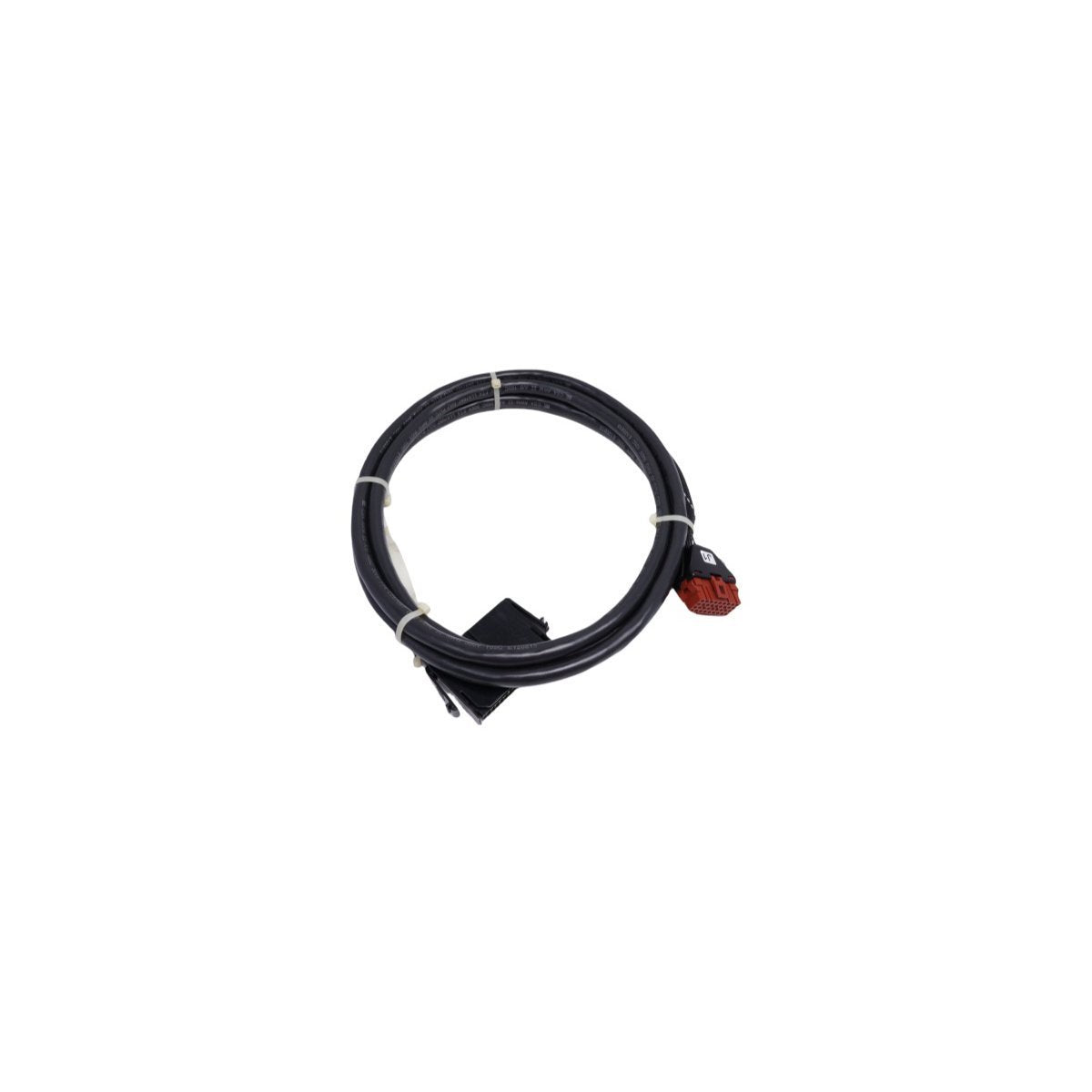

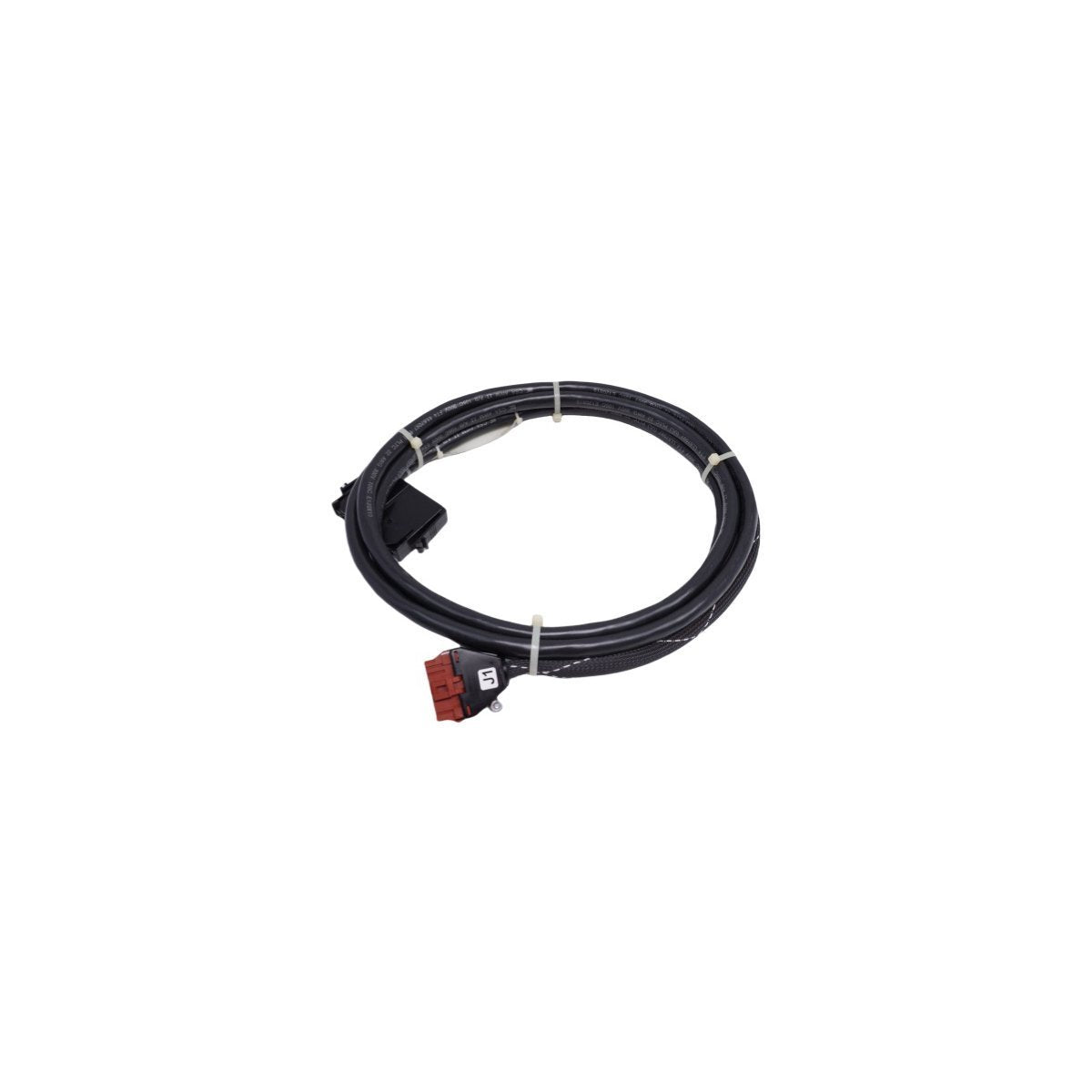

The ABB NKTU01-10 is a specialized interconnectivity solution engineered for the legacy Bailey Infi 90 and Net 90 Distributed Control Systems (DCS). This 10-foot (approx. 3 meters) high-integrity cable facilitates the vital link between I/O modules and their respective Termination Units (TU). Designed to maintain signal purity in electrically noisy industrial environments, the NKTU01-10 ensures that field data is accurately transmitted to the processing logic. Its ruggedized shielding and heavy-duty connectors are built to withstand the physical rigors of cabinet wiring while providing a secure, vibration-resistant interface for long-term operational stability.

Technical Construction & Specifications

• Cable Length: 10 Feet / 3.05 Meters

• System Compatibility: Bailey Net 90 / Infi 90 DCS Architecture

• Interface Function: Connects I/O Module to Termination Unit (TU)

• Physical Protection: Industrial-grade outer jacketing for abrasion resistance

• Signal Integrity: Optimized for low-attenuation data and signal loop transmission

• Environmental Resilience: Wide thermal operating window for non-climate controlled cabinets

• Weight: 0.8 kg

• Logistics Details: Dimensions 34.5cm x 31cm x 5cm; Manufactured in Sweden

Field Deployment & Industrial Utility

The NKTU01-10 is primarily utilized in power generation, chemical processing, and refinery operations that rely on Bailey Infi 90 infrastructure for plant-wide control. It serves as the physical backbone for signal loops, ensuring that process variables from the field reach the controller without interference. Because of its 10-foot reach, it is ideal for connecting modules across different mounting rails or within adjacent cabinets in a standard DCS lineup. This cable is a critical spare part for maintenance teams looking to refresh aging infrastructure or expand existing Net 90 systems without compromising the original manufacturer's specifications for signal timing and impedance matching.
