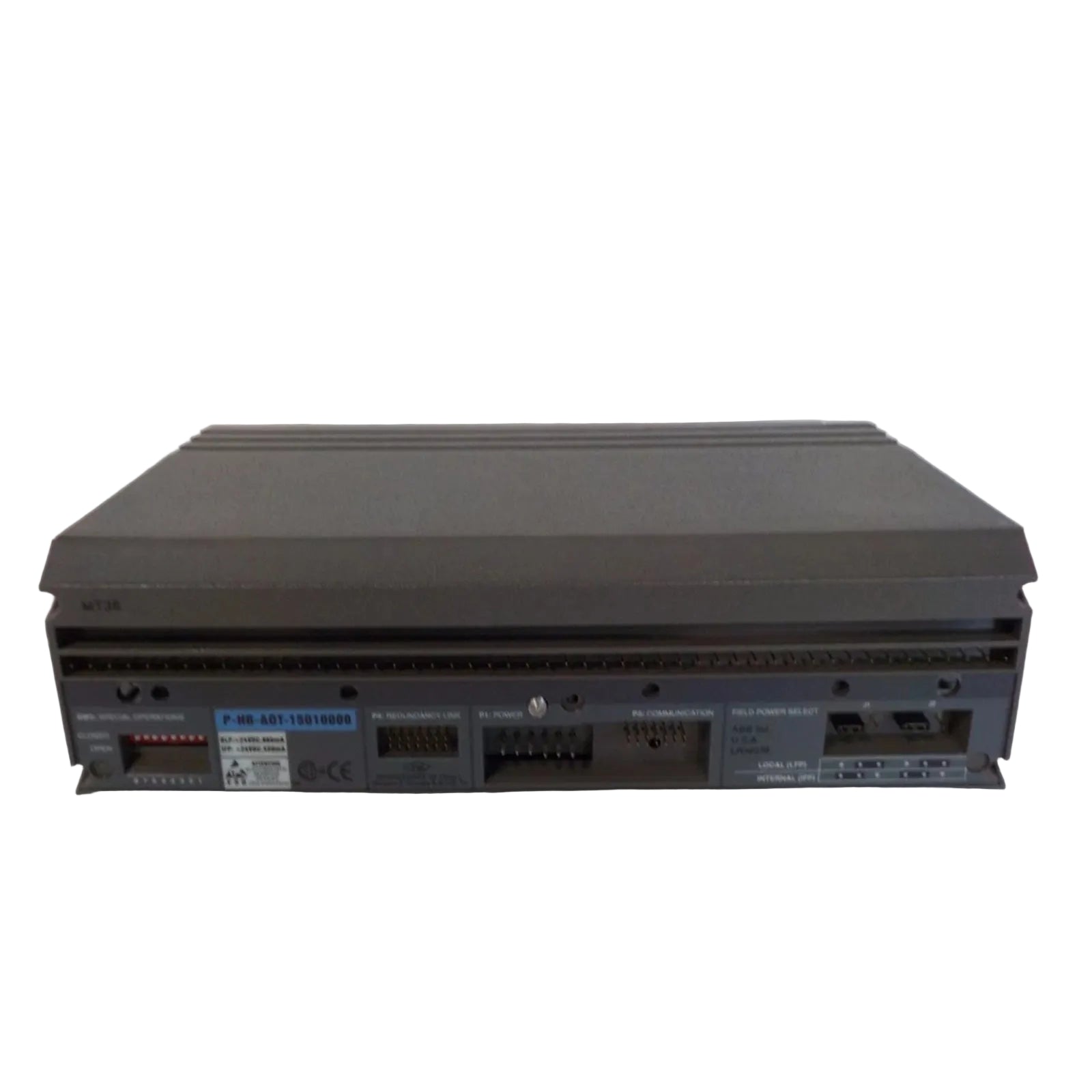

The ABB P-HB-AOT-15010000, also cataloged as the AOT-150 Analog Output Module, operates as a dedicated hardware component for multi-channel digital-to-analog signal modulation within Infi 90 platforms. It converts 12-bit digital control variables from the system bus into 16 independent, non-isolated 4-20 mA DC current loops to regulate terminal field actuators, positioning valves, or external recording devices.

Electrical and Physical Parameters

Deterministic Network Backplane & Firmware Synchronization

This output assembly maps its registers directly onto the local processing chassis to conform with predefined backplane bus communication velocity constraints. The 12-bit digital-to-analog converter (DAC) array updates its output channels in synchronization with the synchronous transmission cycles of the hosting processing architecture. The hardware retains static execution parameters regardless of the firmware flash compatibility variables across neighboring field controllers, maintaining stable step response latency and preventing I/O density scaling drift during concurrent loop updates.

Hardware Validation & Diagnostic Checks

Q: What mitigation occurs if the external loop resistance exceeds the 750 \Omega limit on a channel?

A: Exceeding 750 \Omega drive capacity causes saturation of the output transistor stage for that specific loop. The channel will fail to source the commanded current up to 20 mA, resulting in a loop drive fault tracking state within the controller diagnostic registers, while other channels remain unaffected.

Q: How does the non-isolated channel architecture affect common-mode voltage across loops?

A: Because the 16 output channels share a common internal ground plane, any significant ground potential differences between different field destination points can induce return currents through the module. External loop isolation devices must be installed if field ground potentials vary.

Q: Is hot-swap removal of this card permitted during live process operations?

A: No. Withdrawing the card while energized interrupts the +5 VDC logic plane and breaks all 16 current loops simultaneously. This causes attached field devices to drop immediately to their fail-safe or unpowered state, which may induce transient errors on the shared backplane bus.

Field Installation Guidelines

• Chassis Ground Alignment: Fully engage the module within the rack enclosure card tracks, ensuring that the rear multi-pin connector seats without skewing. Fasten the front panel assembly retention screws completely to ground the front faceplate to the common metal frame.

• Current Loop Wire Routing: All 4-20 mA field lines must use twisted-pair copper wiring. Route these low-voltage signal pairs through dedicated metallic wireways or conduits separated from high-current AC main lines to suppress external electromagnetic fields.

• Shield Grounding Matrix: Terminate the outer shield of the field cables at the cabinet entry ground bar only. Do not ground the cable shield at both ends or use the module signal common pins as a shield termination point.

Procurement Package Inventory

• 1 x ABB AOT-150 Analog Output Module Assembly (Part: P-HB-AOT-15010000)

• 1 x Physical Hardware Calibration Record Certification

• Note: Field termination blocks, custom slot keying pins, and external loop power distribution links are excluded from this base part number.

Logistics Dispatch Protocols

Shipment preparation concludes within 2-7 days when payment finish confirmation is registered. All items depart from the Xiamen, China logistics hub via express routing networks managed by DHL, FEDEX, or UPS. Electronic assemblies are housed within sealed anti-static industrial packaging cells with surrounding dissipative polymer shields to block electrostatic accumulation and dampen transport vibration vectors.
