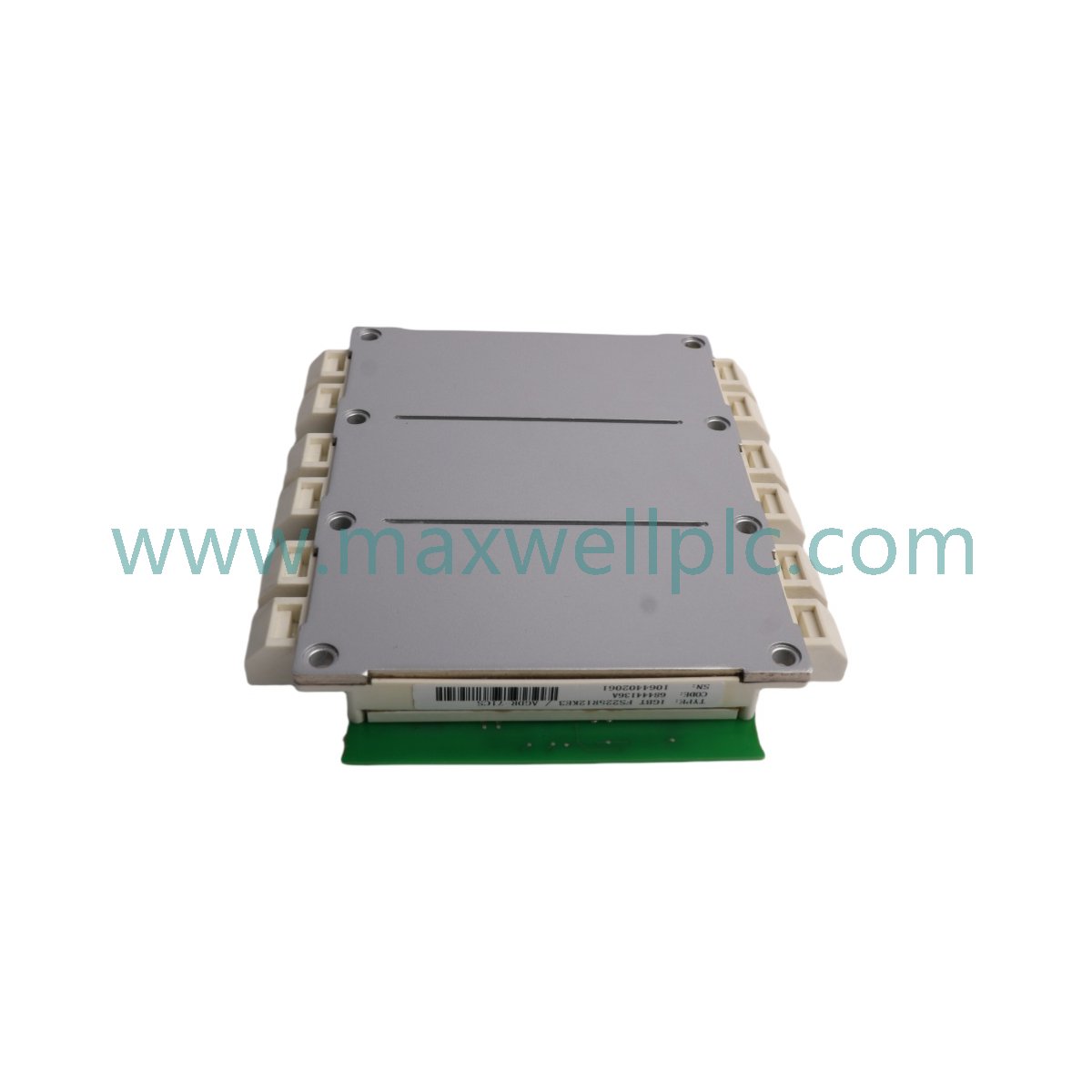

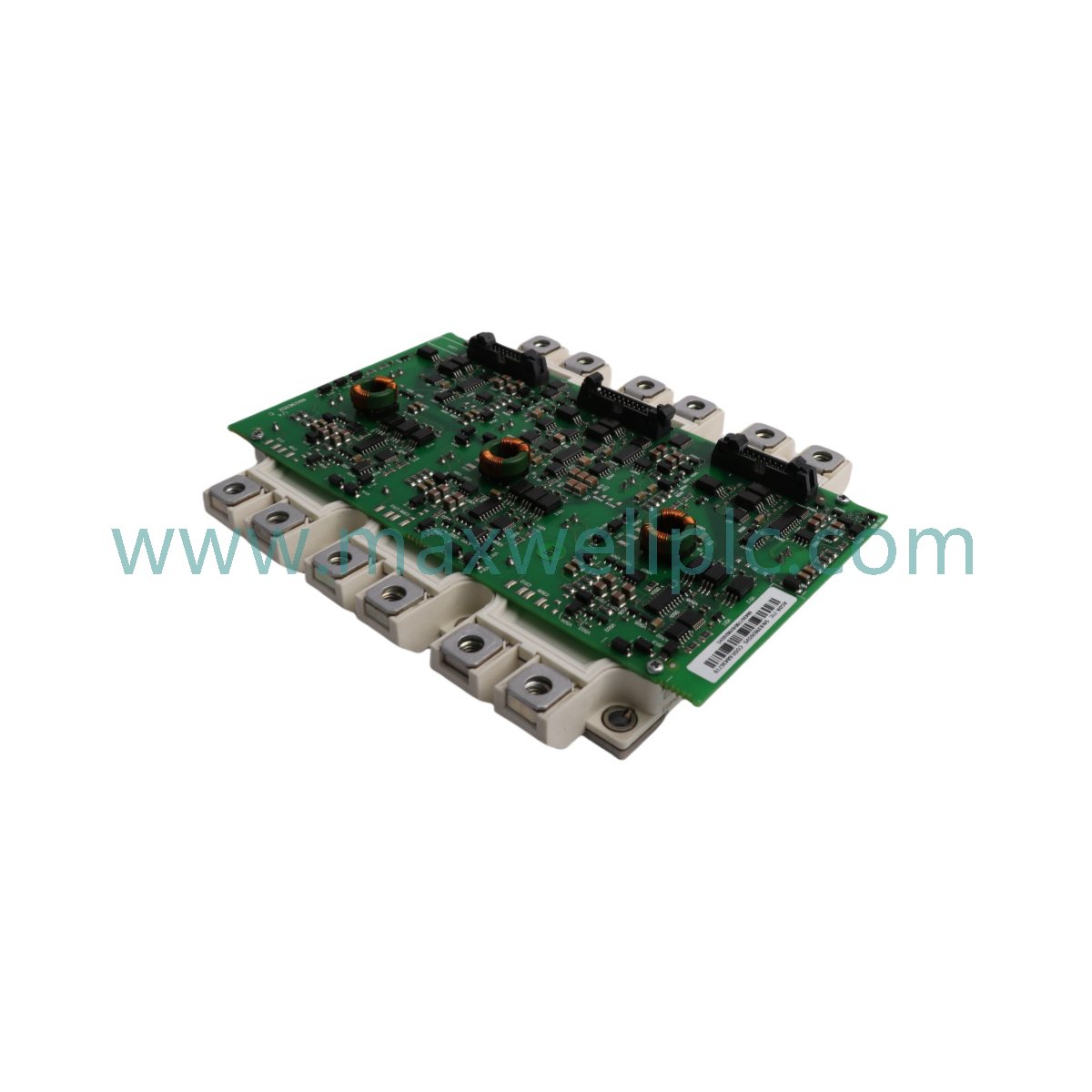

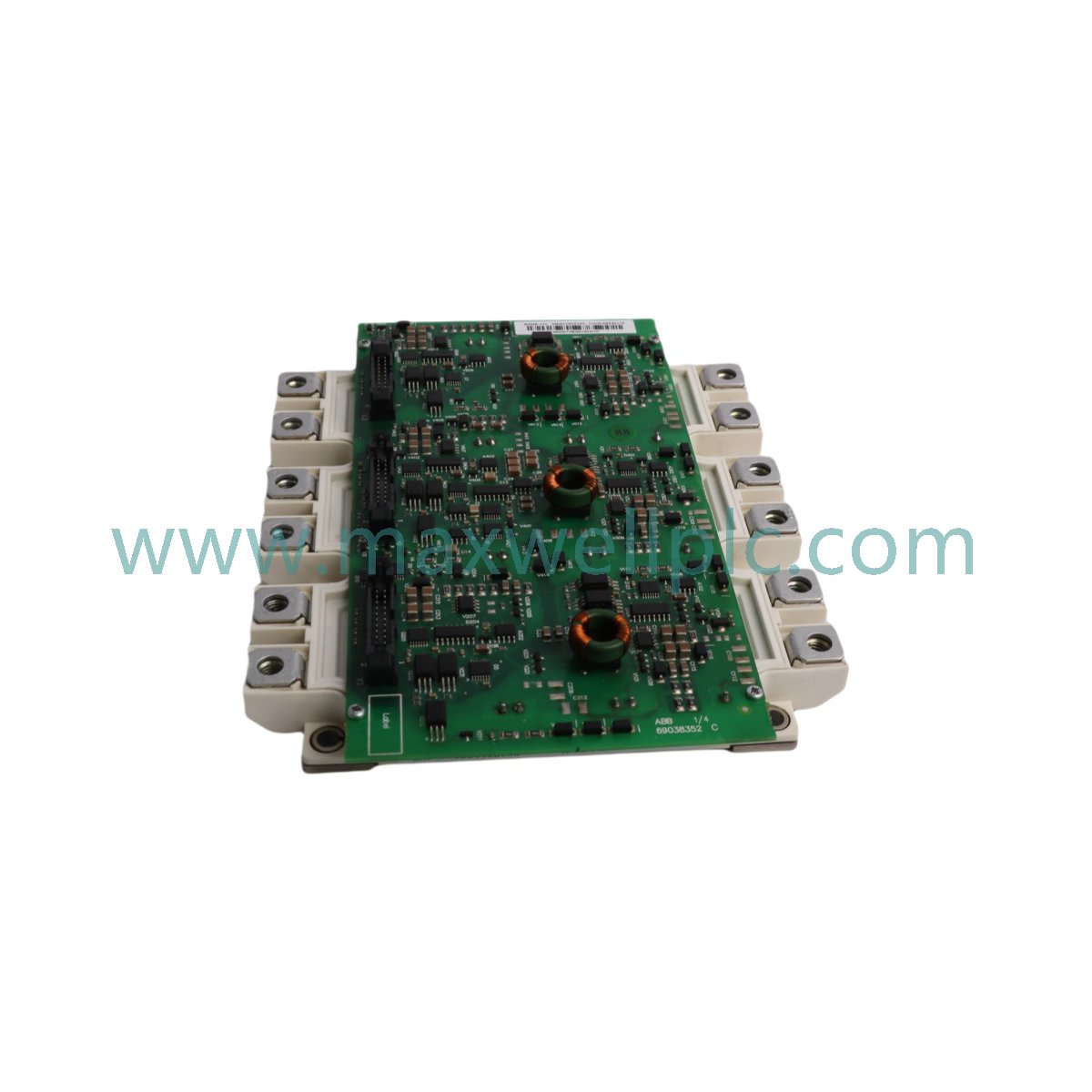

The ABB AGDR-71C, also cataloged as the AGDR-71C IGBT Gate Driver Module, operates as a dedicated hardware component for isolated gate signal transmission and switching control within ABB ACS800 high-power converter and inverter platforms. The module converts low-level control commands into gate drive signals for IGBT power semiconductors while maintaining electrical isolation between control and power stages.

Product Identification

The AGDR-71C is a dedicated IGBT gate driver board designed for ABB medium and high-power drive architectures. It is installed within converter power sections and interfaces directly with IGBT switching assemblies and associated protection circuits.

Technical Specifications

Firmware and Drive Platform Compatibility

The AGDR-71C operates within ABB drive architectures that utilize distributed gate control structures between converter control electronics and power semiconductor assemblies. The module supports deterministic switching signal transfer with low propagation delay characteristics required for synchronized operation of parallel IGBT stages.

Electrical isolation between control circuitry and power devices helps prevent disturbance propagation from high-voltage switching events into low-voltage control electronics. The module is intended for integration with ABB converter firmware and hardware platforms designed around ACS800 power conversion systems.

Ordering Information

Shipment typically includes:

• AGDR-71C IGBT Gate Driver Module

• Protective packaging

• Identification label and part number marking

Additional items may be supplied separately depending on system configuration:

• IGBT power modules

• Fiber optic communication assemblies

• Converter control boards

• Mounting hardware

• Drive service kits

Installation Recommendations

Mechanical Installation

• Verify mounting surface cleanliness before installation.

• Confirm module alignment with drive frame mounting points.

• Avoid excessive mechanical stress during fastening.

• Maintain clearance from high-vibration components.

Electrical Connections

• Confirm all power sources are isolated before servicing.

• Verify correct fiber optic or electrical signal orientation.

• Follow drive manufacturer grounding practices.

• Route control wiring separately from high-current conductors.

Grounding Practices

• Use designated protective earth connections.

• Maintain shield continuity where applicable.

• Avoid multiple unintended grounding paths.

• Inspect bonding integrity during maintenance intervals.

Technical Questions

• Does the AGDR-71C directly drive IGBT power modules?
  Yes. The module generates gate drive signals used to switch compatible IGBT power semiconductors within ABB converter systems.

• Is galvanic isolation provided between control and power circuits?
  Yes. The module architecture incorporates isolation between low-voltage control electronics and high-voltage power stages.

• Can the module be replaced independently of the converter frame?
  Replacement procedures depend on converter design, but the module is generally installed as a serviceable assembly.

• Does the AGDR-71C include fault monitoring functions?
  The module supports protection functions such as VCE monitoring and fault-related shutdown signaling within compatible systems.

• Is hot replacement supported while the drive remains energized?
  No. Installation and replacement should only be performed with all associated power sources isolated.

• What signal media can be connected to the module?
  Depending on drive configuration, the module may interface through fiber optic or electrical pulse control signals.

• Does the module contain configurable firmware?
  Available documentation identifies the AGDR-71C primarily as a hardware gate driver assembly. Firmware details are system dependent.

• What installation consideration is most important for signal integrity?
  Separation of control wiring from high-current switching conductors helps reduce electrical noise coupling and interference.
